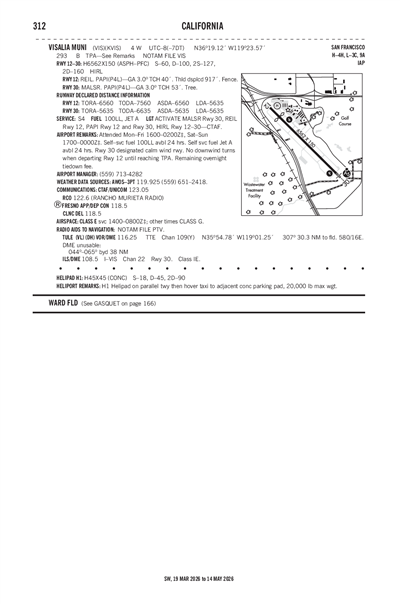

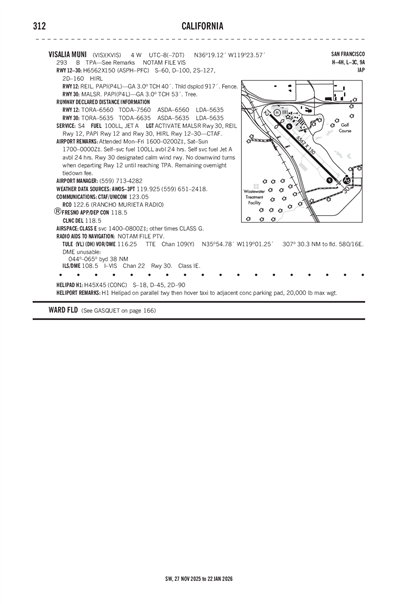

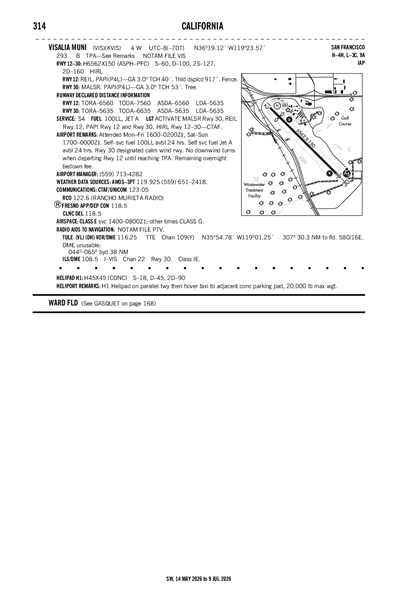

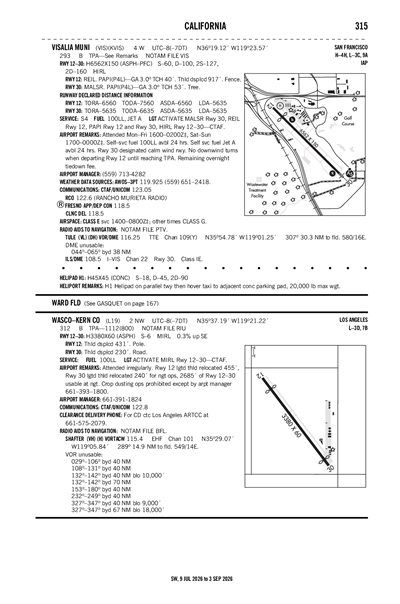

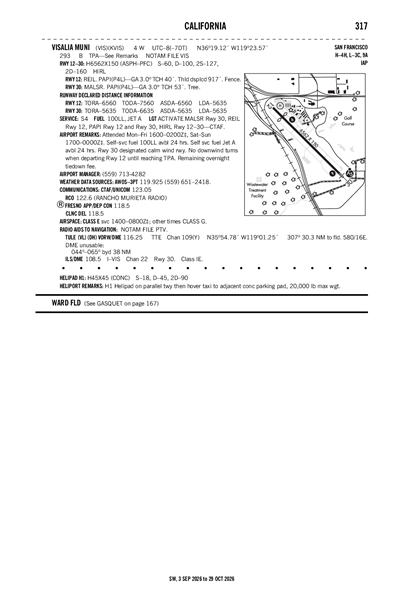

VISALIA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KVIS
ICAO KVISIATA VISLocal VIS
VISALIA MUNI
PublicPUB

4 miles W of VISALIA, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
36° 19' 07"N 119° 23' 34"W
Elevation
293' MSL
Pattern Alt
1293' MSL
Mag Variation
12°E
Declination
14°E
Fuel
JET A, 100LL
FSS
RANCHO MURIETA (RIU)
Sectional
SAN FRANCISCO
ARTCC
OAKLAND (ZOA)
Data Effective
3/19/26-4/16/26
KVIS VFR
6:56 PM PDT
Clear
10sm
72°F
41°F
30.06"Hg
330° 5kts
AO2 SLP179 T02220050 $
METAR KVIS 040156Z AUTO 33005KT 10SM CLR 22/05 A3006 RMK AO2 SLP179 T02220050 $
+ Add Your Business

KVIS FBOs

Promote Listing
Visalia Municipal Airport
UNICOM: 123.05
Phone: (559) 713-4642
Other: (559) 713-4201
No Rating Available
0 Reviews (Read | Sign In To Write)
World Fuel
As of 4/1
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.20 6.70
Full Serve 6.60 7.00
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 119.925
(559) 651-2418

Common

CTAF 123.05
ACTVT MALSR RWY 30; REIL RWY 12; PAPI RWY 12 & 30; HIRL RWY 12/30 - CTAF.
UNICOM 123.05

Clearance

Clearance Delivery 118.5

Approach

FRESNO APPROACH 118.5

Departure

FRESNO DEPARTURE 118.5

Flight Service

Flight Service 122.6
(RIU)

Terminal Area Forecast

KVIS
Fri, 4/3 4:20 PM PDT
Fri, 4/3 5:00 PM PDT - Sat, 4/4 5:00 PM PDT
VFR
5:00 PM PDT - 5:00 PM PDT
Sky Clear
6sm
VRB° 3kts
TAF KVIS 032320Z 0400/0424 VRB03KT P6SM SKC
KVIS
EffectiveExpiresCategoryNOTAM
Domestic
4/6/26
1600Z
4/6/26
2355Z
!VIS 03/007 VIS SVC AUTOMATED WX BCST SYSTEM U/S 2604061600-2604062355
1/28/26
0135Z
4/27/26
2359Z
Runway!VIS 01/008 VIS RWY 12 PAPI U/S 2601280135-2604272359
FDC
4/6/26
1600Z
!FDC 6/6638 VIS IAP VISALIA MUNI, VISALIA, CA.
RNAV (GPS) RWY 30, AMDT 2A...
WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE HJO ALTIMETER SETTING AND INCREASE LPV DA TO 534 FEET; INCREASE LNAV/VNAV DA TO 690 FEET; INCREASE ALL MDAS 40 FEET AND LNAV VISIBILITY CAT C/D 1/8 SM, AND CIRCLING VISIBILITY CAT D 1/4 SM. BARO-VNAV NA WHEN USING HJO ALTIMETER SETTING. VIS AWOS OUT OF SERVICE.
2604061600-2604132301EST
4/6/26
1600Z
!FDC 6/6637 VIS IAP VISALIA MUNI, VISALIA, CA.
RNAV (GPS) RWY 12, AMDT 2A...
WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE HJO ALTIMETER SETTING AND INCREASE LPV DA TO 575 FEET AND ALL VISIBILITIES 1/4 SM. INCREASE LNAV/VNAV DA TO 734 FEET AND ALL VISIBILITIES 1/8 SM. INCREASE ALL MDAS 40 FEET AND LNAV VISIBILITY CAT C/D 1/4 SM, AND CIRCLING VISIBILITY CAT D 1/4 SM. BARO-VNAV NA WHEN USING HJO ALTIMETER SETTING. VIS AWOS OUT OF SERVICE.
2604061600-2604132301EST
4/6/26
1600Z
!FDC 6/6636 VIS IAP VISALIA MUNI, VISALIA, CA.
ILS OR LOC RWY 30, AMDT 9B...
WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE HJO ALTIMETER SETTING AND INCREASE S-ILS 30 DA TO 534 FEET; INCREASE ALL MDAS 40 FEET; AND CIRCLING VISIBILITY CAT D 1/4 SM. VDP NA WHEN USING HJO ALTIMETER SETTING. VIS AWOS OUT OF SERVICE.
2604061600-2604132301EST
3/19/26
1129Z
!FDC 6/0769 VIS CHART VISALIA MUNI, VISALIA, CA.
ILS OR LOC RWY 30, AMDT 9B...
CORRECT PLANVIEW: ADD (IAF) TO PACOD I-VIS 6.3 DME.
2603191129-PERM
No
MON-FRI 0800-1800
SAT-SUN 0900-1600
CITY OF VISALIA
CITY HALL 707 WEST ACEQUIA
VISALIA, CA 93291
Phone: 559-713-4201
JODY MILLER
9501 ARPT DRIVE
VISALIA, CA 93277
Phone: (559) 713-4282
RANCHO MURIETA FSS (RIU)
Toll Free: 1-800-WX-BRIEF
VIS
--
ACTVT MALSR RWY 30; REIL RWY 12; PAPI RWY 12 & 30; HIRL RWY 12/30 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Avionics
Charter Service
Pilot Instruction
Aircraft Rental

Runway 12/30

6562 ft. x 150 ft.
ASPH
Good
PFC
HIGH

60,000lbs
100,000lbs
160,000lbs
--
  Runway 12 Runway 30
True Heading 135°315°
Traffic Pattern Left
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 36° 19' 30"N 36° 18' 44"N
Longitude 119° 24' 03"W 119° 23' 06"W
Elevation 289' 292'
Threshold Crossing Height 40 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes No

Runway H1

45 ft. x 45 ft.
CONC
Good
NONE


18,000lbs
45,000lbs
90,000lbs
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings BSC
Markings Condition GOOD
Latitude 36° 19' 31"N N/A
Longitude 119° 23' 57"W N/A
Elevation 294' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RY 30 DESIGNATED CALM WIND RY.
A14EMAIL: JODY.MILLER@VISALIA.CITY
A24RON TIEDOWN FEE.
A42-H1_MARKHELIPAD ON PARALLEL TWY; THEN HOVERTAXI TO ADJACENT CONCRETE PARKING PAD; 20000 LBS MAX WGT.
A57-12APCH RATIO 20:1 TO DSPLCD THLD.
A70-100LLSELF-SERVICE FUEL 100LL AVBL 24 HRS.
A70-ASELF-SERVICE FUEL JET A AVBL 24HRS.
A81-APTACTVT MALSR RWY 30; REIL RWY 12; PAPI RWY 12 & 30; HIRL RWY 12/30 - CTAF.
E147NO DOWNWIND TURNS WHEN DEPARTING RWY 12 UNTIL RCHG TFC PAT ALT.
VISALIA MUNI (ICAO: KVIS, IATA: VIS) is a public airport located in VISALIA, CA, US.
