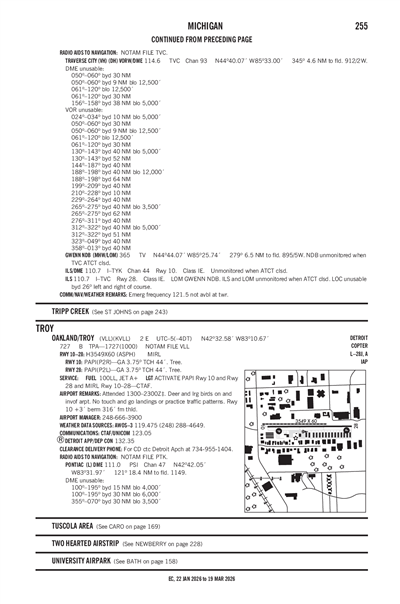

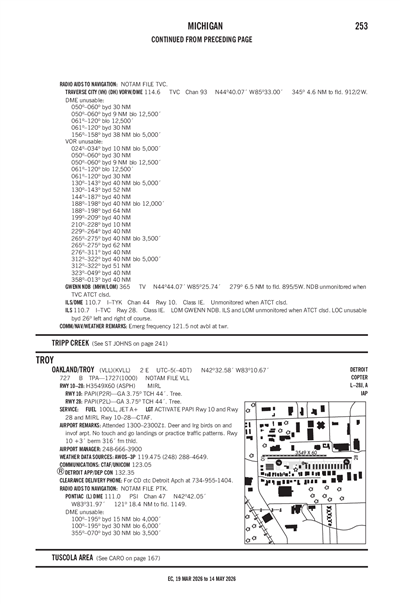

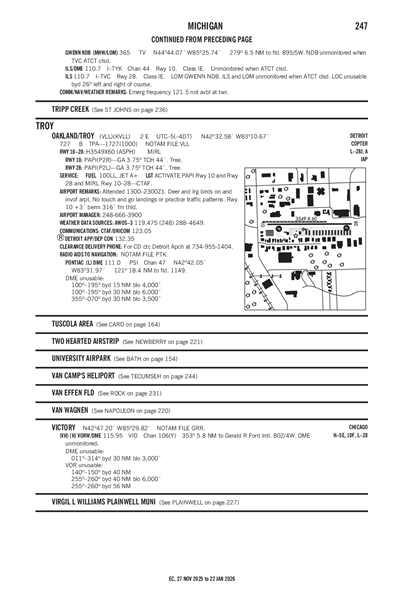

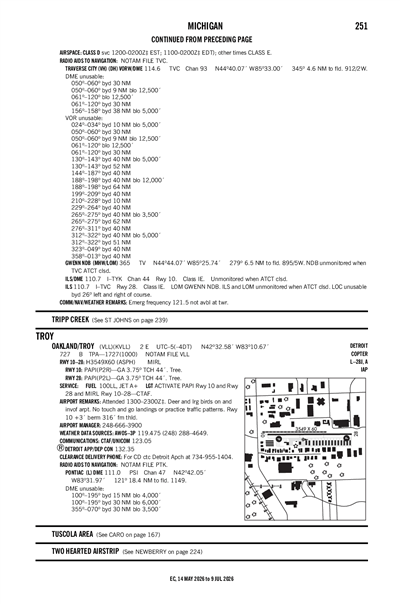

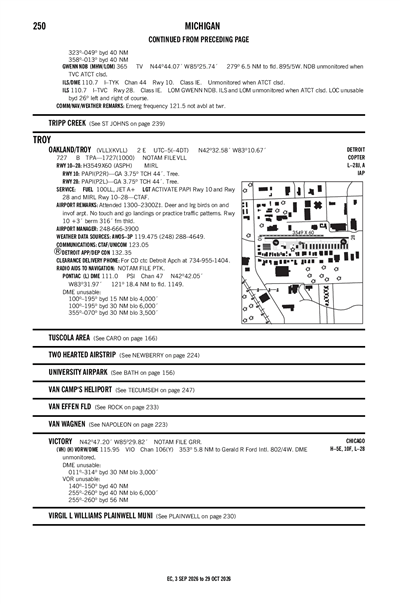

OAKLAND/TROY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KVLL
ICAO KVLLLocal VLL
OAKLAND/TROY
PublicPUB

2 miles E of TROY, MI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
42° 32' 35"N 83° 10' 40"W
Elevation
727' MSL
Pattern Alt
1727' MSL
Mag Variation
7°W
Declination
6°W
Fuel
JET A (FSII), 100LL
FSS
LANSING (LAN)
Sectional
DETROIT
ARTCC
CLEVELAND (ZOB)
Data Effective
6/11/26-7/9/26
KVLL VFR
7:55 PM EDT
Clear
10sm
75°F
55°F
29.89"Hg
280° 9kts
Gusts 16kts
AO2 10266 20194
METAR KVLL 252355Z AUTO 28009G16KT 10SM CLR 24/13 A2989 RMK AO2 10266 20194
+ Add Your Business

KVLL FBOs

Promote Listing
24HRFUEL
UNICOM: 123.05
Phone: (248) 781-0241
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan, World Fuel
As of 6/23
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.59 5.79
Full Serve
Fuel Notes
Prices include tax
JET A fuel service is equipped with a 100' hose and overwing Hoover nozzle. 100LL fuel service is equipped with a 75' hose.
Fuel Hours
Terminal building staffed 0830 - 1700 daily
Volume Discounts
Please contact us for volume discounts.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3P 119.475
(248) 288-4649

Common

CTAF 123.05
ACTVT PAPI RWY 10 & 28; MIRL RWY 10/28 - CTAF.
UNICOM 123.05

Approach

DETROIT APPROACH 132.35

Departure

DETROIT DEPARTURE 132.35

Terminal Area Forecast

KDET (11nm)
Thu, 6/25 7:22 PM EDT
Thu, 6/25 8:00 PM EDT - Fri, 6/26 8:00 PM EDT
VFR
8:00 PM EDT - 4:00 AM EDT
Scattered 25,000'
Scattered 5,000'
6sm
290° 6kts
MVFR
4:00 AM EDT - 10:00 AM EDT
Broken 1,800'
6sm
320° 4kts
VFR
10:00 AM EDT - 3:00 PM EDT
Broken 3,500'
6sm
040° 4kts
VFR
3:00 PM EDT - 8:00 PM EDT
Broken 6,000'
6sm
140° 5kts
TAF KDET 252322Z 2600/2624 29006KT P6SM SCT050 SCT250
   FM260800 32004KT P6SM BKN018
   FM261400 04004KT P6SM BKN035
   FM261900 14005KT P6SM BKN060
KVLL
EffectiveExpiresCategoryNOTAM
Domestic
6/25/26
0653Z
10/23/26
0653Z
!VLL 06/009 VLL OBST TOWER LGT (ASR 1001041) 423706.00N0831608.00W (6.0NM NW VLL) 1206.0FT (254.9FT AGL) U/S 2606250653-2610230653
6/25/26
0406Z
10/23/26
0406Z
!VLL 06/008 VLL OBST TOWER LGT (ASR 1306277) 422711.85N0831046.57W (5.4NM S VLL) 804FT (137FT AGL) U/S 2606250406-2610230406
6/8/26
1200Z
9/29/26
0100Z
!VLL 06/001 VLL AD AP ALL SFC WIP MOWING ADJ MON 1200-0100 2606081200-2609290100
12/26/25
1959Z
12/31/26
2359Z
!VLL 12/022 VLL OBST TREES (ASN UNKNOWN) 423232N0831111W (550FT W APCH END RWY 10) 788FT (30FT AGL) NOT LGTD 2512261959-2612312359
12/26/25
1959Z
12/31/26
2359Z
!VLL 12/021 VLL OBST TREES (ASN UNKNOWN) 423235N0831112W (535FT W APCH END RWY 10) 767FT (20FT AGL) NOT LGTD 2512261959-2612312359
12/26/25
1958Z
12/31/26
2359Z
!VLL 12/020 VLL OBST TREES (ASN UNKNOWN) 423234N0831113W (630FT W APCH END RWY 10) 786FT (28FT AGL) NOT LGTD 2512261958-2612312359
FDC
2/12/26
2000Z
2/21/28
2000Z
!FDC 6/3541 VLL STAR OAKLAND/TROY AIRPORT, TROY, MI
PETTE TWO ARRIVAL...
HOSSA TRANSITION: MOCA 2800 HOSSA TO PETTE.
QBURT TRANSITION: MOCA 2800 HAZIT TO PETTE.
TORRR TRANSITION: MOCA 2800 HAZIT TO PETTE.
WWODD TRANSITION: MOCA 2800 HAZIT TO PETTE.
ALL OTHER DATA REMAINS AS PUBLISHED.
2602122000-2802212000
6/13/25
1205Z
!FDC 5/3933 VLL ODP OAKLAND/TROY, TROY, MI.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 4B...
TAKEOFF OBSTACLE NOTES: RWY 10: UTILITY POLE, BEGINNING 1389 FT FROM DER, 179 FT LEFT OF CENTERLINE, 66 FT AGL/756 FT MSL. UTILITY POLE, BEGINNING 1391 FT FROM DER, 27 FT LEFT OF CENTERLINE, 66 FT AGL/757 FT MSL. UTILITY POLE, BEGINNING 1395 FT FROM DER, 104 FT RIGHT OF CENTERLINE, 66 FT AGL/757 FT MSL. (2024-AGL-6162/6163/6733-OE PERMANENT). ALL OTHER DATA REMAINS AS PUBLISHED. 2506131205-2706131205EST
3/26/25
1357Z
!FDC 5/8016 VLL IAP OAKLAND/TROY, TROY, MI.
RNAV (GPS) RWY 10, AMDT 3A...
CIRCLING CAT C VIS 2.
2503261357-2703271357EST
No
0800-1800
OAKLAND COUNTY
6500 PATTERSON PKWY
WATERFORD, MI 48327
Phone: 248-666-3900
CHERYL BUSH
6500 PATTERSON PKWY
WATERFORD, MI 48327
Phone: 248-666-3900
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
VLL
--
ACTVT PAPI RWY 10 & 28; MIRL RWY 10/28 - CTAF.
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Pilot Instruction
Aircraft Rental

Runway 10/28

3549 ft. x 60 ft.
ASPH
Excellent
NONE
MED

--
--
--
--
  Runway 10 Runway 28
True Heading 90°270°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 42° 32' 35"N 42° 32' 35"N
Longitude 83° 11' 04"W 83° 10' 17"W
Elevation 727' 701'
Threshold Crossing Height 44 ft. AGL 44 ft. AGL
Visual Glide Path Angle 3.75° 3.75°
Visual Slope Indicator P2R P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1DEER & LRG BIRDS ON & INVOF ARPT.
A110-6NO TGL OR PRACTICE TFC PATTERNS.
A110-7FOR CD CTC DETROIT APCH AT 734-955-1404.
A15ARPT PHYS ADS: 2672 INDUSTRIAL ROW DR, TROY, MI 48084.
A57-10CTLG OBSTN EXCEEDS A 45 DEG SLP.
A57-28CTLG OBSTN EXCEEDS A 45 DEG SLP.
A75-HFOR TSNT HNGR STORAGE CTC AMGR.
A81-APTACTVT PAPI RWY 10 & 28; MIRL RWY 10/28 - CTAF.
OAKLAND/TROY (ICAO: KVLL, IATA: VLL) is a public airport located in TROY, MI, US.
