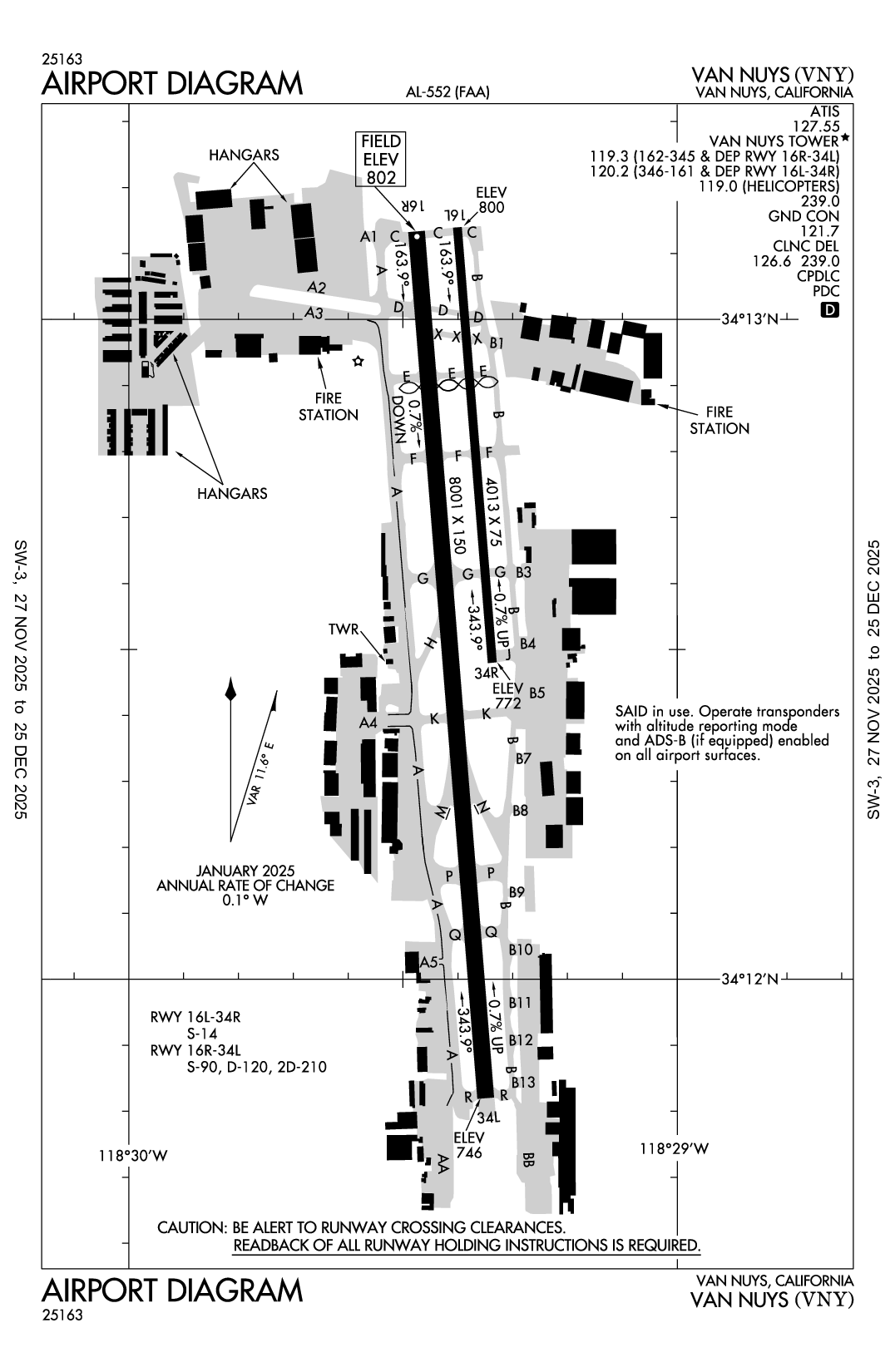

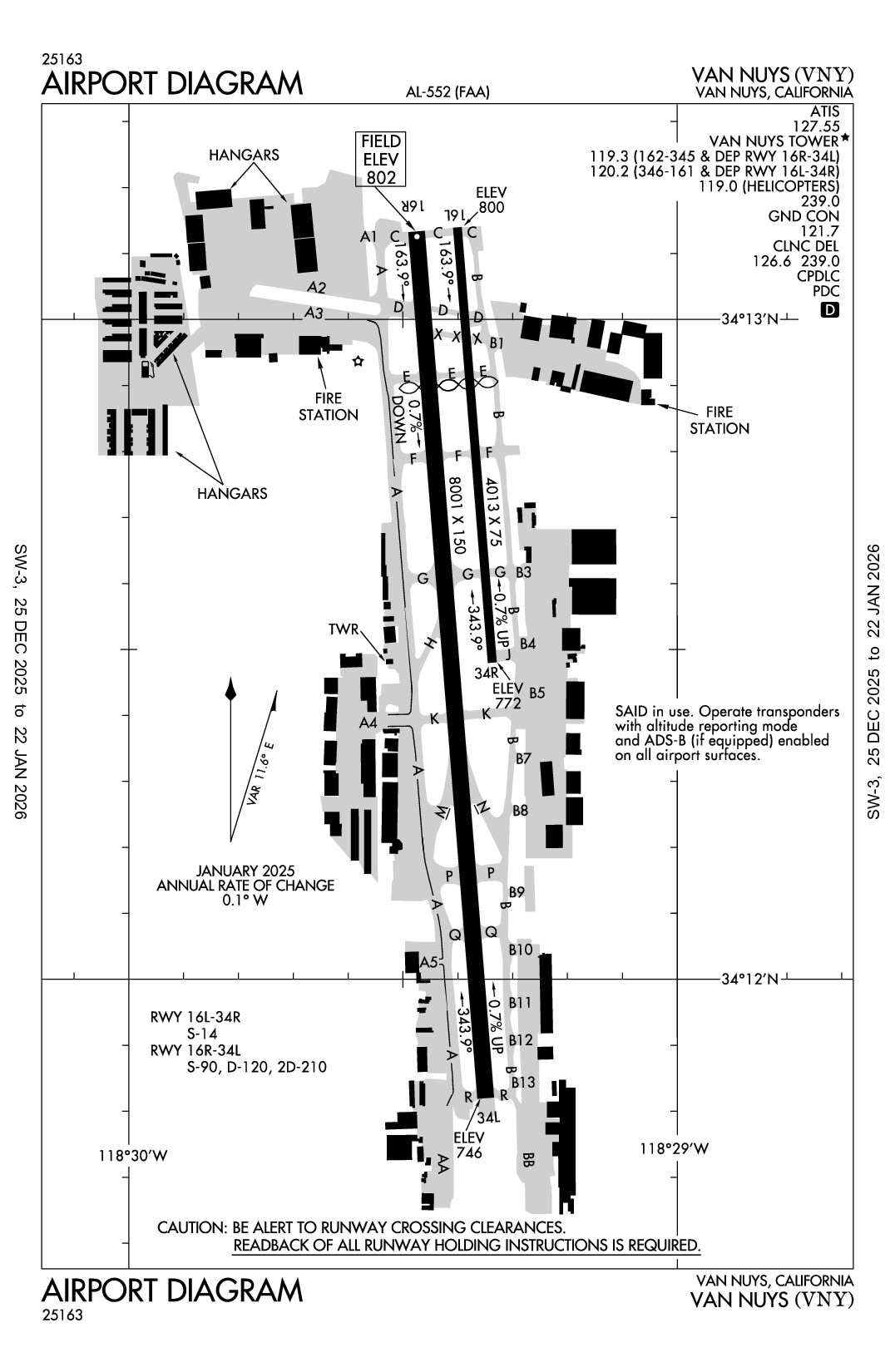

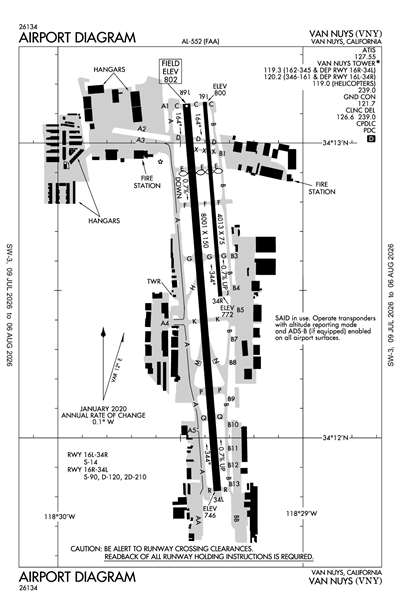

VAN NUYS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KVNY
VAN NUYS
PublicPUB

3 miles NW of VAN NUYS, CA
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 12' 35"N 118° 29' 24"W
802' MSL
1802' MSL
12E
Jet A, 100LL
HAWTHORNE (HHR)
LOS ANGELES
LOS ANGELES (ZLA)
12/1/22-12/29/22
KVNY VFR
2:51 PM PST
Clear
10sm
63°F
32°F
30.18"Hg
160° 4kts
AO2 SLP219 T01720000
KVNY 082251Z 16004KT 10SM CLR 17/00 A3018 RMK AO2 SLP219 T01720000

KVNY FBOs, Flight Schools and Ground Support

Castle & Cooke Aviation
Freq: 128.95
Phone: (818) 988-8385
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 11/10
100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 8.30 7.56 7.63
Park VNY
Freq: 122.95
Phone: (818) 834-1085
Other: (818) 902-2123
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel, EPIC
As of 11/10
100LL Jet A Jet A+ Mogas UL94
Self Serve 6.69 6.69
Full Serve
Signature Flight Support - West
Freq: 130.575
Phone: (818) 464-9500
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 12/8
100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 7.30 6.81
Clay Lacy Aviation
Freq: 130.35
Phone: (818) 989-2900
No Rating Available
0 Reviews (Read | Sign In To Write)
World Fuel
As of 12/7
100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 6.86 6.92
Signature Flight Support - East
Freq: 122.95
Phone: (818) 989-2300
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 12/8
100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 7.30 6.81

KVNY Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KVNY Hotels

No hotels are listed for this airport.

KVNY Restaurants

No restaurants are listed for this airport.

KVNY Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 119.3

ATIS

ATIS
818-780-4993
127.55

Clearance Delivery

CD/P
126.6

Ground

GND/P
121.7

Tower

LCL/P
346-161 & DEP RWY 16L/34R
120.2
LCL/P IC
162-345 & DEP RWY 16R/34L
119.3

Other

HEL OPS
119.0

Terminal Area Forecast

KVNY
Thu, 12/8 3:31 PM PST
Thu, 12/8 4:00 PM PST - Fri, 12/9 4:00 PM PST
VFR
4:00 PM PST - 5:00 PM PST
Sky Clear
> 6sm
170° 8kts
VFR
5:00 PM PST - 4:00 AM PST
Broken 20,000'
> 6sm
VRB° 3kts
VFR
4:00 AM PST - 12:00 PM PST
Scattered 1,500'
> 6sm
VRB° 3kts
VFR
12:00 PM PST - 4:00 PM PST
Scattered 2,500'
> 6sm
170° 6kts
KVNY 082331Z 0900/0924 17008KT P6SM SKC
   FM090100 VRB03KT P6SM BKN200
   FM091200 VRB03KT P6SM SCT015
   FM092000 17006KT P6SM SCT025
KVNY
Domestic
12/13/221200Z !VNY 12/010 VNY RWY 16R/34L CLSD 2212131200-2212131400
12/9/221200Z !VNY 12/009 VNY RWY 16R/34L CLSD 2212091200-2212091400
12/4/222135Z !VNY 12/005 VNY RWY 16R ALS U/S 2212042135-2212282359EST
11/23/220230Z !VNY 11/040 VNY OBST TOWER LGT (ASR 1301427) 341443.73N1183009.84W (2.3NM NNW VNY) 966FT (60FT AGL) U/S 2211230230-2303230230
10/28/221849Z !VNY 10/041 VNY OBST TOWER LGT (ASR 1267898) 341420.60N1183504.40W (5.0NM WNW VNY) 1097.1FT (204.1FT AGL) U/S 2210281849-2212112355
8/12/221532Z !VNY 08/035 VNY NAV VOR GND REC CHECKPOINT FOR WEST RUNUP AREA AT RWY 34L
U/S 2208121532-2302132111EST
1/19/220501Z !VNY 01/006 VNY AD AP RDO ALTIMETER UNREL. AUTOLAND, HUD TO TOUCHDOWN, ENHANCED FLT VISION SYSTEMS TO TOUCHDOWN, HEL OPS REQUIRING RDO ALTIMETER DATA TO INCLUDE HOVER AUTOPILOT MODES AND CAT A/B/PERFORMANCE CLASS TKOF AND LDG NOT AUTHORIZED EXC FOR ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVES 2021-23-12, 2021-23-13 2201190501-2401190501
FDC
12/1/221536Z !FDC 2/8772 VNY IAP VAN NUYS, VAN NUYS, CA.
ILS Z RWY 16R, AMDT 1...
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
FIM VOR OUT OF SERVICE. 2212011536-2301131536EST
12/1/221536Z !FDC 2/8770 VNY IAP VAN NUYS, VAN NUYS, CA.
ILS Y RWY 16R, AMDT 6A...
DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
FIM VOR OUT OF SERVICE. 2212011536-2301131536EST
12/1/221536Z !FDC 2/8755 VNY SID VAN NUYS, VAN NUYS, CA.
CANOGA THREE DEPARTURE...
FILLMORE TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
AVENAL TRANSITION, GORMAN TRANSITION DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
FIM VOR OUT OF SERVICE. 2212011536-2301131536EST
11/14/221511Z !FDC 2/0619 VNY IAP VAN NUYS, VAN NUYS, CA.
ILS Y RWY 16R, AMDT 6A...
ILS Z RWY 16R, AMDT 1...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
FIM VORTAC UNMONITORED. 2211141511-2306261511EST
1/4/221624Z !FDC 2/0833 VNY SID VAN NUYS, VAN NUYS, CA.
NEWHALL ONE DEPARTURE...
CHANGE DEPARTURE ROUTE DESCRIPTION TO: TAKEOFF RWY 16L/R: CLIMB ON HEADING 163, CROSS FIM R-102 OR VNY VOR/DME 2.2 DME AT OR BELOW 1700, THEN CLIMBING LEFT TURN HEAD1NG 113, THEN EXPECT RADAR VECTORS TO IPIHO. TAKEOFF RWY 34L/R: CLIMBING LEFT TURN HEADING 253.00, EXPECT RADAR VECTORS TO IPIHO, THEN ON (TRANSITION) OR (ASSIGNED ROUTE). MAINTAIN ATC ASSIGNED ALTITUDE, EXPECT FILED ALTITUDE/FLIGHT LEVEL 10 MINUTES AFTER DEPARTURE. LOST COMMUNICATIONS AND ALL OTHER DATA REMAINS AS PUBLISHED. 2201041624-2401041622EST
1/4/221621Z !FDC 2/0824 VNY SID VAN NUYS, VAN NUYS, CA.
CANOGA THREE DEPARTURE...
CHANGE DEPARTURE ROUTE DESCRIPTION TO: "TAKEOFF RWY 16L/R: CLIMB ON
HEADING 163, CROSS FIM R-102 OR VNY 2.2 DME AT OR BELOW 1700. THEN
CLIMBING RIGHT TURN HEADING 213, THEN EXPECT RADAR VECTORS TO
IPIHO..." "TAKEOFF RWY 34L/R: CLIMBING LEFT TURN HEADING 253.00,
EXPECT RADAR VECTORS TO IPIHO." "...THEN ON (TRANSITION) OR
(ASSIGNED ROUTE). MAINTAIN ATC ASSIGNED ALTITUDE, EXPECT FILED
ALTITUDE/FLIGHT LEVEL 10 MINUTES AFTER DEPARTURE." LOST
COMMUNICATIONS AND ALL OTHER DATA REMAINS AS PUBLISHED.
2201041621-2401041621EST
Yes
ALL
LOS ANGELES WORLD ARPTS
1 WORLD WAY
LOS ANGELES, CA 90045
Phone: (818) 442-6540
FLORA MARGHERITIS
16461 SHERMAN WY SUITE 300
VAN NUYS, CA 91406
Phone: 818-442-6500
HAWTHORNE FSS (HHR)
Toll Free: 1-800-WX-BRIEF
VNY
--
WHEN ATCT CLSD ACTVT MALSR RWY 16R; HIRL RWY 16R/34L; TWY LGTS - CTAF.
N/A
Yes - Lighted
N/A
No
Hanger, Tie-Down
Landing Rights Airport
Airport of Entry
126
32
62
20
3
0
Major
Major
High Pressure
High Pressure
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 16L/34R

4013 ft. x 75 ft.
ASPH
Good

MED

14,000lbs
--
--
--
  Runway 16L Runway 34R
True Heading 176°356°
Traffic Pattern Left Right
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 34° 13' 08"N 34° 12' 29"N
Longitude 118° 29' 24"W 118° 29' 20"W
Elevation 800' 772'
Threshold Crossing Height -- 26 ft. AGL
Visual Glide Path Angle -- 3.25°
Visual Slope Indicator -- V4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 16R/34L

8001 ft. x 150 ft.
ASPH
Good

HIGH

90,000lbs
120,000lbs
210,000lbs
--
  Runway 16R Runway 34L
True Heading 176°356°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 34° 13' 08"N 34° 11' 49"N
Longitude 118° 29' 28"W 118° 29' 21"W
Elevation 802' 746'
Threshold Crossing Height 49 ft. AGL 54 ft. AGL
Visual Glide Path Angle 3.5°
Visual Slope Indicator P4R P4R
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights No
A110-10ARPT CLSD TO AIR CARRIER OPNS.
A110-16FORMATION ARRIVALS AND DEPARTURES PROHIBITED EXCEPT FOR EMERGENCY RESPONSE AIRCRAFT.
A110-17ALL JET ACFT MUST USE FULL RUNWAY LENGTH FOR DEPARTURE UNLESS OTHERWISE DIRECTED BY ATCT.
A110-22HEL CONTACT ATCT FOR APCH-DEP ROUTES;
A110-24BIRD ABATEMENT MAY OCCUR BTN RYS WHEN ATCT IS OPEN.
A110-25WHEN ATCT CLSD, AIRCRAFT MUST SELF ANNOUNCE ON FREQ 119.3 PRIOR TO LANDING OR DEPARTING.
A110-26TAXILANE A3 WESTBOUND TAXI ONLY. TAXILANE A2 EASTBOUND TAXI ONLY. TAXILANE A2/A3 HAVE UNIDIRECTIONAL CENTERLINE LIGHTS.
A110-28RWYS 16L AND 16R: NO TURNS BFR THE FLOOD BASIN, UNLESS DCTC BY ATC.
A110-29RWYS 34L AND 34R: NO TURNS BEFORE RCHG 1800 FT MSL, UNLESS DCTD BY ATC.
A110-3RY 16L/34R CLSD & UNLGTD WHEN TOWER CLOSED.
A110-30NO ACFT MAY ARRIVE OR DEPART THE ARPT WHOSE AC36-3 TKOF NOISE LEVEL EQUALS OR EXCEEDS 77 DBA.
A110-31TXL A1 WB TAXI ONLY.
A110-32FOR CD WHEN ATCT CLSD CTC SOCAL APCH AT 800-448-3724.
A110-33JETS: AVOID DEP AND ARR BTN 11 PM AND 7 AM TO RDC NOISE OVER COMMUNITY.
A110-34TURBINE/JET AIRCRAFT OPERATORS ARE REQUESTED TO USE NBAA NOISE ABATEMENT PROGRAM PROCEDURES OR COMPARABLE PROCEDURES OF AIRCRAFT MANUFACTURER.
A110-35FAA SAFETY VIDEO CAN BE ACCESSED AT HTTP://WWW.FAA.GOV/AIRPORTS/RUNWAY_SAFETY/VIDEOS/VNY/
A110-36TWY A SOUTH OF TWY P ACFT WITH WINGSPAN OVER 100 FT ENCROACH ON RWY 16R-34L RSA.
A110-37TWY B SOUTH OF TWY Q ACFT WITH WINGSPAN OVER 100 FT ENCROACH ON RWY 16R-34L RSA.
A110-38TXL A1, A2 AND A3 ARE ATCT NONVISIBLE AREAS. ALL PILOTS ARE REQSTD TO CTC ATCT AT CHECKPOINT 1 ON TXL A2 WHEN TAX OUT FROM THE NW AIRFIELD.
A110-4EXTREME NOISE SENSITIVE AREA.
A110-5NOISE ORDINANCE CURFEW: NO TKOFS FOR ACFT EXCEEDING 74 DBA (PER AC36-3) BTN 2200-0700; EXCP MILITARY; MERCY FLIGHTS & LAW ENFORCEMENT ACFT.
VAN NUYS (ICAO: KVNY, IATA: VNY) is a public airport located in VAN NUYS, CA.
