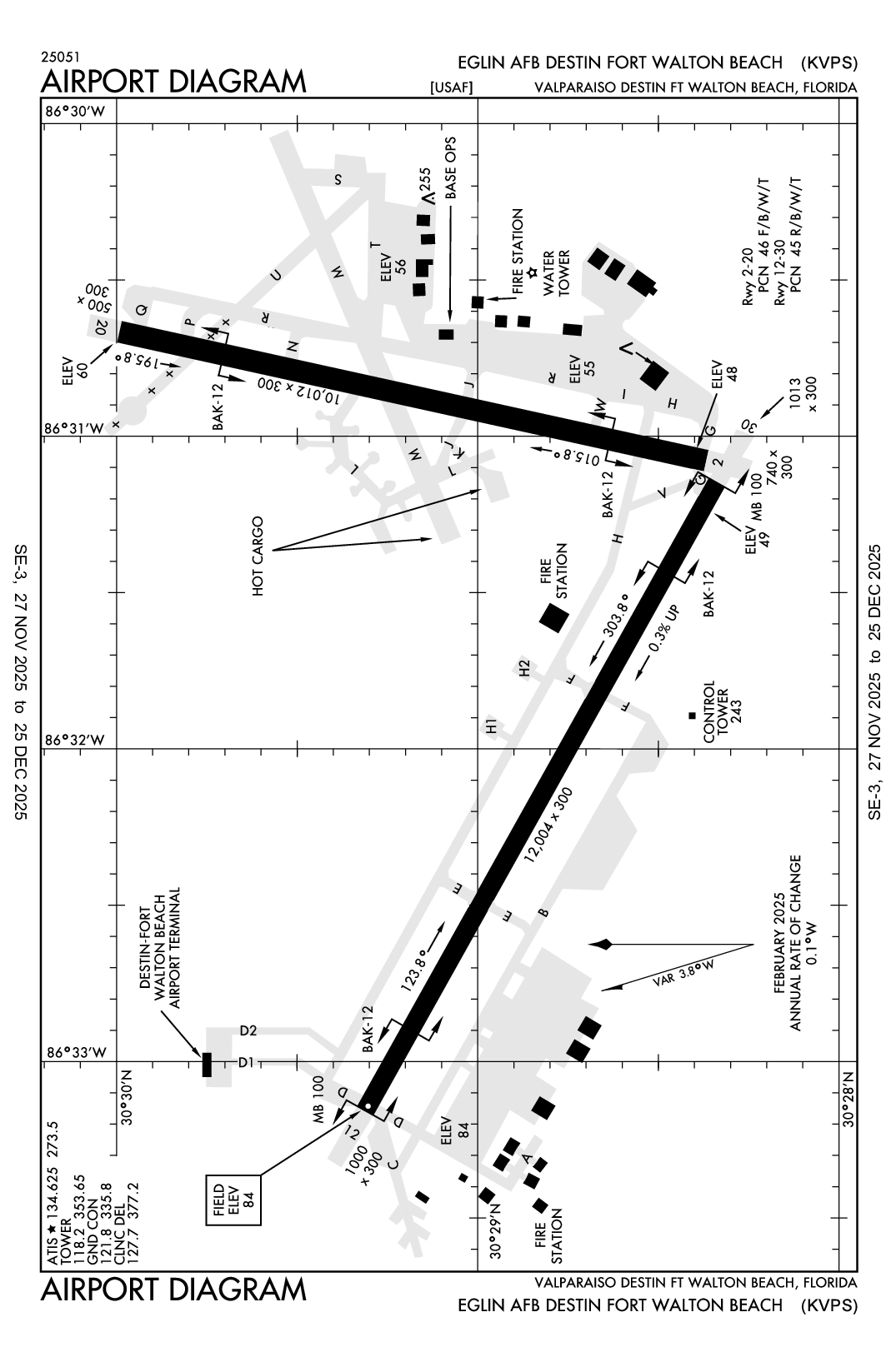

EGLIN AFB/DESTIN-FT WALTON BEACH - Airport Diagram

KVPS

ICAO KVPSIATA VPSLocal VPS

EGLIN AFB/DESTIN-FT WALTON BEACH

PublicPUB

1 miles SW of VALPARAISO/DESTIN-FT WALTON BEACH, FL, US

View on Map

Status

Operational

Coordinates

30° 28' 60"N 86° 31' 34"W

Elevation

84' MSL

Pattern Alt

1084' MSL

Mag Variation

4°W

Declination

3°W

Fuel

JET A

FSS

GAINESVILLE (GNV)

Sectional

NEW ORLEANS

ARTCC

JACKSONVILLE (ZJX)

Data Effective

5/14/26-6/11/26

KVPS VFR

6:55 AM CDT RAW

Few 4,700'

Viz

10sm

Temp

74°F

Dew

66°F

Pres

30.08"Hg

Wind

070° 8kts

RMK

AO2 SLP192 60002 70003 T02330190 10256 20232 52020 $

METAR KVPS 031155Z AUTO 07008KT 10SM FEW047 23/19 A3008 RMK AO2 SLP192 60002 70003 T02330190 10256 20232 52020 $

Add Your Business

KVPS FBOs

No FBOs (Fixed Base Operators) are listed for this airport.

KVPS Other Businesses

Promote Listing

Eglin Aero Club

Phone: (850) 882-5148

0 Reviews (Read | Sign In To Write)

Your Information

Business

Weather and Advisory

ATIS	134.625
Hours: 1200-0400Z++

Clearance

Clearance Delivery

127.7

Ground

EGLIN GROUND

121.8

Tower

EGLIN TOWER	118.2
EGLIN TOWER	122.8
Secondary

Approach

EGLIN APPROACH	125.1
271-089
EGLIN APPROACH	132.1
VFR
EGLIN APPROACH	132.1
090-270

Departure

EGLIN DEPARTURE	125.1
271-089
EGLIN DEPARTURE	132.1
VFR
EGLIN DEPARTURE	132.1
090-270

Emergency

121.5

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

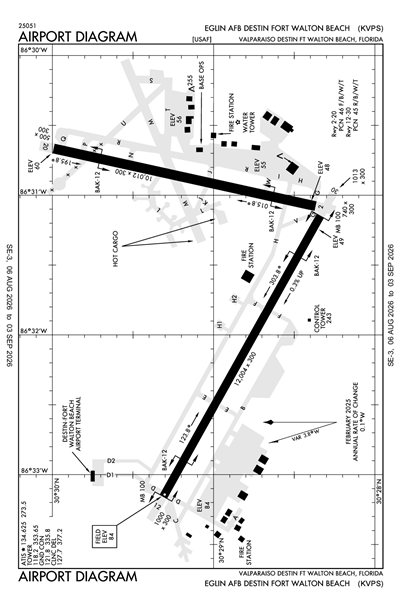

AIRPORT DIAGRAM

Instrument Approach

Terminal Area Forecast

KVPS

RAW

Reported

Wed, 6/3 4:00 AM CDT

Valid

Wed, 6/3 4:00 AM CDT - Thu, 6/4 10:00 AM CDT

MVFR

4:00 AM CDT - 10:00 AM CDT

Broken 3,000'

Viz

6sm

Pres

30.03"Hg

Wind

100° 6kts

VFR

Becoming 10:00 AM CDT - 10:00 PM CDT

Scattered 5,000'
Few 3,000'

Viz

6sm

Pres

30.03"Hg

Wind

140° 9kts

VFR

Temporary 1:00 PM CDT - 4:00 PM CDT

Light Showers and Rain

No Clouds

Viz

5.59sm

Wind

Calm

VFR

Becoming 10:00 PM CDT - 4:00 AM CDT

Scattered 3,000'

Viz

6sm

Pres

30.06"Hg

Wind

150° 9kts

MVFR

Becoming 4:00 AM CDT - 10:00 AM CDT

Broken 3,000'

Viz

6sm

Pres

30.03"Hg

Wind

160° 6kts

TAF KVPS 030900Z 0309/0415 10006KT 9999 BKN030 QNH3002INS
   BECMG 0315/0316 14009KT 9999 FEW030 SCT050 QNH3004INS
   TEMPO 0318/0321 9000 -SHRA
   BECMG 0403/0404 15009KT 9999 SCT030 QNH3005INS
   BECMG 0409/0410 16006KT 9999 BKN030 QNH3003INS TX29/0319Z TN22/0312Z

KVPS

Effective	Expires	Category	NOTAM
Domestic
5/28/26 2151Z	6/12/26 2151Z		!VPS 05/002 VPS OBST TOWER LGT (ASR 1228891) 302438.90N0863721.80W (6.7NM SW VPS) 525.3FT (513.1FT AGL) U/S 2605282151-2606122151
5/1/26 1100Z	11/3/26 0100Z		!VPS 04/007 VPS COM AIR CARRIER RAMP CTL IN USE CTC 131.775 THU-MON 1100-0100 2605011100-2611030100
4/29/26 1057Z	7/29/26 0400Z		!VPS 04/009 VPS OBST TOWER LGT (ASR 1039197) 302441.00N0863728.20W (6.8NM SW VPS) 456.0FT (441.9FT AGL) U/S 2604291057-2607290400
4/26/26 1213Z	7/26/26 0400Z		!VPS 04/005 VPS OBST TOWER LGT (ASR 1030494) 303142.40N0862811.30W (4.0NM NE VPS) 335.0FT (275.9FT AGL) U/S 2604261213-2607260400
12/29/25 2310Z	12/31/26 2359Z		!VPS 12/008 VPS AD AP CLSD TO COMMERCIAL AIR CARRIER DIVERTS EXC EMERG ACFT 2512292310-2612312359
Military
6/9/26 1300Z	6/9/26 2200Z	Aerodrome	AERODROME BE ADVISED: 100 FT CRANE LOCATED AT 30.480495, -86.550331 (SOUTH OF WEST APRON) 9.
6/6/26 1600Z	6/6/26 1900Z		UAS/RPA OPERATIONS IN THE VICINITY OF POSTAL POINT (302858N0862844W) SURFACE TO 300FT AGL.
6/5/26 1700Z	6/5/26 2000Z		SUAS TRAINING OPS. LOCATION: 1.1NM SW RWY 12/30 (0.3NM RADIUS CENTERED AT 30.459844° N, 086.538627° W). ALTITUDE: SFC-300' AGL.
6/3/26 1218Z	6/4/26 0100Z		CAUTION: MEN AND EQUIPMENT ON TWY H.
6/3/26 1017Z	6/3/26 1500Z		USE CAUTION: NON STANDARD AIRCRAFT ARRESTING SYSTEM (AAS) CONFIGURATION FOR RUNWAY20/12. AAS SYSTEM REMAINS CONFIGURED FOR RUNWAY 02/30.
6/3/26 0127Z	6/3/26 2359Z	Runway	RWY 02/20 & RWY 12/30 ARE WET WITH LESS THAN OR EQUAL TO 1/10TH INCHES OF STANDING WATER
6/2/26 1344Z	6/5/26 1344Z		M0429/26 NOTAMC M0424/26
6/2/26 1344Z	6/5/26 1344Z		M0428/26 NOTAMC M0423/26
6/2/26 1009Z	6/5/26 1009Z		M0426/26 NOTAMC M0425/26
6/1/26 1542Z	6/4/26 1542Z		M0422/26 NOTAMC M0419/26
6/1/26 1249Z	7/1/26 2359Z		BLDG 123 OBSTRUCTION LIGHTS UNSERVICEABLE.
6/1/26 1248Z	6/4/26 1248Z		M0420/26 NOTAMC M0342/26
6/1/26 1238Z	7/1/26 2359Z	Taxiway	TWY H CLOSED TO ALL FIGHTER ACFT BETWEEN TWY D2 AND TWY E.
6/1/26 1200Z	6/5/26 2200Z	Aerodrome	AERODROME BE ADVISED: MEN AND EQUIPMENT UP TO BUT NOT ON RUNWAY. 0700-1700L.
5/31/26 0948Z	6/3/26 0948Z		M0416/26 NOTAMC M0415/26
5/18/26 1446Z	7/31/26 2359Z	Runway	RWY 2/20 NOW HAS ACTIVE MB-100S
5/11/26 1405Z	7/31/26 2359Z		FIRST 5000' OF RWY 20 CENTERLINE MARKING OBSCURED
5/1/26 1403Z	7/30/26 0500Z		THE NORTH/SOUTH CORRIDOR (NSC) LIMITED TO OFFICIAL BUSINESS ONLY MON-FRI, FROM 1300Z-0100Z. AIRCRAFT REQUESTING THE NSC FOR OPERATIONS OTHER THAN ARRIVING AND DEPARTING AIRPORTS LOCATED WITHIN THE NSC MAY BE DENIED ENTRY.
5/1/26 1402Z	6/30/26 0500Z		MILITARY AIRCRAFT CARRYING ORDNANCE BE ADVISED: TPY-4 LONG RANGE RADAR TESTING UNTIL 31 JULY 2026 AT EGLIN AFB SITE A-17 (SANTA ROSA ISLAND). MILITARY AIRCRAFT CARRYING HERO UNSAFE/UNRELIABLE ORDNANCE AVOID AREA OVER GULF OF MEXICO BOUNDED BY: 302303N0865023W 301915N0865803W 301901N0864341W 302303N0865023W AND ALTITUDE SURFACE TO 29,000 MSL. MILITARY AIRCRAFT CARRYING HERO SUSCEPTIBLE ORDNANCE AVOID SAME AREA SURFACE TO 7200 MSL. MILITARY AIRCRAFT CARRYING HERO SAFE ORDNANCE ARE NOT IMPACTED.
3/31/26 1110Z	6/26/26 2359Z		I-VPS DME OUT OF SERVICE
3/31/26 1110Z	6/26/26 2359Z		I-CAH DME OUT OF SERVICE
1/23/26 1839Z	12/31/26 2359Z	Aerodrome	!KVPS V0004/26 VPS AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED TACAN RWY 2 CHANGE S-2 MINIMA TO THE FOLLOWING: 460/40 401 (400-3/4). 2601231839-2612312359
1/23/26 1827Z	12/31/26 2359Z	Aerodrome	!KVPS V0003/26 VPS AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RNAV (GPS) RWY 2 CHANGE LNAV MDA TO THE FOLLOWING: 460/40 401 (400-3/4). 2601231827-2612312359

ATC Tower

Yes

Attendance

ALL
SEE FLIP AP/1 RTE AND AREA RSTD (FLORIDA-VALPARAISO) FOR BASH, WX RESTRICTIONS, AND SUPPLEMENTARY ARPT RMK.

Owner

USAF
DEPT OF THE AF HDQRTS AFMC
EGLIN AFB, FL 32542
Phone: 850-882-5313

Manager

TRACY STAGE
1701 STATE ROAD 85N
EGLIN AFB, FL 32542
Phone: 850-651-7160

FSS

GAINESVILLE FSS (GNV)
Toll Free: 1-800-WX-BRIEF

NOTAM

VPS

Light Schedule

Sunset to Sunrise

Lights

Beacon

N/A

Wind Indicator

Yes

Segmented Cir.

Landing Fee

Parking

None

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

None

Runway 02/20

Dimensions

10012 ft. x 300 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

HIGH

Pavement Class

46/F/B/W/T

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 02	Runway 20
True Heading	12°	192°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	FAIR	FAIR
Latitude	30° 28' 22"N	30° 29' 59"N
Longitude	86° 31' 04"W	86° 30' 40"W
Elevation	48'	60'
Threshold Crossing Height	52 ft. AGL	77 ft. AGL
Visual Glide Path Angle	3°	2.8°
Visual Slope Indicator	P4L	P4L
Approach Lights	ALSF1	ALSF1
Centerline Lights	No	No
Runway End Identifier Lights	No	No

Runway 12/30

Dimensions

12004 ft. x 300 ft.

Surface Type

ASPH CONC

Surface Cond

Excellent

Treatment

NONE

Rwy Edge Lgts

HIGH

Pavement Class

45/R/B/W/T

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 12	Runway 30
True Heading	120°	300°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	FAIR	FAIR
Latitude	30° 29' 20"N	30° 28' 21"N
Longitude	86° 33' 08"W	86° 31' 09"W
Elevation	83'	49'
Threshold Crossing Height	50 ft. AGL	79 ft. AGL
Visual Glide Path Angle	3°	2.5°
Visual Slope Indicator	P4L	P4L
Approach Lights		ALSF1
Centerline Lights	No	No
Runway End Identifier Lights	No	No

A110-1	RWY DIST MRKRS ON BOTH RWYS.
A110-12	CAUTION: HIGH VOLUME OF NAVY T-6 ANF B-06 TRAINING ACFT NEAR CEW VORTAC.
A110-18	REGIONAL WX BRIEFINGS; CLSD WKNDS AND HOLS.
A110-19	BEARING STRENGTH RWY 02/20: ST150; SBTT600; TT500; TD T800; TRT600
A110-20	A-GEAR: 8 PT TIE-DOWNS ON ALL BAK-12. RWY 02-20 NML A-G CONFIGURATION: BAK-12B APCH END DISCONNECTED, DEP END CONNECTED. MB100 CONFIGURED FOR UNI-DIREC, DEP END ARRESTMENTS ONLY. MB100 APCH END DISCONNECTED, DEP END CONNECTED. APCH END AVBL WITH 20 MIN PN 1215-0515Z++ MON-FRI, AVBL WITH 2 HR PN SAT, SUN, AND HOL. RWY 12/30 NML A-GEAR CONFIGURATION: BAK-12B ALWAYS CONNECTED. MB100 CONFIGURED FOR UNI-DIREC, DEP END ARRESTMENTS ONLY. MB-100 APCH END DISCONNECTED, DEP END CONNECTED. DO NOT ENGAGE MB100 ON APCH END. POTENTIAL FOR TAIL HOOK SKIP EXISTS, DUE TO UNEVEN ASPHALT PAVEMENT AT MB100.
A110-21	SERVICE-JASU: (AM32A-60)(AM32A-95)(B809)(SGNSC)(MC-2A)(MC20).
A110-22	FLUID: ADI-LTD; SP PRESAIR LHOX LOX
A110-23	OIL: O-128-132-133-148-156; SOAP/JOAP - NOT AVBL WEKEND AND HOL.
A110-25	RSTD: TWY B RSTD TO MISSION ESSENTIAL ACFT ONLY. PPR MIN 24 HR. CTC AM OPS DSN 872-5313/5406, C850-882-5313/5406 OR VIA EMAIL AT 96OSS.OSAM.EGLINBASEOPS@US.AF.MIL. PPR 24 HR. PPR ARR/DEP TIMES ARE STRICTLY ENFORCED. TRAN ACFT ARR LATE EXP MIN 2 HR DELAY. TRAN AIRCREWS RPT LATE FOR SKED DEP EXP MIN 2 HR DELAY.
A110-26	RSTD: ALL AMC OR ACFT WITH DV CODE 6 OR ABV CTC AM OPS 30 MN PRIOR TO LDG.
A110-27	CAUTION: OBST (HGR) 211 FT LCTD APRX FIRST 1000 FT E OF ACPH END RWY 02. DUR VFR POSS CONFLICTING TFC. VFR ARR/DEP CTC EGLIN APP FOR CLNC TO ENTER EGLIN CORRIDOR SE OF CRESTVIEW. UNLGTD OBST ON AFLD.
A110-28	CAUTION: HI MID-AIR POTENTIAL, EXER EXTREME VIGILANCE. DESTIN EXECUTIVE ARPT IS A CTLD ARPT 1200-0400Z++, 6 NM SE OF EGLIN AFB.
A110-3	TWY PARL TO RWY 12/30 MAY BE MISTAKEN FOR RWY.
A110-30	CAUTION: ACFT FLYING WITHIN 2NM OF KDTS AT OR BLW 1000' MAY NOT BE MNT EGLIN APP FREQ. SPECIAL AIR TRAFFIC RULES-PART 93, SEE REGULATORY NTC.
A110-31	TFC PAT: OVERHEAD TFC RWY 20 NML PROHIBITED.
A110-32	CSTMS/AG/IMG: LTD SVC, NO RESIDENT CSTMS AGENT. AVBL FOR BASE ASGN ACFT AND THEIR DEPLOYMENTS ONLY. 24 HR ADVANCE NOTICE RQR. ALL OTHER ACFT MUST CLEAR CSTMS PRIOR TO ARR T EGLIN AFB.
A110-34	MISC: EXP EXTV FLT PLAN FILING/DEP, REFUEL AND MAINT DELAYS DUR PEAK MSN PERIODS/WKEND. THE MIDDLE PORTION, 10,000' OF RWY 12-30, IS ASPHALTIC CONCRETE. DEP ACFT ASGN A HDG TO FLY, SHALL INITIATE THEIR TURN WITHIN 1 NM OF DEP END RWY.
A110-35	MISC: STD USAF RSRS APPLIED.
A110-36	MISC: COMSEC DOCUMENTS NOT AVBL FOR ISSUE. TRAN FLIGHT CREW CLASSIFIED STOR AVBL IN BASE OPS TO SECRET AND BLW.
A110-38	TRAN ALERT: TRAN ACFT MUST ARR/DEP DUR NML DUTY HR. OPR 1300-0400Z++MON - FRI; 1500 - 2300Z++ SAT-SUN AND HOL EXC THANKSGIVING, CHRISTMAS, AND NEW YEAR. TRAN ACFT NOT ALLOWED WHEN TRAN ALERT NOT AVBL. TRAN ACFT MUST USE FLW-ME TO PARK. PROGRESSIVE TAXI NOT AVBL. NO TRAN ACFT CAN ARR/DEP PRIOR TO 1330Z++ MON - FRI; 1300Z ++ SAT-SUN AND HOL AND MUST ARR/DEP NLT 0330Z++MON-FRI; 2300Z++ SAT-SUN AND HOL.
A110-39	TRAN ALERT: ARR/DEP OT EXTREMELY LTD AND REQUIRES STRICT 24 HR ADVANCED APVL. WKEND AND HOL MAINT CAPABILITY EXTREMELY LTD AND MAY BE POSTPNED TIL NEXT DUTY DAY. FLEET SVC NOT AVBL.
A110-4	HEAVY TFC 10 NM NORTH OF ARPT INVOF CRESTVIEW/BOB SIKES ARPT.
A110-40	RSTD: TRAN ALERT WILL NOT SUPPORT LCL, ROUND ROBINS, OR OUT AND BACK FLT BY TRAN ACFT.
A110-42	CAUTION: UNCTL VEHICLE ON MOVEMENT AREA. RWY 20 NSTD OVRN 740 X 300, RWY 02 NSTD OVRN 500 X 300.
A110-43	CAUTION: INCR POTENTIAL FOR HYDROPLANING RWY 12-30 DUE TO POLISHED CONCRETE ON 1ST 1000 FT RWY 12-30, PONDING AT TWY M.
A110-44	PREDOMINANT AFLD VIS OBST NW TO NNE, INCL APCH ENDS OF RWY 20 AND RWY 12. AFLD WX MNT BY AN/FMQ-19 ASOS. REMOTE BRIEFING AVBL 26 OWS BARKSDALE AFB DSN 331-2651 C318-529-2651.
A110-45	CAUTION: SPECIAL AIR TFC RULES APPLY; SEE PART 93.83 SPECIAL AIR TFC RULES.
A110-46	AIRPORT (VPS) IS A JOINT USE FACILITY WITH THE USAF. CONTACT EGLIN AFB TWR AT 118.2. NO GND HANDLING SERVICES FOR GA AVAILABLE AT VPS. FULL SVC GENERAL AVIATION FACILITIES ARE AVBL AT DTS (6 NM SE) OR CEW (18 NM N).
A110-47	CAUTION: WIND SHEAR COND MAY EXIST THRU SHORT-FINAL APCH AND TOUCHDOWN DUE TO STRONG SEA BREEZE.
A110-48	COMMUNICATIONS-PMSV METRO: PMSV MONITORING AND FULL SVC 24 HOURS.
A110-49	CAUTION: MANDATORY VFR HOLD SIGN MISSING AT TWY M WEST.
A110-50	MISC: FULL SVC 0600Z++ MON - 0600Z++ SAT, CLSD WKEND/HOL, OT SVC UNAVBL. AFLD OBS AUGMENTED H24/D7. REMOTE BRIEFING AVBL 96 WS EGLIN AFB DSN 882-4800, C850-882-4800.
A110-51	ALL DEP RQR TO MAINT AT OR BLW 1000 FT MSL TIL DEP END OF RY.
A110-52	SERVICE-FUEL: TRAN ACFT REQ 90K+ BTN 2100Z-1300Z++ DLY RQR PRIOR COORD DUE TO LTD MANNING. CTC POL DSN: 872-2159 C850-882-2159.
A110-54	CAUTION: BASH SUPPLY INFO SEE AP1.
A110-55	MISC: ARFF CAPABILITY NATL FIRE PROTECTION ASSOCIATION CAT 8.
A110-56	A-GEAR: RWY 12 HOOK BAK12(1522FT) HOOK MB100(47 FT OVRN).
A110-57	A-GEAR: RWY 30 HOOK BAK12(1663FT) HOOK MB100(49 FT OVRN).
A110-58	TRAN ALERT: NON-TRAN ACFT, PER AFI 21-101, THE 96 MXG CAN PRVD AGE ON THE NON-INTERFACE, COST REIMBURSEMENT. PRIOR CDN RQRD TO INCL A JON/FUNDS AND APPLICABLE MOA/ISSA/SOC ETC.
A110-59	AFLD MGMT UNA TO STORE COMSEC; CTC COM POST, C850-883-4020, FOR COMSEC STORAGE.
A110-6	LARGE MIGRATORY BIRDS PRESENT YEAR ROUND ON & INVOF ARPT.
A110-60	VPS COML AIR CARRIER ARPT RAMP CONTROL FREQ 131.775.
A110-8	FUEL: A++, 100LL
A14	JOINT-USE FACILITY. MANAGER OF CIVILIAN PORTION OF AIRPORT ONLY. USAF OWNS AND OPERATES THE RUNWAYS AND OTHER FACILITIES.
A16	DESTIN-FORT WALTON BEACH AIRPORT OPS (850) 651-7166.
A17-M1	SEE FLIP AP/1 RTE AND AREA RSTD (FLORIDA-VALPARAISO) FOR BASH, WX RESTRICTIONS, AND SUPPLEMENTARY ARPT RMK.
A18	RSTRD TO MIL ACFT AND CIVIL ACR ONLY.
A33-12/30_SURF	FIRST 1000 FT OF RY 12/30 IS CONC ON BOTH ENDS.
A49-20	RWY 20 NSTD ALSF-1 LEN 1500'.
E111	MILITARY.
E60-02_BAK-12	BAK-12B(B) (1625 FT).
E60-12_BAK-12B	HOOK MB100(B) (47 FT OVRN) HOOK BAK-12B(B) (1522 FT).
E60-20_BAK-12	HOOK BAK-12B(B) (1778').
E60-30_BAK-12B	HOOK BAK-12B(B) (1663 FT) HOOK MB100(B) (49 FT OVRN).

EGLIN AFB/DESTIN-FT WALTON BEACH (ICAO: KVPS, IATA: VPS) is a public airport located in VALPARAISO/DESTIN-FT WALTON BEACH, FL, US.
