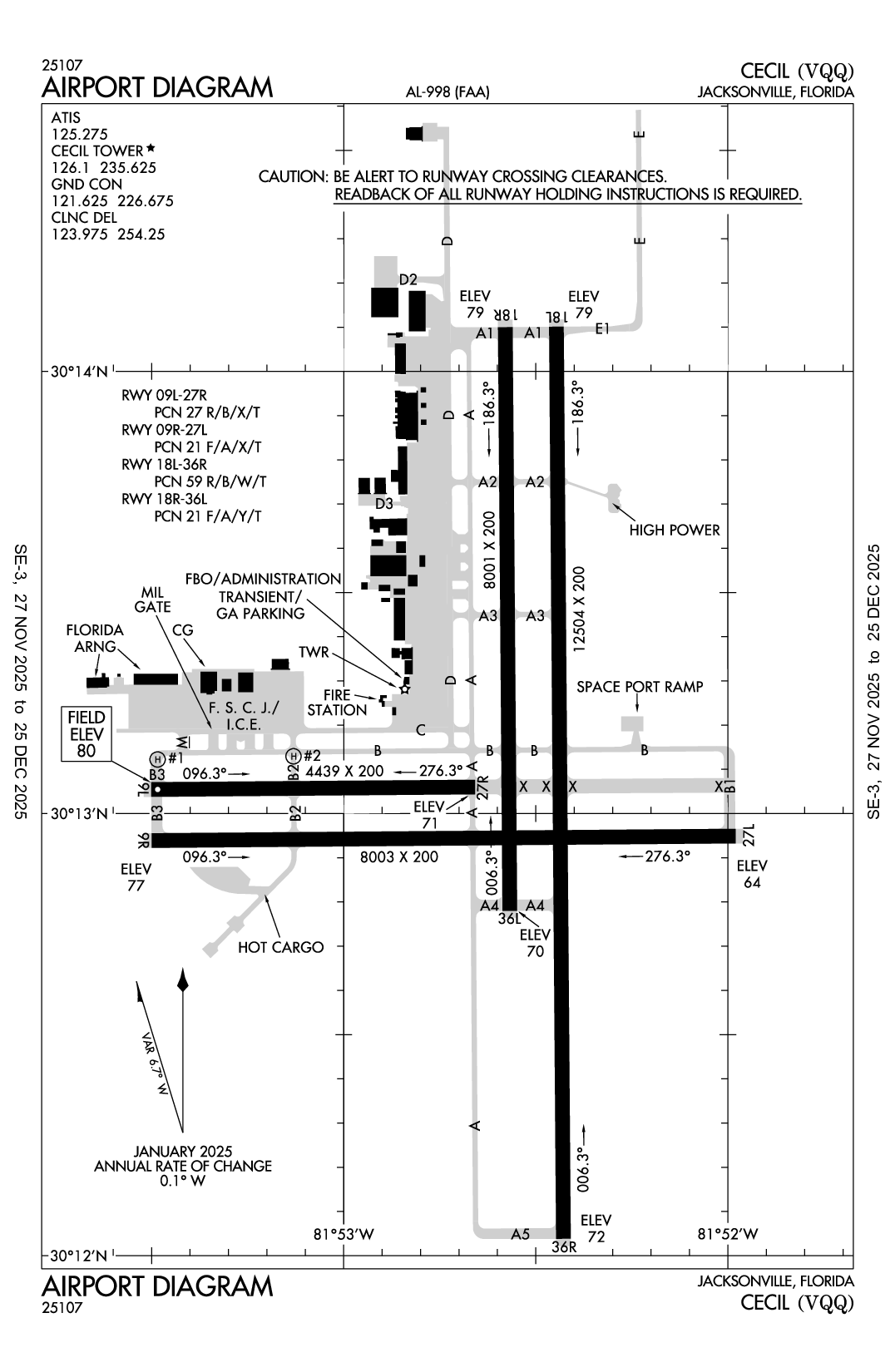

CECIL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KVQQ
CECIL
PublicPUB

0 miles N of JACKSONVILLE, FL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
30° 13' 08"N 81° 52' 38"W
80' MSL
1080' MSL
05W
Jet A-1+, 100LL
SAINT PETERSBURG (PIE)
JACKSONVILLE
JACKSONVILLE (ZJX)
4/18/24-5/16/24
KVQQ VFR
6:15 AM EDT
Clear
10sm
52°F
52°F
30.13"Hg
Calm
AO2
KVQQ 251015Z AUTO 00000KT 10SM CLR 11/11 A3013 RMK AO2
List Your Business

KVQQ FBOs, Flight Schools and Ground Support

Promote Listing
Million Air
Freq: 130.925
Phone: (904) 317-6550
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 4/23
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 7.39 7.33

KVQQ Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KVQQ Hotels

No hotels are listed for this airport.

KVQQ Restaurants

No restaurants are listed for this airport.

KVQQ Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 126.1

ATIS

ATIS
 125.275

AWOS-3

AWOS-3
904-778-6934
 125.275

Clearance Delivery

CD/P
 123.975

Ground

GND/P
 121.625

Tower

LCL/P
 126.1

FAA A/FD Pages

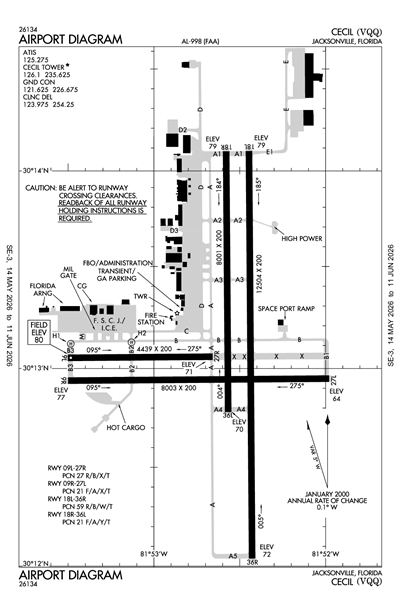

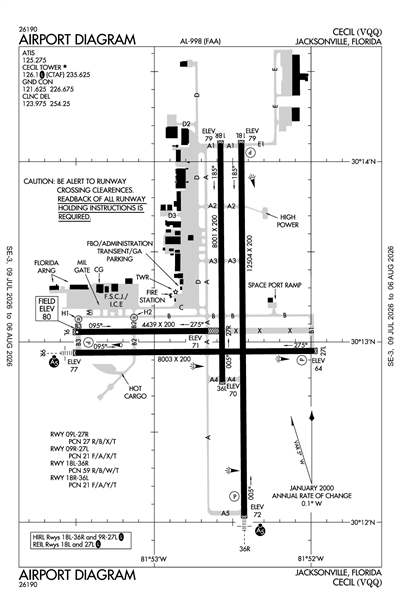

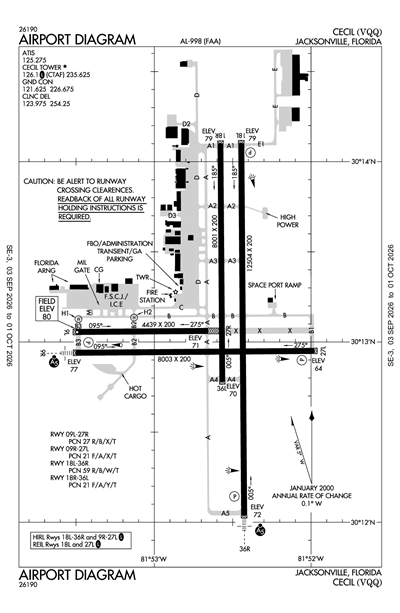

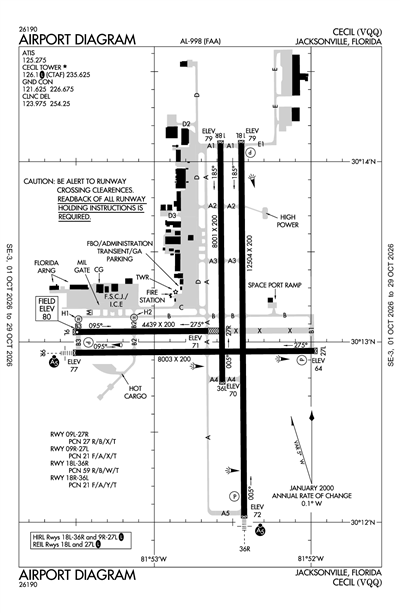

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KVQQ
Thu, 4/25 4:05 AM EDT
Thu, 4/25 4:00 AM EDT - Fri, 4/26 2:00 AM EDT
VFR
4:00 AM EDT - 10:00 AM EDT
Few 6,000'
6sm
Calm
VFR
10:00 AM EDT - 4:00 PM EDT
Scattered 6,000'
6sm
270° 6kts
VFR
4:00 PM EDT - 8:00 PM EDT
Broken 6,000'
6sm
100° 9kts
VFR
8:00 PM EDT - 2:00 AM EDT
Scattered 6,000'
6sm
140° 5kts
KVQQ 250805Z 2508/2606 00000KT P6SM FEW060
   FM251400 27006KT P6SM SCT060
   FM252000 10009KT P6SM BKN060
   FM260000 14005KT P6SM SCT060
KVQQ
Domestic
4/9/241556Z !VQQ 04/007 VQQ OBST TOWER LGT (ASR 1245367) 301757.80N0820025.30W (8.2NM NW VQQ) 567.6FT (492.8FT AGL) U/S 2404091556-2406042359
4/9/241555Z !VQQ 04/006 VQQ OBST TOWER LGT (ASR 1245368) 301802.80N0820024.30W (8.2NM NW VQQ) 567.6FT (492.8FT AGL) U/S 2404091555-2406042359
4/9/241555Z !VQQ 04/005 VQQ OBST TOWER LGT (ASR 1245369) 301751.80N0820026.30W (8.1NM NW VQQ) 567.6FT (492.8FT AGL) U/S 2404091555-2406042359
4/9/241555Z !VQQ 04/004 VQQ OBST TOWER LGT (ASR 1245371) 301757.80N0820022.30W (8.1NM NW VQQ) 567.6FT (492.8FT AGL) U/S 2404091555-2406042359
4/9/241554Z !VQQ 04/003 VQQ OBST TOWER LGT (ASR 1245372) 301802.80N0820021.30W (8.2NM NW VQQ) 567.6FT (492.8FT AGL) U/S 2404091554-2406042359
4/9/241554Z !VQQ 04/002 VQQ OBST TOWER LGT (ASR 1245373) 301751.80N0820023.30W (8.1NM NW VQQ) 567.6FT (492.8FT AGL) U/S 2404091554-2406042359
2/5/241815Z !VQQ 02/022 VQQ TWY E NORTH 1000FT CLSD 2402051815-2412312200
1/9/242259Z !VQQ 01/009 VQQ RWY 36L THR MARKINGS NOT STD 2401092259-2412272200
7/11/231506Z !VQQ 07/020 VQQ OBST CRANE (ASN 2021-ASO-6165-NRA) 301429N0815200W (1.5NM NNE VQQ) 303FT (220FT AGL) FLAGGED AND LGTD 2307111506-2408230359
5/11/231723Z !VQQ 05/009 VQQ OBST CRANE (ASN 2023-ASO-861-NRA) 301429N815148W (1.5 NM NE VQQ) 242FT (160FT AGL) FLAGGED 2305111723-2411082200
Yes
MON-FRI 0700-2300
SAT-SUN 0700-2100
JACKSONVILLE AVIATION AUTHORITY
14201 PECAN PARK ROAD
JACKSONVILLE, FL 32218-0018
Phone: (904) 741-2013
MATT BOCCHINO
13365 SIMPSON WAY
JACKSONVILLE, FL 32221-5522
Phone: 904-573-1601
SAINT PETERSBURG FSS (PIE)
Toll Free: 1-800-WX-BRIEF
VQQ
--
WHEN ATCT CLSD ACTVT MALSR RWY 9R & 36R; REIL RWY 18L & 27L; HIRL RWY 18L/36R, 09R/27L - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
No
12
1
1
1
69
0
Major
Major
High & Low Pressure
High Pressure
Avionics
Pilot Instruction

Runway 09L/27R

4439 ft. x 200 ft.
ASPH CONC
Good
NONE

27 /R/B/X/T
--
--
--
--
  Runway 09L Runway 27R
True Heading 90°270°
Traffic Pattern
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 30° 13' 03"N 30° 13' 04"N
Longitude 81° 53' 30"W 81° 52' 39"W
Elevation 80' 72'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 09R/27L

8003 ft. x 200 ft.
ASPH CONC
Fair
NONE
HIGH
21 /F/A/X/T
--
--
--
--
  Runway 09R Runway 27L
True Heading 90°270°
Traffic Pattern
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 30° 12' 56"N 30° 12' 57"N
Longitude 81° 53' 30"W 81° 51' 59"W
Elevation 77' 64'
Threshold Crossing Height 68 ft. AGL 67 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights No Yes

Runway 18L/36R

12503 ft. x 200 ft.
ASPH CONC
Good
NONE
HIGH
59 /R/B/W/T
--
--
--
--
  Runway 18L Runway 36R
True Heading 180°360°
Traffic Pattern
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 30° 14' 06"N 30° 12' 02"N
Longitude 81° 52' 27"W 81° 52' 26"W
Elevation 79' 72'
Threshold Crossing Height 66 ft. AGL 66 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes No

Runway 18R/36L

8002 ft. x 200 ft.
ASPH CONC
Poor
NONE

21 /F/A/Y/T
--
--
--
--
  Runway 18R Runway 36L
True Heading 179°359°
Traffic Pattern
Markings PIR NPI
Markings Condition FAIR FAIR
Latitude 30° 14' 06"N 30° 12' 47"N
Longitude 81° 52' 35"W 81° 52' 34"W
Elevation 79' 70'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H1

70 ft. x 70 ft.
CONC
Good
NONE


--
--
--
--
  Runway H1 Runway
True Heading 94°274°
Traffic Pattern
Markings BSC
Markings Condition GOOD
Latitude 30° 13' 07"N N/A
Longitude 81° 53' 29"W N/A
Elevation 78' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H2

70 ft. x 70 ft.
CONC
Good
NONE


--
--
--
--
  Runway H2 Runway
True Heading 94°274°
Traffic Pattern
Markings BSC
Markings Condition GOOD
Latitude 30° 13' 07"N N/A
Longitude 81° 53' 08"W N/A
Elevation 74' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1CTN: DALGT GLDR OPS 6000 FT & BLW; HERLONG RECREATIONAL 5 NM NE.
A110-10ARNG: RAMP ACES PPR - D860-7728 OPTION 5; 1300-2130Z++ MON-FRI EXC HOL.
A110-11WILDLIFE INVOF ARPT.
A110-12HOLD SHRT SIGN RWY 9L/27R & 18R/36L UNLGTD.
A110-13180 DEG TURN ON ASPH PTNS OF RWY BY P-3 OR LRGR NA.
A110-14MIL CARRIER BREAK NA.
A110-18ARNG: MIL ASSETS PPR - C904-573-2300 EXT 1012/1013/1014; TSNT CTC ARNG OPS - 40.90, 148.825 OR 248.2 BFR ENTRY TO PRK RAMP.
A110-19DEP TURNS PRIOR TO DER WO TWR APVL NA.
A110-20GCO AVBL ON FREQ 135.075 - JACKSONVILLE APCH.
A110-21FOR CD WHEN ATCT CLSD, AND UNA VIA GCO, CTC JACKSONVILLE TRACON AT 904-741-0284.
A110-23VTOL OPNS NOT AUTH.
A110-24RWY 18R/36L RSTD TO ACFT WITH WINGSPAN OF LESS THAN 79 FT, EXCLUDING TXY XG.
A110-3MISC: BOEING AEROSPACE SUPPORT CENTER AIR OPS MON-FRI 0700-1800, SAT PPR, CLSD SUN; ALL ARR - 904-317-2438/2425; 15 MIN PRIOR TO LNDG - 123.475 OR 264.65.
A110-5TWY C CLSD AT MIL GATE. TWY M CLSD EXC TO MIL ACFT.
CECIL (ICAO: KVQQ, IATA: VQQ) is a public airport located in JACKSONVILLE, FL.
