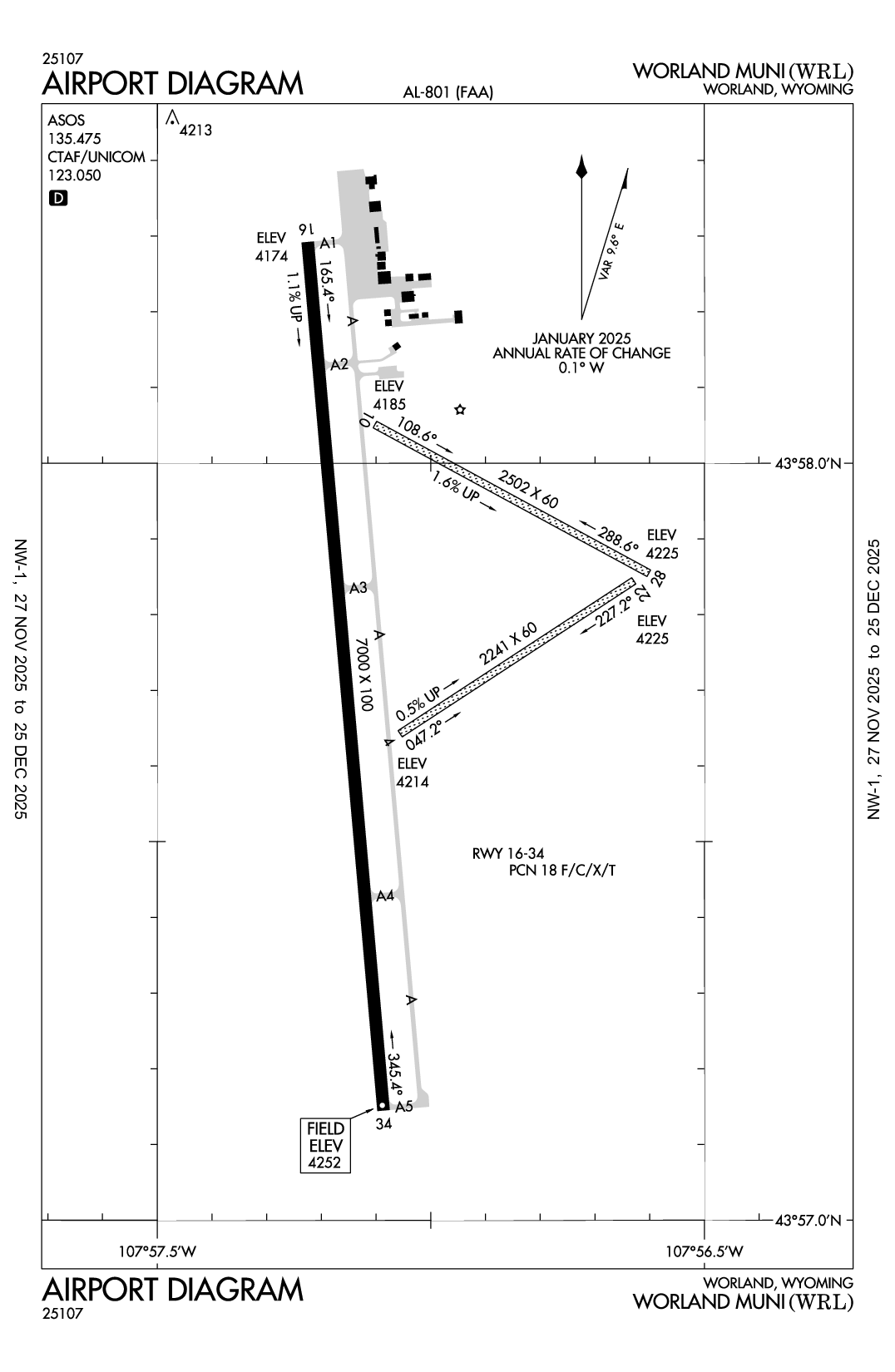

WORLAND MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KWRL
ICAO KWRLIATA WRLLocal WRL
WORLAND MUNI
PublicPUB

3 miles S of WORLAND, WY, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
43° 57' 46"N 107° 57' 02"W
Elevation
4252' MSL
Pattern Alt
5252' MSL
Mag Variation
10°E
Declination
13°E
Fuel
JET A, 100LL
FSS
CASPER (CPR)
Sectional
CHEYENNE
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
5/14/26-6/11/26
KWRL VFR
10:53 AM MDT
Clear
10sm
73°F
46°F
29.89"Hg
010° 7kts
AO2 SLP079 T02280078
METAR KWRL 041653Z AUTO 01007KT 10SM CLR 23/08 A2989 RMK AO2 SLP079 T02280078
+ Add Your Business

KWRL FBOs

Promote Listing
Hellyer Aviation
UNICOM: 123.05
Phone: (307) 347-9022
No Rating Available
0 Reviews (Read | Sign In To Write)
As of 5/18
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.93
Full Serve 6.91
Fuel Notes
Assistance is available for self-serve 100LL.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 135.475
(307) 347-4217

Common

CTAF 123.05
ACTVT REIL RWY 16 & 34; PAPI RWY 34; MIRL RWY 16/34 - CTAF. PAPI RWY 16 OPR CONSLY.
UNICOM 123.05

Center

SALT LAKE CENTER 133.25
LOW/HIGH, APCH/DEP CTL SVC PRVDD BY SALT LAKE ARTCC (ZLC) ON FREQS 133.25/285.6 (BOYSEN RCAG).

Flight Service

Flight Service 122.4
(CPR)

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Instrument Approach

Terminal Area Forecast

KWRL
Thu, 6/4 5:20 AM MDT
Thu, 6/4 6:00 AM MDT - Fri, 6/5 6:00 AM MDT
VFR
6:00 AM MDT - 9:00 AM MDT
Scattered 15,000'
6sm
190° 4kts
VFR
9:00 AM MDT - 2:00 PM MDT
Broken 15,000'
6sm
340° 7kts
VFR
2:00 PM MDT - 9:00 PM MDT
Overcast 12,000'
6sm
360° 12kts
Gusts 20kts
VFR
9:00 PM MDT - 6:00 AM MDT
Sky Clear
6sm
VRB° 4kts
TAF KWRL 041120Z 0412/0512 19004KT P6SM SCT150
   FM041500 34007KT P6SM BKN150
   FM042000 36012G20KT P6SM OVC120
   FM050300 VRB04KT P6SM SKC
KWRL
EffectiveExpiresCategoryNOTAM
Domestic
5/30/26
1200Z
6/14/26
0400Z
!WRL 05/009 WRL AIRSPACE UAS WI AN AREA DEFINED AS 0.6NM RADIUS OF 440055.70N1075445.60W (3.6NM NNE WRL) SFC-100FT AGL 2605301200-2606140400
5/26/26
2359Z
Runway!WRL 05/003 WRL RWY 34 RWY END ID LGT U/S 2605262359-2611262111EST
4/23/26
1712Z
!WRL 04/004 WRL SVC AUTOMATED WX BCST SYSTEM CHANGED TO 307-395-4602 2604231712-PERM
4/3/26
1310Z
Runway!WRL 04/001 WRL RWY 34 PAPI UNUSABLE 2604031310-2610052111EST
FDC
4/29/26
1352Z
!FDC 6/6817 WRL IAP WORLAND MUNI, WORLAND, WY.
VOR RWY 16, AMDT 6C...
IKETY FIX MINIMUMS NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
VDP NA,
RLY DME OUT OF SERVICE. 2604291352-2612091352EST
5/19/25
1145Z
!FDC 5/2520 WRL ODP WORLAND MUNI, WORLAND, WY.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2...
TAKEOFF MINIMUMS: RWY 16, 300-1 1/2 OR STANDARD WITH MINIMUM CLIMB OF 215 FT/NM TO 4500. ALL OTHER DATA REMAINS AS PUBLISHED. 2505191145-2705191145EST
No
MON-FRI 0700-1600
CITY OF WORLAND
P.O. BOX 226
WORLAND, WY 82401
Phone: 307-347-2486
LYNN MURDOCH
1438 AIRPORT ROAD
WORLAND, WY 82401
Phone: 307-347-8977
CASPER FSS (CPR)
Toll Free: 1-800-WX-BRIEF
WRL
--
ACTVT REIL RWY 16 & 34; PAPI RWY 34; MIRL RWY 16/34 - CTAF. PAPI RWY 16 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Crop Dusting
Air Ambulance
Pilot Instruction

Runway 04/22

2241 ft. x 60 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 04 Runway 22
True Heading 57°237°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 43° 57' 39"N 43° 57' 51"N
Longitude 107° 57' 03"W 107° 56' 38"W
Elevation 4,214' 4,225'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 10/28

2502 ft. x 60 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 10 Runway 28
True Heading 118°298°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 43° 58' 03"N 43° 57' 51"N
Longitude 107° 57' 06"W 107° 56' 36"W
Elevation 4,185' 4,225'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 16/34

7000 ft. x 100 ft.
ASPH
Good
PFC
MED
18/F/C/X/T
50,000lbs
70,000lbs
--
--
  Runway 16 Runway 34
True Heading 175°355°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 43° 58' 18"N 43° 57' 09"N
Longitude 107° 57' 13"W 107° 57' 05"W
Elevation 4,174' 4,252'
Threshold Crossing Height 41 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1WIND PERMITTING LAND RY 16.
A110-3RYS 04/22 & 10/28 CLSD OCT 30 - MAR 30 YEARLY.
A110-5FOR CD IF UNA TO CTC ON FSS FREQ, CTC SALT LAKE ARTCC AT 801-320-2568.
A70-100LLFUEL AVBL VIA 24 HR SELF SERVE CREDIT CARD.
A81-APTACTVT REIL RWY 16 & 34; PAPI RWY 34; MIRL RWY 16/34 - CTAF. PAPI RWY 16 OPR CONSLY.
WORLAND MUNI (ICAO: KWRL, IATA: WRL) is a public airport located in WORLAND, WY, US.
