ALLENTOWN QUEEN CITY MUNI - Airport Diagram

KXLL

ICAO KXLLLocal XLL

ALLENTOWN QUEEN CITY MUNI

PublicPUB

2 miles SW of ALLENTOWN, PA, US

View on Map

Status

Operational

Coordinates

40° 34' 13"N 75° 29' 18"W

Elevation

399' MSL

Pattern Alt

1399' MSL

Mag Variation

12°W

Declination

12°W

Fuel

JET A, 100LL

FSS

WILLIAMSPORT (IPT)

Sectional

NEW YORK

ARTCC

NEW YORK (ZNY)

Data Effective

3/19/26-4/16/26

KXLL VFR

3:35 PM EDT RAW

Scattered 11,000'
Scattered 4,100'

Viz

10sm

Temp

77°F

Dew

61°F

Pres

30.11"Hg

Wind

120° 12kts

RMK

AO2 TSNO

METAR KXLL 041935Z AUTO 12012KT 10SM SCT041 SCT110 25/16 A3011 RMK AO2 TSNO

Add Your Business

KXLL FBOs

Promote Listing

Lehigh Valley Aviation Services

UNICOM: 122.7

Phone: (610) 791-5193

Other: Ext. 3

0 Reviews (Read | Sign In To Write)

World Fuel

As of 3/16	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	6.26	6.26	6.31

Fuel Notes

Prices include tax

Your Information

Business

Weather and Advisory

AWOS-3	127.875
(610) 231-3111, UNAVBL BYD 8 NM.

Common

CTAF	122.7
ACTVT REIL RWY 07/25; MIRL RWY 07/25 & 15/33 - CTAF.
UNICOM	122.7

Clearance

Clearance Delivery

118.9

Approach

ALLENTOWN APPROACH	119.65
Initial Contact - 3000 FT & BLW
ALLENTOWN APPROACH	124.45
Initial Contact - ABV 3000 FT

Departure

ALLENTOWN DEPARTURE	119.65
Initial Contact - 3000 FT & BLW
ALLENTOWN DEPARTURE	124.45
Initial Contact - ABV 3000 FT

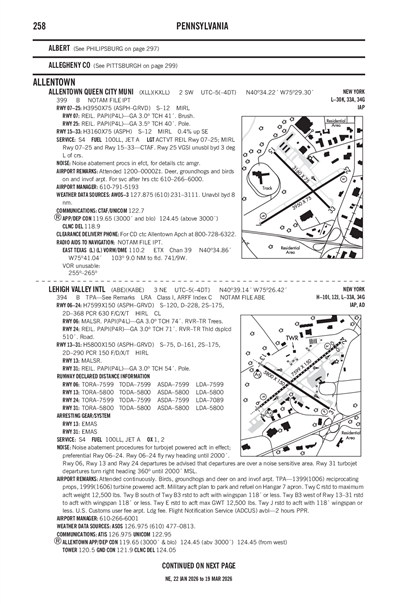

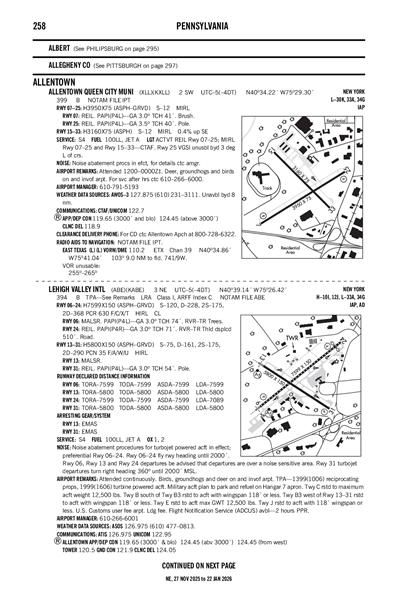

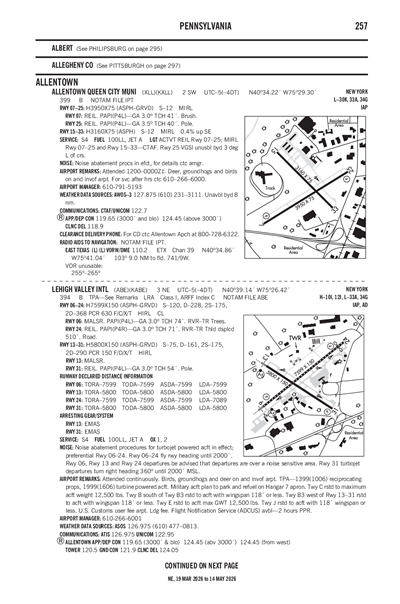

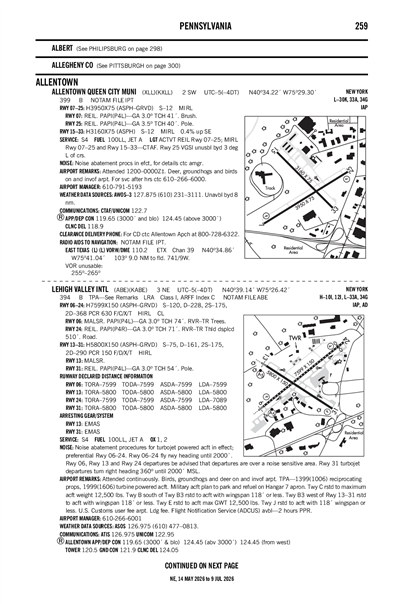

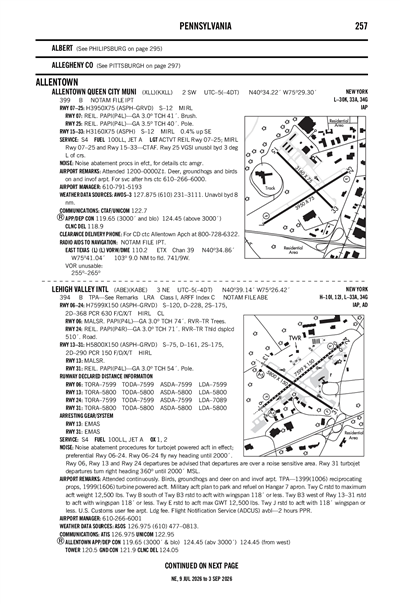

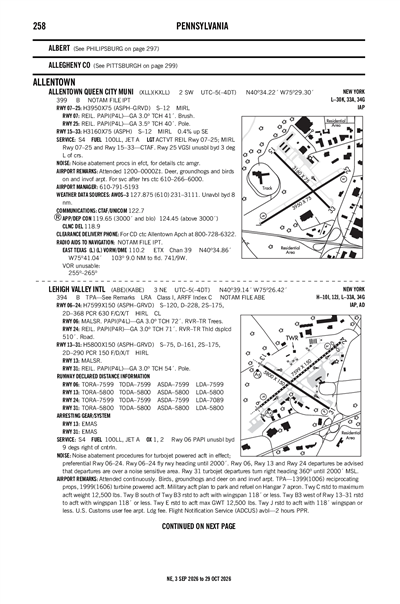

FAA A/FD Pages

FAA A/FD Page

Airport Minimums

Instrument Approach

RNAV (GPS) RWY 07

Terminal Area Forecast

KABE (6nm)

RAW

Reported

Sat, 4/4 1:41 PM EDT

Valid

Sat, 4/4 2:00 PM EDT - Sun, 4/5 2:00 PM EDT

VFR

2:00 PM EDT - 4:00 PM EDT

Few 20,000'

Viz

6sm

Wind

VRB° 3kts

VFR

4:00 PM EDT - 6:00 PM EDT

Broken 4,000'

Viz

6sm

Wind

120° 11kts

Gusts 17kts

VFR

6:00 PM EDT - 11:00 PM EDT

Showers in vicinity

Scattered 3,000'

Viz

6sm

Wind

120° 11kts

Gusts 18kts

IFR

11:00 PM EDT - 8:00 AM EDT

Mist

Overcast 500'

Viz

3sm

Wind

100° 10kts

Gusts 16kts

MVFR

8:00 AM EDT - 10:00 AM EDT

Mist

Broken 1,000'

Viz

4sm

Wind

140° 5kts

MVFR

10:00 AM EDT - 2:00 PM EDT

Light Thunderstorm and Rain

Broken 2,500'

Viz

6sm

Wind

260° 10kts

Gusts 20kts

TAF KABE 041741Z 0418/0518 VRB03KT P6SM FEW200
   FM042000 12011G17KT P6SM BKN040
   FM042200 12011G18KT P6SM VCSH SCT030
   FM050300 10010G16KT 3SM BR OVC005
   FM051200 14005KT 4SM BR BKN010
   FM051400 26010G20KT 6SM -TSRA BKN025CB

KXLL

Effective	Expires	Category	NOTAM
Domestic
4/1/26 0855Z	4/15/26 2000Z		!IPT 04/006 XLL TWY A3 HLDG PSN SIGN FOR RWY 07/25 LGT U/S 2604010855-2604152000
4/1/26 0855Z	4/15/26 2000Z	Runway	!IPT 04/005 XLL RWY 07/25 REDL NOT STD 2604010855-2604152000
4/1/26 0854Z	4/15/26 2000Z	Runway	!IPT 04/004 XLL RWY 25 RWY END ID LGT U/S 2604010854-2604152000
4/1/26 0850Z	4/15/26 2000Z		!IPT 04/003 XLL TWY A HLDG PSN SIGN FOR APCH END RWY 07 LGT U/S 2604010850-2604152000
4/1/26 0844Z	4/15/26 2000Z		!IPT 04/002 XLL TWY A1 HLDG PSN SIGN FOR RWY 07/25 LGT U/S 2604010844-2604152000
4/1/26 0841Z	4/15/26 2000Z		!IPT 04/001 XLL TWY B HLDG PSN SIGN FOR RWY 07/25 LGT U/S 2604010841-2604152000

ATC Tower

Attendance

0700-1900

Owner

LEHIGH NORTHAM ARPT AUTH
3311 AIRPORT RD
ALLENTOWN, PA 18109
Phone: 610-266-6001

Manager

THOMAS R STOUDT
1730 VULTEE ST
ALLENTOWN, PA 18109
Phone: 610-791-5193

FSS

WILLIAMSPORT FSS (IPT)
Toll Free: 1-800-WX-BRIEF

NOTAM

IPT

Light Schedule

Lights

ACTVT REIL RWY 07/25; MIRL RWY 07/25 & 15/33 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Air Freight
Pilot Instruction
Aircraft Rental

Runway 07/25

Dimensions

3950 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

12,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 07	Runway 25
True Heading	58°	238°
Traffic Pattern	Left	Left
Markings	NPI	BSC
Markings Condition	GOOD	GOOD
Latitude	40° 33' 60"N	40° 34' 20"N
Longitude	75° 29' 39"W	75° 28' 56"W
Elevation	386'	388'
Threshold Crossing Height	41 ft. AGL	40 ft. AGL
Visual Glide Path Angle	3°	3.5°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

Runway 15/33

Dimensions

3160 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Excellent

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

12,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 15	Runway 33
True Heading	135°	315°
Traffic Pattern	Left	Left
Markings	BSC	BSC
Markings Condition	GOOD	GOOD
Latitude	40° 34' 28"N	40° 34' 06"N
Longitude	75° 29' 33"W	75° 29' 04"W
Elevation	386'	399'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-1	DEER, GROUNDHOGS & BIRDS ON & INVOF ARPT.
A110-2	NOISE ABATEMENT PROC IN EFCT, FOR DETAILS CTC AMGR.
A110-3	FOR SVC AFT HRS CTC 610-266-6000.
A110-4	FOR CD CTC ALLENTOWN APCH AT 800-728-6322.
A43-25	UNUSBL BYD 3 DEG L OF CRS.
A58-07	4FT SHRUB, 154 FT FM RWY END, 177 FT R.
A81-APT	ACTVT REIL RWY 07/25; MIRL RWY 07/25 & 15/33 - CTAF.
E111	EXISTED PRIOR TO 1959.

ALLENTOWN QUEEN CITY MUNI (ICAO: KXLL, IATA: XLL) is a public airport located in ALLENTOWN, PA, US.
