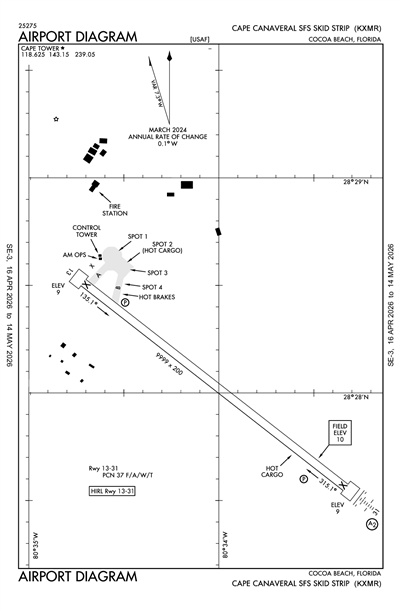

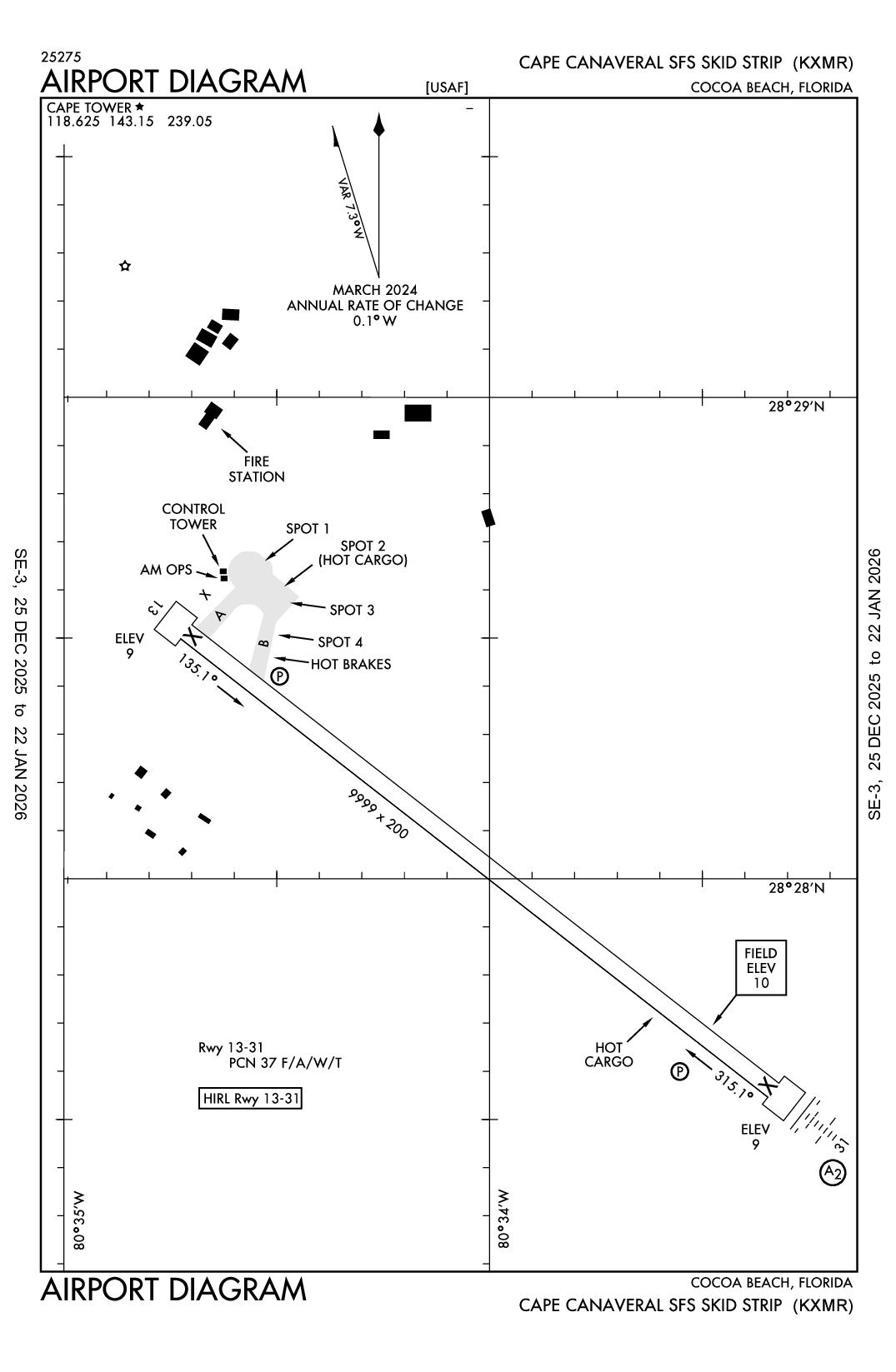

CAPE CANAVERAL SPACE FORCE STATION SKID STRIP - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KXMR
ICAO KXMRLocal XMR
CAPE CANAVERAL SPACE FORCE STATION SKID STRIP
PrivatePVT

7 miles NE of COCOA BEACH, FL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
28° 28' 03"N 80° 33' 60"W
Elevation
10' MSL
Pattern Alt
1010' MSL
Mag Variation
7°W
Declination
7°W
Fuel
None Listed
FSS
SAINT PETERSBURG (PIE)
Sectional
JACKSONVILLE
ARTCC
MIAMI (ZMA)
Data Effective
5/14/26-6/11/26
KXMR VFR
9:55 AM EDT
Clear
10sm
81°F
63°F
30.09"Hg
080° 9kts
AO2 SLP192 T02700172 $
METAR KXMR 041355Z AUTO 08009KT 10SM CLR 27/17 A3009 RMK AO2 SLP192 T02700172 $
+ Add Your Business

KXMR FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 119.325

Common

Pilot-To-Dispatcher (PTD) 139.3

Tower

CAPE TOWER 118.625
NO SPECIFIC WORK HOURS MON-FRI; CLSD SAT, SUN & HOLIDAYS.
CAPE TOWER 143.15
NO SPECIFIC WORK HOURS MON-FRI; CLSD SAT, SUN & HOLIDAYS.
CAPE TOWER 126.2
NO SPECIFIC WORK HOURS MON-FRI; CLSD SAT, SUN & HOLIDAYS., Secondary

Arrival

BITHO STAR 128.375

Approach

ORLANDO APPROACH 134.95

Departure

ORLANDO DEPARTURE 134.95

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Arrival Procedures

Instrument Approach

Terminal Area Forecast

KTIX (12nm)
Thu, 6/4 7:36 AM EDT
Thu, 6/4 8:00 AM EDT - Fri, 6/5 8:00 AM EDT
VFR
8:00 AM EDT - 10:00 AM EDT
Broken 30,000'
Few 4,500'
6sm
060° 10kts
VFR
10:00 AM EDT - 8:00 PM EDT
Broken 30,000'
Scattered 5,000'
6sm
070° 14kts
Gusts 22kts
VFR
8:00 PM EDT - 8:00 AM EDT
Broken 30,000'
Scattered 4,000'
6sm
080° 8kts
TAF KTIX 041136Z 0412/0512 06010KT P6SM FEW045 BKN300
   FM041400 07014G22KT P6SM SCT050 BKN300
   FM050000 08008KT P6SM SCT040 BKN300
KXMR
EffectiveExpiresCategoryNOTAM
Military
6/3/26
1254Z
8/28/26
2359Z
OBST 345' WATER TOWER (SLC-36) OBSTRUCTION LIGHT OUT OF SERVICE AT 28 28 15.6N 080 32 23.28W.
5/31/26
0236Z
8/10/26
2359Z
RunwayRWY 13/31 CONCRETE AIRCRAFT TURNAROUND AREAS 300' X 300' AVAILABLE AT THE END OF EACH RUNWAY. 50' OF THE USABLE AREA IS LOCATED OUTSIDE OF RUNWAY EDGE STRIPE ON BOTH SIDES OF THE RUNWAY. TURNAROUND AREAS ARE MARKED WITH NON-STD APRON EDGE TYPE MARKING AND BLUE APRON EDGE TYPE LIGHTING.
5/31/26
0231Z
8/10/26
2359Z
RunwayRWY 13/31 FIRST/LAST 1000' GROOVED CONCRETE. PCN VALUE FOR RWY 13 FIRST 1000', INCLUDING TURN AROUND AREA IS 115 R/B/W/T. PCN VALUE FOR RWY 31 FIRST 1000' INCLUDING TURNAROUND AREA IS 116 R/B/W/T.
5/31/26
0226Z
8/10/26
2359Z
RunwayRWY 13/31 PAPIS UNSERVICEABLE. AWAITING MAINTENANCE AND FLIGHT CHECK.
5/31/26
0219Z
8/10/26
2359Z
Aerodrome!KXMR M0035/26 XMR AERODROME OFFICIAL BUSINESS ONLY AIRFIELD IS RESTRICTED TO OPERATIONS DIRECTLY SUPPORTING THE SPACE LAUNCH MISSION AT CCSFS. 2605310219-2608102359
5/31/26
0207Z
8/10/26
2359Z
AerodromeAERODROME HAS NO PUBLISHED OPERATING HOURS. ANY AIRCRAFT MOVEMENT INTO AND OUT OF KXMR REQUIRES PPR APPROVAL THROUGH 1 ROPS/DOS, 321-853-5941. ATCT IS UNMANNED AND CLASS D AIRSPACE IS INACTIVE UNTIL 30 MINUTES PRIOR TO PRE-APPROVED SCHEDULED ARRIVAL TIME.
5/29/26
1844Z
8/10/26
2359Z
AerodromeAERODROME RESTRICTED TO DAYTIME ONLY VFR OPERATIONS. NIGHT VFR OPERATIONS MUST BE REQUESTED IN ADVANCE AND APPROVED BY SLD 45/CC.
5/29/26
1838Z
8/10/26
2359Z
OBST MULTIPLE FLAGGED AND LGTD CRANES WORKING IN THE COORDINATE AREA 282841N0803347W 282833N0803335W 282825N0803341W 282834N0803353W (.55NM NORTH KXMR). UNKNOWN MSL (160FT AGL). MAX HEIGHT AGL 160FT FOR ANY CRANE BOOMS.
5/29/26
1505Z
8/24/26
2300Z
OBST 583' LIGHTNING TOWER OBSTRUCTION LIGHT OUT OF SERVICE AT 28 28 19N 080 32 18W.
5/21/26
1709Z
8/17/26
2359Z
Obstruction!KXMR M0026/26 XMR OBST CRANE 283205N0803405W (4.02NM N XMR) 598FT MSL
(589FT AGL) FLAGGED AND LGTD CRANE'S MAX HEIGHT WILL BE 595' AND WILL BE AT THIS HEIGHT 24/7. 2605211709-2608172359
5/6/26
1030Z
8/3/26
2230Z
Obstruction!KXMR M0024/26 XMR OBST CRANE 282835N0803348W (.55NM NE XMR) 485FT MSL
(475FT AGL) FLAGGED AND LGTD MULTIPLE CRANES WORKING IN THE VICINITY. MAX HEIGHT AGL 475FT FOR ANY CRANE BOOMS (0630L - 1830L). ANTICIPATE OCCASSIONAL PICKS OUTSIDE THIS WINDOW. 2605061030-2608032230
4/1/26
0958Z
12/31/26
2359Z
Aerodrome!KXMR V0014/26 XMR AERODROME IFR TAKE-OFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES NOT AUTHORIZED 2604010958-2612312359
4/1/26
0956Z
12/31/26
2359Z
Aerodrome!KXMR V0013/26 XMR AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED TACAN-A MINIMA TO THE FOLLOWING: CIRCLING: DAYTIME/VMC ONLY. 2604010956-2612312359
4/1/26
0955Z
12/31/26
2359Z
Aerodrome!KXMR V0012/26 XMR AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RNAV (GPS) RWY 31 MINIMA TO THE FOLLOWING: S-31: DAYTIME/VMC ONLY. CIRCLING: DAYTIME/VMC ONLY. 2604010955-2612312359
4/1/26
0954Z
12/31/26
2359Z
Aerodrome!KXMR V0011/26 XMR AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RNAV (GPS) RWY 13 MINIMA TO THE FOLLOWING: S-13: DAYTIME/VMC ONLY. CIRCLING: DAYTIME/VMC ONLY. 2604010954-2612312359
3/23/26
1357Z
12/31/26
2359Z
Aerodrome!KXMR V0010/26 XMR AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED TACAN-A MINIMA TO THE FOLLOWING: CIRCLING: CAT AB 800-1 790 (800-1); CAT C 840-2 1/2 830 (900-2 1/2); CAT D 840-2 3/4 830 (900-2 3/4); CAT E 940-3 930 (1000-3). 2603231357-2612312359
2/26/26
1449Z
12/31/26
2359Z
Aerodrome!KXMR V0006/26 XMR AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RNAV (GPS) RWY 31 MINIMA TO THE FOLLOWING: LNAV MDA: CAT AB 720-1 710 (800-1); CAT CDE 720-1 3/4 710 (800-1 3/4). CIRCLING: CAT AB 720-1 710 (800-1); CAT C 720-2 710 (800-2); CAT D 720-2 1/4 710 (800-2 1/4); CAT E 760-2 3/4 750 (800-2 3/4). 2602261449-2612312359
2/26/26
1437Z
12/31/26
2359Z
Aerodrome!KXMR V0005/26 XMR AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RNAV (GPS) RWY 13 MINIMA TO THE FOLLOWING: LNAV MDA: CAT AB 640-1 630 (700-1); CAT CDE 640-1 3/4 630 (700-1 3/4). CIRCLING: CAT AB 640-1 630 (700-1); CAT C 640-1 3/4 630 (700-1 3/4); CAT D 640-2 630 (700-2); CAT E 760-2 3/4 750 (800-2 3/4). 2602261437-2612312359
Yes
MON-FRI IRREG
CLSD SAT, SUN AND HOLIDAY. SEE FLIP AP/1 SUPPLEMENTARY INFO.
USAF
PATRICK AFB
COCOA BEACH, FL 32925
Phone: V467-5941
CHIEF OF AFLD MANAGEMENT
PATRICK AFB
COCOA BEACH, FL 32925
Phone: 321-853-4242
SAINT PETERSBURG FSS (PIE)
Toll Free: 1-800-WX-BRIEF
PIE
--
--
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 13/31

9999 ft. x 200 ft.

ASPH
GRVD
HIGH
37/F/A/W/T
--
--
--
--
  Runway 13 Runway 31
True Heading 128°308°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 28° 28' 34"N 28° 27' 33"N
Longitude 80° 34' 44"W 80° 33' 16"W
Elevation 9' 9'
Threshold Crossing Height 79 ft. AGL 79 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights SALS
Centerline Lights No No
Runway End Identifier Lights No No
A110-1SERVICE LGT: RWY 31 APCH LGT NSTD SALS, 1000'.
A110-11TRAN ALERT: CHIP DETECTION INSP RQRD BY F16'S NOT AVBL.
A110-12CSTMS AVBL: PN RQR.
A110-15MISC: OBSN AUTOMATED, FMQ-19 OBSN WX EQUIP IN USE H24. WX OBSN/FCST AVBL H24 VIA FONE DSN 467-8484, C321-853-8484. LTD PRK. NO CLASSIFIED MATERIALS STOR AVBL.
A110-2JASU: 1(AM32A-60A) 1(A/M32A-86D).
A110-20MISC: AM OPS DSN 467-4241, COMM (321) 853-4241, FAX COMM (321) 853-1521.
A110-21RY 13/31 DOES NOT HAVE PAVED OVERRUNS.
A110-23RSTD: PPR. PPR VALID +/- 30 MIN PRIOR/AFTER ETA, CHANGES MUST BE COORDINATED. TWR MANNED BASED ON PPR. CTC 45 RANS/DOS, CCAFS, FL DSN 467-5941, C321-853-5941 FOR PPR.
A110-24EARLY/LATE ARR/DEP MUST BE RECOORDINATED.
A110-25CAUTION: NVD OPS MAY BE IN PROGRESS SS-SR. CHECK LCL NOTAMS FOR CURRENT OPS.
A110-26PMSV METRO: CALL CAPE METRO; TRML WX FCST NOT ISSUED FOR KXMR, SEE KCOF.
A110-27RWY - FIRST 1,000 FT RWY 13 AND FIRST 1,000 FT RWY 31 CONC. MIDDLE 7,999' FT RWY 13/31 POROUS FRICTION SFC. 300' X 300' STRESSED TURNAROUND EACH END. RWY GROOVED.
A110-28RSTD: CREW TRANSPORT/CARGO ONLOAD/OFFLOAD SUPPORT LTD TO 1400-2000Z++ MON-FRI. CTC: DSN 854-5631, C321-494-5631 WITH REQUESTED REQUIREMENTS.
A110-29TRAN ALERT: MANNED BASED ON PPR. SVC AVBL 1100-0400Z MON-FRI, CLSD SAT, SUN AND HOL. OT RQR 10 DAYS ADVANCE NOTICE. CTC DSN 854-5425/26, C321-494-5425/26 WITH REQ FOR SVC.
A110-3FUEL: J8 1200 - 2200Z++MON-FRI, OTR TIMES RQR 5 DAYS ADVN NOTICE. DUE TO LTD MANNING, AIRCREW ASSISTANCE IS RQRD WITH RFL OPS.
A110-30FUEL: A++.
A110-31FLUID - LOX AVBL WITH 2 DAY PN.
A110-33CAUTION: USAF ARFF SET 3. 3 ARFF VEHICLE WITH 5000 GALS OF AGENT.
A110-34FOR CD OR TO CNL IFR WHEN ATCT CLSD, CTC ORLANDO APCH AT 407-852-7500.
A110-3550 FT WINGTIP CLNC BTN LRG FRAME ACFT NOT AVBL BTN PRKG SPOT 2 AND 3. MNM WING-TIP SEPN RDCD TO 30 FT. MAJCOM WAIVER ON FILE.
A110-5RSTD: ALL ACFT WILL CTC APP BEFORE PROCEEDING TO CAPE CANAVERAL. LDG AND TKOF NOT AUTH UNLESS CAPE TWR IS OPR.
A110-6RSTD: OFFL BUS OR HI PRIORITY MSN ACFT CTC 1 ROPS/DOS, CCSFS, FL, DSN 467-5941, C321-853-5941 FOR PPR. PPR FOR OPR 1230-2100Z++, MON-FRI RQR 24 HR PN, PPR OT RQR 5 DAY PN. SKID STRIP OPR HR ARE DETERMINED BY PPR NR FOR SPECIFIED OPR.
A110-7RSTD: NO ARR OR DEP WITHIN 1 HR OF CAPE CANAVERAL LAUNCH OPR. LDG AND TKOF NOT AUZD UNLESS CAPE TWR IS OPR. ALL ACFT WILL CTC APP BEFORE PROCEEDING TO CAPE CANAVERAL. FLT IS RSTD TO 1000' ABV AND WITHIN A HORIZONTAL RAD OF 2000' FR ANY SPACE LAUNCH COMPLEX.
A110-8RSTD: IF OPR NECESSITY RQR FLT CLOSER THAN THESE RSTD, COORD WITH THE CUSTODIAN OF THE AFFECTED COMPLEX SHALL BE ACCOMPLISHED NO LATER THAN 24 HR PRIOR TO FLT.
A110-9CAUTION: MANY OBST IN VCNTY OF RWY. BIRD HAZ. USE EXTREME CAUTION FOR EXTENSIVE UAS OPS IN VCNTY.
A14CAPE CANAVERAL AFS OPS OFFICER MS.TERRY BRON.
A16PATRICK AFB OPS # 321-494-2222
A17-D2CLSD SAT, SUN AND HOLIDAY. SEE FLIP AP/1 SUPPLEMENTARY INFO.
A18PPR FM ROS, CCAFS, FL V467-5941.
A38-13/31ST 175, SBTT 538, TRT 522, TDT 890
A86FSS-ST. PETERSBURG (PIE) - NOTAM - XMR.
E1471100 FT RECTANGULAR, 1600 FT OVHD, 600 FT HEL.
CAPE CANAVERAL SPACE FORCE STATION SKID STRIP (ICAO: KXMR, IATA: XMR) is a private airport located in COCOA BEACH, FL, US.
