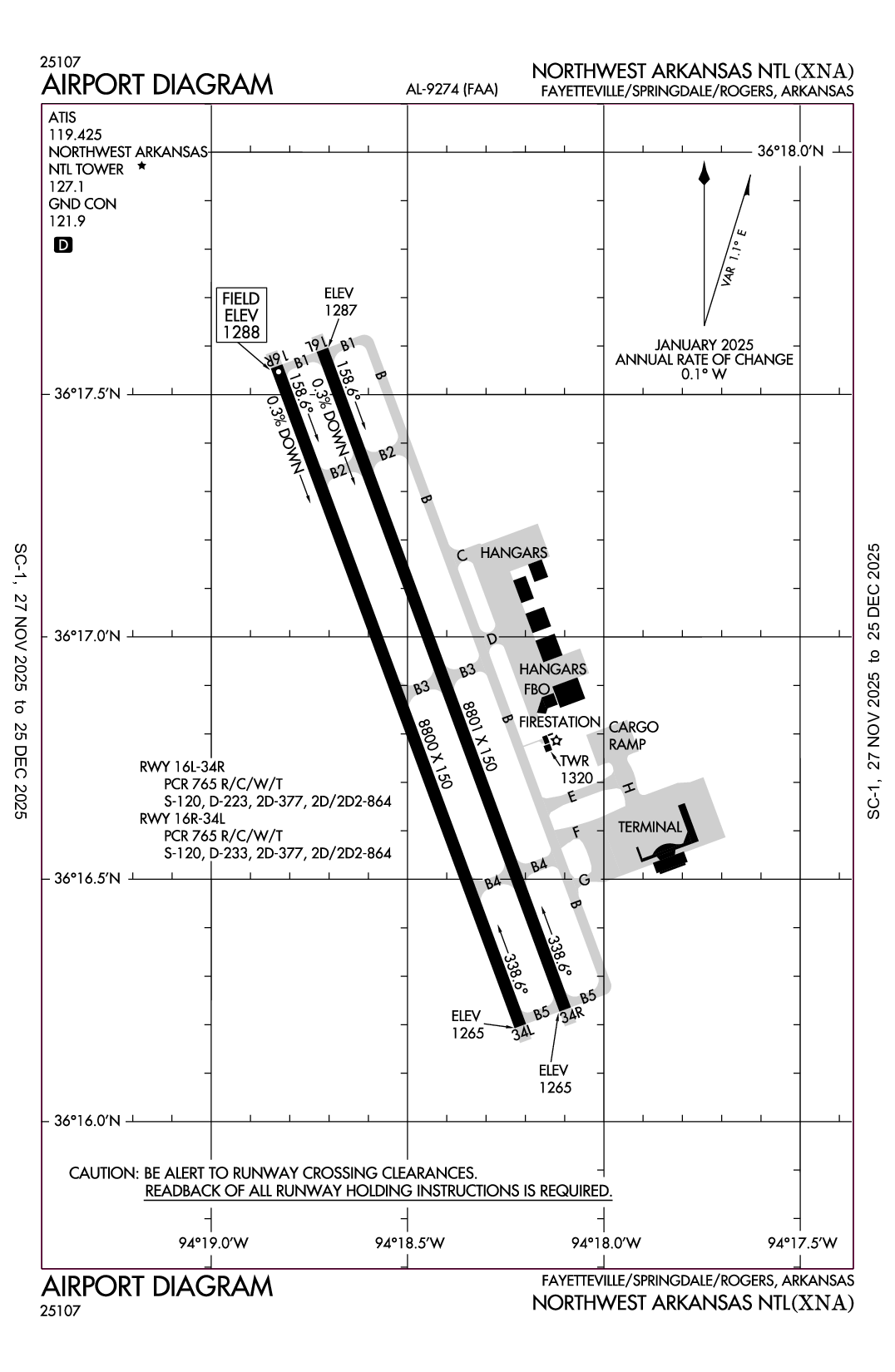

NORTHWEST ARKANSAS NTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KXNA
ICAO KXNAIATA XNALocal XNA
NORTHWEST ARKANSAS NTL
PublicPUB

15 miles NW of FAYETTEVILLE/SPRINGDALE/ROGERS, AR, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
36° 16' 54"N 94° 18' 28"W
Elevation
1288' MSL
Pattern Alt
2288' MSL
Mag Variation
1°E
Declination
1°E
Fuel
JET A, 100LL
FSS
JONESBORO (JBR)
Sectional
KANSAS CITY
ARTCC
MEMPHIS (ZME)
Data Effective
3/19/26-4/16/26
KXNA VFR
1:53 PM CDT
Clear
10sm
56°F
42°F
30.19"Hg
330° 11kts
AO2 SLP217 T01330056
METAR KXNA 041853Z 33011KT 10SM CLR 13/06 A3019 RMK AO2 SLP217 T01330056
+ Add Your Business

KXNA FBOs

Promote Listing
Regional Jet Center
UNICOM: 130.5
Phone: (479) 205-1100
Fax: (479) 205-1101
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 3/24
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.50 5.21
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 119.425
ASOS 119.425
(479) 370-0218

Common

CTAF 127.1
WHEN ATCT CLSD ACTVT MALSR RWY 16L&34R; HIRL RWY 16L/34R - CTAF. PAPI RWY 16L & 34R OPER CONSLY.

Ground

NORTHWEST ARKANSAS NTL GROUND 121.9
0530-2300

Tower

NORTHWEST ARKANSAS NTL TOWER 127.1
0530-2300

Approach

RAZORBACK APPROACH 121.0
Initial Contact - WEST
RAZORBACK APPROACH 126.6
EAST

Departure

HIGHFILL DP 121.0
WEST
HIGHFILL DP 126.6
EAST
RAZORBACK DEPARTURE 121.0
Initial Contact - WEST
RAZORBACK DEPARTURE 126.6
EAST

Center

RAZORBACK CENTER 126.1
LOW, APCH/DEP SVC PRVDD BY MEMPHIS ARTCC ON FREQS 126.1/269.0 (FAYETTEVILLE RCAG) WHEN RAZORBACK APCH CTL CLSD.

Flight Service

Flight Service 122.4
(JBR), COMMUNICATIONS PRVDD BY JONESBORO RADIO ON FREQ 122.4 (HIGHFILL RCO).

Other

CLASS C 121.0
WEST
CLASS C 126.6
EAST

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

KXNA
Sat, 4/4 12:22 PM CDT
Sat, 4/4 1:00 PM CDT - Sun, 4/5 1:00 PM CDT
VFR
1:00 PM CDT - 3:00 PM CDT
Scattered 25,000'
Scattered 2,500'
6sm
320° 12kts
MVFR
Temporary 1:00 PM CDT - 3:00 PM CDT
Broken 2,200'
N/A
Calm
VFR
3:00 PM CDT - 8:00 PM CDT
Scattered 25,000'
6sm
330° 12kts
Gusts 20kts
VFR
8:00 PM CDT - 12:00 PM CDT
Few 25,000'
6sm
340° 5kts
VFR
12:00 PM CDT - 1:00 PM CDT
Few 25,000'
6sm
360° 11kts
TAF KXNA 041722Z 0418/0518 32012KT P6SM SCT025 SCT250
   TEMPO 0418/0420 BKN022
   FM042000 33012G20KT P6SM SCT250
   FM050100 34005KT P6SM FEW250
   FM051700 36011KT P6SM FEW250
KXNA
EffectiveExpiresCategoryNOTAM
Domestic
4/4/26
1509Z
!XNA 04/007 XNA NAV ILS RWY 34R LOC/DME U/S 2604041509-2604102000EST
4/4/26
1043Z
!XNA 04/005 XNA NAV ILS RWY 16L LOC/DME NOT MNT 2604041043-2604102000EST
3/30/26
1548Z
4/30/26
2359Z
!XNA 03/029 XNA APRON TERMINAL RAMP WIP IRREGULAR SFC STEEL PLATE 2603301548-2604302359
3/29/26
1223Z
4/30/26
1500Z
!XNA 03/024 XNA SVC ATIS NOT AVBL 2603291223-2604301500
3/18/26
1511Z
8/6/27
2200Z
!XNA 03/017 XNA OBST SILO (ASN 2025-ASW-8100-NRA) 361657N0941751W (0.5NM E XNA) 1350FT (80FT AGL) LGTD 2603181511-2708062200
3/13/26
0051Z
4/27/26
0051Z
!XNA 03/012 XNA OBST TOWER LGT (ASR 1037671) 361104.60N0941750.00W (5.8NM S XNA) 1757.9FT (463.9FT AGL) U/S 2603130051-2604270051
3/5/26
1125Z
Runway!XNA 03/007 XNA RWY 16L RAI LGT U/S 2603051125-2604302000EST
2/3/26
2002Z
12/31/26
2300Z
Runway!XNA 02/017 XNA RWY 16R/34L CLSD EXC TAX 2602032002-2612312300
12/10/25
1723Z
12/31/26
1300Z
Runway!XNA 12/054 XNA RWY 16R PAPI U/S 2512101723-2612311300
12/10/25
1637Z
12/31/26
1300Z
Runway!XNA 12/053 XNA RWY 34L PAPI U/S 2512101637-2612311300
12/10/25
1636Z
12/31/26
1300Z
Runway!XNA 12/052 XNA RWY 16R RWY END ID LGT U/S 2512101636-2612311300
12/10/25
1635Z
12/31/26
1300Z
Runway!XNA 12/051 XNA RWY 34L RWY END ID LGT U/S 2512101635-2612311300
FDC
2/17/26
1933Z
5/20/26
1933Z
!FDC 6/5268 XNA IAP NORTHWEST ARKANSAS NTL, FAYETTEVILLE/SPRINGDALE/ROGERS, AR.
ILS OR LOC RWY 16L, ORIG...
ILS OR LOC RWY 34R, ORIG-A...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
RZC VORTAC UNMONITORED. 2602171933-2605201933EST
2/11/26
1920Z
!FDC 6/2707 XNA IAP NORTHWEST ARKANSAS NTL, FAYETTEVILLE/SPRINGDALE/ROGERS, AR.
ILS OR LOC RWY 34R, ORIG-A...
S-ILS 34R* DA 1605/HAT 332 ALL CATS. VIS RVR 2600 ALL CATS.
S-LOC 34R MDA 1680/HAT 407 ALL CATS. VIS CATS C/D/E RVR 4000.
CIRCLING CATS A/B MDA 1880/HAA 592.
VDP NA.
FOR INOP ALS, INCREASE S-ILS 34R ALL CATS VISIBILITY TO RVR 5000 AND S-LOC 34R CATS C/D/E VISIBILITY TO RVR 6000.
DISREGARD NOTE *RVR 1800 AUTHORIZED WITH USE OF FD OR AP OR HUD TO DA.
TEMPORARY CRANES, UP TO 1514 MSL, BEGINNING 1850FT NE OF RWY 34R (2024-ASW-8684 THRU 8691-NRA), TEMPORARY CRANES, 1519 MSL, BEGINNING 3151FT NORTH OF RWY 34R (2024-ASW-8752 THRU 8755-NRA).
2602111920-2609232355EST
2/11/26
1917Z
!FDC 6/2705 XNA IAP NORTHWEST ARKANSAS NTL, FAYETTEVILLE/SPRINGDALE/ROGERS, AR.
RNAV (GPS) RWY 34R, ORIG-A...
LPV DA 1606/HAT 333 ALL CATS. VIS RVR 2600 ALL CATS.
LNAV/VNAV DA 1725/HAT 452 ALL CATS. VIS RVR 4500 ALL CATS.
LNAV MDA 1820/HAT 547 ALL CATS. VIS CATS C/D/E RVR 6000.
CIRCLING CATS A/B MDA 1880/HAA 592.
DISREGARD ZAKAN FIX AND ZAKAN FIX ALTITUDE.
FOR INOP ALS, INCREASE LPV ALL CATS VISIBILITY TO RVR 5000, LNAV/VNAV ALL CATS VISIBILITY TO 1 3/8 SM AND LNAV CATS C/D/E VISIBILITY TO 1 5/8 SM.
TEMPORARY CRANES, UP TO 1514 MSL, BEGINNING 1850FT NE OF RWY 34R (2024-ASW-8684 THRU 8691-NRA), TEMPORARY CRANES, 1519 MSL, 3151FT NORTH OF RWY 34R (2024-ASW-8752 THRU 8755-NRA), TEMPORARY EQUIPMENT, UP TO 1444 MSL, BEGINNING 1850FT NE OF RWY 34R (2023-ASW-2949 THRU 2952-NRA), TEMPORARY CRANES, UP TO 1399 MSL, BEGINNING 1568FT NORTH OF RWY 34R (2024-ASW-3456 THRU 3459-NRA)..
2602111917-2609232355EST
2/11/26
1902Z
!FDC 6/2695 XNA IAP NORTHWEST ARKANSAS NTL, FAYETTEVILLE/SPRINGDALE/ROGERS, AR.
ILS OR LOC RWY 16L, ORIG...
RNAV (GPS) RWY 16L, ORIG...
CIRCLING CATS A/B MDA 1880/HAA 592.
TEMPORARY CRANES, UP TO 1514 MSL, BEGINNING 3550FT SE OF KXNA AIRPORT (2024-ASW-8684 THRU 8691-NRA), TEMPORARY CRANES, 1519 MSL, 1792FT SE OF KXNA AIRPORT (2024-ASW-8752 THRU 8755-NRA), TEMPORARY EQUIPMENT, UP TO 1444 MSL, BEGINNING 3550FT SE OF KXNA AIRPORT (2023-ASW-2949 THRU 2952-NRA).
2602111902-2609232355EST
8/28/25
1728Z
!FDC 5/5168 XNA ODP NORTHWEST ARKANSAS NTL, FAYETTEVILLE/SPRINGDALE/ROGERS, AR.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 5...
TAKEOFF OBSTACLE NOTES: RWY 16L, TEMPORARY SYSTEM EQUIPMENT, 2064FT FROM DER, 1011FT LEFT OF CENTERLINE, 85 AGL/1335 MSL (2022-ASW-175-NRA). ALL OTHER DATA REMAINS AS PUBLISHED. 2508281728-2604091728EST
Yes
ALL
NW ARKANSAS RGNL ARPT AUTH.
1 AIRPORT BLVD, SUITE 100
BENTONVILLE, AR 72713
Phone: 479-205-1000
ANDREW BRANCH
1 AIRPORT BLVD, SUITE 100
BENTONVILLE, AR 72713
Phone: 479-205-1000
JONESBORO FSS (JBR)
Toll Free: 1-800-WX-BRIEF
XNA
--
WHEN ATCT CLSD ACTVT MALSR RWY 16L&34R; HIRL RWY 16L/34R - CTAF. PAPI RWY 16L & 34R OPER CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
None
None
None
Low Pressure
Air Freight
Charter Service

Runway 16L/34R

8801 ft. x 150 ft.
CONC
Good
GRVD
HIGH

120,000lbs
223,000lbs
377,000lbs
864,000lbs
  Runway 16L Runway 34R
True Heading 160°340°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 36° 17' 36"N 36° 16' 14"N
Longitude 94° 18' 43"W 94° 18' 06"W
Elevation 1,287' 1,265'
Threshold Crossing Height 52 ft. AGL 51 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR MALSR
Centerline Lights
Runway End Identifier Lights

Runway 16R/34L

8800 ft. x 150 ft.
CONC
Good
GRVD
MED

120,000lbs
233,000lbs
377,000lbs
864,000lbs
  Runway 16R Runway 34L
True Heading 160°340°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 36° 17' 33"N 36° 16' 12"N
Longitude 94° 18' 50"W 94° 18' 13"W
Elevation 1,288' 1,265'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-3BIRD ACTIVITY ON & INVOF ARPT.
A110-4CTN ELEVATED RWY THLD LGTS AER RWYS 16L & 34R.
A110-5FOR CD CTC MEMPHIS ARTCC AT 901-368-8453/8449.
A3DSTC & DIRECTION TO ARPT FM SPRINGDALE IS 10 NM NW & FM ROGERS MSA IS 9 NM SW.
A39-16L/34RPCR VALUE: 765/R/C/W/T
A39-16R/34LPCR VALUE: 765/R/C/W/T
A70-100LLFOR FUEL SERVICES USE FREQ 130.05.
A81-APTWHEN ATCT CLSD ACTVT MALSR RWY 16L&34R; HIRL RWY 16L/34R - CTAF. PAPI RWY 16L & 34R OPER CONSLY.
E111SEE AIRSPACE LTR DATED 2/26/97.
NORTHWEST ARKANSAS NTL (ICAO: KXNA, IATA: XNA) is a public airport located in FAYETTEVILLE/SPRINGDALE/ROGERS, AR, US.
