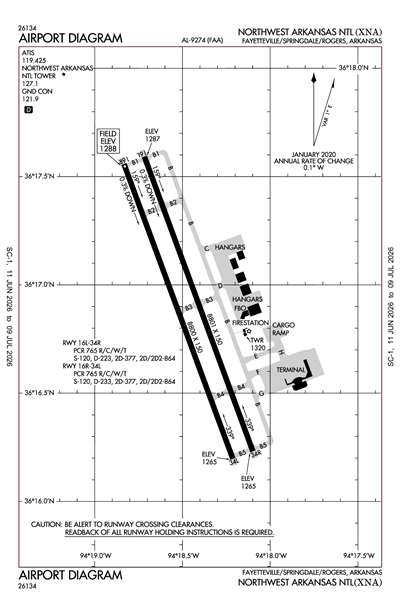

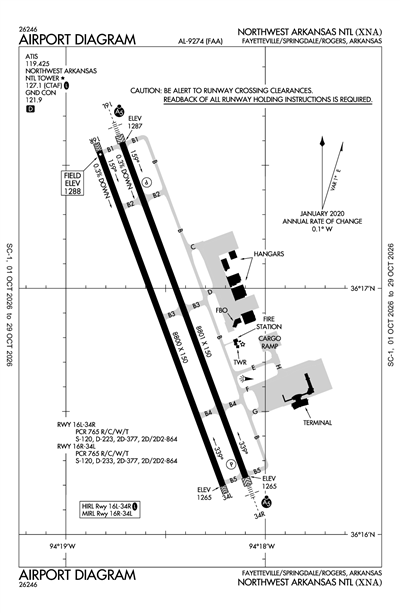

NORTHWEST ARKANSAS NTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KXNA
ICAO KXNAIATA XNALocal XNA
NORTHWEST ARKANSAS NTL
PublicPUB

15 miles NW of FAYETTEVILLE/SPRINGDALE/ROGERS, AR, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
36° 16' 54"N 94° 18' 28"W
Elevation
1288' MSL
Pattern Alt
2288' MSL
Mag Variation
1°E
Declination
1°E
Fuel
JET A, 100LL
FSS
JONESBORO (JBR)
Sectional
KANSAS CITY
ARTCC
MEMPHIS (ZME)
Data Effective
10/1/26-10/29/26
KXNA VFR
6:53 PM CDT
Clear
10sm
63°F
41°F
30.26"Hg
160° 9kts
AO2 SLP244 T01720050 10228 20172 58002
METAR KXNA 192353Z 16009KT 10SM CLR 17/05 A3026 RMK AO2 SLP244 T01720050 10228 20172 58002
+ Add Your Business

KXNA FBOs

Promote Listing
Regional Jet Center
UNICOM: 130.5
Phone: (479) 205-1100
Fax: (479) 205-1101
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 10/12
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 8.02 7.18
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 119.425
ASOS 119.425
(479) 370-0218

Common

CTAF 127.1
WHEN ATCT CLSD ACTVT MALSR RWY 16L&34R; HIRL RWY 16L/34R - CTAF. PAPI RWY 16L & 34R OPER CONSLY.

Ground

NORTHWEST ARKANSAS NTL GROUND 121.9
0530-2300

Tower

NORTHWEST ARKANSAS NTL TOWER 127.1
0530-2300

Approach

RAZORBACK APPROACH 121.0
Initial Contact - WEST
RAZORBACK APPROACH 126.6
EAST

Departure

HIGHFILL DP 121.0
WEST
HIGHFILL DP 126.6
EAST
RAZORBACK DEPARTURE 121.0
Initial Contact - WEST
RAZORBACK DEPARTURE 126.6
EAST

Center

RAZORBACK CENTER 126.1
LOW, APCH/DEP SVC PRVDD BY MEMPHIS ARTCC ON FREQS 126.1/269.0 (FAYETTEVILLE RCAG) WHEN RAZORBACK APCH CTL CLSD.

Other

CLASS C 121.0
WEST
CLASS C 126.6
EAST

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

KXNA
Mon, 10/19 6:20 PM CDT
Mon, 10/19 7:00 PM CDT - Tue, 10/20 7:00 PM CDT
VFR
7:00 PM CDT - 7:00 PM CDT
Scattered 25,000'
6sm
140° 4kts
TAF KXNA 192320Z 2000/2024 14004KT P6SM SCT250
KXNA
EffectiveExpiresCategoryNOTAM
Domestic
10/21/26
1300Z
10/21/26
2130Z
Runway!XNA 10/009 XNA RWY 16L PAPI U/S 2610211300-2610212130
8/18/26
1511Z
11/1/26
2200Z
!XNA 08/058 XNA APRON TERMINAL RAMP WIP CONST ADJ LGTD AND BARRICADED 2608181511-2611012200
8/18/26
1247Z
11/1/26
2200Z
!XNA 08/056 XNA APRON CARGO RAMP CLSD 2608181247-2611012200
8/17/26
2205Z
11/1/26
2200Z
!XNA 08/055 XNA TWY H BTN TERMINAL RAMP AND CARGO RAMP CLSD 2608172205-2611012200
8/17/26
2204Z
11/1/26
2200Z
!XNA 08/054 XNA TWY E BTN TWY B AND TWY H CLSD 2608172204-2611012200
8/9/26
1041Z
12/31/26
2200Z
Runway!XNA 08/050 XNA RWY 16R/34L CLSD EXC TAX 2608091041-2612312200
7/31/26
1509Z
12/31/26
2300Z
!XNA 07/026 XNA APRON TERMINAL RAMP WIP IRREGULAR SFC STEEL PLATE 2607311509-2612312300
7/7/26
2012Z
11/4/26
0100Z
!XNA 07/012 XNA OBST CRANE (ASN 2026-ASW-1794-NRA) 361648N0941751W (0.5NM E XNA) 1367FT (100FT AGL) FLAGGED 2607072012-2611040100
4/14/26
1517Z
11/30/26
1400Z
!XNA 04/022 XNA AD AP WINDCONE PRI U/S 2604141517-2611301400
3/18/26
1511Z
8/6/27
2200Z
!XNA 03/017 XNA OBST SILO (ASN 2025-ASW-8100-NRA) 361657N0941751W (0.5NM E XNA) 1350FT (80FT AGL) LGTD 2603181511-2708062200
12/10/25
1723Z
12/31/26
1300Z
Runway!XNA 12/054 XNA RWY 16R PAPI U/S 2512101723-2612311300
12/10/25
1637Z
12/31/26
1300Z
Runway!XNA 12/053 XNA RWY 34L PAPI U/S 2512101637-2612311300
FDC
10/5/26
1300Z
!FDC 6/7152 XNA IAP NORTHWEST ARKANSAS NTL, FAYETTEVILLE/SPRINGDALE/ROGERS, AR.
RNAV (GPS) RWY 34R, ORIG-A...
LPV DA 1535/HAT 262 ALL CATS.
LNAV/VNAV DA 1629/HAT 356 ALL CATS. VIS RVR 3000 ALL CATS.
LNAV MDA 1720/HAT 447 ALL CATS. VIS CAT C/D/E RVR 4500.
FOR INOP ALS, INCREASE LPV ALL CATS VISIBILITY TO RVR 4500, LNAV/VNAV ALL CATS VISIBILITY TO RVR 5500 AND LNAV CAT C/D/E VISIBILITYT TO 1 3/8 SM.
TEMPORARY CRANES, UP TO 1418 MSL, BEGINNING 1554FT NORTH OF RWY 34R (2026-ASW-1405 THRU 1416-NRA).
2610051300-2611211043EST
10/5/26
1300Z
!FDC 6/7151 XNA IAP NORTHWEST ARKANSAS NTL, FAYETTEVILLE/SPRINGDALE/ROGERS, AR.
ILS OR LOC RWY 34R, ORIG-A...
S-ILS 34R* DA 1535/HAT 262 ALL CATS.
S-LOC 34R MDA 1700/HAT 427 ALL CATS. VIS CAT C/D/E RVR 4000.
VDP NA.
FOR INOP ALS, INCREASE S-ILS 34R ALL CATS VISIBILITY TO RVR 4500 AND S-LOC 34R CATS C/D/E VISIBILITY TO 1 3/8 SM.
TEMPORARY CRANES, UP TO 1418 MSL, BEGINNING 1554FT NORTH OF RWY 34R (2026-ASW-1405 THRU 1416-NRA).
2610051300-2611211043EST
4/9/26
0503Z
!FDC 6/0121 XNA ODP NORTHWEST ARKANSAS NTL, FAYETTEVILLE/SPRINGDALE/ROGERS, AR.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 5...
TAKEOFF OBSTACLE NOTES: RWY 16L, TEMPORARY SYSTEM EQUIPMENT, 2064FT FROM DER, 1011FT LEFT OF CENTERLINE, 85 AGL/1335 MSL (2022-ASW-175-NRA). ALL OTHER DATA REMAINS AS PUBLISHED. 2604090503-2611190503EST
Yes
ALL
NW ARKANSAS RGNL ARPT AUTH.
1 AIRPORT BLVD, SUITE 100
BENTONVILLE, AR 72713
Phone: 479-205-1000
ANDREW BRANCH
1 AIRPORT BLVD, SUITE 100
BENTONVILLE, AR 72713
Phone: 479-205-1000
JONESBORO FSS (JBR)
Toll Free: 1-800-WX-BRIEF
XNA
--
WHEN ATCT CLSD ACTVT MALSR RWY 16L&34R; HIRL RWY 16L/34R - CTAF. PAPI RWY 16L & 34R OPER CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
None
None
None
Low Pressure
Air Freight
Charter Service

Runway 16L/34R

8801 ft. x 150 ft.
CONC
Good
GRVD
HIGH
765/R/C/W/T
120,000lbs
223,000lbs
377,000lbs
864,000lbs
  Runway 16L Runway 34R
True Heading 160°340°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 36° 17' 36"N 36° 16' 14"N
Longitude 94° 18' 43"W 94° 18' 06"W
Elevation 1,287' 1,265'
Threshold Crossing Height 52 ft. AGL 51 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR MALSR
Centerline Lights
Runway End Identifier Lights

Runway 16R/34L

8800 ft. x 150 ft.
CONC
Good
GRVD
MED
765/R/C/W/T
120,000lbs
233,000lbs
377,000lbs
864,000lbs
  Runway 16R Runway 34L
True Heading 160°340°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 36° 17' 33"N 36° 16' 12"N
Longitude 94° 18' 50"W 94° 18' 13"W
Elevation 1,288' 1,265'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-3BIRD ACTIVITY ON & INVOF ARPT.
A110-4CTN ELEVATED RWY THLD LGTS AER RWYS 16L & 34R.
A110-5FOR CD WHEN ATCT CLSD CTC MEMPHIS ARTCC AT 901-368-8453/8449.
A3DSTC & DIRECTION TO ARPT FM SPRINGDALE IS 10 NM NW & FM ROGERS MSA IS 9 NM SW.
A70-100LLFOR FUEL SERVICES USE FREQ 130.05.
A81-APTWHEN ATCT CLSD ACTVT MALSR RWY 16L&34R; HIRL RWY 16L/34R - CTAF. PAPI RWY 16L & 34R OPER CONSLY.
E111SEE AIRSPACE LTR DATED 2/26/97.
NORTHWEST ARKANSAS NTL (ICAO: KXNA, IATA: XNA) is a public airport located in FAYETTEVILLE/SPRINGDALE/ROGERS, AR, US.
