KZEF
ELKIN MUNI
PublicPUB

3 miles NE of ELKIN, NC
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
36° 16' 48"N 80° 47' 10"W
1067' MSL
2067' MSL
08W
Jet A-1+, 100LL
RALEIGH (RDU)
CINCINNATI
ATLANTA (ZTL)
4/18/24-5/16/24
KMWK (15nm) VFR
3:25 PM EDT
Overcast 10,000'
Broken 7,500'
10sm
73°F
58°F
30.00"Hg
050° 3kts
AO2 T02270144
KMWK 191925Z AUTO 05003KT 10SM BKN075 OVC100 23/14 A3000 RMK AO2 T02270144
List Your Business

KZEF FBOs, Flight Schools and Ground Support

Promote Listing
Yadkin Valley Aviation
Freq: 123.05
Phone: (336) 366-3433
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 4/11
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.09 4.79
Full Serve

KZEF Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KZEF Hotels

No hotels are listed for this airport.

KZEF Restaurants

No restaurants are listed for this airport.

KZEF Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.05 123.05

No communication frequencies available for this airport.

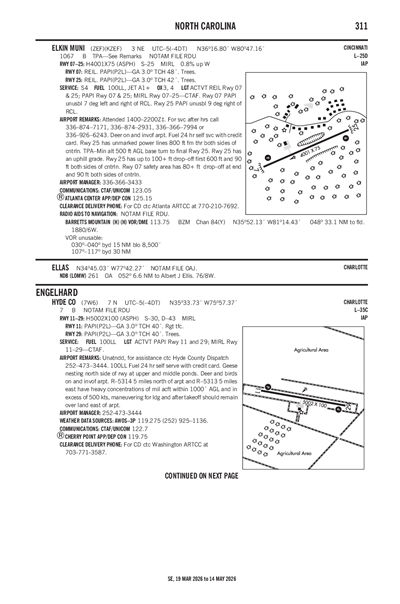

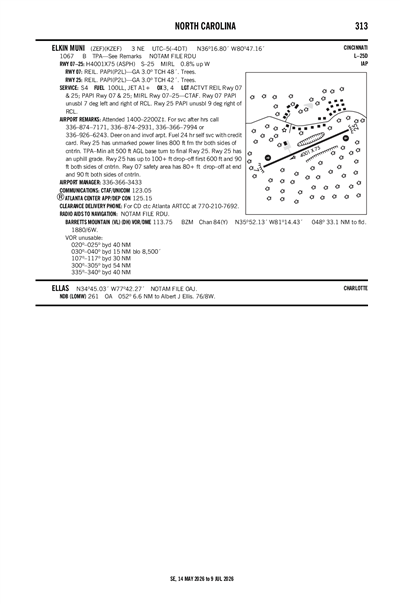

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KINT (29nm)
Fri, 4/19 1:20 PM EDT
Fri, 4/19 2:00 PM EDT - Sat, 4/20 2:00 PM EDT
VFR
2:00 PM EDT - 7:00 PM EDT
Showers in vicinity
Broken 15,000'
Scattered 5,000'
6sm
VRB° 5kts
VFR
7:00 PM EDT - 10:00 PM EDT
Thunderstorm in vicinity
Broken 5,000'
6sm
VRB° 6kts
VFR
10:00 PM EDT - 11:00 AM EDT
Broken 20,000'
Scattered 5,000'
6sm
340° 4kts
VFR
11:00 AM EDT - 2:00 PM EDT
Broken 25,000'
6sm
340° 11kts
Gusts 20kts
KINT 191720Z 1918/2018 VRB05KT P6SM VCSH SCT050 BKN150
   FM192300 VRB06KT P6SM VCTS BKN050CB
   FM200200 34004KT P6SM SCT050 BKN200
   FM201500 34011G20KT P6SM BKN250
KZEF
Domestic
4/5/241157Z !RDU 04/074 ZEF OBST TOWER LGT (ASR 1050053) 361435.80N0804335.50W (3.6NM SE ZEF) 1360.6FT (308.7FT AGL) U/S 2404051157-2408031157
1/24/241701Z !RDU 01/332 ZEF RWY 25 RWY END ID LGT U/S 2401241701-2407282111EST
1/24/241700Z !RDU 01/331 ZEF RWY 07 PAPI U/S 2401241700-2407282111EST
1/24/241657Z !RDU 01/330 ZEF RWY 07 RWY END ID LGT U/S 2401241657-2407282111EST
No
0900-1700
TOWN OF ELKIN
TOWN HALL - PO BOX 857
ELKIN, NC 28621
Phone: (336) 794-6464
STEVE (SANDY) SHORE
1598 CC CAMP ROAD
ELKIN, NC 28621
Phone: 336-366-3433
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
RDU
--
ACTVT REIL RWY 07 & 25; PAPI RWY 07 & 25; MIRL RWY 07/25 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
18
1
0
1
0
0
Major
Major
High & Low Pressure
None
Air Ambulance
Pilot Instruction

Runway 07/25

4001 ft. x 75 ft.
ASPH
Good
NONE
MED

25,000lbs
--
--
--
  Runway 07 Runway 25
True Heading 67°247°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 36° 16' 40"N 36° 16' 56"N
Longitude 80° 47' 32"W 80° 46' 47"W
Elevation 1,067' 1,037'
Threshold Crossing Height 48 ft. AGL 42 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-2RWY 07 SAFETY AREA HAS 80+ FT DROP-OFF AT END AND 90 FT BOTH SIDES OF CNTRLN.
A110-3DEER ON AND INVOF ARPT.
A110-4RWY 25 HAS AN UPHILL GRADE.
A110-5FOR SERVICE AFTER HOURS CALL (336)-874-7171, (336)-874-2931, (336)-366-7994, OR (336)-926-6243.
A110-6FOR CD CTC ATLANTA ARTCC AT 770-210-7692.
A110-7RWY 25 HAS UP TO 100+ FT DROP-OFF FIRST 600 FT AND 90 FT BOTH SIDES OF CNTRLN.
A110-8RWY 25 HAS UNMARKED POWER LINES 800 FT FM THR BOTH SIDES OF CNTRLN.
ELKIN MUNI (ICAO: KZEF, IATA: ZEF) is a public airport located in ELKIN, NC.
