FURNACE CREEK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

L06
Local L06
FURNACE CREEK
PublicPUB

0 miles N of DEATH VALLEY NATIONAL PARK, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
36° 27' 38"N 116° 52' 47"W
Elevation
-210' MSL
Pattern Alt
790' MSL
Mag Variation
12°E
Declination
14°E
Fuel
None Listed
FSS
RIVERSIDE (RAL)
Sectional
LAS VEGAS
ARTCC
LOS ANGELES (ZLA)
Data Effective
4/16/26-5/14/26
KDRA (42nm) VFR
3:53 PM PDT
Clear
10sm
75°F
9°F
29.75"Hg
170° 11kts
Gusts 19kts
AO2 SLP044 T02391128
METAR KDRA 242253Z AUTO 17011G19KT 10SM CLR 24/M13 A2975 RMK AO2 SLP044 T02391128
+ Add Your Business

L06 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

Flight Service

Flight Service 122.2
(RAL)

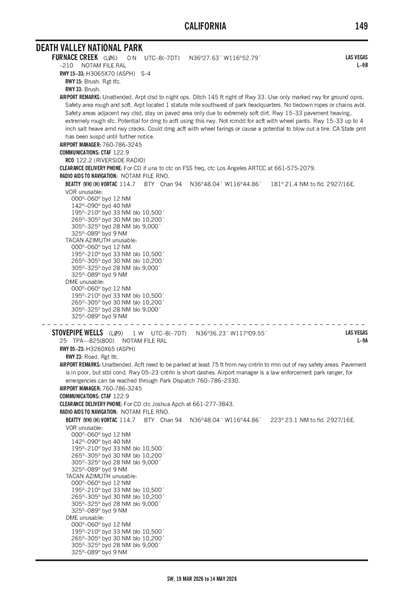

FAA A/FD Pages

Terminal Area Forecast

KINS (58nm)
Fri, 4/24 1:56 PM PDT
Fri, 4/24 2:00 PM PDT - Sat, 4/25 8:00 PM PDT
VFR
2:00 PM PDT - 10:00 PM PDT
Broken 13,000'
6sm
29.70"Hg
220° 10kts
Gusts 15kts
VFR
Temporary 4:00 PM PDT - 7:00 PM PDT
No Clouds
N/A
240° 12kts
Gusts 21kts
Light Turbulence: up to 9,000'
VFR
Becoming 10:00 PM PDT - 12:00 PM PDT
Sky Clear
6sm
29.73"Hg
VRB° 6kts
VFR
Becoming 12:00 PM PDT - 3:00 PM PDT
Broken 13,000'
6sm
29.65"Hg
180° 10kts
VFR
Temporary 2:00 PM PDT - 4:00 PM PDT
No Clouds
N/A
230° 12kts
Gusts 21kts
Light Turbulence: up to 9,000'
VFR
Becoming 3:00 PM PDT - 6:00 PM PDT
Light Rain
Broken 12,000'
6sm
29.62"Hg
240° 15kts
Gusts 21kts
Light Turbulence: up to 9,000'
VFR
Temporary 4:00 PM PDT - 7:00 PM PDT
No Clouds
N/A
250° 21kts
Gusts 31kts
Moderate, Clear Air, Occasional: up to 9,000'
VFR
Becoming 6:00 PM PDT - 8:00 PM PDT
Light Showers and Rain in vicinity
Broken 12,000'
6sm
29.62"Hg
220° 18kts
Gusts 25kts
Moderate, Clear Air, Occasional: up to 9,000'
TAF KINS 242056Z 2421/2603 22010G15KT 9999 BKN130 QNH2971INS
   TEMPO 2423/2502 24012G21KT 510009
   BECMG 2505/2506 VRB06KT 9999 SKC QNH2972INS
   BECMG 2519/2520 18010KT 9999 BKN130 QNH2965INS
   TEMPO 2521/2523 23012G21KT 510009
   BECMG 2522/2523 24015G21KT 9999 BKN120 510009 QNH2962INS -RA OMTNS
   TEMPO 2523/2602 25021G31KT 520009
   BECMG 2601/2602 22018G25KT 9999 VCSH BKN120 520009 QNH2962INS -RA OMTNS TX25/2423Z TN07/2513Z
L06
EffectiveExpiresCategoryNOTAM
Domestic
4/21/26
0326Z
!RAL 04/109 L06 COM REMOTE COM OUTLET 122.2 U/S 2604210326-2606262000EST
8/30/25
1901Z
!RAL 08/137 L06 COM REMOTE TRANS/REC 120.25, 291.6 U/S 2508301901-2706302000EST
No
UNATNDD
US DEPT OF INTERIOR/PARK SVC
DEATH VALLEY NATL PARK
DEATH VALLEY, CA 92328
Phone: 760-786-3245
PHILIP JOHNSON
DEATH VALLEY NATL PARK
DEATH VALLEY, CA 92328
Phone: 760-786-3245
RIVERSIDE FSS (RAL)
Toll Free: 1-800-WX-BRIEF
RAL
--
--
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 15/33

3065 ft. x 70 ft.
ASPH
Failed
NONE


4,000lbs
--
--
--
  Runway 15 Runway 33
True Heading 162°342°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 36° 27' 52"N 36° 27' 23"N
Longitude 116° 52' 53"W 116° 52' 42"W
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1USE ONLY MKD RY FOR GROUND OPNS. SAFETY AREA ROUGH & SOFT.
A110-2NO TIEDOWN ROPES OR CHAINS AVBL.
A110-3DITCH 145 FT RIGHT OF RY 33.
A110-4SAFETY AREAS ADJ RY CLSD, STAY ON PAVED AREA ONLY DUE TO EXTREMELY SOFT DIRT.
A110-5ARPT CLSD TO NIGHT OPS.
A110-6FOR CD IF UNA TO CTC ON FSS FREQ, CTC LOS ANGELES ARTCC AT 661-575-2079.
A110-7RWY 15/33 PAVEMENT HEAVING, EXTREMELY ROUGH SFC. POTENTIAL FOR DMG TO ACFT USING THIS RWY. NOT RCMDD FOR ACFT WITH WHEEL PANTS.
A110-8CA STATE PMT HAS BEEN SUSPD UNTIL FURTHER NOTICE.
A16AIRPORT MANAGER IS A LAW ENFORCEMENT PARK RANGER, FOR EMERGENCIES CAN BE REACHED THROUGH PARK DISPATCH 760-786-2330
A3ARPT LCTD 1 SM SW OF PARK HEADQUARTERS.
A33-15/33_CONDUP TO 4 INCH SALT HEAVE ARND RWY CRACKS. COULD DMG ACFT WITH WHEEL FAIRINGS OR CAUSE A POTENTIAL TO BLOW OUT A TIRE.
E111ESTABD PRIOR TO 5/15/59.
FURNACE CREEK (IATA: L06) is a public airport located in DEATH VALLEY NATIONAL PARK, CA, US.
