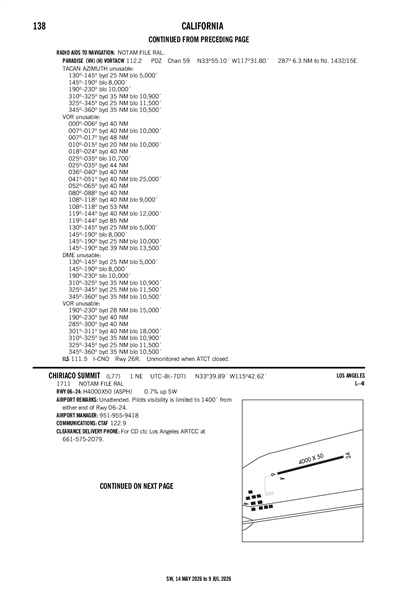

CHIRIACO SUMMIT - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

L77
Local L77
CHIRIACO SUMMIT
PublicPUB

1 miles NE of CHIRIACO SUMMIT, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
33° 39' 53"N 115° 42' 37"W
Elevation
1711' MSL
Pattern Alt
2711' MSL
Mag Variation
11°E
Declination
13°E
Fuel
None Listed
FSS
RIVERSIDE (RAL)
Sectional
LOS ANGELES
ARTCC
LOS ANGELES (ZLA)
Data Effective
4/16/26-5/14/26
KL08 (39nm) VFR
2:55 AM PDT
Clear
10sm
63°F
37°F
29.79"Hg
280° 13kts
Gusts 21kts
AO2
METAR KL08 250955Z AUTO 28013G21KT 10SM CLR 17/03 A2979 RMK AO2
+ Add Your Business

L77 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KTRM (23nm)
Fri, 4/24 10:20 PM PDT
Fri, 4/24 11:00 PM PDT - Sat, 4/25 11:00 PM PDT
VFR
11:00 PM PDT - 5:00 AM PDT
Broken 25,000'
6sm
330° 18kts
Gusts 28kts
VFR
5:00 AM PDT - 12:00 PM PDT
Broken 20,000'
6sm
330° 14kts
VFR
12:00 PM PDT - 3:00 PM PDT
Broken 20,000'
6sm
VRB° 5kts
VFR
3:00 PM PDT - 7:00 PM PDT
Broken 20,000'
6sm
290° 13kts
Gusts 24kts
VFR
7:00 PM PDT - 11:00 PM PDT
Broken 20,000'
6sm
290° 23kts
Gusts 35kts
TAF KTRM 250520Z 2506/2606 33018G28KT P6SM BKN250
   FM251200 33014KT P6SM BKN200
   FM251900 VRB05KT P6SM BKN200
   FM252200 29013G24KT P6SM BKN200
   FM260200 29023G35KT P6SM BKN200 AMD NOT SKED
L77
EffectiveExpiresCategoryNOTAM
Domestic
4/20/26
1832Z
5/5/26
1832Z
!RAL 04/104 L77 OBST TOWER LGT (ASN 2011-AWP-6794-OE) 333857N1154350W (1.4NM SW L77) 1944FT (183FT AGL) U/S 2604201832-2605051832
4/16/26
1658Z
5/1/26
1658Z
!RAL 04/080 L77 OBST TOWER LGT (ASN 2011-AWP-6805-OE) 333927N1154036W (1.7NM ESE L77) 2028FT (161FT AGL) U/S 2604161658-2605011658
4/12/26
2036Z
4/27/26
2036Z
!RAL 04/058 L77 OBST TOWER LGT (ASN 2011-AWP-6797-OE) 333904N1154255W (0.9NM SSW L77) 2289FT (162FT AGL) U/S 2604122036-2604272036
No
UNATNDD
COUNTY OF RIVERSIDE
4080 LEMON STREET 14TH FLOOR
RIVERSIDE, CA 92501
Phone: 951-955-9722
ANGELA JAMISON
4080 LEMON STREET 14TH FLOOR
RIVERSIDE, CA 92501
Phone: 951-955-9418
RIVERSIDE FSS (RAL)
Toll Free: 1-800-WX-BRIEF
RAL
--
--
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 06/24

4000 ft. x 50 ft.
ASPH
Good
NONE


--
--
--
--
  Runway 06 Runway 24
True Heading 79°259°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 33° 39' 50"N 33° 39' 57"N
Longitude 115° 43' 01"W 115° 42' 14"W
Elevation 1,711' 1,681'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1PILOTS VISIBILITY IS LIMITED TO 1400 FT FROM EITHER END OF RY 06/24.
A110-2FOR CD CTC LOS ANGELES ARTCC AT 661-575-2079.
A35-06/24GROSS WEIGHT STRENGTH PRVDD BY ARPT MANAGEMENT 6000 LBS.
E111ESTABD PRIOR TO 5/15/59.
CHIRIACO SUMMIT (IATA: L77) is a public airport located in CHIRIACO SUMMIT, CA, US.
