MOUNTAIN VALLEY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

L94
Local L94
MOUNTAIN VALLEY
PublicPUB

2 miles SE of TEHACHAPI, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 06' 04"N 118° 25' 23"W
Elevation
4220' MSL
Pattern Alt
5220' MSL
Mag Variation
12°E
Declination
14°E
Fuel
None Listed
FSS
RANCHO MURIETA (RIU)
Sectional
LOS ANGELES
ARTCC
LOS ANGELES (ZLA)
Data Effective
2/19/26-3/19/26
No METAR is available for this location.
+ Add Your Business

L94 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 123.0
UNICOM 123.0

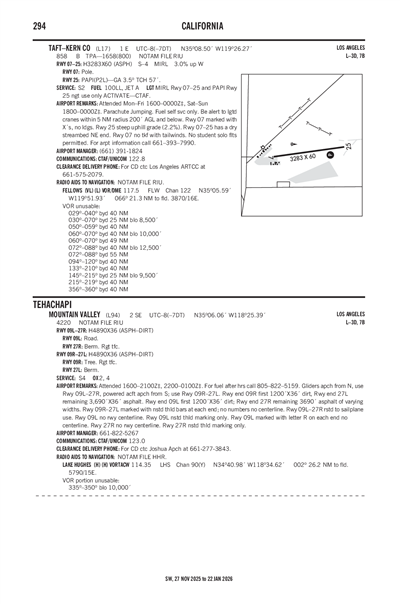

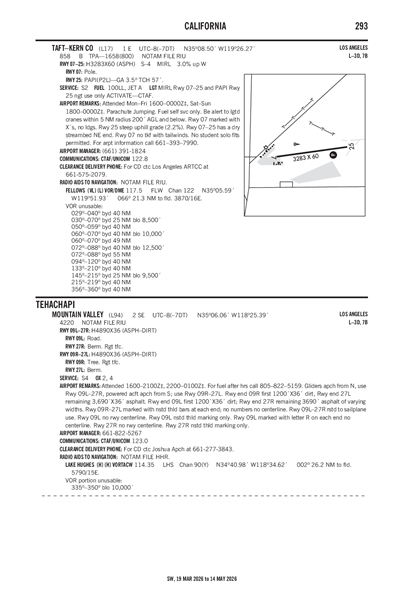

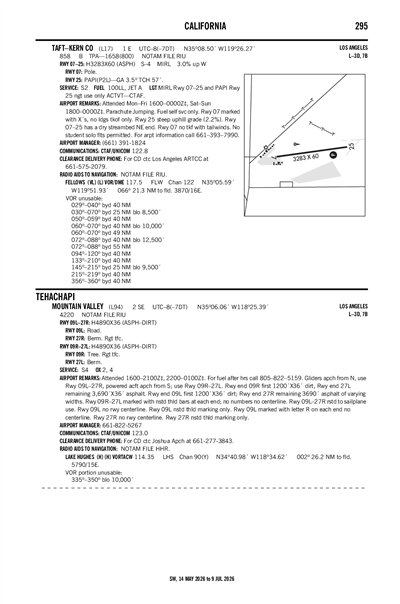

FAA A/FD Pages

Terminal Area Forecast

KWJF (24nm)
Sun, 2/22 9:32 AM PST
Sun, 2/22 10:00 AM PST - Mon, 2/23 10:00 AM PST
VFR
10:00 AM PST - 11:00 AM PST
Scattered 25,000'
6sm
VRB° 3kts
VFR
11:00 AM PST - 6:00 PM PST
Scattered 25,000'
6sm
060° 7kts
VFR
6:00 PM PST - 10:00 PM PST
Scattered 25,000'
6sm
310° 6kts
VFR
10:00 PM PST - 10:00 AM PST
Scattered 25,000'
6sm
VRB° 3kts
TAF KWJF 221732Z 2218/2318 VRB03KT P6SM SCT250
   FM221900 06007KT P6SM SCT250
   FM230200 31006KT P6SM SCT250
   FM230600 VRB03KT P6SM SCT250
L94
EffectiveExpiresCategoryNOTAM
Domestic
2/18/26
1220Z
5/19/26
0500Z
!RIU 02/128 L94 OBST TOWER LGT (ASR 1206822) 350639.70N1181729.20W (6.5NM E L94) 5240.2FT (101.0FT AGL) U/S 2602181220-2605190500
2/16/26
1150Z
5/16/26
2359Z
!RIU 02/106 L94 OBST TOWER LGT (ASR 1267211) 350447.00N1182147.40W (3.2NM ESE L94) 5395.0FT (205.1FT AGL) U/S 2602161150-2605162359
2/8/26
0622Z
3/25/26
0622Z
!RIU 02/055 L94 OBST TOWER LGT (ASN 2022-WTW-112-OE) 345517N1183144W (11.9NM SSW L94) 4285FT (279FT AGL) U/S 2602080622-2603250622
No
DAWN-DUSK
JANE BARRETT
PO BOX 100
TEHACHAPI, CA 93581
Phone: 661-822-5267
JANE BARRETT
16334 HARRIS ROAD
TEHACHAPI, CA 93561
Phone: 661-822-5267
RANCHO MURIETA FSS (RIU)
Toll Free: 1-800-WX-BRIEF
RIU
--
--
N/A
Yes
Yes
No
Tie-Down
No
Major
Major
Low Pressure
Low Pressure
Glider Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Glider Towing

Runway 09L/27R

4890 ft. x 36 ft.
ASPH DIRT
Fair
NONE


--
--
--
--
  Runway 09L Runway 27R
True Heading Not ListedNot Listed
Traffic Pattern Left Right
Markings NSTD NSTD
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 09R/27L

4890 ft. x 36 ft.
ASPH DIRT
Fair
NONE


--
--
--
--
  Runway 09R Runway 27L
True Heading Not ListedNot Listed
Traffic Pattern Right Left
Markings NSTD NSTD
Markings Condition FAIR GOOD
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1<GLIDERS APCH FM N, USE RWY 9L/27R; PWR ACFT APCH FM S, USE RWY 9R/27L.
A110-2RY 09R/27L MARKED WITH NSTD THLD BARS EACH END; NO NUMBERS NO CNTRLN.
A110-3FOR CD CTC JOSHUA APCH AT 661-277-3843.
A14ALTERNATE CONTACT: MRS. JANE BARRETT
A30-09L/27RRESTRICTED TO SAILPLANE USE.
A31-09L/27RRY END 09L FIRST 1,200 FT X 36 FT DIRT; RY END 27R REMAINING 3,690 FT ASPHALT OF VARYING WIDTHS.
A31-09R/27LRY END 09R FIRST 1,200 FT X 36 FT DIRT; RY END 27L REMAINING 3,690 FT X 36 FT ASPHALT.
A32-09R/27LPARTIALLY PAVED PORTIONS OF THE RUNWAY 20 FEET WIDE
A42-09L_CONDNON STANDARD THRESHOLD MARKING ONLY
A42-09L_MARKNO CNTRLN.
A42-27R_CONDNON STANDARD THRESHOLD MARKING ONLY
A42-27R_MARKNO RUNWAY CENTERLINE
MOUNTAIN VALLEY (IATA: L94) is a public airport located in TEHACHAPI, CA, US.
