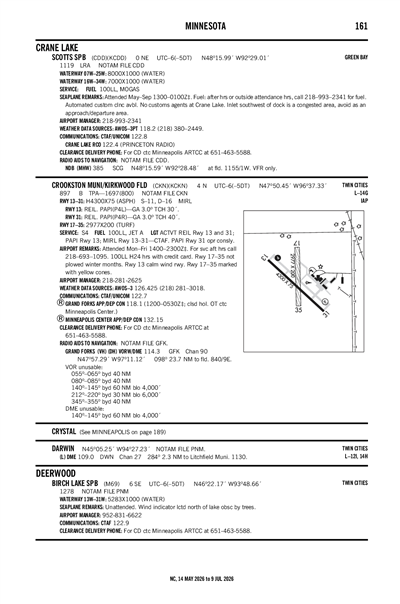

BIRCH LAKE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

M69
Local M69
BIRCH LAKE
PublicPUB

6 miles SE of DEERWOOD, MN, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
46° 22' 10"N 93° 48' 40"W
Elevation
1278' MSL
Pattern Alt
2278' MSL
Mag Variation
0°
Fuel
None Listed
FSS
PRINCETON (PNM)
Sectional
TWIN CITIES
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
3/19/26-4/16/26
KAIT (12nm) MVFR
2:35 PM CDT
Light Snow
Overcast 1,200'
Scattered 600'
3sm
32°F
30°F
29.81"Hg
360° 12kts
Gusts 16kts
AO2
METAR KAIT 041935Z AUTO 36012G16KT 3SM -SN SCT006 OVC012 00/M01 A2981 RMK AO2
+ Add Your Business

M69 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KBRD (13nm)
Sat, 4/4 12:39 PM CDT
Sat, 4/4 1:00 PM CDT - Sun, 4/5 1:00 PM CDT
IFR
1:00 PM CDT - 7:00 PM CDT
Light Snow and Mist
Overcast 800'
1.5sm
340° 9kts
Gusts 17kts
IFR
Temporary 4:00 PM CDT - 7:00 PM CDT
Light Snow and Mist
No Clouds
1sm
Calm
MVFR
7:00 PM CDT - 11:00 PM CDT
Light Showers and Snow and Mist
Overcast 1,200'
3sm
320° 11kts
Gusts 22kts
MVFR
11:00 PM CDT - 6:00 AM CDT
Broken 1,800'
6sm
310° 8kts
Gusts 16kts
MVFR
6:00 AM CDT - 9:00 AM CDT
Broken 1,800'
6sm
300° 7kts
MVFR
9:00 AM CDT - 1:00 PM CDT
Broken 1,300'
6sm
290° 8kts
TAF KBRD 041739Z 0418/0518 34009G17KT 1 1/2SM -SN BR OVC008
   TEMPO 0421/0424 1SM -SN BR
   FM050000 32011G22KT 3SM -SHSN BR OVC012
   FM050400 31008G16KT P6SM BKN018
   FM051100 30007KT P6SM BKN018
   FM051400 29008KT P6SM BKN013
M69
No NOTAM Available
No
UNATNDD
DAVE RAMSAY
15269 CHARLSON ROAD
EDEN PRAIRIE, MN 55347
Phone: 952-831-6622
DAVE RAMSAY
15269 CHARLSON ROAD
EDEN PRAIRIE, MN 55347
Phone: 952-831-6622
PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF
PNM
--
--
N/A
Yes
No
No
Tie-Down
No
None
None
None
None
None

Runway 13W/31W

5283 ft. x 1000 ft.

WATER
NONE


--
--
--
--
  Runway 13W Runway 31W
True Heading 129°309°
Traffic Pattern
Markings
Markings Condition
Latitude 46° 22' 28"N 46° 21' 55"N
Longitude 93° 49' 09"W 93° 48' 11"W
Elevation 1,278' 1,278'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A15ARPT PHYS ADS: 27899 WAFFENSMITH RD, DEERWOOD, MN 56444.
A83WIND INDCR LCTD NORTH OF LAKE OBSC BY TREES.
BIRCH LAKE (IATA: M69) is a public seaplane base located in DEERWOOD, MN, US.
