iFlightPlanner



...

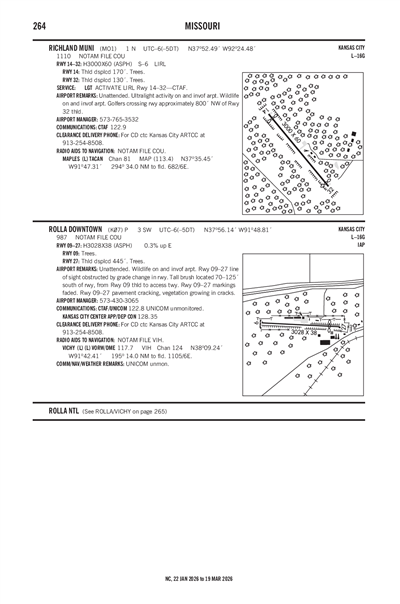

RICHLAND MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

MO1
Local MO1
RICHLAND MUNI
PublicPUB

1 miles N of RICHLAND, MO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
37° 52' 30"N 92° 24' 29"W
Elevation
1110' MSL
Pattern Alt
2110' MSL
Mag Variation
0°
Declination
4°E
Fuel
None Listed
FSS
COLUMBIA (COU)
Sectional
KANSAS CITY
ARTCC
KANSAS CITY (ZKC)
Data Effective
2/19/26-3/19/26
KTBN (15nm) MVFR
10:55 AM CDT
Overcast 3,400'
Broken 2,700'
10sm
63°F
53°F
29.43"Hg
180° 14kts
Gusts 24kts
AO2 PK WND 18029/23 SLP962 T01740116 $
METAR KTBN 151555Z AUTO 18014G24KT 10SM BKN027 OVC034 17/12 A2943 RMK AO2 PK WND 18029/23 SLP962 T01740116 $
+ Add Your Business

MO1 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
DUSK-DAWN. ACTVT LIRL RY 14/32 - CTAF.

FAA A/FD Pages

Terminal Area Forecast

KJEF (45nm)
Sun, 3/15 6:20 AM CDT
Sun, 3/15 7:00 AM CDT - Mon, 3/16 7:00 AM CDT
VFR
7:00 AM CDT - 11:00 AM CDT
Broken 20,000'
6sm
170° 13kts
Gusts 28kts
MVFR
11:00 AM CDT - 1:00 PM CDT
Broken 2,500'
6sm
200° 14kts
Gusts 31kts
MVFR
1:00 PM CDT - 4:00 PM CDT
Light Showers and Rain
Broken 3,000'
5sm
250° 14kts
Gusts 29kts
LIFR
4:00 PM CDT - 5:00 PM CDT
Light Rain
Overcast 100'
4sm
Calm
MVFR
4:00 PM CDT - 8:00 PM CDT
Broken 1,500'
6sm
280° 16kts
Gusts 33kts
MVFR
8:00 PM CDT - 7:00 AM CDT
Broken 2,000'
6sm
300° 19kts
Gusts 37kts
MVFR
12:00 AM CDT - 4:00 AM CDT
Light Snow
Overcast 1,000'
4sm
Calm
TAF KJEF 151120Z 1512/1612 17013G28KT P6SM BKN200
   FM151600 20014G31KT P6SM BKN025
   FM151800 25014G29KT 5SM -SHRA BKN030
   FM152100 28016G33KT P6SM BKN015
   PROB30 1521/1522 4SM -RA OVC001
   FM160100 30019G37KT P6SM BKN020
   PROB30 1605/1609 4SM -SN OVC010
MO1
EffectiveExpiresCategoryNOTAM
Domestic
2/3/26
1656Z
4/3/26
1655Z
!COU 02/026 MO1 OBST TOWER LGT (ASR 1271681) 375052.40N0922449.30W (1.6NM S MO1) 1049.9FT (259.8FT AGL) U/S 2602031656-2604031655
No
UNATNDD
CITY OF RICHLAND
PO BOX 798
RICHLAND, MO 65556
Phone: 573-765-4421
DANA TANNER
PO BOX 798
RICHLAND, MO 65556
Phone: 573-765-3532
COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF
COU
--
DUSK-DAWN. ACTVT LIRL RY 14/32 - CTAF.
N/A
Yes - Lighted
Yes
No
None
No
None
None
None
None
None

Runway 14/32

3000 ft. x 60 ft.
ASPH
Good
NONE
LOW

6,000lbs
--
--
--
  Runway 14 Runway 32
True Heading 139°319°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 37° 52' 41"N 37° 52' 18"N
Longitude 92° 24' 41"W 92° 24' 17"W
Elevation 1,110' 1,110'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1GOLFERS CROSSING RY APPROXIMATELY 800 FT NORTHWEST OF RY 32 THR.
A110-2WILDLIFE ON & INVOF ARPT.
A110-3FOR CD CTC KANSAS CITY ARTCC AT 913-254-8508.
A14MAYOR
A57-14RWY 14 +40 FT TREES, 588 FT, 150FT L-R, 14:1 BASED ON DSPLCD THLD.
A57-32RWY 32 APCH SLOPE 9:1, +32 FT TREES, 302 FT FM DSPLCD THLD, 50 FT L/R,
A58-32RWY 32 +1-6 FT GND; TREE, 35 FT, 55 FT FM RWY END 70 FT R; TREES 18-35 FT, 180-200 FT FM RWY END, L & R.
A81-APTDUSK-DAWN. ACTVT LIRL RY 14/32 - CTAF.
A96ULTRALIGHT ACTIVITY ON AND INVOF ARPT.
RICHLAND MUNI (IATA: MO1) is a public airport located in RICHLAND, MO, US.
