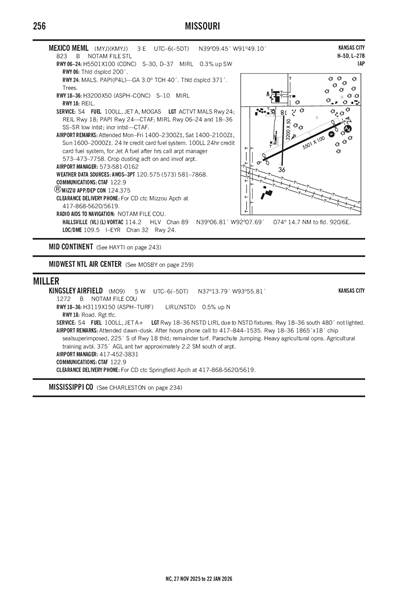

KINGSLEY AIRFIELD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

MO9
Local MO9
KINGSLEY AIRFIELD
PublicPUB

5 miles W of MILLER, MO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
37° 13' 47"N 93° 55' 49"W
Elevation
1272' MSL
Pattern Alt
2272' MSL
Mag Variation
1°E
Fuel
JET A (FSII), 100LL
FSS
COLUMBIA (COU)
Sectional
KANSAS CITY
ARTCC
KANSAS CITY (ZKC)
Data Effective
6/11/26-7/9/26
KHFJ (20nm) VFR
4:35 PM CDT
Scattered 7,500'
Scattered 6,000'
10sm
81°F
72°F
29.94"Hg
210° 7kts
AO2 LTG DSNT W THRU NE
METAR KHFJ 252135Z AUTO 21007KT 10SM SCT060 SCT075 27/22 A2994 RMK AO2 LTG DSNT W THRU NE
+ Add Your Business

MO9 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KSGF (26nm)
Thu, 6/25 4:38 PM CDT
Thu, 6/25 5:00 PM CDT - Fri, 6/26 1:00 PM CDT
IFR
Temporary 4:00 PM CDT - 7:00 PM CDT
Thunderstorm and Rain and Mist
Overcast 5,000'
Broken 3,000'
Few 1,500'
2sm
Calm
VFR
5:00 PM CDT - 1:00 AM CDT
Broken 5,000'
6sm
170° 10kts
MVFR
1:00 AM CDT - 6:00 AM CDT
Light Thunderstorm and Rain and Mist
Broken 2,500'
4sm
150° 8kts
VFR
6:00 AM CDT - 11:00 AM CDT
Light Showers and Rain
Broken 7,000'
6sm
180° 11kts
Gusts 19kts
MVFR
11:00 AM CDT - 1:00 PM CDT
Broken 2,500'
6sm
220° 13kts
Gusts 21kts
MVFR
12:00 PM CDT - 1:00 PM CDT
Thunderstorm and Rain and Mist
Overcast 1,500'
4sm
Calm
TAF KSGF 252138Z 2522/2618 17010KT P6SM BKN050
   TEMPO 2521/2524 2SM TSRA BR FEW015 BKN030 OVC050CB
   FM260600 15008KT 4SM -TSRA BR BKN025CB
   FM261100 18011G19KT P6SM -SHRA BKN070
   FM261600 22013G21KT P6SM BKN025
   PROB30 2617/2618 4SM TSRA BR OVC015CB
MO9
EffectiveExpiresCategoryNOTAM
Domestic
6/25/26
2058Z
9/23/26
2058Z
!COU 06/696 MO9 OBST TOWER LGT (ASR 1249083) 372344.60N0940135.20W (10.9NM NNW MO9) 1402.2FT (345.1FT AGL) U/S 2606252058-2609232058
6/21/26
1613Z
!COU 06/589 MO9 OBST TOWER LGT (ASR 1302393) 371120.67N0934604.65W (8.1NM ESE MO9) 1552FT (265FT AGL) U/S 2606211613-2607211700EST
6/14/26
0529Z
9/12/26
0529Z
!COU 06/403 MO9 OBST TOWER LGT (ASR 1243310) 372412.80N0935600.60W (10.4NM N MO9) 1479.0FT (349.1FT AGL) U/S 2606140529-2609120529
No
DAWN-DUSK
KIMAN KINGSLEY
3388 LAWRENCE 1070
MILLER, MO 65707
Phone: 417-452-3831
KIMAN KINGSLEY
3388 LAWRENCE 1070
MILLER, MO 65707
Phone: 417-452-3831
COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF
COU
Sunset to Sunrise
--
N/A
Yes
No
No
Hanger, Tie-Down
No
Major
Major
None
None
Crop Dusting
Pilot Instruction
Parachute Jump Activity

Runway 18/36

3119 ft. x 150 ft.
ASPH TURF
Good
NONE
NSTD

--
--
--
--
  Runway 18 Runway 36
True Heading 184°4°
Traffic Pattern Right
Markings
Markings Condition
Latitude 37° 14' 03"N 37° 13' 32"N
Longitude 93° 55' 47"W 93° 55' 50"W
Elevation 1,262' 1,248'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1HEAVY AGRICULTURAL OPNS.
A110-2AG TRAINING AVAILABLE
A110-3375 FT AGL ANT TWR APRXLY 2.2 SM S OF ARPT.
A110-4FOR CD CTC SPRINGFIELD APCH AT 417-868-5620/5619.
A110-5AFTER HOURS PHONE CALL TO 417-844-1535
A31-18/36RWY 18/36 1865 FT X 18 FT CHIP SEALSUPERIMPOSED, 225 FT S OF RWY 18 THLD; REMAINDER TURF.
A40-18/36NSTD LIRL: RWY 18/36 NSTD LIRL DUE TO NSTD FIXTURES. RWY 18/36 SOUTH 480 FT NOT LIGHTED.
KINGSLEY AIRFIELD (IATA: MO9) is a public airport located in MILLER, MO, US.
