LAUREL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

N06
Local N06
LAUREL
PublicPUB

1 miles SW of LAUREL, DE, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
38° 32' 32"N 75° 35' 40"W
Elevation
30' MSL
Pattern Alt
1030' MSL
Mag Variation
11°W
Declination
12°W
Fuel
None Listed
FSS
MILLVILLE (MIV)
Sectional
WASHINGTON
ARTCC
WASHINGTON (ZDC)
Data Effective
5/14/26-6/11/26
KSBY (13nm) VFR
11:54 AM EDT
Scattered 4,400'
10sm
63°F
42°F
29.96"Hg
340° 13kts
Gusts 20kts
AO2 SLP146 T01720056
METAR KSBY 151554Z 34013G20KT 300V010 10SM SCT044 17/06 A2996 RMK AO2 SLP146 T01720056
+ Add Your Business

N06 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT ROTG BCN - CTAF.; ACTVT LIRL RWY 15/33 - CTAF.

Approach

PATUXENT APPROACH 127.95
PATUXENT APPROACH 127.2
Secondary - WHEN NHK APCH CLSD

Departure

PATUXENT DEPARTURE 127.95
PATUXENT DEPARTURE 127.2
Secondary - WHEN NHK APCH CLSD

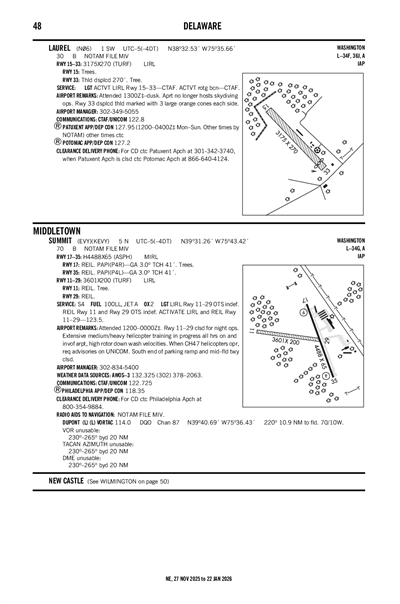

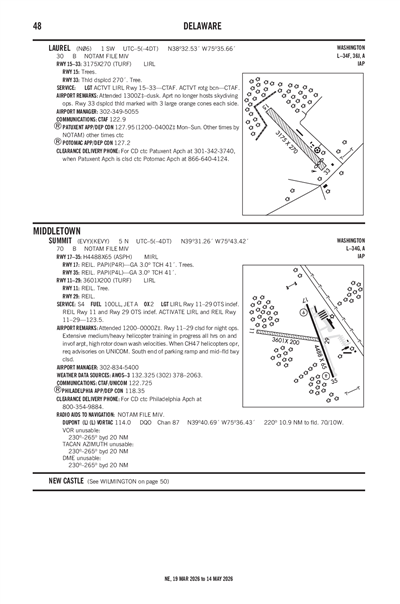

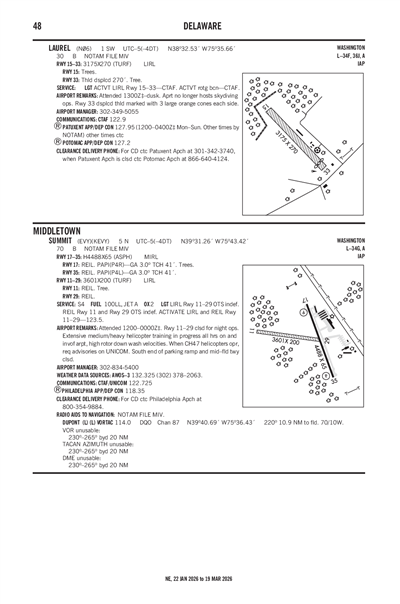

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KSBY (13nm)
Fri, 5/15 7:20 AM EDT
Fri, 5/15 8:00 AM EDT - Sat, 5/16 8:00 AM EDT
VFR
8:00 AM EDT - 10:00 AM EDT
Overcast 4,000'
6sm
300° 7kts
VFR
10:00 AM EDT - 6:00 PM EDT
Scattered 4,000'
6sm
310° 12kts
Gusts 20kts
VFR
6:00 PM EDT - 8:00 AM EDT
Sky Clear
6sm
VRB° 3kts
TAF KSBY 151120Z 1512/1612 30007KT P6SM OVC040
   FM151400 31012G20KT P6SM SCT040
   FM152200 VRB03KT P6SM SKC
N06
EffectiveExpiresCategoryNOTAM
Domestic
3/30/26
1743Z
6/1/26
2359Z
!MIV 03/241 N06 OBST TOWER LGT (ASR 1301089) 383018.00N0753836.00W (3.2NM SW N06) 1047.9FT (1002.0FT AGL) U/S 2603301743-2606012359
2/20/26
1514Z
8/20/26
2359Z
!MIV 02/262 N06 OBST TOWER LGT (ASR 1248212) 383040.00N0753318.00W (2.6NM SE N06) 542.0FT (500.0FT AGL) U/S 2602201514-2608202359
No
0800-DUSK
DEST INC
106 STUART DRIVE
DOVER, DE 19901
Phone: 302-697-6020
JEFF CHORMAN
30475 EAST MILL RUN
MILTON, DE 19968
Phone: 302-349-5055
MILLVILLE FSS (MIV)
Toll Free: 1-800-WX-BRIEF
MIV
--
ACTVT LIRL RWY 15/33 - CTAF.
ACTVT ROTG BCN - CTAF.
N/A
Yes
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Crop Dusting
Parachute Jump Activity

Runway 15/33

3175 ft. x 270 ft.
TURF
Good
NONE
LOW

--
--
--
--
  Runway 15 Runway 33
True Heading 136°316°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 38° 32' 44"N 38° 32' 21"N
Longitude 75° 35' 52"W 75° 35' 25"W
Elevation 29' 30'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights No No
A11DEST INC.
A110-2FOR CD CTC PATUXENT APCH AT 301-342-3740, WHEN PATUXENT APCH IS CLSD CTC POTOMAC APCH AT 866-640-4124.
A110-3ARPT NO LONGER HOSTS SKYDIVING OPS.
A42-33_CONDDSPLCD THLD MKD WITH 3 LARGE ORANGE CONES EACH SIDE.
A57-33RWY 33 APCH SLP 6:1 TO DSPLCD THLD.
A81-APTACTVT LIRL RWY 15/33 - CTAF.
A81-BCNACTVT ROTG BCN - CTAF.
E111EXISTED PRIOR TO 1959.
LAUREL (IATA: N06) is a public airport located in LAUREL, DE, US.
