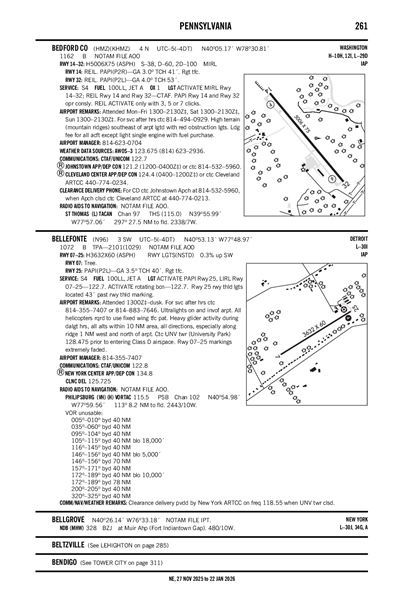

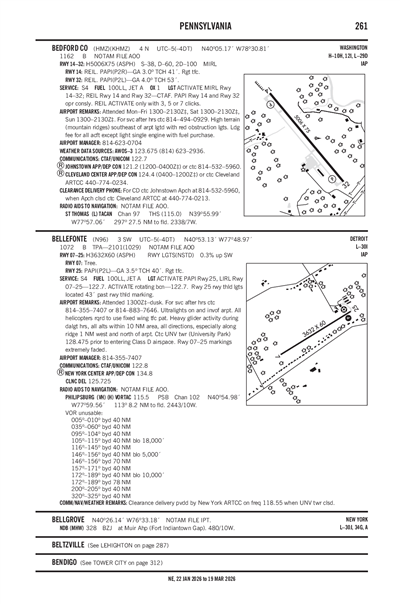

BELLEFONTE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

N96
Local N96
BELLEFONTE
PublicPUB

3 miles SW of BELLEFONTE, PA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 53' 08"N 77° 48' 58"W
Elevation
1072' MSL
Pattern Alt
2101' MSL
Mag Variation
11°W
Declination
10°W
Fuel
JET A, 100LL
FSS
ALTOONA (AOO)
Sectional
DETROIT
ARTCC
NEW YORK (ZNY)
Data Effective
2/19/26-3/19/26
KUNV (2nm) VFR
10:53 AM EDT
Clear
10sm
45°F
16°F
30.23"Hg
180° 10kts
Gusts 20kts
METAR KUNV 151453Z 18010G20KT 10SM CLR 07/M09 A3023
+ Add Your Business

N96 FBOs

Promote Listing
Pleasant Valley Aviation
UNICOM: 122.8
Phone: (814) 355-7407
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 3/14
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.70 6.42
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
UNICOM 122.8

Clearance

Clearance Delivery 125.725

Center

NEW YORK CENTER 134.8
LOW, APCH/DEP SVC PRVDD BY NEW YORK ARTCC ON FREQS 134.8/338.3 (PHILIPSBURG RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KUNV (2nm)
Sun, 3/15 7:20 AM EDT
Sun, 3/15 8:00 AM EDT - Mon, 3/16 8:00 AM EDT
VFR
8:00 AM EDT - 12:00 PM EDT
Broken 9,000'
6sm
120° 8kts
VFR
12:00 PM EDT - 2:00 PM EDT
Broken 25,000'
6sm
170° 15kts
Gusts 25kts
VFR
2:00 PM EDT - 6:00 PM EDT
Overcast 4,500'
6sm
170° 15kts
Gusts 25kts
VFR
6:00 PM EDT - 8:00 PM EDT
Overcast 3,500'
Scattered 2,500'
6sm
160° 13kts
Gusts 30kts
MVFR
8:00 PM EDT - 12:00 AM EDT
Overcast 2,500'
6sm
160° 11kts
Gusts 20kts
IFR
12:00 AM EDT - 8:00 AM EDT
Overcast 700'
6sm
150° 5kts
IFR
1:00 AM EDT - 5:00 AM EDT
Light Rain
Overcast 700'
6sm
Calm
TAF KUNV 151120Z 1512/1612 12008KT P6SM BKN090
   FM151600 17015G25KT P6SM BKN250
   FM151800 17015G25KT P6SM OVC045
   FM152200 16013G30KT P6SM SCT025 OVC035 WS020/15045KT
   FM160000 16011G20KT P6SM OVC025 WS020/15045KT
   FM160400 15005KT P6SM OVC007 WS020/15058KT
   PROB30 1605/1609 6SM -RA OVC007
N96
EffectiveExpiresCategoryNOTAM
Domestic
3/14/26
1158Z
7/12/26
1158Z
!AOO 03/232 N96 OBST TOWER LGT (ASR 1228119) 405256.50N0774308.80W (4.4NM E N96) 1320.9FT (196.9FT AGL) U/S 2603141158-2607121158
1/27/26
2148Z
4/28/26
0500Z
!AOO 01/406 N96 OBST TOWER LGT (ASR 1213172) 405901.60N0774916.90W (5.9NM N N96) 1784.1FT (305.1FT AGL) U/S 2601272148-2604280500
No
0800-DUSK
FOR SVC AFT HRS CTC 814-355-7407 OR 814-883-7646.
MARINA ELNITSKI
225 SNOWBIRD LA
BELLEFONTE, PA 16823
Phone: 814-355-7407
JOHN ELNITSKI
225 SNOWBIRD LA
BELLEFONTE, PA 16823
Phone: 814-355-7407
ALTOONA FSS (AOO)
Toll Free: 1-800-WX-BRIEF
AOO
--
ACTVT PAPI RWY 25; LIRL RWY 07/25 - 122.7.
ACTVT ARPT BCN - 122.7.
N/A
Yes
No
No
Hanger, Tie-Down
No
Major
Major
None
None
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 07/25

3632 ft. x 60 ft.
ASPH
Fair
NONE
NSTD

--
--
--
--
  Runway 07 Runway 25
True Heading 56°236°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition POOR POOR
Latitude 40° 52' 58"N 40° 53' 18"N
Longitude 77° 49' 18"W 77° 48' 39"W
Elevation 1,069' 1,057'
Threshold Crossing Height -- 40 ft. AGL
Visual Glide Path Angle -- 3.5°
Visual Slope Indicator -- P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1ULTRA-LIGHTS ON & INVOF ARPT.
A110-4ALL HELI RQRD TO USE FIXED WING TFC PAT.
A110-5HVY GLIDER ACT DURG DALGT HRS, ALL ALTS WI 10 NM AREA, ALL DRCTNS, SPCLY ALG RIDGE 1 NM WEST & NORTH OF ARPT.
A110-6CTC UNV TWR(UNIVERSITY PARK) 128.475 PRIOR TO ENTERING CLASS D ASP.
A17-M1FOR SVC AFT HRS CTC 814-355-7407 OR 814-883-7646.
A40-07/25RWY 25 THR LGTS LCTD 43 FT PAST RWY THR MKG.
A42-07_CONDRWY MARKINGS EXTREMELY FADED.
A42-25_CONDRWY MARKINGS EXTREMELY FADED.
A81-APTACTVT PAPI RWY 25; LIRL RWY 07/25 - 122.7.
A81-BCNACTVT ARPT BCN - 122.7.
BELLEFONTE (IATA: N96) is a public airport located in BELLEFONTE, PA, US.
