TRINITY CENTER - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

O86
Local O86
TRINITY CENTER
PublicPUB

0 miles E of TRINITY CENTER, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 58' 58"N 122° 41' 37"W
Elevation
2390' MSL
Pattern Alt
3190' MSL
Mag Variation
14°E
Declination
17°E
Fuel
None Listed
FSS
RANCHO MURIETA (RIU)
Sectional
KLAMATH FALLS
ARTCC
OAKLAND (ZOA)
Data Effective
4/16/26-5/14/26
KO86 VFR
5:55 AM PDT
Overcast 4,500'
Broken 3,500'
10sm
45°F
43°F
29.81"Hg
Calm
A01
METAR KO86 251255Z AUTO 00000KT 10SM BKN035 OVC045 07/06 A2981 RMK A01
+ Add Your Business

O86 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 134.3
(530) 266-3220

Common

CTAF 122.9

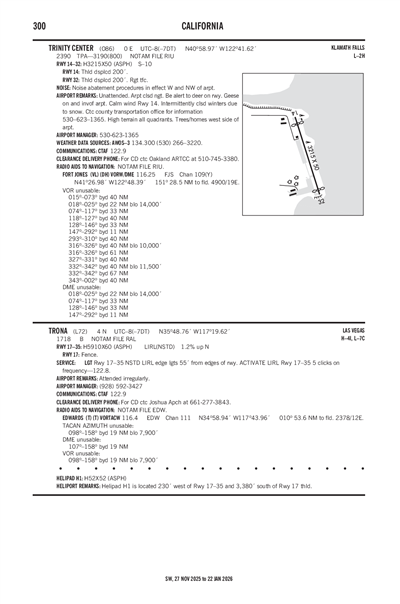

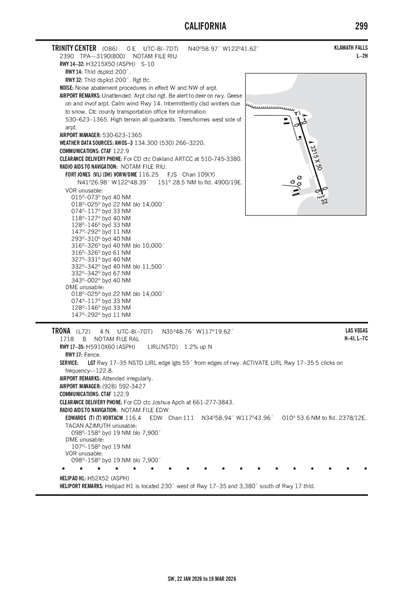

FAA A/FD Pages

Terminal Area Forecast

KRDD (33nm)
Sat, 4/25 4:33 AM PDT
Sat, 4/25 5:00 AM PDT - Sun, 4/26 5:00 AM PDT
VFR
5:00 AM PDT - 10:00 AM PDT
Scattered 25,000'
6sm
VRB° 5kts
VFR
10:00 AM PDT - 3:00 PM PDT
Broken 20,000'
6sm
180° 10kts
VFR
3:00 PM PDT - 9:00 PM PDT
Thunderstorm in vicinity
Broken 20,000'
6sm
170° 10kts
Gusts 20kts
MVFR
Temporary 5:00 PM PDT - 9:00 PM PDT
Thunderstorm and Rain
Broken 10,000'
3sm
Calm
VFR
9:00 PM PDT - 3:00 AM PDT
Light Showers and Rain
Overcast 5,000'
6sm
190° 8kts
VFR
3:00 AM PDT - 5:00 AM PDT
Light Rain
Overcast 3,500'
6sm
170° 9kts
TAF KRDD 251133Z 2512/2612 VRB05KT P6SM SCT250 WS002/16027KT
   FM251700 18010KT P6SM BKN200
   FM252200 17010G20KT P6SM VCTS BKN200CB
   TEMPO 2600/2604 3SM TSRA BKN100CB
   FM260400 19008KT P6SM -SHRA OVC050
   FM261000 17009KT P6SM -RA OVC035
O86
EffectiveExpiresCategoryNOTAM
Domestic
3/4/26
2022Z
5/4/26
2359Z
!RIU 03/034 O86 OBST TOWER LGT (ASR 1254072) 405801.10N1224233.60W (1.2NM SW O86) 3760.8FT (145.0FT AGL) U/S 2603042022-2605042359
No
UNATNDD
TRINITY COUNTY
PO BOX 2490
WEAVERVILLE, CA 96093
Phone: 530-623-1365
PANOS KOKKAS
PO BOX 2490
WEAVERVILLE, CA 96093
Phone: 530-623-1365
RANCHO MURIETA FSS (RIU)
Toll Free: 1-800-WX-BRIEF
RIU
--
--
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 14/32

3215 ft. x 50 ft.
ASPH
Fair
NONE


10,000lbs
--
--
--
  Runway 14 Runway 32
True Heading 162°342°
Traffic Pattern Left Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 40° 59' 13"N 40° 58' 43"N
Longitude 122° 41' 44"W 122° 41' 31"W
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights No No
A110-1HIGH TERRAIN ALL QUADRANTS.
A110-10GEESE ON AND IN THE VICINITY OF ARPT.
A110-11FOR CD CTC OAKLAND ARTCC AT 510-745-3380.
A110-2ARPT CLSD NIGHTS.
A110-4TREES/HOMES WEST SIDE OF APRT.
A110-6CALM WIND RY 14.
A110-7NOISE ABATEMENT PROCEDURES IN EFFECT W & NW OF ARPT.
A110-8INTERMITTENTLY CLOSED WINTERS DUE TO SNOW. CTC COUNTY TRANSPORTATION OFFICE FOR INFO 530-623-1365.
A110-9BE ALERT TO DEER ON RY.
A14DIRECTOR OF TRANSPORTATION
A57-14RWY 14 APCH RATIO TO DISPLCD THLD 20:1
A57-32RWY 32 APCH RATIO TO DISPLCD THLD 20:1
A58-14DIRT ROAD AND 4 FT FENCE 120 FT FM APCH END RWY 14.
TRINITY CENTER (IATA: O86) is a public airport located in TRINITY CENTER, CA, US.
