P04
Local P04
BISBEE MUNI
PublicPUB

5 miles SE of BISBEE, AZ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
31° 22' 08"N 109° 53' 01"W
Elevation
4790' MSL
Pattern Alt
5790' MSL
Mag Variation
9°E
Declination
12°E
Fuel
100LL
FSS
PRESCOTT (PRC)
Sectional
PHOENIX
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
5/14/26-6/11/26
KDUG (16nm) VFR
6:56 PM MST
Clear
10sm
83°F
33°F
30.00"Hg
240° 11kts
AO2 SLP088 T02830006 TSNO
METAR KDUG 150156Z AUTO 24011KT 10SM CLR 28/01 A3000 RMK AO2 SLP088 T02830006 TSNO
+ Add Your Business

P04 FBOs

Promote Listing
Bisbee Municipal Airport
UNICOM: 122.8
Phone: (520) 432-6030
Other: (520) 249-5401
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 5/7
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.33
Full Serve
Fuel Notes
Prices include tax
Assistance is available for self-serve 100LL.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
GATES & LOUNGE CODE - CTAF.
UNICOM 122.8

Flight Service

Flight Service 122.4
(PRC), COMMUNICATIONS PRVDD BY PRESCOTT RADIO FREQ 122.4 (BISBEE RCO)

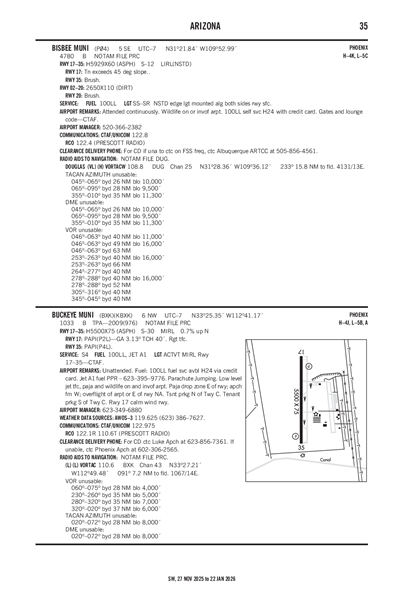

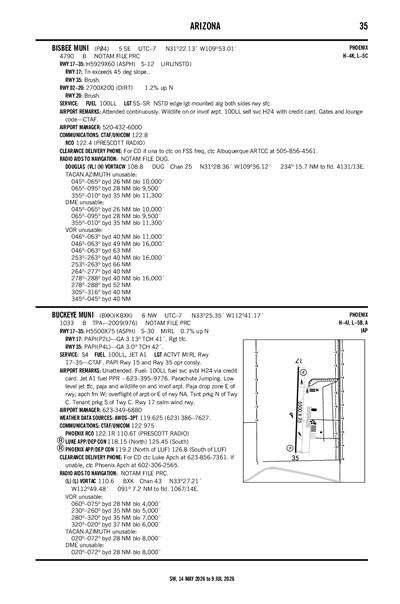

FAA A/FD Pages

Terminal Area Forecast

KDUG (16nm)
Thu, 5/14 4:30 PM MST
Thu, 5/14 5:00 PM MST - Fri, 5/15 5:00 PM MST
VFR
5:00 PM MST - 10:00 PM MST
Broken 12,000'
6sm
250° 16kts
Gusts 26kts
VFR
10:00 PM MST - 2:00 AM MST
Few 12,000'
6sm
250° 8kts
VFR
2:00 AM MST - 8:00 AM MST
Sky Clear
6sm
VRB° 4kts
VFR
8:00 AM MST - 11:00 AM MST
Sky Clear
6sm
180° 7kts
VFR
11:00 AM MST - 5:00 PM MST
Sky Clear
6sm
220° 15kts
Gusts 25kts
TAF KDUG 142330Z 1500/1524 25016G26KT P6SM BKN120
   FM150500 25008KT P6SM FEW120
   FM150900 VRB04KT P6SM SKC
   FM151500 18007KT P6SM SKC
   FM151800 22015G25KT P6SM SKC
P04
EffectiveExpiresCategoryNOTAM
Domestic
3/12/22
1730Z
!PRC 03/116 P04 SVC PCL ALL DECOMMISSIONED 2203121730-PERM
No
ALL
CITY OF BISBEE
118 ARIZONA ST
BISBEE, AZ 85603
Phone: 520-432-6000
CITY OF BISBEE
118 ARIZONA ST
BISBEE, AZ 85603
Phone: 520-432-6000
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
PRC
Sunset to Sunrise
--
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Pilot Instruction

Runway 02/20

2700 ft. x 200 ft.
DIRT
Good
NONE


--
--
--
--
  Runway 02 Runway 20
True Heading 35°215°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition
Latitude 31° 21' 59"N 31° 22' 21"N
Longitude 109° 53' 04"W 109° 52' 46"W
Elevation 4,758' 4,789'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 17/35

5929 ft. x 60 ft.
ASPH
Good
NONE
LOW

12,000lbs
--
--
--
  Runway 17 Runway 35
True Heading 189°9°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 31° 22' 36"N 31° 21' 38"N
Longitude 109° 52' 58"W 109° 53' 09"W
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A11MATTHEW GURNEY - 520-432-6262.
A110-1GATES & LOUNGE CODE - CTAF.
A110-2WILDLIFE ON OR INVOF ARPT.
A110-3FOR CD IF UNA TO CTC ON FSS FREQ, CTC ALBUQUERQUE ARTCC AT 505-856-4561.
A40-17/35NSTD: EDGE LGT MOUNTED ALG BOTH SIDES RWY SFC.
A57-17CTLG OBSTN EXCEEDS 45 DEG SLOPE.
A58-171 FT BRUSH 0-200 FT FM RWY END ACRS THR.
A58-354-5 FT BRUSH 25-200 FT FM THR 65-125 FT R & 80-125 FT L OF CNTRLN.
A70-100LLSELF SVC H24 WITH CREDIT CARD.
BISBEE MUNI (IATA: P04) is a public airport located in BISBEE, AZ, US.
