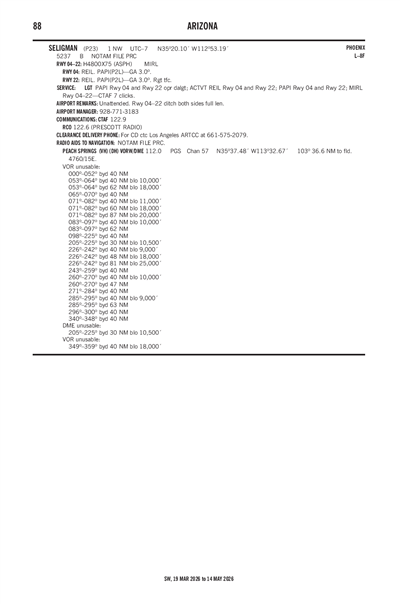

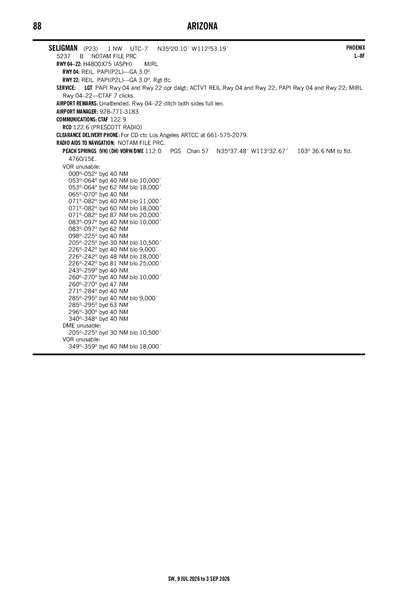

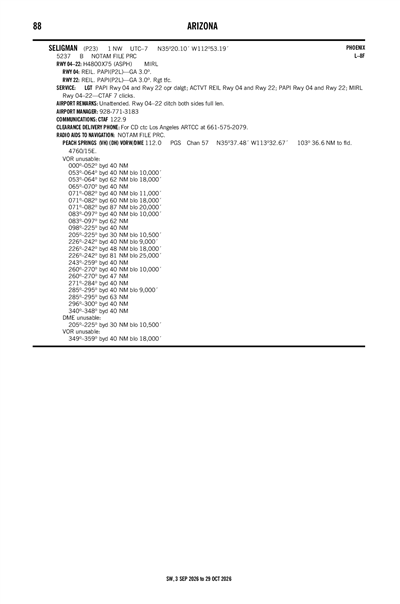

SELIGMAN - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

P23
SELIGMAN
PublicPUB

1 miles NW of SELIGMAN, AZ
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 20' 06"N 112° 53' 11"W
5237' MSL
6237' MSL
13E
None Listed
PRESCOTT (PRC)
PHOENIX
LOS ANGELES (ZLA)
4/18/24-5/16/24
KCMR (34nm) VFR
4:35 AM MST
Clear
10sm
37°F
28°F
29.98"Hg
200° 4kts
AO2
KCMR 011135Z AUTO 20004KT 10SM CLR 03/M02 A2998 RMK AO2
List Your Business

P23 FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

P23 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

P23 Hotels

No hotels are listed for this airport.

P23 Restaurants

No restaurants are listed for this airport.

P23 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KPRC (47nm)
Wed, 5/1 4:20 AM MST
Wed, 5/1 5:00 AM MST - Thu, 5/2 5:00 AM MST
VFR
5:00 AM MST - 12:00 PM MST
Sky Clear
6sm
190° 5kts
VFR
12:00 PM MST - 7:00 PM MST
Few 11,000'
6sm
220° 12kts
Gusts 20kts
VFR
7:00 PM MST - 5:00 AM MST
Sky Clear
6sm
180° 5kts
KPRC 011120Z 0112/0212 19005KT P6SM SKC
   FM011900 22012G20KT P6SM FEW110
   FM020200 18005KT P6SM SKC
P23
Domestic
4/16/241724Z !PRC 04/138 P23 OBST TOWER LGT (ASR 1002868) 351756.00N1130147.00W (7.3NM WSW P23) 5786.7FT (242.8FT AGL) U/S 2404161724-2405162359
No
UNATNDD
YAVAPAI COUNTY
1100 COMMERCE DRIVE
PRESCOTT, AZ 86305
Phone: 928-771-3183
CHRIS STEELE
YAVAPAI COUNTY, 1100 COMMERCE DR
PRESCOTT, AZ 86305
Phone: 928-771-3183
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
PRC
--
ACTVT MIRL RY 04/22 AND REIL RYS 04 & 22, 7-CLICKS - CTAF. PAPI RYS 04 & 22 OPERATIONAL DALGT HRS, AT NIGHT ACTIVATED ON CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
2
0
0
0
0
0
None
None
None
None
None

Runway 04/22

4800 ft. x 75 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 04 Runway 22
True Heading 53°233°
Traffic Pattern Left Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 35° 19' 52"N 35° 20' 21"N
Longitude 112° 53' 35"W 112° 52' 48"W
Elevation 5,237' 5,234'
Threshold Crossing Height -- --
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-5DRAINAGE CHANNEL BOTH SIDES FULL LENGTH OF RY 04/22, VARIES IN WIDTH AND DEPTH.
A110-6FOR CD CTC LOS ANGELES ARTCC AT 661-575-2079.
A110-7EMERG CONTACT: SHERIFFS OFFICE 928-771-3260.
SELIGMAN (IATA: P23) is a public airport located in SELIGMAN, AZ.
