iFlightPlanner



...

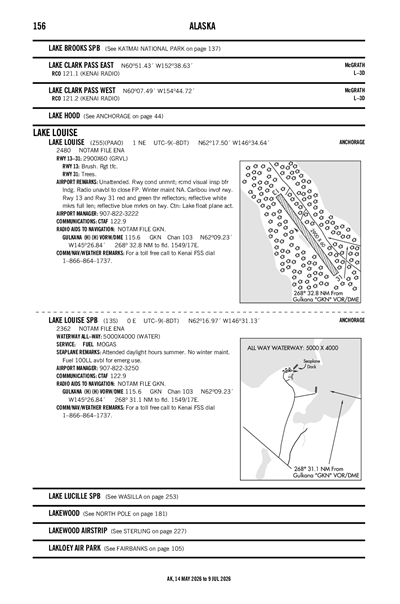

LAKE LOUISE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAAO
ICAO PAAOLocal Z55
LAKE LOUISE
PublicPUB

1 miles NE of LAKE LOUISE, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
62° 17' 30"N 146° 34' 38"W
Elevation
2480' MSL
Pattern Alt
3480' MSL
Mag Variation
16°E
Declination
27°E
Fuel
None Listed
FSS
KENAI (ENA)
Sectional
ANCHORAGE
ARTCC
ANCHORAGE (ZAN)
Data Effective
5/14/26-6/11/26
PAZK (27nm) MVFR
6:56 PM AKDT
Rain
Overcast 3,700'
Broken 3,000'
8sm
44°F
40°F
30.04"Hg
250° 8kts
AO2 RAE05B21 SLP202 P0003 60004 T00670044 51006 $
METAR PAZK 110256Z AUTO 25008KT 8SM RA BKN030 OVC037 07/04 A3004 RMK AO2 RAE05B21 SLP202 P0003 60004 T00670044 51006 $
+ Add Your Business

PAAO FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

PAGK (32nm)
Wed, 6/10 3:44 PM AKDT
Wed, 6/10 4:00 PM AKDT - Thu, 6/11 4:00 PM AKDT
MVFR
Temporary 4:00 PM AKDT - 8:00 PM AKDT
Light Thunderstorm and Rain
Broken 3,000'
4sm
VRB° 10kts
Gusts 20kts
VFR
4:00 PM AKDT - 10:00 PM AKDT
Thunderstorm in vicinity
Broken 8,000'
Scattered 4,000'
6sm
170° 8kts
VFR
10:00 PM AKDT - 4:00 PM AKDT
Showers in vicinity
Scattered 6,000'
6sm
190° 5kts
TAF PAGK 102344Z 1100/1124 17008KT P6SM VCTS SCT040CB BKN080
   TEMPO 1100/1104 VRB10G20KT 4SM -TSRA BKN030CB
   FM110600 19005KT P6SM VCSH SCT060
PAAO
No NOTAM Available
No
UNATNDD
ALASKA DOT&PF NORTHERN REGION
2301 PEGER ROAD
FAIRBANKS, AK 99701
Phone: 907-451-2200
CHAD HELLER
PO BOX 7
GLENNALLEN, AK 99588
Phone: 907-822-3222
KENAI FSS (ENA)
Toll Free: 1-866-864-1737
ENA
--
--
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 13/31

2900 ft. x 60 ft.
GRAVEL
Excellent
NONE


--
--
--
--
  Runway 13 Runway 31
True Heading 150°330°
Traffic Pattern Right Left
Markings NSTD NSTD
Markings Condition GOOD GOOD
Latitude 62° 17' 42"N 62° 17' 17"N
Longitude 146° 34' 54"W 146° 34' 23"W
Elevation 2,480' 2,474'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RWY COND UNMNT; RCMD VISUAL INSP BFR LNDG.
A110-10CARIBOU INVOF RWY.
A110-5RADIO UNAVBL TO CLOSE FP.
A110-7WINTER MAINT NA.
A110-9CTN: LAKE FLOAT PLANE ACT.
A42-13_MARKRED & GREEN THR REFLECTORS; REFLECTIVE WHITE MKRS FULL LEN; REFLECTIVE BLUE MARKERS ON TWY.
A42-31_MARKRED & GREEN THR REFLECTORS; REFLECTIVE WHITE MKRS FULL LEN; REFLECTIVE BLUE MARKERS ON TWY.
LAKE LOUISE (ICAO: PAAO, IATA: Z55) is a public airport located in LAKE LOUISE, AK, US.
