iFlightPlanner



...

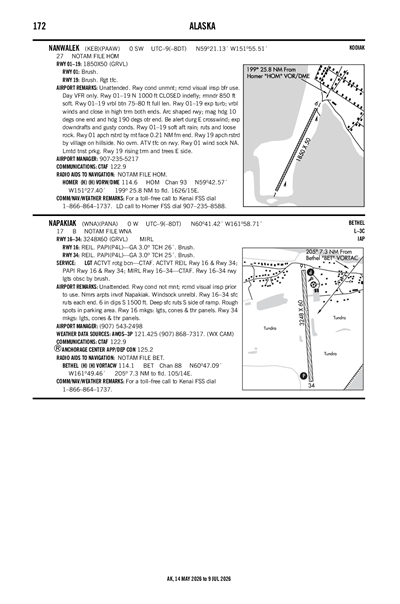

NANWALEK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAAW
ICAO PAAWLocal KEB
NANWALEK
PublicPUB

0 miles SW of NANWALEK, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
59° 21' 08"N 151° 55' 31"W
Elevation
27' MSL
Pattern Alt
1027' MSL
Mag Variation
14°E
Declination
23°E
Fuel
None Listed
FSS
HOMER (HOM)
Sectional
KODIAK
ARTCC
ANCHORAGE (ZAN)
Data Effective
5/14/26-6/11/26
PASO (9nm) VFR
9:53 PM AKDT
No Clouds
N/A
45°F
33°F
29.92"Hg
190° 7kts
AO2 SLP132 60000 T00720006 10089 20061 55003 TSNO $
METAR PASO 200553Z AUTO 19007KT 07/01 A2992 RMK AO2 SLP132 60000 T00720006 10089 20061 55003 TSNO $
+ Add Your Business

PAAW FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

PAHO (22nm)
Tue, 5/19 9:29 PM AKDT
Tue, 5/19 10:00 PM AKDT - Wed, 5/20 10:00 PM AKDT
VFR
10:00 PM AKDT - 2:00 AM AKDT
Broken 15,000'
Scattered 5,000'
6sm
180° 5kts
VFR
2:00 AM AKDT - 5:00 AM AKDT
Light Rain
Overcast 3,500'
6sm
020° 3kts
IFR
5:00 AM AKDT - 1:00 PM AKDT
Light Rain and Mist
Overcast 700'
6sm
350° 4kts
MVFR
1:00 PM AKDT - 10:00 PM AKDT
Overcast 1,500'
6sm
320° 5kts
TAF PAHO 200529Z 2006/2106 18005KT P6SM SCT050 BKN150
   FM201000 02003KT P6SM -RA OVC035
   FM201300 35004KT 6SM -RA BR OVC007
   FM202100 32005KT P6SM OVC015
PAAW
No NOTAM Available
No
UNATNDD
ALASKA DOT&PF CENTRAL REGION
PO BOX 196900
ANCHORAGE, AK 99519
Phone: 907-269-0767
KEVIN JONES
2320 KACHEMAK DR
HOMER, AK 99603
Phone: 907-235-5217
HOMER FSS (HOM)
Toll Free: LC235-8588
HOM
--
--
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 01/19

1850 ft. x 50 ft.
GRAVEL
Poor
NONE


--
--
--
--
  Runway 01 Runway 19
True Heading 10°190°
Traffic Pattern Left Right
Markings NONE NONE
Markings Condition
Latitude 59° 20' 59"N 59° 21' 17"N
Longitude 151° 55' 34"W 151° 55' 27"W
Elevation 27' 27'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-12BE ALERT DURG E CROSSWIND; EXP DOWNDRAFTS & GUSTY CONDS.
A110-13WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-16RWY COND UNMNT: RCMD VISUAL INSP BFR USE.
A110-4LMTD TNST PRKG.
A110-5DAY VFR ONLY.
A110-6ATV TFC ON RWY.
A16907-235-5217.
A23-19RISING TRRN & TREES E SIDE.
A30-01/19EXP TURB; VRBL WINDS & CLOSE IN HIGH TRRN BOTH ENDS. ARC SHAPED RWY; MAG HDG 10 DEG ONE END & HDG 190 DEGS OTR END.
A30A-01APCH RSTRD BY MT FACE 0.21 NM FM END.
A30A-19APCH RSTRD BY VILLAGE ON HILLSIDE. NO OVRN.
A31-01/19N 1000 FT CLSD INDEFLY; RMNDR 850 FT SOFT.
A32-01/19VRBL BTN 75-80 FT FULL LEN.
A33-01/19_SURFSOFT AFT RAIN; RUTS & LOOSE ROCK.
A83RWY 01 WIND SOCK NA.
NANWALEK (ICAO: PAAW, IATA: KEB) is a public airport located in NANWALEK, AK, US.
