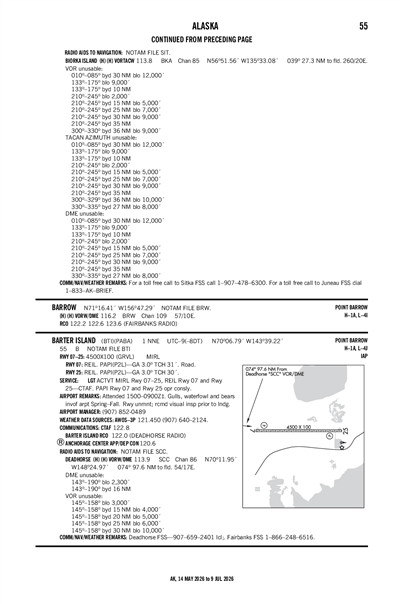

BARTER ISLAND - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PABA
BARTER ISLAND
PublicPUB

1 miles NNE of BARTER ISLAND, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
70° 06' 47"N 143° 39' 13"W
55' MSL
1055' MSL
18E
None Listed
DEADHORSE (SCC)
POINT BARROW
ANCHORAGE (ZAN)
1/22/26-2/19/26
PABA VFR
5:56 AM AKST
Light Snow
No Clouds
7sm
-3°F
-6°F
30.16"Hg
050° 15kts
AO2 SLP231 P0000 60000 T11941211 50001 FZRANO TSNO $
METAR PABA 011456Z AUTO 05015KT 7SM -SN M19/M21 A3016 RMK AO2 SLP231 P0000 60000 T11941211 50001 FZRANO TSNO $
+ Add Your Business

PABA FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3P 121.45
(907) 640-2124

Common

CTAF 122.8
ACTVT MIRL RWY 07/25; REIL RWYS 07 & 25 - CTAF. PAPI RWY 07 & 25 OPR CONSLY.

Center

ANCHORAGE CENTER 120.6
LOW/HIGH, APCH/DEP SVC PRVDD BY ANCHORAGE ARTCC ON FREQ 120.6 (BARTER ISLAND RCAG).

Flight Service

Flight Service 122.0
(SCC), COMMUNICATIONS PRVDD BY DEADHORSE FSS ON FREQ 122.0 (BARTER ISLAND RCO).

FAA A/FD Pages

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
PABA
EffectiveExpiresCategoryNOTAM
Domestic
1/7/26
1450Z
!BTI 01/001 BTI SVC AUTOMATED WX BCST SYSTEM NOT AVBL 2601071450-2603311500EST
8/18/25
1144Z
Runway!BTI 08/002 BTI RWY 07 PAPI U/S 2508181144-2602182111EST
FDC
11/5/24
2001Z
!FDC 4/9396 BTI IAP BARTER ISLAND, BARTER ISLAND, AK.
RNAV (GPS) RWY 7, ORIG...
CIRCLING CAT A/B/C MDA 580/HAA 523.
2411052001-2611052001EST
11/5/24
1955Z
!FDC 4/9394 BTI IAP BARTER ISLAND, BARTER ISLAND, AK.
RNAV (GPS) RWY 25, ORIG...
LNAV MDA 400/HAT 349 ALL CATS. CIRCLING CAT A/B/C MDA 580/HAA 523.
2411051955-2611051955EST
No
SEP-MAY 0600-0000
JUN-AUG 0600-0000
NORTH SLOPE BOROUGH
PO BOX 69
BARROW, AK 99723
Phone: 907-852-2611
GEORGE AHMAOGAK
PO BOX 69
BARROW, AK 99723
Phone: (907) 852-0489
DEADHORSE FSS (SCC)
Toll Free: LC659-2401
BTI
--
ACTVT MIRL RWY 07/25; REIL RWYS 07 & 25 - CTAF. PAPI RWY 07 & 25 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 07/25

4500 ft. x 100 ft.
GRAVEL
Good
NONE
MED

--
--
--
--
  Runway 07 Runway 25
True Heading 90°270°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition
Latitude 70° 06' 47"N 70° 06' 47"N
Longitude 143° 40' 18"W 143° 38' 08"W
Elevation 55' 50'
Threshold Crossing Height 31 ft. AGL 30 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-5RWY UNMNT; RCMD VISUAL INSP PRIOR TO LNDG.
A110-6GULLS, WATERFOWL & BEARS INVOF ARPT SPRING-FALL.
A110-9DEADHORSE FSS - 907 659-2401 LCL; FAIRBANKS FSS - 1-866-248-6516.
A81-APTACTVT MIRL RWY 07/25; REIL RWYS 07 & 25 - CTAF. PAPI RWY 07 & 25 OPR CONSLY.
E111NOT REQUIRED UNDER FAR 157.
BARTER ISLAND (ICAO: PABA, IATA: BTI) is a public airport located in BARTER ISLAND, AK, US.
