iFlightPlanner



...

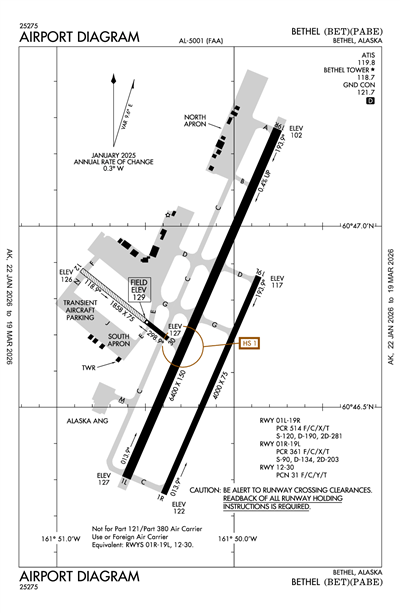

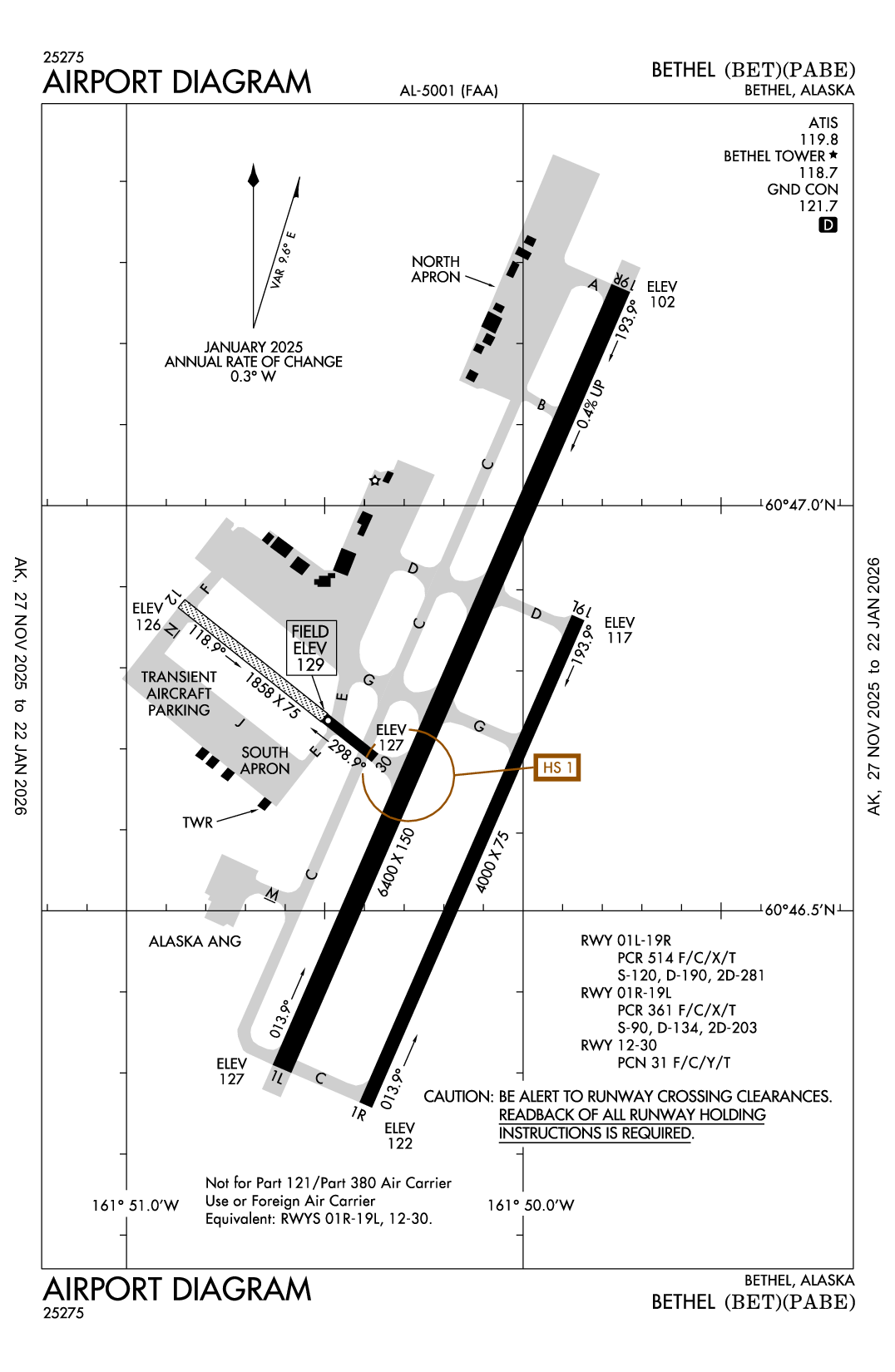

BETHEL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PABE
BETHEL
PublicPUB

3 miles SW of BETHEL, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
60° 46' 43"N 161° 50' 14"W
129' MSL
1129' MSL
11E
Jet A, Jet A-1, 100LL, 100
KENAI (ENA)
MC GRATH
ANCHORAGE (ZAN)
4/18/24-5/16/24
PABE VFR
10:53 PM AKDT
Overcast 7,000'
Broken 5,500'
Broken 4,000'
10sm
37°F
36°F
29.93"Hg
240° 8kts
AO2 RAB0559E27 SLP136 P0000 T00280022
PABE 010653Z 24008KT 10SM BKN040 BKN055 OVC070 03/02 A2993 RMK AO2 RAB0559E27 SLP136 P0000 T00280022
List Your Business

PABE FBOs, Flight Schools and Ground Support

Promote Listing
Delta Western
Freq: 118.7
Phone: (907) 543-5600
Other: (907) 543-5591
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 4/23
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 6.76 7.37 7.44
Promote Listing
Crowley Aviation Fuels
Freq: 131.25
Phone: (907) 543-4001
Other: (907) 543-3002
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 4/30
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 10.34 8.11

PABE Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

PABE Hotels

No hotels are listed for this airport.

PABE Restaurants

No restaurants are listed for this airport.

PABE Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 118.7

ATIS

ATIS
 119.8

ASOS

ASOS
907-543-5475
 135.45

Emergency

EMERG
 121.5

Ground

GND/P
 121.7

Tower

LCL/P
 118.7

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

PABE
Tue, 4/30 9:39 PM AKDT
Tue, 4/30 10:00 PM AKDT - Wed, 5/1 10:00 PM AKDT
VFR
10:00 PM AKDT - 8:00 AM AKDT
Showers in vicinity
Overcast 3,500'
Scattered 2,500'
6sm
220° 10kts
VFR
8:00 AM AKDT - 10:00 PM AKDT
Overcast 5,000'
6sm
070° 8kts
PABE 010539Z 0106/0206 22010KT P6SM VCSH SCT025 OVC035
   FM011600 07008KT P6SM OVC050
PABE
Domestic
4/28/242249Z !BET 04/139 BET AD AP RVR ALL U/S 2404282249-2406291500EST
4/26/240600Z !BET 04/124 BET COM REMOTE COM OUTLET 118.7, 121.7 U/S DLY 0600-1500 2404260600-2409011500EST
4/25/240718Z !BET 04/122 BET COM REMOTE COM OUTLET 121.5, 122.2, 243.0 U/S 2404250718-2409011500EST
4/25/240713Z !BET 04/121 BET RWY 19R VASI U/S 2404250713-2406021500EST
4/11/241806Z !BET 04/064 BET RWY 19R ALS U/S EXC MEDIUM INTST ON CONS 2404111806-2406161500EST
4/3/241830Z !BET 04/023 BET TWY G HOLD SHORT SIGN AT EAST SIDE OF RWY 01L/19R U/S
2404031830-2405062359
4/3/241830Z !BET 04/022 BET TWY D HOLD SHORT SIGN AT EAST SIDE OF RWY 01L/19R U/S
2404031830-2405062359
4/3/241830Z !BET 04/021 BET TWY C HOLD SHORT SIGN AT EAST SIDE OF RWY 01L/19R U/S
2404031830-2405062359
3/30/240014Z !BET 03/227 BET RWY 01L/19R BRAVO HOLD SHORT SIGN U/S 2403300014-2406012000
3/26/240249Z !BET 03/213 BET RWY 01L RAI LGT U/S 2403260249-2406301500EST
2/10/240034Z !BET 02/124 BET RWY 01L/19R SFC MARKING NOT STD 2402100034-2406282359
2/10/240033Z !BET 02/123 BET TWY G HOLD SHORT SIGN AT WEST SIDE OF RWY 01L/19R U/S
2402100033-2405062359
12/28/231614Z !BET 12/349 BET RWY 01L RVRT U/S 2312281614-2406291500
11/9/230224Z !BET 11/103 BET RWY 19R RVRR U/S 2311090224-2406291500EST
FDC
4/12/241647Z !FDC 4/0215 BET IAP BETHEL, BETHEL, AK.
ILS Z OR LOC Z RWY 19R, AMDT 7G...
VOR RWY 1L, AMDT 2D...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
BET VORTAC UNMONITORED. 2404121647-2407101646EST
Yes
MAY-OCT MON-FRI 0700-2100
MAY-OCT SAT-SUN 0700-2200
NOV-APR MON-FRI 0500-2100
NOV-APR SAT-SUN 0700-2100
ALASKA DOT&PF CENTRAL REGION
PO BOX 196900
ANCHORAGE, AK 99519-6900
Phone: 907-269-0749
JOSEPH LARAUX
BOX 505
BETHEL, AK 99559
Phone: 907-543-2498
KENAI FSS (ENA)
Toll Free: 1-866-864-1737
BET
--
WHEN ATCT CLSD ACTVT HIRL RWY 01L/19R, 01R/19L, RWY 12/30; TWY LIGHTS - CTAF. ACTVT MALSR RWY 01L & 19R; REIL RWY 01R & 19L; VASI RWY 01L & 19R; PAPI RWY 01R & 19L - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
96
7
0
7
0
0
Minor
Minor
None
None
Cargo Handling

Runway 01L/19R

6400 ft. x 150 ft.
ASPH
Fair
GRVD
HIGH
41 /F/C/X/T
105,000lbs
147,000lbs
244,000lbs
--
  Runway 01L Runway 19R
True Heading 23°203°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 60° 46' 18"N 60° 47' 16"N
Longitude 161° 50' 37"W 161° 49' 45"W
Elevation 127' 102'
Threshold Crossing Height 39 ft. AGL 52 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L V4L
Approach Lights MALSR MALSR
Centerline Lights
Runway End Identifier Lights No

Runway 01R/19L

4000 ft. x 75 ft.
ASPH
Good
NONE
HIGH
31 /F/C/Y/T
--
--
--
--
  Runway 01R Runway 19L
True Heading 23°203°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 60° 46' 16"N 60° 46' 52"N
Longitude 161° 50' 24"W 161° 49' 52"W
Elevation 122' 117'
Threshold Crossing Height 31 ft. AGL 32 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 12/30

1858 ft. x 75 ft.
GRVL
Good
NONE
HIGH
31 /F/C/Y/T
--
--
--
--
  Runway 12 Runway 30
True Heading 128°308°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 60° 46' 53"N 60° 46' 41"N
Longitude 161° 50' 52"W 161° 50' 22"W
Elevation 126' 127'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights No No
A110-10WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV.
A110-11MULT PAVEMENT VARIATIONS FULL LEN OF TWY C SOUTH OF RWY 12/30.
A110-12TSNT PRKG W END OF S RAMP MRKD BY GREEN CONES.
A110-14COND RPRTG & OTR MAINT SVC AVBL DURG MAINT DUTY HR. AFT HR SVC PPR IN WRITING - AMGR.
A110-15NWS BLN LAUNCH FAC ON ARPT - SEE INSIDE BACK CVR FOR OPS DTLS.
A110-17LOCK WHEEL TURNS NA ALL SFCS.
A110-18TSA REG; SEE 49 CFR 1542. GATES & DOORS SECURED ALL TIMES. UNFAM TSNT - AMGR.
A110-19ARPT SAND SMALLER GRADATION THAN FAA RCMDD/SEE AC150/5200-30.
A110-8PSNL & EQPT MAY BE ON RWY ANY TIME.
A110-9PTARMIGAN & WATERFOWL INVOF ARPT.
BETHEL (ICAO: PABE, IATA: BET) is a public airport located in BETHEL, AK.
