PABI
ALLEN AAF
PrivatePVT

3 miles S of DELTA JUNCTION FT GREELY, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
63° 59' 43"N 145° 43' 12"W
1285' MSL
2285' MSL
23E
JP-8
FAIRBANKS (FAI)
ANCHORAGE
ANCHORAGE (ZAN)
4/18/24-5/16/24
PABI VFR
1:53 PM AKDT
Overcast 20,000'
Broken 12,000'
Broken 8,500'
Scattered 5,000'
10sm
50°F
19°F
29.92"Hg
320° 9kts
AO2 SLP146 VIRGA DSNT ALQDS T01001072
PABI 302153Z 32009KT 10SM SCT050 BKN085 BKN120 OVC200 10/M07 A2992 RMK AO2 SLP146 VIRGA DSNT ALQDS T01001072
List Your Business

PABI FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

PABI Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

PABI Hotels

No hotels are listed for this airport.

PABI Restaurants

No restaurants are listed for this airport.

PABI Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

ATIS

ATIS
 132.075

ASOS

ASOS
907-869-3480
 135.65

Emergency

EMERG
FM LCL EMERG
 40.8

Ground

GND/P
 118.225

Tower

LCL/P
 119.8

Other

OPS
 122.9

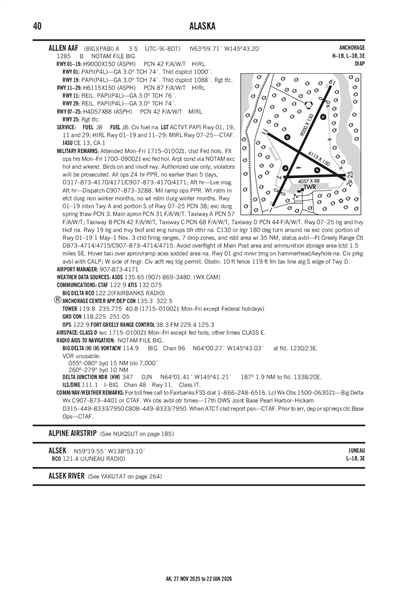

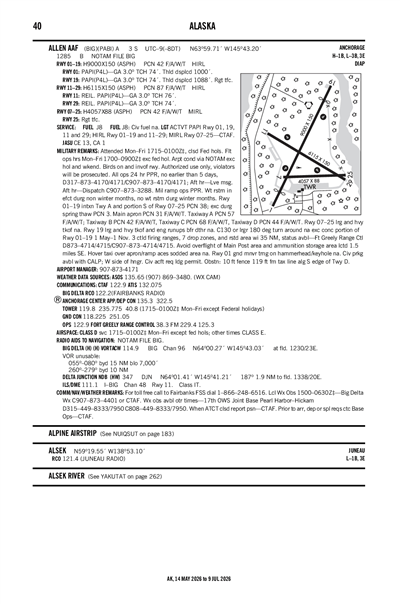

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

PABI
Tue, 4/30 2:00 PM AKDT
Tue, 4/30 2:00 PM AKDT - Wed, 5/1 8:00 PM AKDT
VFR
2:00 PM AKDT - 8:00 PM AKDT
Broken 4,000'
6sm
29.91"Hg
300° 6kts
Light, In Cloud (Rime): 4,000-11,000'
TAF PABI 302200Z 3022/0204 30006KT 9999 BKN040 620407 QNH2992INS TX11/0100Z TN02/0114Z LAST NO AMDS AFT 0105 NEXT 0114
PABI
Military
4/18/241714Z RWY 01/19 BAK-12 ARRESTING CABLE RAISED 24/7 APPROXIMATELY 2500FT FROM THE END OF 19 FROM THUR 18 APR AT 0900L UNTIL FRIDAY AFTERNOON, 03 MAY AT 1300L
4/17/241830Z !PABI M0189/24 BIG AD BIRD ACTIVITY EXPECT MIGRATORY BIRDS IN THE VICINITY OF AND OVERFLYING THE AIRFIELD FROM APRIL 1ST UNTIL OCTOBER 15TH. 2404171830-2407101700
4/15/241614Z AERODROME PAXON LOW MOA AND DELTA MOA COMPLEX INCLUDES DELTA 1, 2, 3, 4, & 5 AS CHARTED. TIMES OF USE: 22 - 26 APR AND 29 APR - 3 MAY, 1030 - 1300 LOCAL (UTC-8DT): 22 - 26 APR AND 29 APR - 2 MAY, 1630 - 1900 LOCAL (UTC-8DT). CONTROLLING AGENCY: FAA, ANCHORAGE ARTCC. USING AGENCY: USAF, 354 FIGHTER WING, EIELSON AFB, AK. NOTICE: IFR TRAFFIC MAY BE RE-ROUTED SOUTH OF THE FOX 3, PAXON AND TOK ATCAA AIRSPACE BORDERS. ACTUAL TIMES OF USE WITHIN THIS WINDOW MAY VARY. CONTACT EIELSON RANGE CONTROL AT 800-758-8723 OR VHF 125.3 OR 126.3, A FLIGHT SERVICE STATION OR ANCHORAGE ARTCC FOR ACTUAL ACTIVATION TIMES.
2/24/240023Z RWY 07/25 IS AN LZ, HEADINGS ARE 074 DEGREES (MAGNETIC) FOR LZ 7 AND 254 DEGREES (MAGNETIC) FOR LZ 25.
2/6/241734Z RWY 10/28 ILS APPROACH OUT OF SERVICE.
2/6/241734Z SEVERAL OBSTACLES ARE LOCATED WITHIN 1000 FEET OF THE APPROACHES OF THE FOLLOWING RUNWAY; RUNWAY 10 HAS A FENCE, SERVICE ROAD, HIGHWAY AND MARKED POWER LINES. RUNWAY 19 AND 28 HAS A CREEK, FENCE AND SERVICE ROAD. RUNWAY 1 HAS A FENCE AND A SERVICE ROAD. ASSAULT STRIP 7 HAS A FENCE WITH OBSTRUCTION LIGHTS AND A SERVICE ROAD AND A CREEK.
2/6/241733Z CAUTION: MAGNETIC VARIATION OF RECORD IS 23 DEGREE EAST, ACTUAL MAGVAR IS 17 DEGREES EAST. EXCESSIVE DIFFERENCES IS THE MAGNETIC VARIATION (MV) USED BY AIRCRAFT GUIDANCE SYSTEMS, GROUND NAVAIDS, AND PROCEDURES CAN RESULT IN UNACCEPTABLE AIRCRAFT LATERAL GUIDANCE PERFORMANCE AND/OR AN UNSAFE CONDITION. PLEASE REPORT IFR PROCEDURAL DEVIATIONS IN RUNWAY ALIGNMENT TO ATC.
2/6/241733Z RWY 10/28 RUNWAY 10/28 DESIGNATION NUMBERS HAVE BEEN PAINTED TO 11/29 FOR FUTURE MAGVAR UPDATE AND OR NOT CORRECT (CURRENT). AWAITING FLIGHT INSPECTION.
2/6/241733Z NAVAID RUNWAY 10 DME OUT OF SERVICE
2/6/241732Z AIRFIELD BACKUP GENERATOR OUT OF SERVICE.
1/24/241345Z !PABI V0015/24 BIG AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RWY 10 IAPS ARE TO NEWLY PAINTED RWY 11/29 IN PREPERATION FOR MAGVAR UPDATE. 2401241345-2408080001
Yes
MON-FRI 1715-0100Z++
CLSD FED HOLS.
U.S. ARMY
U.S. ARMY FORCES COMMAND
ATLANTA, GA
HQ 172 INFANTRY BRIGADE
FT RICHARDSON
ALASKA 99505
Phone: 907-873-7400
FAIRBANKS FSS (FAI)
Toll Free: 1-866-248-6516
BIG
--
ACTVT PAPI RWY 01, 19, 10 & 28; HIRL RWY 01/19 & 10/28; MIRL RWY 07/25 - CTAF.
N/A
Yes
Yes
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
3
0
0
None
None
None
None
None

Runway 01/19

9000 ft. x 150 ft.
ASPH
Good
NONE
HIGH
42 /F/A/W/T
--
--
--
--
  Runway 01 Runway 19
True Heading 30°210°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 63° 59' 11"N 64° 00' 28"N
Longitude 145° 44' 07"W 145° 42' 27"W
Elevation 1,285' 1,220'
Threshold Crossing Height 74 ft. AGL 74 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 07/25

4057 ft. x 88 ft.
ASPH
Good
NONE
MED
42 /F/A/W/T
--
--
--
--
  Runway 07 Runway 25
True Heading 92°272°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 63° 59' 29"N 63° 59' 28"N
Longitude 145° 43' 49"W 145° 42' 18"W
Elevation 1,268' 1,257'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 10/28

6115 ft. x 150 ft.
ASPH
Good
NONE
HIGH
87 /F/A/W/T
--
--
--
--
  Runway 10 Runway 28
True Heading 125°305°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 63° 59' 59"N 63° 59' 25"N
Longitude 145° 44' 08"W 145° 42' 15"W
Elevation 1,254' 1,256'
Threshold Crossing Height 76 ft. AGL 74 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1MIL RAMP OPS PPR.
A110-10WT RSTRN IN EFCT DURG NON WINTER MONTHS; NO WT RSTRN DURG WINTER MONTHS.
A110-19BIRDS ON & INVOF RWY.
A110-2AVOID OVERFLIGHT OF MAIN POST AREA & AMMUNITION STORAGE AREA 1.5 MI SE.
A110-21ARPT COND VIA NOTAM EXC HOL & WKEND.
A110-23AFT HR - DISPATCH C907-873-3288.
A110-25JASU; 2 (CE-13) 1 AIR STARTS (CA-1).
A110-26ISABEL PASS AND BLACK RAPIDS WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-27WX OBS AVBL OTR TIMES - 17TH OWS JOINT BASE PEARL HARBOR-HICKAM D315-449-8333/7950/C808-449-8333/7950.
A110-28FLIGHT OPS MON-FRI 1700-0900Z++ EXC FED HOL.
A110-29C130 OR LRGR 180 DEG TURN AROUND NA EXC CONC PORTION OF RWY 01/19 1 MAY-1 NOV.
A110-3ALL OPS 24 HR PPR; NO EARLIER THAN 5 DAYS; D317-873-4170/4171/C907-873-4170/4171; AFT HR - LVE MSG.
A110-31MAIN APRON PCN 31 F/A/W/T. TWY A PCN 57 F/A/W/T; TWY B PCN 42 F/A/W/T; TWY C PCN 68 F/A/W/T; TWY D PCN 44 F/A/W/T.
A110-33HOVER TAXI OVR APRON/RAMP ACES SODDED AREA NA.
A110-38OBSTN: 10 FT FENCE 119 FT FM TAX LINE ALG S EDGE OF TWY D.
A110-39CIV PRKG AVBL WITH CALP; W SIDE OF HNGR.
A110-4LCL WX OBS 0600-2130 - BIG DELTA WX C907-873-4401 OR CTAF.
A110-63 CTLD FIRING RANGES, 7 DROP ZONES & RSTRD AREA WI 35 NM; STATUS AVBL - FT GREELY RANGE CTL D873-4714/4715/C907-873-4714/4715.
A110-9GWT RWY 07/25 - ST127. GWT RWY 01/19 - ST127.
ALLEN AAF (ICAO: PABI, IATA: BIG) is a private airport located in DELTA JUNCTION FT GREELY, AK.
