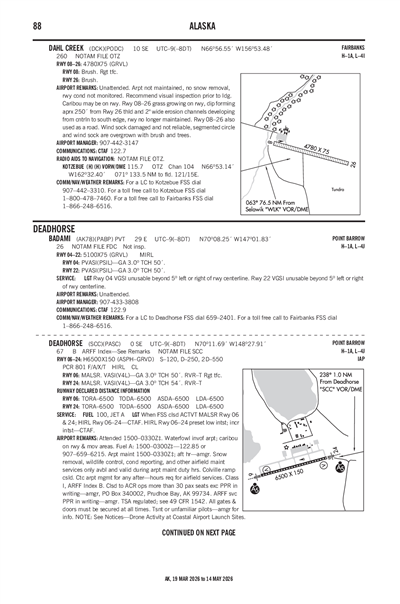

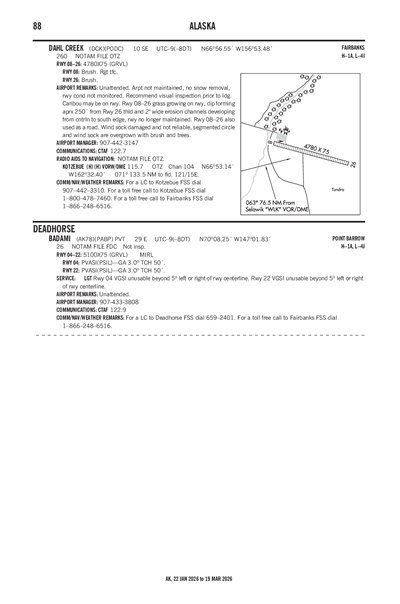

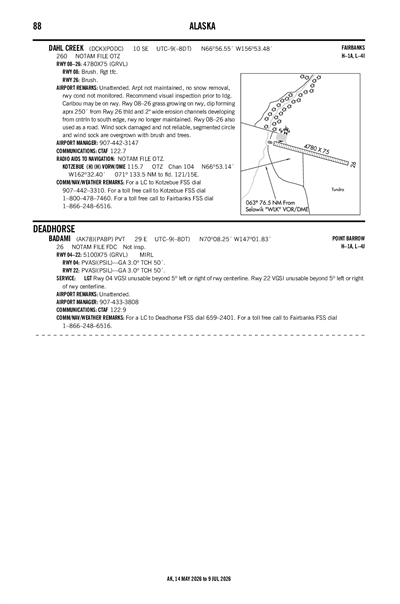

BADAMI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PABP
ICAO PABPLocal AK78
BADAMI
PrivatePVT

29 miles E of DEADHORSE, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
70° 08' 15"N 147° 01' 50"W
Elevation
26' MSL
Pattern Alt
1026' MSL
Mag Variation
16°E
Declination
17°E
Fuel
None Listed
FSS
DEADHORSE (SCC)
Sectional
POINT BARROW
ARTCC
ANCHORAGE (ZAN)
Data Effective
6/11/26-7/9/26
PAAD (15nm) VFR
7:15 PM AKDT
Broken 6,000'
10sm
41°F
33°F
29.93"Hg
050° 4kts
AO2 T00520004 FZRANO
METAR PAAD 010315Z AUTO 05004KT 10SM BKN060 05/00 A2993 RMK AO2 T00520004 FZRANO
+ Add Your Business

PABP FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

PASC (30nm)
Tue, 6/30 3:20 PM AKDT
Tue, 6/30 4:00 PM AKDT - Wed, 7/1 4:00 PM AKDT
VFR
4:00 PM AKDT - 7:00 PM AKDT
Overcast 11,000'
Scattered 9,000'
6sm
300° 9kts
MVFR
7:00 PM AKDT - 11:00 PM AKDT
Overcast 1,500'
6sm
030° 7kts
VFR
10:00 PM AKDT - 11:00 PM AKDT
Light Rain
Overcast 5,000'
6sm
Calm
IFR
11:00 PM AKDT - 4:00 PM AKDT
Overcast 700'
6sm
070° 6kts
TAF PASC 302320Z 0100/0124 30009KT P6SM SCT090 OVC110
   FM010300 03007KT P6SM OVC015
   PROB30 0106/0107 P6SM -RA OVC050
   FM010700 07006KT P6SM OVC007
PABP
No NOTAM Available
No
UNATNDD
SAVANT ALASKA LLC
188 W NORTHERN LIGHTS BLVD, STE 610
ANCHORAGE, AK 99503
Phone: 907-433-3808
STEPHEN RATCLIFF
188 W NORTHERN LIGHTS BLVD, STE 510 OPERATIONS SUPERINTENDENT
AK
Phone: 907-433-3808
DEADHORSE FSS (SCC)
Toll Free: LC659-2401
FDC
--
24 HRS
N/A
N/A
No
No
None
No
None
None
None
None
None

Runway 04/22

5100 ft. x 75 ft.

GRVL
NONE
MED

--
--
--
--
  Runway 04 Runway 22
True Heading 59°239°
Traffic Pattern
Markings
Markings Condition
Latitude 70° 08' 02"N 70° 08' 28"N
Longitude 147° 02' 53"W 147° 00' 46"W
Elevation 18' 26'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator PSIL PSIL
Approach Lights
Centerline Lights
Runway End Identifier Lights
A43-04UNUSBL BYD 5 DEGS LEFT OR RIGHT OF RWY CNTRLN.
A43-22UNUSBL BYD 5 DEGS LEFT OR RIGHT OF RWY CNTRLN.
A81-APT24 HRS
BADAMI (ICAO: PABP, IATA: AK78) is a private airport located in DEADHORSE, AK, US.
