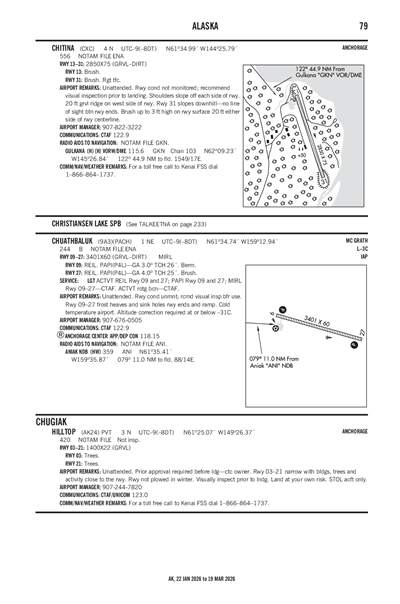

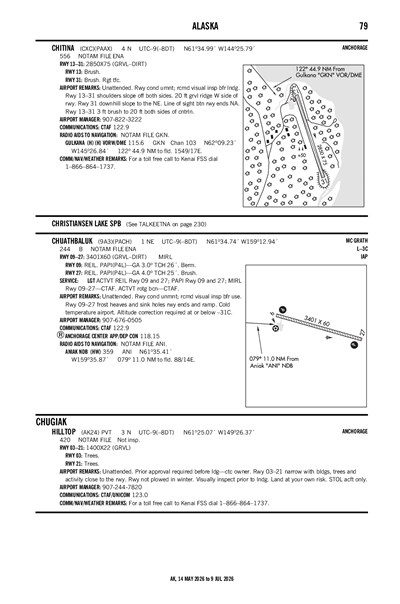

CHUATHBALUK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PACH
ICAO PACHIATA CHULocal 9A3
CHUATHBALUK
PublicPUB

1 miles NE of CHUATHBALUK, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
61° 34' 45"N 159° 12' 56"W
Elevation
244' MSL
Pattern Alt
1244' MSL
Mag Variation
11°E
Declination
15°E
Fuel
None Listed
FSS
KENAI (ENA)
Sectional
MC GRATH
ARTCC
ANCHORAGE (ZAN)
Data Effective
5/14/26-6/11/26
PANI (9nm) VFR
4:56 PM AKDT
Light Rain
Broken 7,000'
Scattered 5,500'
Few 3,300'
10sm
54°F
32°F
29.77"Hg
Calm
AO2 RAB34 SLP082 P0000 T01220000 $
METAR PANI 150056Z AUTO 00000KT 10SM -RA FEW033 SCT055 BKN070 12/00 A2977 RMK AO2 RAB34 SLP082 P0000 T01220000 $
+ Add Your Business

PACH FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT ROTG BCN - CTAF.; ACTVT REIL RWY 09 & 27; PAPI RWY 09 & 27; MIRL RWY 09/27 - CTAF.

Center

ANCHORAGE CENTER 118.15
LOW, APCH/DEP SVC PRVDD BY ANCHORAGE ARTCC ON FREQS 118.15/251.05 (ANIAK RCAG).

FAA A/FD Pages

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
PACH
EffectiveExpiresCategoryNOTAM
Domestic
5/13/26
1228Z
Runway!ENA 05/098 9A3 RWY 27 RWY END ID LGT U/S 2605131228-2611132111EST
4/7/26
0141Z
Runway!ENA 04/060 9A3 RWY 09 RWY END ID LGT U/S 2604070141-2605311500EST
No
UNATNDD
ALASKA DOT&PF CENTRAL REGION
PO BOX 196900
ANCHORAGE, AK 99519
Phone: 907-269-0760
KEN SMITH
PO BOX 196900
ANCHORAGE, AK 99519
Phone: 907-676-0505
KENAI FSS (ENA)
Toll Free: 1-866-864-1737
ENA
--
ACTVT REIL RWY 09 & 27; PAPI RWY 09 & 27; MIRL RWY 09/27 - CTAF.
ACTVT ROTG BCN - CTAF.
N/A
Yes - Lighted
Yes
No
None
No
None
None
None
None
None

Runway 09/27

3401 ft. x 60 ft.
GRVL DIRT
Good
NONE
MED

--
--
--
--
  Runway 09 Runway 27
True Heading 106°286°
Traffic Pattern
Markings
Markings Condition
Latitude 61° 34' 49"N 61° 34' 40"N
Longitude 159° 13' 30"W 159° 12' 23"W
Elevation 244' 205'
Threshold Crossing Height 26 ft. AGL 25 ft. AGL
Visual Glide Path Angle 3° 4°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1RWY COND UNMNT; RCMD VISUAL INSP BFR USE.
A110-3COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -31C.
A33-09/27_CONDFROST HEAVES & SINK HOLES RWY ENDS & RAMP.
A81-APTACTVT REIL RWY 09 & 27; PAPI RWY 09 & 27; MIRL RWY 09/27 - CTAF.
A81-BCNACTVT ROTG BCN - CTAF.
CHUATHBALUK (ICAO: PACH, IATA: 9A3) is a public airport located in CHUATHBALUK, AK, US.
