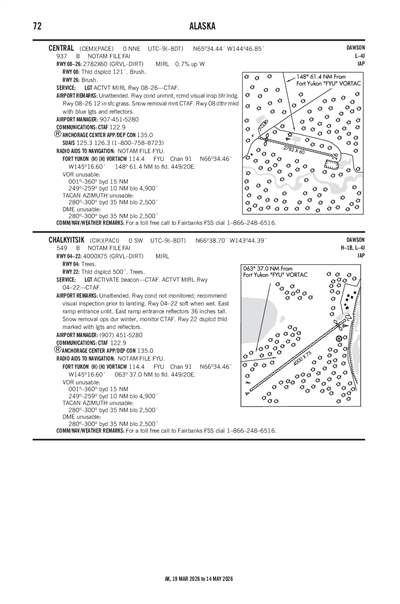

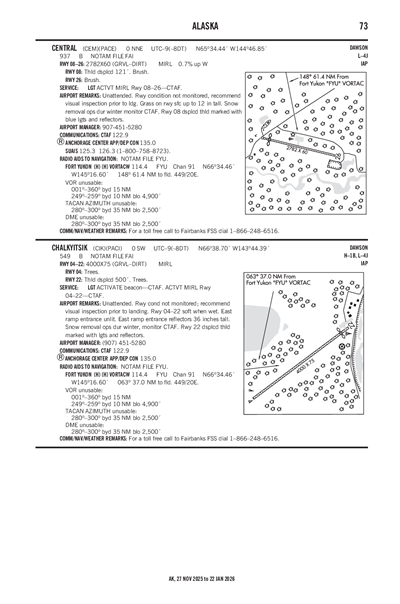

CHALKYITSIK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PACI
ICAO PACIIATA CIKLocal CIK
CHALKYITSIK
PublicPUB

0 miles SW of CHALKYITSIK, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
66° 38' 42"N 143° 44' 24"W
Elevation
549' MSL
Pattern Alt
1549' MSL
Mag Variation
18°E
Declination
18°E
Fuel
None Listed
FSS
FAIRBANKS (FAI)
Sectional
DAWSON
ARTCC
ANCHORAGE (ZAN)
Data Effective
2/19/26-3/19/26
PFYU (36nm) IFR
9:09 AM AKST
Light Snow
Overcast 4,500'
Broken 3,700'
Broken 3,000'
2sm
-4°F
-9°F
30.41"Hg
Calm
AO2 P0000
SPECI PFYU 221809Z 00000KT 2SM -SN BKN030 BKN037 OVC045 M20/M23 A3041 RMK AO2 P0000
+ Add Your Business

PACI FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
SS-SR. ACTVT BEACON - CTAF.; ACTVT MIRL RWY 04/22 - CTAF.; SNOW REMOVAL OPERATIONS DURING WINTER--MONITOR CTAF.

Center

ANCHORAGE CENTER 135.0
LOW/HIGH, APCH/DEP SVC PRVDD BY ANCHORAGE ARTCC ON FREQS 135.0/225.4 (FORT YUKON RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
PACI
No NOTAM Available
No
UNATNDD
ALASKA DOT&PF NORTHERN REGION
2301 PEGER RD
FAIRBANKS, AK 99709
Phone: (907) 451-5280
JASON LUDINGTON
2301 PEGER RD
FAIRBANKS, AK 99709
Phone: (907) 451-5280
FAIRBANKS FSS (FAI)
Toll Free: 1-866-248-6516
FAI
--
ACTVT MIRL RWY 04/22 - CTAF.
SS-SR. ACTVT BEACON - CTAF.
N/A
Yes - Lighted
Yes
No
None
No
None
None
None
None
None

Runway 04/22

4000 ft. x 75 ft.
GRVL DIRT
Fair
NONE
MED

--
--
--
--
  Runway 04 Runway 22
True Heading 53°233°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition FAIR FAIR
Latitude 66° 38' 30"N 66° 38' 54"N
Longitude 143° 45' 03"W 143° 43' 44"W
Elevation 529' 548'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1SNOW REMOVAL OPERATIONS DURING WINTER--MONITOR CTAF.
A110-2RWY COND NOT MONITORED; RECOMMEND VISUAL INSPECTION PRIOR TO LANDING.
A110-3WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV.
A110-4RWY 04/22 SOFT WHEN WET.
A110-6EAST RAMP ENTRANCE UNLIT.
A110-7EAST RAMP ENTRANCE REFLECTORS 36 INCHES TALL.
A51-22DSPLCD THLD MKD WITH LGTS & REFLECTORS.
A81-APTACTVT MIRL RWY 04/22 - CTAF.
A81-BCNSS-SR. ACTVT BEACON - CTAF.
CHALKYITSIK (ICAO: PACI, IATA: CIK) is a public airport located in CHALKYITSIK, AK, US.
