iFlightPlanner



...

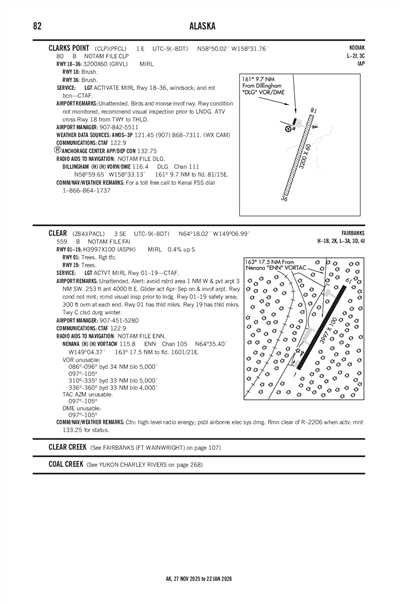

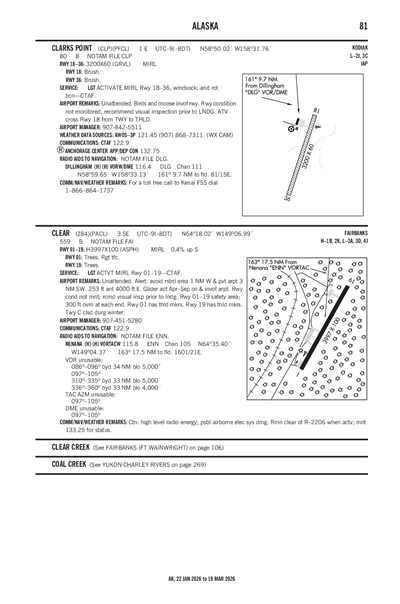

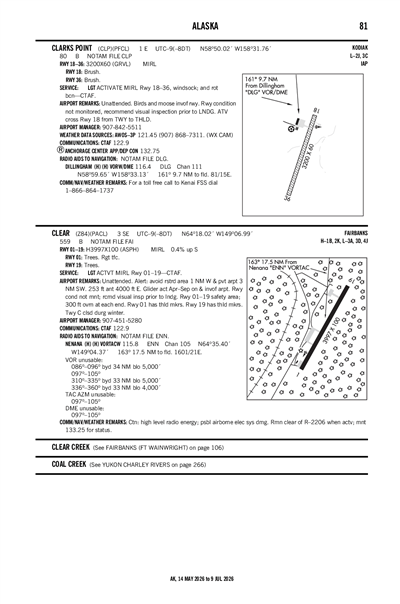

CLEAR - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PACL
ICAO PACLLocal Z84
CLEAR
PublicPUB

3 miles SE of CLEAR, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
64° 18' 01"N 149° 06' 59"W
Elevation
559' MSL
Pattern Alt
1559' MSL
Mag Variation
16°E
Declination
27°E
Fuel
None Listed
FSS
FAIRBANKS (FAI)
Sectional
FAIRBANKS
ARTCC
ANCHORAGE (ZAN)
Data Effective
6/11/26-7/9/26
PANN (15nm) MVFR
1:34 PM AKDT
Overcast 4,600'
Broken 3,000'
10sm
65°F
53°F
29.79"Hg
Calm
AO2 T01830117 TSNO $
SPECI PANN 252134Z AUTO 00000KT 10SM BKN030 OVC046 18/12 A2979 RMK AO2 T01830117 TSNO $
+ Add Your Business

PACL FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT MIRL RWY 01/19 - CTAF.

FAA A/FD Pages

Terminal Area Forecast

PAFA (44nm)
Thu, 6/25 12:00 PM AKDT
Thu, 6/25 12:00 PM AKDT - Fri, 6/26 4:00 PM AKDT
MVFR
12:00 PM AKDT - 1:00 PM AKDT
Broken 3,000'
6sm
200° 4kts
VFR
1:00 PM AKDT - 10:00 PM AKDT
Broken 7,000'
6sm
250° 5kts
VFR
10:00 PM AKDT - 4:00 PM AKDT
Broken 7,000'
6sm
VRB° 3kts
TAF PAFA 252000Z 2520/2624 20004KT P6SM BKN030
   FM252100 25005KT P6SM BKN070
   FM260600 VRB03KT P6SM BKN070
PACL
No NOTAM Available
No
UNATNDD
ALASKA DOT&PF NORTHERN REGION
2301 PEGER RD
FAIRBANKS, AK 99709
Phone: 907-451-5280
JASON LUDINGTON
2301 PEGER RD
FAIRBANKS, AK 99709
Phone: 907-451-5280
FAIRBANKS FSS (FAI)
Toll Free: 1-866-248-6516
FAI
--
ACTVT MIRL RWY 01/19 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 01/19

3997 ft. x 100 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 01 Runway 19
True Heading 34°214°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 64° 17' 45"N 64° 18' 18"N
Longitude 149° 07' 25"W 149° 06' 34"W
Elevation 559' 543'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1253 FT ANT 4000 FT E.
A110-3RWY COND NOT MNT; RCMD VISUAL INSP PRIOR TO LNDG.
A110-4ALERT: AVOID RSTRD AREA 1 NM W & PVT ARPT 3 NM SW.
A110-6GLIDER ACT APR-SEP ON & INVOF ARPT.
A110-7TWY C CLSD DURG WINTER.
A110-8CTN: HIGH LEVEL RADIO ENERGY; PSBL AIRBORNE ELEC SYS DMG. RMN CLEAR OF R-2206 WHEN ACTV; MNT 133.25 FOR STATUS. SEE SPL NOTICE FOR CLEAR RADIATION HAZ.
A33-01/19_CONDSAFETY AREA; 300 FT OVRN EACH END.
A42-01_MARKTHLD MKRS.
A42-19_MARKTHLD MKRS.
A81-APTACTVT MIRL RWY 01/19 - CTAF.
CLEAR (ICAO: PACL, IATA: Z84) is a public airport located in CLEAR, AK, US.
