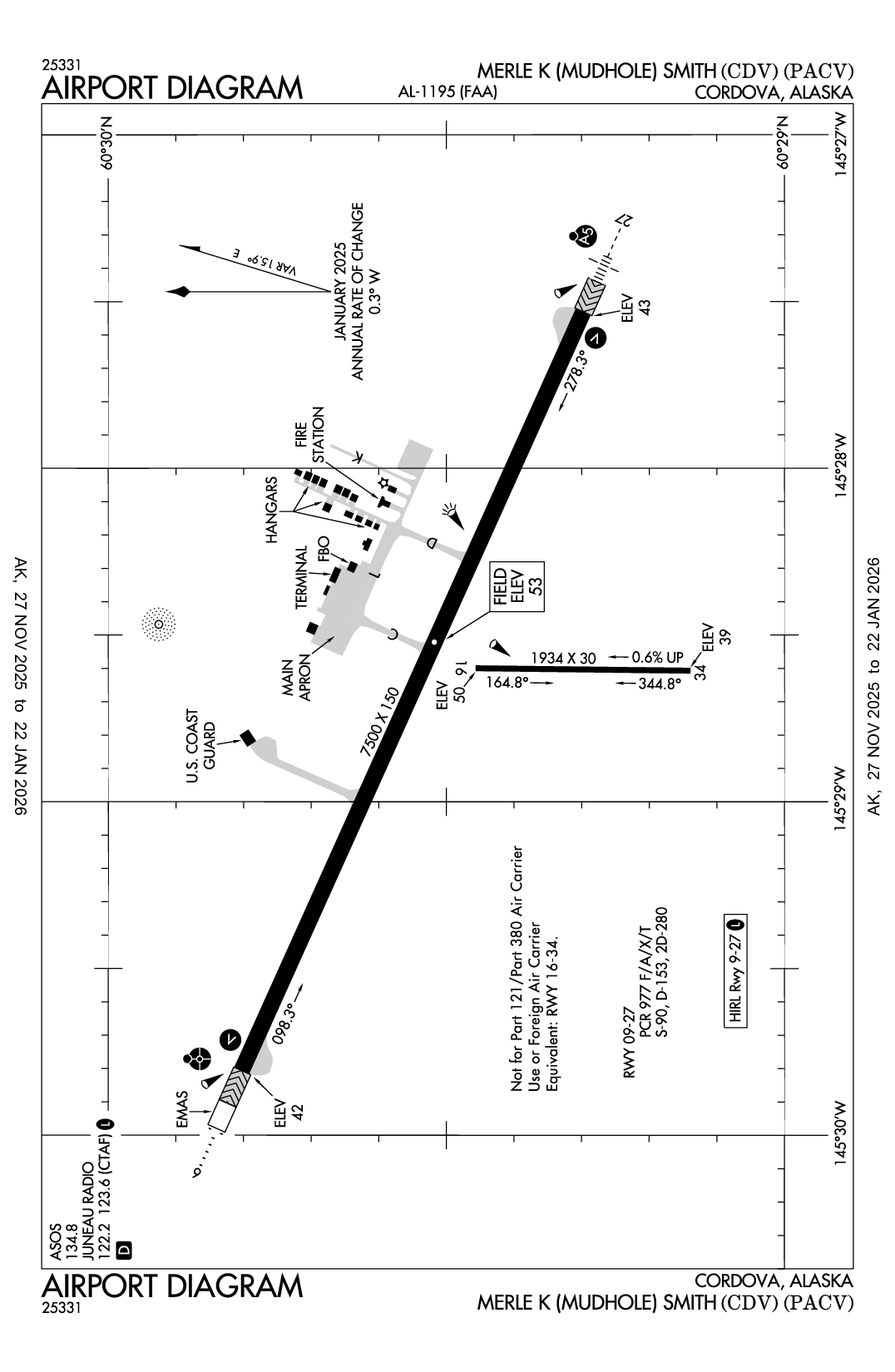

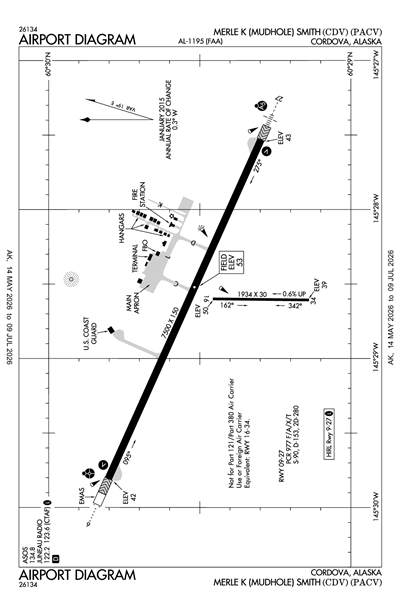

MERLE K (MUDHOLE) SMITH - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PACV
ICAO PACVIATA CDVLocal CDV
MERLE K (MUDHOLE) SMITH
PublicPUB

11 miles SE of CORDOVA, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
60° 29' 30"N 145° 28' 39"W
Elevation
53' MSL
Pattern Alt
1053' MSL
Mag Variation
16°E
Declination
19°E
Fuel
None Listed
FSS
JUNEAU (JNU)
Sectional
ANCHORAGE
ARTCC
ANCHORAGE (ZAN)
Data Effective
3/19/26-4/16/26
PACV VFR
12:53 PM AKDT
Unknown Precipitation
Overcast 5,000'
Broken 3,800'
Few 2,400'
7sm
35°F
34°F
30.13"Hg
Calm
AO2 RAE24UPB04E22B47 SLP203 P0000 60008 T00170011 51002
METAR PACV 042053Z 00000KT 7SM UP FEW024 BKN038 OVC050 02/01 A3013 RMK AO2 RAE24UPB04E22B47 SLP203 P0000 60008 T00170011 51002
+ Add Your Business

PACV FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 134.8
(907) 424-5900

Common

CTAF 123.6
ACTVT MALSR RWY 27; ODALS RWY 09; VASI RWYS 09 & 27; HIRL RWY 09/27 - CTAF.

Center

ANCHORAGE CENTER 119.3
LOW/HIGH, APCH/DEP SVC PRVDD BY ANCHORAGE ARTCC ON FREQ 133.6/269.4 (MIDDLETON ISLAND RCAG) AND 119.3 (JOHNSTONE POINT RCAG).
ANCHORAGE CENTER 133.6
LOW, APCH/DEP SVC PRVDD BY ANCHORAGE ARTCC ON FREQ 133.6/269.4 (MIDDLETON ISLAND RCAG) AND 119.3 (JOHNSTONE POINT RCAG).

Flight Service

Flight Service 121.5
(JNU)
Flight Service 122.2
(JNU), COMMUNICATIONS PRVDD BY JUNEAU FSS ON FREQS 122.2 & 123.6 (CORDOVA RCO).
Flight Service 123.6
(JNU), COMMUNICATIONS PRVDD BY JUNEAU FSS ON FREQS 122.2 & 123.6 (CORDOVA RCO).

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

PACV
Sat, 4/4 12:10 PM AKDT
Sat, 4/4 12:00 PM AKDT - Sun, 4/5 10:00 AM AKDT
MVFR
Temporary 12:00 PM AKDT - 4:00 PM AKDT
Light Rain and Mist
Broken 2,000'
3sm
Calm
VFR
12:00 PM AKDT - 10:00 PM AKDT
Light Rain and Mist
Overcast 3,500'
Scattered 2,000'
6sm
VRB° 4kts
MVFR
10:00 PM AKDT - 2:00 AM AKDT
Light Snow and Rain and Mist
Overcast 1,500'
3sm
VRB° 2kts
IFR
2:00 AM AKDT - 10:00 AM AKDT
Light Snow and Mist
Overcast 1,000'
2sm
VRB° 2kts
TAF PACV 042010Z 0420/0518 VRB04KT 6SM -RA BR SCT020 OVC035
   TEMPO 0420/0424 3SM -RA BR BKN020
   FM050600 VRB02KT 3SM -SNRA BR OVC015
   FM051000 VRB02KT 2SM -SN BR OVC010
PACV
EffectiveExpiresCategoryNOTAM
Domestic
4/4/26
2138Z
4/5/26
2138Z
!CDV 04/027 CDV APRON ALL FICON 1/2IN SLUSH BA GOOD TO MEDIUM OBS AT 2604042138. 2604042138-2604052138
4/4/26
2136Z
4/5/26
2136Z
!CDV 04/026 CDV TWY TURNAROUNDS FICON 1/2IN SLUSH BA GOOD TO MEDIUM OBS AT 2604042136. 2604042136-2604052136
4/4/26
2136Z
4/5/26
2136Z
!CDV 04/025 CDV TWY B, D, FICON 1/2IN SLUSH BA MEDIUM OBS AT 2604042136. 2604042136-2604052136
4/4/26
2135Z
4/5/26
2135Z
!CDV 04/024 CDV TWY C, L FICON 1/8IN SLUSH SANDED BA GOOD TO MEDIUM OBS AT 2604042135. 2604042135-2604052135
4/4/26
2134Z
4/5/26
2134Z
Runway!CDV 04/023 CDV RWY 09 FICON 5/5/5 100 PCT 1/8IN SLUSH 100FT WID REMAINDER 1/2IN SLUSH OBS AT 2604042134. 2604042134-2604052134
4/4/26
2039Z
4/5/26
2039Z
!CDV 04/021 CDV TWY TURNAROUNDS FICON 1/4IN SLUSH AND COMPACTED SN BA GOOD TO MEDIUM OBS AT 2604042039. 2604042039-2604052039
3/20/26
1815Z
!CDV 03/347 CDV NAV ILS RWY 27 DME NOT MNT 2603201815-2604251500EST
1/22/26
1718Z
7/31/26
2359Z
Runway!CDV 01/477 CDV RWY 27 ENGINEERED MATERIAL ARST SYSTEM NOT STD 2601221718-2607312359
FDC
10/16/24
2110Z
!FDC 4/0024 CDV SID MERLE K (MUDHOLE) SMITH, CORDOVA, AK.
CASEL SEVEN DEPARTURE...
FROM HUMPY TO WEVIN NA. DISREGARD J133. 2410162110-2610162109EST
No
0600-1630
ALASKA DOT&PF NORTHERN REGION
2301 PEGER ROAD
FAIRBANKS, AK 99709
Phone: 907-451-2200
MATTHEW MYSZKA
BOX 598
CORDOVA, AK 99574
Phone: 907-424-3202
JUNEAU FSS (JNU)
Toll Free: 1-866-297-2236
CDV
--
ACTVT MALSR RWY 27; ODALS RWY 09; VASI RWYS 09 & 27; HIRL RWY 09/27 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Cargo Handling

Runway 09/27

7500 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

90,000lbs
153,000lbs
280,000lbs
--
  Runway 09 Runway 27
True Heading 114°294°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 60° 29' 48"N 60° 29' 18"N
Longitude 145° 29' 48"W 145° 27' 32"W
Elevation 42' 43'
Threshold Crossing Height 41 ft. AGL 57 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L V4L
Approach Lights ODALS MALSR
Centerline Lights
Runway End Identifier Lights No

Runway 16/34

1934 ft. x 30 ft.
GRVL
Fair
NONE


--
--
--
--
  Runway 16 Runway 34
True Heading 181°1°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition POOR POOR
Latitude 60° 29' 27"N 60° 29' 08"N
Longitude 145° 28' 36"W 145° 28' 36"W
Elevation 50' 39'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1ERRATIC WINDS.
A110-10ARPT SAND LRGR GRADATION THAN FAA RCMDD/SEE AC150/5200-30.
A110-11WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-14TSA REGULATED ARPT; SEE 49 CFR 1542. GATES & DOORS MUST BE SECURED ALL TIMES; INFO - AMGR.
A110-15ARPT SVCS & COND RPTG AVBL ONLY DURG MAINT DUTY HR; AFT HR - AMGR. BTN 1600 & 0700 SNOW REMOVAL & DEICE NA. RWY COND RPT REFLECTS DAY OPS ONLY.
A110-4MOOSE & BIRDS INVOF ARPT & RWYS.
A110-5ARFF EQUIP DURG ACR ACT ONLY.
A110-6CORDOVA WX - 424-7614 OR 122.65.
A26CLSD TO ACR OPS MORE THAN 30 PAX SEATS EXC 24 HR PPR IN WRITING - AMGR BOX 598 CORDOVA AK 99574.
A30-16/34RWY 16/34 NOT AVBL FOR PART 121/380 SKED AND NON-SKED OPS WITH PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A39-09/27PCR VALUE: 977/F/A/X/T
A42-16_MARK36 IN ORANGE CONES MAY 1 - OCT 25.
A42-34_MARK36 IN ORANGE CONES MAY 1 - OCT 25.
A43-09RWY 09 VASI UNUSBL BYD 4 NM DUE TO OBSTS.
A81-APTACTVT MALSR RWY 27; ODALS RWY 09; VASI RWYS 09 & 27; HIRL RWY 09/27 - CTAF.
E60-27_EMASENGINEERED MATERIALS ARRESTING SYSTEM (EMAS) 250 FT IN LENGTH BY 170 FT IN WIDTH LCTD DER 27.
MERLE K (MUDHOLE) SMITH (ICAO: PACV, IATA: CDV) is a public airport located in CORDOVA, AK, US.
