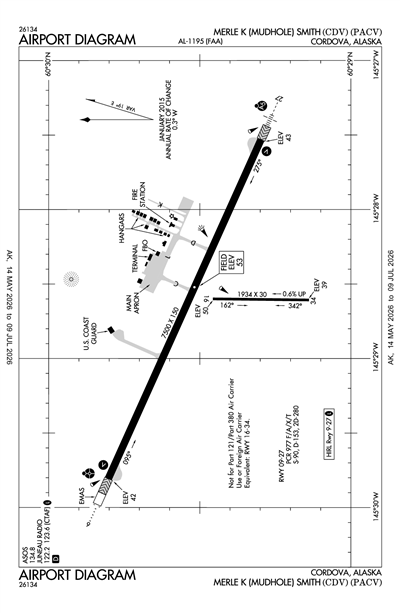

MERLE K (MUDHOLE) SMITH - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PACV
ICAO PACVIATA CDVLocal CDV
MERLE K (MUDHOLE) SMITH
PublicPUB

11 miles SE of CORDOVA, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
60° 29' 30"N 145° 28' 39"W
Elevation
53' MSL
Pattern Alt
1053' MSL
Mag Variation
16°E
Declination
19°E
Fuel
None Listed
FSS
JUNEAU (JNU)
Sectional
ANCHORAGE
ARTCC
ANCHORAGE (ZAN)
Data Effective
10/1/26-10/29/26
PACV MVFR
3:53 PM AKDT
Light Rain and Mist
Overcast 6,000'
Broken 5,000'
4sm
42°F
38°F
29.49"Hg
110° 12kts
Gusts 24kts
AO2 PK WND 11030/2254 SLP985 P0006 60063 T00560033 10061 20039 56044
METAR PACV 192353Z 11012G24KT 4SM -RA BR BKN050 OVC060 06/03 A2949 RMK AO2 PK WND 11030/2254 SLP985 P0006 60063 T00560033 10061 20039 56044
+ Add Your Business

PACV FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 134.8
(907) 424-5900

Common

CTAF 123.6
ACTVT MALSR RWY 27; ODALS RWY 09; VASI RWYS 09 & 27; HIRL RWY 09/27 - CTAF.

Center

ANCHORAGE CENTER 119.3
LOW/HIGH, APCH/DEP SVC PRVDD BY ANCHORAGE ARTCC ON FREQ 133.6/269.4 (MIDDLETON ISLAND RCAG) AND 119.3 (JOHNSTONE POINT RCAG).
ANCHORAGE CENTER 133.6
LOW, APCH/DEP SVC PRVDD BY ANCHORAGE ARTCC ON FREQ 133.6/269.4 (MIDDLETON ISLAND RCAG) AND 119.3 (JOHNSTONE POINT RCAG).

Flight Service

Flight Service 121.5
(JNU)
Flight Service 122.2
(JNU), COMMUNICATIONS PRVDD BY JUNEAU FSS ON FREQS 122.2 & 123.6 (CORDOVA RCO).
Flight Service 123.6
(JNU), COMMUNICATIONS PRVDD BY JUNEAU FSS ON FREQS 122.2 & 123.6 (CORDOVA RCO).

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

PACV
Mon, 10/19 3:23 PM AKDT
Mon, 10/19 4:00 PM AKDT - Tue, 10/20 4:00 PM AKDT
MVFR
4:00 PM AKDT - 7:00 PM AKDT
Light Rain and Mist
Overcast 2,500'
Scattered 1,000'
4sm
090° 18kts
Gusts 28kts
MVFR
7:00 PM AKDT - 12:00 AM AKDT
Light Rain and Mist
Overcast 1,000'
Scattered 700'
4sm
090° 15kts
Gusts 25kts
MVFR
12:00 AM AKDT - 10:00 AM AKDT
Rain and Mist
Overcast 1,500'
3sm
100° 15kts
Gusts 28kts
MVFR
10:00 AM AKDT - 4:00 PM AKDT
Light Rain
Overcast 2,000'
Scattered 1,500'
6sm
140° 12kts
Gusts 22kts
TAF PACV 192323Z 2000/2024 09018G28KT 4SM -RA BR SCT010 OVC025
   FM200300 09015G25KT 4SM -RA BR SCT007 OVC010
   FM200800 10015G28KT 3SM RA BR OVC015
   FM201800 14012G22KT 6SM -RA SCT015 OVC020
PACV
EffectiveExpiresCategoryNOTAM
Domestic
10/20/26
1630Z
10/20/26
2300Z
!CDV 10/164 CDV NAV ILS RWY 27 LOC/GP/DME U/S 2610201630-2610202300
10/19/26
1956Z
10/20/26
1956Z
!CDV 10/163 CDV APRON ALL FICON WET OBS AT 2610191954 2610191956-2610201956
10/19/26
1956Z
10/20/26
1955Z
!CDV 10/162 CDV TWY ALL FICON WET OBS AT 2610191954 2610191956-2610201955
10/19/26
1949Z
10/20/26
1949Z
Runway!CDV 10/161 CDV RWY 09 FICON 5/5/5 100 PCT WET OBS AT 2610191948. 2610191949-2610201949
10/18/26
2221Z
Runway!CDV 10/156 CDV RWY 27 RVRT U/S 2610182221-2612261500EST
10/18/26
2221Z
Runway!CDV 10/155 CDV RWY 09 RVRR U/S 2610182221-2612261500EST
10/18/26
2135Z
!CDV 10/154 CDV NAV ILS RWY 27 LOC/GP NOT MNT 2610182135-2612261500EST
10/7/26
1947Z
10/21/26
1947Z
!CDV 10/061 CDV AD AP BIRD ACT INCREASED EAGLES 2610071947-2610211947
FDC
10/14/26
1601Z
!FDC 6/9466 CDV SID MERLE K (MUDHOLE) SMITH, CORDOVA, AK.
CASEL SEVEN DEPARTURE ...
FROM HUMPY TO WEVIN NA. DISREGARD J133. 2610141601-2610290901EST
No
0600-1630
ALASKA DOT&PF NORTHERN REGION
2301 PEGER ROAD
FAIRBANKS, AK 99709
Phone: 907-451-2200
MATTHEW MYSZKA
BOX 598
CORDOVA, AK 99574
Phone: 907-424-3202
JUNEAU FSS (JNU)
Toll Free: 1-866-297-2236
CDV
--
ACTVT MALSR RWY 27; ODALS RWY 09; VASI RWYS 09 & 27; HIRL RWY 09/27 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Cargo Handling

Runway 09/27

7500 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
977/F/A/X/T
90,000lbs
153,000lbs
280,000lbs
--
  Runway 09 Runway 27
True Heading 114°294°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 60° 29' 48"N 60° 29' 18"N
Longitude 145° 29' 48"W 145° 27' 32"W
Elevation 42' 43'
Threshold Crossing Height 41 ft. AGL 57 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L V4L
Approach Lights ODALS MALSR
Centerline Lights
Runway End Identifier Lights No

Runway 16/34

1934 ft. x 30 ft.
GRVL
Fair
NONE


--
--
--
--
  Runway 16 Runway 34
True Heading 181°1°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition POOR POOR
Latitude 60° 29' 27"N 60° 29' 08"N
Longitude 145° 28' 36"W 145° 28' 36"W
Elevation 50' 39'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1ERRATIC WINDS.
A110-10ARPT SAND LRGR GRADATION THAN FAA RCMDD/SEE AC150/5200-30.
A110-11WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-14TSA REGULATED ARPT; SEE 49 CFR 1542. GATES & DOORS MUST BE SECURED ALL TIMES; INFO - AMGR.
A110-15ARPT SVCS & COND RPTG AVBL ONLY DURG MAINT DUTY HR; AFT HR - AMGR. BTN 1600 & 0700 SNOW REMOVAL & DEICE NA. RWY COND RPT REFLECTS DAY OPS ONLY.
A110-4MOOSE & BIRDS INVOF ARPT & RWYS.
A110-5ARFF EQUIP DURG ACR ACT ONLY.
A110-6CORDOVA WX - 424-7614 OR 122.65.
A26CLSD TO ACR OPS MORE THAN 30 PAX SEATS EXC 24 HR PPR IN WRITING - AMGR BOX 598 CORDOVA AK 99574.
A30-16/34RWY 16/34 NOT AVBL FOR PART 121/380 SKED AND NON-SKED OPS WITH PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A42-16_MARK36 IN ORANGE CONES MAY 1 - OCT 25.
A42-34_MARK36 IN ORANGE CONES MAY 1 - OCT 25.
A43-09RWY 09 VASI UNUSBL BYD 4 NM DUE TO OBSTS.
A81-APTACTVT MALSR RWY 27; ODALS RWY 09; VASI RWYS 09 & 27; HIRL RWY 09/27 - CTAF.
E60-27_EMASENGINEERED MATERIALS ARRESTING SYSTEM (EMAS) 250 FT IN LENGTH BY 170 FT IN WIDTH LCTD DER 27.
MERLE K (MUDHOLE) SMITH (ICAO: PACV, IATA: CDV) is a public airport located in CORDOVA, AK, US.
