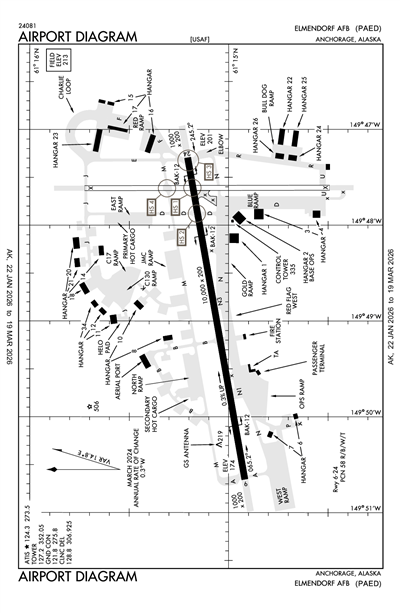

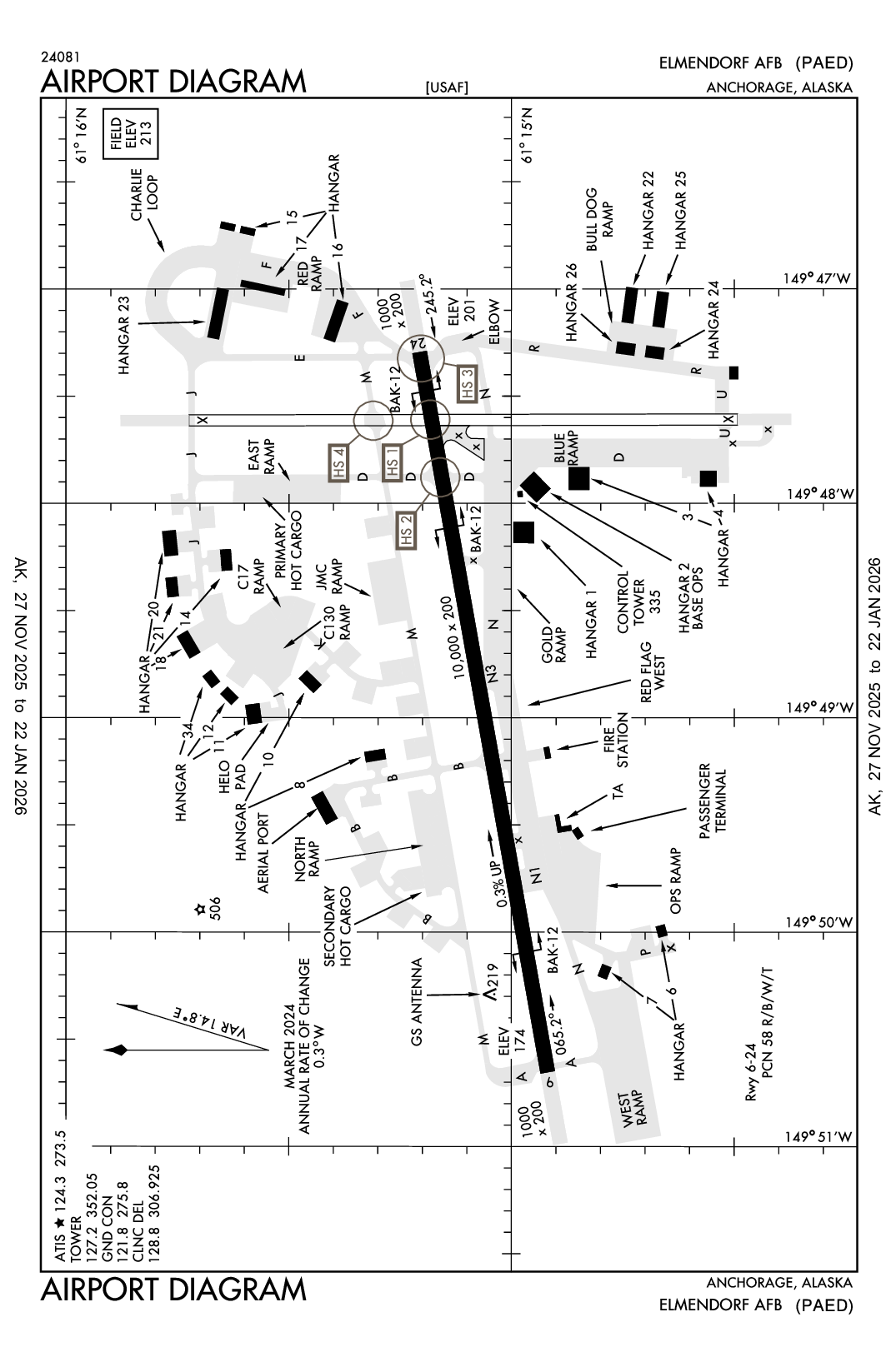

ELMENDORF AFB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAED
ICAO PAEDIATA EDFLocal EDF
ELMENDORF AFB
PrivatePVT

3 miles NE of ANCHORAGE, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
61° 15' 05"N 149° 48' 23"W
Elevation
213' MSL
Pattern Alt
1213' MSL
Mag Variation
15°E
Declination
18°E
Fuel
JP-8
FSS
KENAI (ENA)
Sectional
ANCHORAGE
ARTCC
ANCHORAGE (ZAN)
Data Effective
2/19/26-3/19/26
PAED VFR
7:55 AM AKST
Few 8,000'
10sm
3°F
-5°F
30.44"Hg
070° 5kts
AO2A SLP309 T11621204 $
METAR PAED 221655Z 07005KT 10SM FEW080 M16/M20 A3044 RMK AO2A SLP309 T11621204 $
+ Add Your Business

PAED FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 124.3
Hours: 0700-2300

Common

Pilot-To-Dispatcher (PTD) 134.8

Clearance

Clearance Delivery 128.8

Ground

ELMENDORF GROUND 121.8

Tower

ELMENDORF TOWER 127.2

Approach

ANCHORAGE APPROACH 118.6
ANCHORAGE APPROACH 134.1
Secondary

Departure

ANCHORAGE DEPARTURE 118.6

Operations

Operations 123.1
11AF RESCUE COORD CNTR

Other

CLASS C 118.6

Terminal Area Forecast

PAED
Sun, 2/22 1:00 PM AKST
Sun, 2/22 1:00 PM AKST - Mon, 2/23 7:00 PM AKST
VFR
1:00 PM AKST - 7:00 PM AKST
Few 15,000'
6sm
30.30"Hg
320° 6kts
VFR
Becoming 7:00 PM AKST - 10:00 AM AKST
Broken 15,000'
Few 8,000'
6sm
30.00"Hg
300° 6kts
VFR
Becoming 10:00 AM AKST - 7:00 PM AKST
Broken 6,000'
Scattered 3,000'
6sm
29.82"Hg
330° 8kts
TAF PAED 222200Z 2222/2404 32006KT 9999 FEW150 QNH3029INS
   BECMG 2304/2305 30006KT 9999 FEW080 BKN150 QNH3001INS
   BECMG 2319/2320 33008KT 9999 SCT030 BKN060 QNH2983INS TXM05/2223Z TNM15/2310Z
PAED
EffectiveExpiresCategoryNOTAM
Domestic
6/14/25
0116Z
9/30/26
0116Z
Runway!PAED 06/001 EDF RWY 16/34 CLSD 2506140116-2609300116
Military
2/24/26
0300Z
2/24/26
0600Z
!PAED M0224/26 EDF PJE CAUTION: 1 C-130 WILL BE OPERATING IFR BETWEEN 1,200-2,000 FT MSL FROM BGQ099010 INTO R-2203 TO EDF32007 IN THE VICINITY OF BIG LAKE, PALMER, BIRCHWOOD, GOOSE BAY AND WASILLA, AK 2602240300-2602240600
2/21/26
0457Z
3/26/26
2359Z
Taxiway!PAED M0223/26 EDF TWY E CLSD CLOSED DUE TO SNOW ACCUMULATION 2602210457-2603262359
2/21/26
0030Z
2/28/26
0900Z
C130 RAMP HERC SPOT 10 CLSD DUE TO SNOW ACCUMULATION
2/21/26
0028Z
5/20/26
0800Z
RunwayRWY 06/24 NO 180 DEGREE TURNS TO BE CONDUCTED BETWEEN TWY D AND RWY INTERSECTION
2/20/26
0844Z
2/26/26
2359Z
Taxiway!PAED M0219/26 EDF TWY R LOCATION SIGN OBSC WEST SIDE BY SNOW 2602200844-2602262359
2/20/26
0840Z
2/26/26
2359Z
Runway!PAED M0218/26 EDF RWY 06 DIST REMAINING SIGN OBSC 8000' RDR OBSCURED BY SNOW 2602200840-2602262359
2/20/26
0839Z
2/26/26
2359Z
Runway!PAED M0217/26 EDF RWY 24 DIST REMAINING SIGN OBSC 9000' RDR OBSCURED BY SNOW 2602200839-2602262359
2/20/26
0835Z
2/26/26
2359Z
Taxiway!PAED M0216/26 EDF TWY U LOCATION SIGN OBSC FACING EAST OBSCURED BY SNOW 2602200835-2602262359
2/20/26
0830Z
2/26/26
2359Z
Taxiway!PAED M0215/26 EDF TWY U LOCATION SIGN OBSC FACING WEST OBSCURED BY SNOW 2602200830-2602262359
2/20/26
0703Z
2/23/26
0703Z
M0214/26 NOTAMC M0205/26
2/19/26
0511Z
4/16/26
0900Z
OBSTACLE LIGHTS ON EAST RAMP 3,074 FT NORTH OF RWY 06 CENTERLINE AT N 61.2580824 W 149.8006060, N 61.2602792 W 149.8005393, N 61.2607559 W 149.8007148 & N 61.2607126 W 149.8012176 UNSERVICEABLE
2/19/26
0510Z
4/16/26
0900Z
OBSTACLE LIGHT 1,531.33FT FROM RUNWAY CENTERLINE UNSERVICEABLE
2/19/26
0510Z
4/16/26
0900Z
OBSTACLE LIGHTS ON HANGAR 12 2,095 FT SOUTH OF RWY 06 CENTERLINE AT N 61.2601044 W 149.8136057, N 61.2598916 W 149.8139006 & N 61.2597081 W 149.8142390 UNSERVICEABLE
2/19/26
0509Z
4/16/26
0900Z
OBSTACLE LIGHTS 1,333.15FT FROM RUNWAY CENTERLINE UNSERVICEABLE
2/19/26
0508Z
4/16/26
0900Z
OBSTACLE LIGHTS ON AIR FREIGHT TERMINAL BUILDING (ATOC) 2,097 FT NORTH OF RWY 06 CENTERLINE AT N 61.2567255 W 149.8239001 & N 61.2570050 W 149.8225901 UNSERVICEABLE
2/16/26
1719Z
4/11/26
2359Z
OBSTACLE LIGHT 3,070.86FT FROM RUNWAY CENTERLINE UNSERVICEABLE
2/15/26
1700Z
4/11/26
2359Z
OBSTACLE LIGHTS ON HANGAR 27 122FT SOUTHEAST OF RWY 06 CENTERLINE AT N 61.2425058 W 149.7813689 & N 61.2427103 W 149.7813484 UNSERVICEABLE
2/15/26
1100Z
4/16/26
0900Z
OBSTACLE LIGHT ON JMC RAMP 1,333 FT NORTH OF RWY 06 CENTERLINE AT N 61.2553068 W 149.8090799 UNSERVICEABLE
2/14/26
1649Z
4/16/26
0900Z
OBSTACLE LIGHTS ON HANGER 16 1,480 FT NORTHEAST OF RWY 06 CENTERLINE AT N 61.2570182 W 149.7870782, N 61.2567978 W 149.7859325, N 61.2567083 W 149.7853883 & N 61.2565223 W 149.7842284 UNSERVICEABLE
2/14/26
1042Z
4/29/26
0900Z
OBSTACLE LIGHT ON CHARLIE LOOP 3,923 FT NORTHEAST OF RWY 06 CENTERLINE AT N 61.2636836 W 149.7838417 UNSERVICEABLE
2/13/26
1207Z
2/27/26
2359Z
Runway!PAED M0196/26 EDF RWY 24 RTHL OBSC PARTIALLY BY SNOW, 2602131207-2602272359
2/13/26
1204Z
2/27/26
2359Z
RunwayRWY 06 APCH LIGHTING SYSTEM PRE-THRESHOLD LIGHTS NORTH SIDE PARTIALLY OBSCURED BY SNOW
2/13/26
1137Z
2/27/26
2359Z
AerodromeAERODROME TACAN SIGN AT ELBOW OBSCURED BY SNOW
2/13/26
1133Z
2/27/26
2359Z
Taxiway!PAED M0193/26 EDF TWY N LOCATION SIGN OBSC BY SNOW ADJACENT TWY A 2602131133-2602272359
2/13/26
1123Z
2/27/26
2359Z
Taxiway!PAED M0192/26 EDF TWY S LOCATION SIGN OBSC BY SNOW 2602131123-2602272359
2/13/26
1122Z
2/27/26
2359Z
Taxiway!PAED M0191/26 EDF TWY T LOCATION SIGN OBSC BY SNOW 2602131122-2602272359
2/13/26
1117Z
2/27/26
2359Z
Taxiway!PAED M0190/26 EDF TWY U ELEVATED RWY GUARD LGTS OBSC BY SNOW 2602131117-2602272359
2/4/26
1445Z
2/28/26
0900Z
BLUE RAMP SPOTS 4 - 18 CLSD DUE TO SNOW ACCUMULATION
1/23/26
1500Z
3/25/26
0800Z
WEST RAMP EOR CLSD FOR SNOW ACCUMULATION
1/21/26
1224Z
4/20/26
2359Z
CAUTION! PERSONNEL AND EQUIPMENT LOCATED ON TWY M 280 FEET NORTH OF RWY 24 CENTERLINE AND 630 FEET FROM RWY 24 THESHOLD
1/20/26
2300Z
3/25/26
2359Z
Taxiway!PAED M0106/26 EDF TWY U CLSD FROM TWY D - R DUE TO SNOW ACCUMULATION 2601202300-2603252359
1/19/26
2216Z
3/25/26
0800Z
Apron!PAED M0101/26 EDF APRON CHARLIE LOOP CLSD SPOTS 1-12 DUE TO SNOW ACCUMULATION 2601192216-2603250800
1/19/26
2214Z
3/25/26
0800Z
Apron!PAED M0099/26 EDF APRON RED FLAG WEST CLSD FOR SNOW ACCUMULATION 2601192214-2603250800
1/19/26
2212Z
3/25/26
0800Z
Apron!PAED M0098/26 EDF APRON GOLD RAMP CLSD DUE TO SNOW AND ICE ACCUMULATION 2601192212-2603250800
1/19/26
0611Z
4/18/26
1700Z
AerodromeAERODROME WINTER RSCS AND RCRS WILL BE PUBLISHED ON RT3GRIP.COM, USERNAME AND PASSWORD: JBER (ALL CAPS.)
1/14/26
1504Z
4/12/26
0800Z
RunwayRWY 16/34 APPROVED FOR USE OF TAXIWAY CROSSINGS AND RWY INTERSECTION AS DIRECTED BY ATC
1/14/26
0224Z
4/13/26
2359Z
Runway!PAED M0076/26 EDF RWY 06/24 SFC MARKINGS TWY MIKE OBSC INSTRUMENT RUNWAY MARKINGS MAY BE OBSCURED DUE TO PRESENCE OF SNOW AND ICE CONDITIONS ON THE RUNWAY. 2601140224-2604132359
1/12/26
0555Z
4/11/26
2359Z
AerodromeAERODROME REDUCED DE-ICING CAPABILITIES UFN. ACFT/CC SHOULD COORDINATE AS EARLY AS POSSIBLE TO LIMIT DELAYS
1/12/26
0550Z
4/11/26
2359Z
CHARLIE LOOP CHARLIE LOOP SPOTS 13-16 AND ADJACENT TAXILANES CLSD DUE TO CONSTRUCTION
1/10/26
0355Z
3/9/26
2359Z
Runway!PAED M0042/26 EDF RWY 06 RTZL NOT STD .FAR RIGHT LGT OF TOUCHDOWN BAR STUCK IN STEP 5 APPROXIMATELY 275' FROM RWY 06 THRESHOLD. 2601100355-2603092359
1/3/26
2347Z
3/31/26
2359Z
TaxiwayTWY J CLSD FROM RWY 34 TO TWY D
12/29/25
0803Z
3/28/26
0800Z
TaxiwayTWY M BETWEEN TWY D AND TWY E CLSD.
12/29/25
0802Z
3/28/26
0800Z
TaxiwayTWY E RESTRICTED TO ACFT WITH 44.5FT WINGSPAN OR LESS
12/25/25
0526Z
3/23/26
0900Z
TaxiwayTWY U RWY HOLDING POSTION SIGN LOCATED 77 FEET NORTH OF TWY U ON WEST SIDE OF RWY 34
12/25/25
0525Z
3/23/26
0900Z
TaxiwayTWY U EAST OF RWY 34 DECEPTIVE SURFACE MARKINGS MISSING SOUTH SHOULDER
12/25/25
0525Z
3/23/26
0900Z
TaxiwayTWY U EDGE LIGHT MISSING AT PSN 61.241886N/149.792393W 40FT WEST OF RWY HOLD POSITION
12/25/25
0524Z
3/23/26
0900Z
TaxiwayTWY U EAST OF RWY 34 GROUND RECIEVER CHECKPOINT TACAN CHECKPOINT SIGN MISSING
12/25/25
0524Z
3/23/26
0900Z
TaxiwayTWY U WEST OF RWY 34 DECEPTIVE SURFACE MARKINGS MISSING ON NORTH AND SOUTH SHOULDER
12/25/25
0523Z
3/23/26
0900Z
TaxiwayTWY U EDGE LIGHT BASE 100FT WEST OF RWY HOLD POSITION MARKING EAST OF RWY 34 NON-FRANGIBLE 1 INCH
12/25/25
0523Z
3/23/26
0900Z
TaxiwayTWY D/TWY U, 3 TWY EDGE LIGHTS PROTRUDE 1 INCH ABOVE GRADE
12/25/25
0522Z
3/23/26
0900Z
TaxiwayTWY U ALL FLUSH LIGHTS ELECTRIC ACCESS VAULTS UNSECURED
12/25/25
0522Z
3/23/26
0900Z
TaxiwayTWY U NORTH SIDE EDGE LIGHTS WEST OF RWY 34 LOCATED 12FT FROM TWY EDGE
12/25/25
0521Z
3/23/26
0900Z
LOW PROFILE BARRICADES LOCATED 100 FEET NORTH/SOUTH OF TWY UNIFORM EXTENDED CENTERLINE ACROSS RWY 34
12/25/25
0521Z
3/23/26
0900Z
TaxiwayTWY UNIFORM AND RWY 34 INTERSECTION RESTRICTED TO WINGSPAN LESS THAN 100 FEET
9/8/25
1926Z
10/31/26
0001Z
Aerodrome!PAED V0716/25 EDF AERODROME INSTRUMENT APPROACH PROCEDURE NOT AUTHORIZED PAR RWY 16 NOT AUTHORIZED DUE TO RWY 16 CONSTRUCTION. 2509081926-2610310001
9/8/25
1924Z
10/31/26
0001Z
Aerodrome!PAED V0714/25 EDF AERODROME INSTRUMENT APPROACH PROCEDURE AMENDMENT TACAN Y RWY 16 AND TACAN Z RWY 16: STRAIGHT-IN NOT AUTHORIZED DUE TO RWY 16 CLOSURE. CIRCLING TO LAND RWY 06 OR RWY 24 AUTHORIZED ONLY WITH ATC PIROR APPROVAL. REMAIN ON OR ABOVE PAPI GLIDEPATH UNTIL THLD. CIRCLING PROCEDURE N/A AT NIGHT WHEN PAPI TO CIRCLING RWY OTS. 2509081924-2610310001
Yes
ALL
U S GOVT USAF
30SS/DOFJ
ELMENDORF AFB, AK 99506
Phone: 907-552-2107
AIRFIELD MGR
300SS/DOFJ
ELMENDORF AFB, AK 99506
Phone: 907-552-2107
KENAI FSS (ENA)
Toll Free: 1-866-864-1737
PAED
--
--
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Cargo Handling

Runway 06/24

10000 ft. x 200 ft.

ASPH
GRVD
HIGH
71/F/A/W/T
--
--
--
--
  Runway 06 Runway 24
True Heading 80°260°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 61° 14' 55"N 61° 15' 12"N
Longitude 149° 50' 39"W 149° 47' 18"W
Elevation 174' 201'
Threshold Crossing Height 77 ft. AGL 63 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1
Centerline Lights Yes Yes
Runway End Identifier Lights No No

Runway 16/34

7493 ft. x 150 ft.

ASPH
NONE
HIGH
55/F/A/W/T
--
--
--
--
  Runway 16 Runway 34
True Heading 180°360°
Traffic Pattern Left Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 61° 15' 43"N 61° 14' 30"N
Longitude 149° 47' 37"W 149° 47' 37"W
Elevation 212' 185'
Threshold Crossing Height 47 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes No
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-10CTN: RIDGE EXTDG FM 260-020 DEG 1-2 MI FM TWR PREVENTS FOG OBS OVR KNIK ARM. VIS MAY DROP RAPIDLY AS FOG POURS OVR RIDGE.
A110-100UNA TO MEET R2203 DEP RSTRNS ADVISE ATC PRIOR; CSDR RWY 24 DEP. SEE ATC NOTES IN GIANT RPRT.
A110-13MNTN IDLE PWR ON OUTBOARD ENG DURG TAX.
A110-14HOLD SHORT LINE SIGNS NA ON INTERSECTING RWYS.
A110-2HGR SPACE & WARM STORAGE LMTD OCT-MAY.
A110-23FQT ACT IN R2203; WHEN UNA TO AVOID CTC ATCT.
A110-25SPEC ATC RULES FAR PART 93; SEE REG NOTICES IN SUPPL.
A110-27LMTD WKEND MAINT SVC.
A110-3PREVENTIVE MAINT: TACAN WED & FRI 1600-1700Z; ILS TUE & THU 1500-1700Z; PAR SAT-SUN 1800-2000Z; ASR SAT-SUN 2000-2200.
A110-30JOAP, JOINT OIL ANALYSIS PROGRAM AVBL. LHNIT, LOW & HIGH PRES NITROGEN SVCG AVBL. JOAP & LOW & HIGH PRES NITROGEN SVC DURG DUTY HOURS; AFT HR ON REQ. DE-ICE, TYPE 1 DE-ICE LIFTOFF P-88; TYPE 4 ANTI-ICE CLARIANT SAFEWING MP-LAUNCH.
A110-31CHANGE JET ACFT STARTING UNITS (JASU) TO, (A/M32A-86), MC-1A), (MC-2A), (AM32A-60A). (AM32-95)150 +/-5 LBS/MIN (2055 +/-68CFM) AT 51 +/-02 PSIA. LASS 150 +/-5 LBS/MIN @ 49 +/-2 PSIA.
A110-33OIL: O-123, O-128, O-133, O-148, O-156, JOAP.
A110-35FLUID: PRESAIR & NITROGEN-LHNIT.
A110-5QUIET HR 0630-1400Z WKDAY; 0630-1600Z WKEND & HOL; AMC ACFT EXEMPT.
A110-57IFF SVC AVBL.
A110-59NVD OPS RWY 06/24 MON-FRI 0400-1000Z++.
A110-66CTN: IFR OPS BTW 1500-2000 MSL FM BGQ 092/10 INTO R2203-EDF 320/07 INVOF BIG LAKE, PALMER, BIRCHWOOD, GOOSEBAY & WASILLA AK; MON-SAT 0300-0800Z++ & TUES & THU 1800-2200Z++.
A110-72DV SPOTS 1 & 3 LMTD TO WINGSPANS 136 FT OR LESS.
A110-73CTN: UNLGT TRRN 0 FT AGL/341 FT MSL 1909 FT PRIOR TO THR 1914 FT R OF COURSE.
A110-75TWY N2 & N5 CLSD.
A110-76AIRFIELD MGMT COMSEC STORAGE NA; COMSEC STORAGE - COMMAND POST D317-552-3000.
A110-79CUST & AG INSP RQR TO CTC BASE OPS AT LEAST 90 MIN PRIOR TO ARR.
A110-8DURG VMC DEP/MISSED APCHS/GO AROUNDS; ACFT SHALL MNTN AT OR BLW 1200 FT MLS UNTIL DEP END OF RWY 06.
A110-80ALL TSNT PPR - AMGR C907-552-2107/D552-2107.
A110-81SUBMIT PPR FORM IN THE PAED GIANT REPORT STIF TO BASEOPS3@US.AF.MIL NO EARLIER THAN 30 DAYS & NO LATER THAN 48 HR PRIOR TO ARR. PPR ISSUED NO EARLIER THAN 7 DAYS PRIOR TO ARR.
A110-83NORMAL BARRIER CONFIGURATION DURG FTR FLY WINDOW LEAVES 5675 FT BTW CABLES ON RWY 06/24, OUTSIDE OF FTR FLY WINDOWS THERE IS 7658 FT BTW CABLES.
A110-84ACFT REQ CABLES DE-RIGGED CTC BASE OPS 24 HR PRIOR TO ARR OR REQ PRIOR TO PPR ISSUED.
A110-85AMC ASGND MSN ACFT EXP MAINT SVC BY 732 AMS.
A110-86LCL SORTIES OR DEPLOYING TO OR OUT OF ELMENDORF AFB MUST HAVE MAINT PSNL REQ TO CMPLT OPS; INCLG DE-ICE PSNL DURG COLD WX. DEPLOYED ACFT TRANS ALERT SUPPORT NA BYD INITIAL BLOCK IN.
A110-88EXC ELMENDORF MAJCOM EXER, DEPLOYED OR STAGED UNITS CTC 3 WG SKED D317-552-2406 OR C907-552-2406 ASAP FOR LCL AREA BRIEFING, MAINT SPONSORSHIP & VISITING UNIT SMTN REQ FORM FOR 3 OG/CC APVL PRIOR TO LCL OPS.
A110-89TRAN ALERT SVC LMTD TO POL SVC, INTAKE, MAGNETIC CHIP DETECTOR & EOR INSP.
A110-9FTR ARR EXP RDCD SEPN; SAME TYPE ACFT & DALGT 3000 FT; DISSIMILAR ACFT &/OR NGT 6000 FT; AHD/BHND FRMN LDG 6000 FT.
A110-91NON-AMC RQRG 732 AMS MAINT SVC EXP PSBL DELAY.
A110-92RCR/RSC & FLD RCR - ATCT. RWY COND CODE & FICON NOT RPTD.
A110-94H24 WX - D317-552-4903/4397/C907-552-4903/4397.
A110-99ELBOW END OF RWY & TWY R RSTRD TO FIGHTERS ONLY WHEN FIGHTERS STAGED ON ELBOW END OF RWY.
A26ARFF FAA INDEX D/ CAT 8/10.
A30-06/24CTN: 3/4 IN CNTRLN SFC DEPRESSION 19 FT LONG 487 FT FM RWY 24 END. 180 DEG TURNS BTN TWY D & RWY INTXN NA.
A30-16/34CLSD INDEFLY.
A43-06PAPI UNUSBL BYD 8 DEGS EITHER SIDE OF CNTRLN.
A43-24PAPI UNUSBL BYD 7 DEG RIGHT OF CNTRLN.
E147TPA: OVHD 1700 FT MSL, CONVENTIONAL 1200 FT MSL, HEL/LGT 800 FT MSL.
E60-06_BAK-12BBAK-12B (1770 FT) (7366 FT) (9420 FT)
E60-16_BAK-12BBAK-12B (1498 FT) (6004 FT)
E60-24_BAK-12BBAK-12B (8218 FT) (2622 FT) (568 FT)
E60-34_BAK-12BBAK-12B (1488 FT) (5994 FT)
ELMENDORF AFB (ICAO: PAED, IATA: EDF) is a private airport located in ANCHORAGE, AK, US.
