LADD AAF - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAFB
LADD AAF
PrivatePVT

2 miles E of FAIRBANKS/FT WAINWRIGHT, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
64° 50' 15"N 147° 36' 52"W
449' MSL
1449' MSL
17E
JP-8
FAIRBANKS (FAI)
FAIRBANKS
ANCHORAGE (ZAN)
4/18/24-5/16/24
PAFB VFR
12:55 AM AKDT
Overcast 7,000'
10sm
45°F
26°F
29.99"Hg
Calm
AO2A SLP164 VIRGA T00721031 401100024 52011
PAFB 010855Z 00000KT 10SM OVC070 07/M03 A2999 RMK AO2A SLP164 VIRGA T00721031 401100024 52011
List Your Business

PAFB FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

PAFB Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

PAFB Hotels

No hotels are listed for this airport.

PAFB Restaurants

No restaurants are listed for this airport.

PAFB Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 125.0

ATIS

ATIS
907-353-5233
 134.25

Emergency

EMERG
 121.5

Ground

GND/P
 121.7

Tower

LCL/P
FM
 40.8
LCL/P
 125.0

Other

BASE OPS
 139.3
PAR
 121.3
PAR
 134.1
PMSV METRO
 142.1
RANGE CTL
FM
 38.3

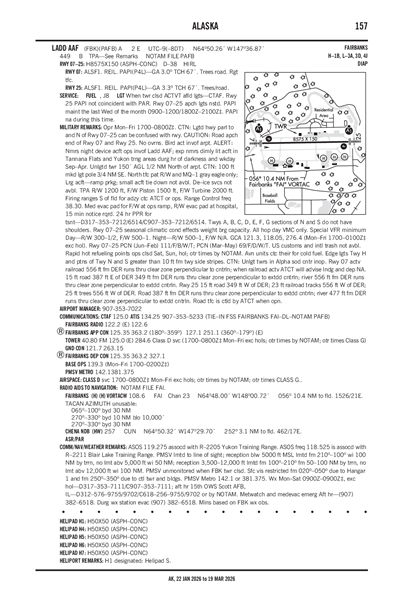

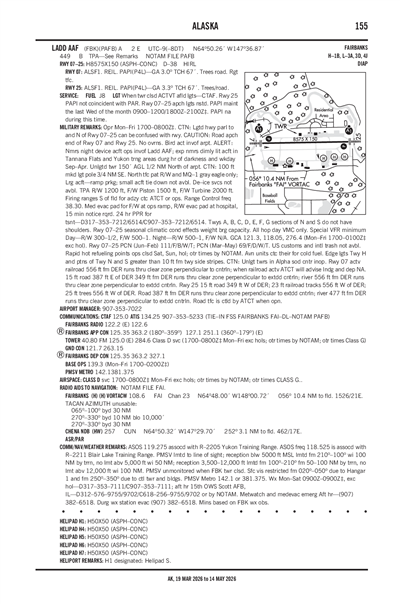

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

PAFB
Tue, 4/30 10:00 PM AKDT
Tue, 4/30 10:00 PM AKDT - Thu, 5/2 4:00 AM AKDT
VFR
10:00 PM AKDT - 2:00 AM AKDT
Showers in vicinity
Broken 6,000'
Scattered 4,000'
6sm
29.97"Hg
VRB° 6kts
Light, In Cloud (Rime): 6,000-10,000'
MVFR
Becoming 2:00 AM AKDT - 12:00 PM AKDT
Light Showers and Rain
Overcast 6,000'
Broken 3,500'
Scattered 2,000'
4.97sm
30.06"Hg
010° 6kts
Light, In Cloud (Rime): 3,500-9,500'
MVFR
Temporary 6:00 AM AKDT - 10:00 AM AKDT
Light Rain and Snow
Broken 2,000'
3.73sm
Calm
Light, In Cloud (Rime): 2,000-10,000'
VFR
Becoming 12:00 PM AKDT - 12:00 AM AKDT
Scattered 10,000'
Scattered 4,000'
6sm
30.15"Hg
040° 10kts
VFR
Becoming 12:00 AM AKDT - 4:00 AM AKDT
Broken 12,000'
Broken 5,000'
6sm
30.09"Hg
040° 9kts
Light, In Cloud (Rime): 5,000-10,000'
TAF PAFB 010600Z 0106/0212 VRB06KT 9999 VCSH SCT040 BKN060 620604 QNH2996INS
   BECMG 0110/0111 01006KT 8000 -SHRA SCT020 BKN035 OVC060 620356 QNH3006INS
   TEMPO 0114/0118 6000 -RASN BKN020 620208
   BECMG 0120/0121 04010KT 9999 NSW SCT040 SCT100 QNH3014INS
   BECMG 0208/0209 04009KT 9999 BKN050 BKN120 620505 QNH3010INS TX09/0106Z TN00/0114Z
PAFB
Domestic
3/29/240416Z !PAFB 03/001 FBK OBST TOWER LGT (ASR 1006187) 645246.00N1474038.00W (3.0NM NW FBK) 694.9FT (234.9FT AGL) U/S 2403290416-2405132359
Military
5/3/241400Z !PAFB M0370/24 FBK SVC JP8 FUEL NOT AVBL FROM AFLD POL COLD & RAPID (HOT) FUEL ISSUING POINTS ON 3 MAY 2024 BTWN 0600L - 0900L (1400Z - 1700Z). 2405031400-2405031700
5/1/241400Z !PAFB M0369/24 FBK SVC JP8 FUEL NOT AVBL FROM AFLD POL COLD & RAPID (HOT) FUEL ISSUING POINTS ON 1 MAY 2024 BTWN 0600L - 0900L (1400Z - 1700Z). 2405011400-2405011700
4/26/240051Z AERODROME 01 MAY - 03 MAY 2024: R-2205 A/F WILL BE ACTIVE WITH GROUND DEMOLITIONS ACTIVITIES VICINITY OF MANCHU RANGE, MOOSE CREEK RANGE COMPLEX FROM 0900 - 1800L (1700 - 0200Z). ALL NON-APPROVED AIRCRAFT WILL REMAIN CLEAR.
4/26/240050Z AERODROME 01 MAY - 03 MAY 2024: R-2205 B WILL BE ACTIVE WITH UAV/UAS ACTIVITIES VICINITY OF ISBC (ROZ:  4 CORNER BOX​ - UL: N 6441.27 W 14649.47​ (06W WS 08116 74040); ​LL: N 6440.59 W 14649.53​ (06W WS 08035 73173); ​LR: N 6440.58 W 14649.10​ (06W WS 08607 73123); ​UR: N 6441.27 W 14649.06​ (06W WS 08655 74017)), MAXIMUM ALTITUDE 1000FT AGL, FROM 0800 - 1600L (1600 - 0000Z). ALL NON-APPROVED AIRCRAFT WILL REMAIN CLEAR.
4/26/240049Z AERODROME 29 APR - 02 MAY 2024: R-2205 B/G WILL BE ACTIVE WITH UAV/UAS ACTIVITIES 29 APR 2024 FROM 1500 - 2300L (2300 - 0700Z); 30 APR - 02 MAY 2024 FROM 0800 - 2300L (1600 - 0700Z). ALL NON-APPROVED AIRCRAFT WILL REMAIN CLEAR.
4/26/240048Z AERODROME 29 APR - 03 MAY 2024: R-2205 C/H WILL BE ACTIVE WITH AERIAL BOMBING/STRAFING ACTIVITIES ASSOCIATED WITH RED FLAG VICINITY OF STUART CREEK IMPACT AREA FROM VUL 1: 0800 - 0930L (1600 - 1730Z); VUL 2: 1000 - 1400L (1800 - 2200Z); VUL 3: 1400 - 1600L (2200 - 0000Z); VUL 4: 1600 - 2000L (0000 - 0400Z). ALL NON-APPROVED AIRCRAFT WILL REMAIN CLEAR.
4/22/242111Z AERODROME QUIET HOURS IN EFFECT THURSDAY, 2 MAY 2024, 1300L - 1530L (2100Z - 2330Z) FOR CEREMONY ON THE FORT WAINWRIGHT PARADE FIELD. NO AIRCRAFT OPERATIONS, NO ENGINE RUNS, NO APU/GPU, WITH THE EXCEPTION OF BLM FIGHTING AN ACTUAL FIRE AND AN ACTUAL MEDEVAC MISSION.
4/18/240001Z !PAFB V0162/24 FBK AERODROME IFR TAKE-OFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES CHANGED AMDT 1C RWY 25: STANDARD WITH MINIMUM CLIMB OF 240 FT/NM TO 2600 FT. 2404180001-2409050001
4/16/240021Z AERODROME GRAY EAGLE UNMANNED AIRCRAFT OPERATIONS VIA GREEN ROUTE FAI AIRSPACE UAS WI AN AREA DEFINED AS 2NM EITHER SIDE OF LINE FM FBK TO 645016N 1473531W (FAI057011) TO 645046N 1473200W (FAI056013) TO 645139N 1472953W (FAI054014) TO 645217N 1472434W (FAI054016) TO 645229N 1471716W (FAI055019) TO 645130N 1471248W (FAI060021) TO 644343N 1463919W (FAI077035) TO 1000 FT AGL, 3500 FT MSL TO R-2205 AND AT OR BELOW 3500' MSL WITHIN LADD CLASS D AIRSPACE UFN. CONTACT LADD TOWER FOR CURRENT GRAY EAGLE UNMANNED AIRCRAFT STATUS.
4/11/241846Z AERODROME PAXON LOW AND DELTA MOA COMPLEX ACTIVATION. PAXON LOW MOA AND DELTA MOA COMPLEX INCLUDES DELTA 1, 2, 3, 4, & 5 AS CHARTED. TIMES OF USE: 22 - 26 APR AND 29 APR - 3 MAY, 1030 - 1300 LOCAL (UTC-8DT): 22 - 26 APR AND 29 APR - 2 MAY, 1630 - 1900 LOCAL (UTC-8DT). CONTROLLING AGENCY: FAA, ANCHORAGE ARTCC. USING AGENCY: USAF, 354 FIGHTER WING, EIELSON AFB, AK. NOTICE: IFR TRAFFIC MAY BE RE-ROUTED SOUTH OF THE FOX 3, PAXON AND TOK ATCAA AIRSPACE BORDERS. ACTUAL TIMES OF USE WITHIN THIS WINDOW MAY VARY. CONTACT EIELSON RANGE CONTROL AT 800-758-8723 OR VHF 125.3 OR 126.3, A FLIGHT SERVICE STATION OR ANCHORAGE ARTCC FOR ACTUAL ACTIVATION TIMES.
3/27/242012Z AERODROME LADD AAF AIRSPACE IMAGINARY TRANSITIONAL SURFACE VIOLATION. HANGAR 1 IS 692 FEET FROM THE CENTERLINE OF RWY 7/25 AND VIOLATES THE TRANSITIONAL SURFACE OF RUNWAY 7/25 BY 48 FEET.
3/27/241635Z AERODROME NO FIXED WING AIRCRAFT TOUCH AND GO'S AUTHORIZED. LOW APPROACHES ONLY. BLM AIRCRAFT ARE EXEMPT.
3/21/241711Z AERODROME CHART SUPPLEMENT ALASKA COMM/NAV/WEATHER REMARKS INCORRECT. WX BRIEF AVAILABLE DURING METRO OPERATIONAL HOURS. OUTSIDE OF OPERATIONAL HOURS POC FOR AIRCREW WX BRIEFINGS IS 15TH OWS SCOTT AFB, IL DSN (312) 576-9755/9702 COMMERCIAL (618) 256-9755/9702.
3/8/242046Z AERODROME EXERCISE CAUTION WHEN FLYING IN THE VICINITY OF BIRCH HILL. BLM SMOKEJUMPERS MAY BE CONDUCTING PRACTICE JUMP OPERATION AT 5000' AGL AND BELOW. CONTACT TOWER TO SEE IF OPERATIONS ARE ACTUALLY TAKING PLACE, OR MONITOR THE CTAF FREQ 125.0 MHZ WHEN TOWER IS CLOSED.
3/8/242044Z AERODROME CIVILIAN PILOTS ARE ADVISED, IAW ARMY REGULATIONS, CIVILIAN AIRCRAFT ARE NOT PERMITTED TO LAND AT LADD ARMY AIRFIELD WITHOUT A COPY OF THE APPROVED CIVIL AIRCRAFT LANDING PERMIT (CALP) ON FILE IN BASE OPERATIONS. CIVILIAN PILOTS (EXCEPT BLM), ARE ALSO PROHIBITED FROM CONDUCTING PRACTICE TAKE-OFF AND LANDINGS WHEN THE AIRFIELD IS CLOSED. AIRCRAFT LANDING WITHOUT AUTHORIZATION ARE SUBJECT TO BEING REPORTED TO THE REGIONAL FAA OFFICE.
2/28/241837Z AERODROME WINDCONE BRAVO SOD SOUTH LGT UNSERVICEABLE FLOODLIGHTS ARE OTS.
2/28/241833Z OBST OBST LIGHT OTS ON THE WIND DIRECTION INDICATOR (WINDSOCK) EAST OF BASSETT HOSPITAL HELIPAD.
2/22/240036Z OBST OBST LIGHTS OTS ON RVR TOWERS LOCATED IN ALPHA SOD CENTER DO NOT WORK. TEMPORARY BLINKING RED LIGHTS ARE INSTALLED ON TOP.
2/21/241838Z !PAFB M0182/24 FBK OBST TOWER 645039N1473914W (1.16NM NW FBK) 557FT MSL
(105FT AGL) LGTD CELL TOWER ON FT WAINWRIGHT NEAR INTERSECTION OF TRAINOR GATE ROAD AND RIVER ROAD 2402211838-2405152359
2/21/241803Z !PAFB M0180/24 FBK OBST TOWER 644920N1473648W (0.92NM S FBK) 584FT MSL
(125FT AGL) NOT LGTD FORT WAINWRIGHT SOUTH, RHINELAND AVE, ALERT AND AVOID. 2402211803-2405152359
2/21/241750Z !PAFB M0178/24 FBK OBST TOWER 644942N1474210W (2.41NM WSW FBK) 549FT MSL
(100FT AGL) LGTD CELL TOWER (WEST POST, SW GAFFNEY GATE). HAS A RED OBSTRUCTION LIGHT. 2402211750-2405152359
2/21/240209Z !PAFB M0174/24 FBK OBST TOWER 644938N1473924W (1.32NM SW FBK) 559FT MSL
(110FT AGL) LGTD (NEXT TO QUICK LANE ON FT WAINWRIGHT). HAS A RED OBSTRUCTION LIGHT. 2402210209-2405152359
2/21/240151Z !PAFB M0172/24 FBK TWY S BTN TWY D AND TWY E CLSD TEMPORARILY DUE TO PARKED ACFT. 2402210151-2405162359
Yes
MON-FRI 1700-0800++
U.S. ARMY
U.S. ARMY FORCES COMMAND
ATLANTA, GA
HQ 172 INFANTRY BRIGADE
FT RICHARDSON
ALASKA 99505
Phone: 907-353-7022
FAIRBANKS FSS (FAI)
Toll Free: 1-866-248-6516
PAFB
--
WHEN TWR CLSD ACTVT AFLD LGTS - CTAF
N/A
Yes
Yes
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
13
0
0
0
90
0
None
None
None
None
Cargo Handling

Runway 07/25

8575 ft. x 150 ft.
ASPH
CONC
NONE
HIGH

--
38,000lbs
--
--
  Runway 07 Runway 25
True Heading 89°269°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 64° 50' 15"N 64° 50' 16"N
Longitude 147° 38' 31"W 147° 35' 13"W
Elevation 443' 448'
Threshold Crossing Height 67 ft. AGL 67 ft. AGL
Visual Glide Path Angle 3° 3.3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 ALSF1
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway H1

50 ft. x 50 ft.
ASPH CONC
Good
NONE


--
--
--
--
  Runway H1 Runway
True Heading 35°215°
Traffic Pattern
Markings NONE
Markings Condition
Latitude 64° 50' 01"N N/A
Longitude 147° 35' 22"W N/A
Elevation 449' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H4

50 ft. x 50 ft.
ASPH CONC
Good
NONE


--
--
--
--
  Runway H4 Runway
True Heading 35°215°
Traffic Pattern
Markings NONE
Markings Condition
Latitude 64° 49' 58"N N/A
Longitude 147° 38' 10"W N/A
Elevation 449' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H5

50 ft. x 50 ft.
ASPH CONC
Good
NONE


--
--
--
--
  Runway H5 Runway
True Heading 35°215°
Traffic Pattern
Markings NONE
Markings Condition
Latitude 64° 49' 57"N N/A
Longitude 147° 37' 28"W N/A
Elevation 449' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H6

50 ft. x 50 ft.
ASPH CONC
Good
NONE


--
--
--
--
  Runway H6 Runway
True Heading 35°215°
Traffic Pattern
Markings NONE
Markings Condition
Latitude 64° 49' 60"N N/A
Longitude 147° 36' 10"W N/A
Elevation 449' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H7

50 ft. x 50 ft.
ASPH CONC
Good
NONE


--
--
--
--
  Runway H7 Runway
True Heading 35°215°
Traffic Pattern
Markings NONE
Markings Condition
Latitude 64° 50' 01"N N/A
Longitude 147° 35' 45"W N/A
Elevation 449' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1NORTH TFC PAT R/W & MQ-1 GRAY EAGLE ONLY; LRG ACFT - RAMP PRKG; SMALL ACFT TIE DOWN NOT AVBL.
A110-10BIRD ACT INVOF ARPT.
A110-11ALERT: NMRS NIGHT DEVICE ACFT OPS INVOF LADD AAF; EXP NMRS DIMLY LIT ACFT IN TANNANA FLATS & YUKON TRNG AREA DURG HR OF DARKNESS & WKDAY SEP-APR.
A110-12(A35) T200; ST175; TT340; TDT714.
A110-18CTN: 100 FT MKD LGT POLE 3/4 NM SE.
A110-2MINS BASED ON FBK WX OBS.
A110-21ASOS 119.275 ASSOCD WITH R-2205 YUKON TRNG RANGE; ASOS 18.525 ASSOCD WITH R-2211 BLAIR LAKE TRNG RANGE. PMSV LMTD TO LINE OF SIGHT; RECEPTION BLW 5000 FT MSL LMTD FM 210-100 WI 100 NM BY TRRN, NO LMT ABV 5000 FT WI 50 NM; RECEPTION 3500-12000 FT LMTD FM 100-210 FM 50-100 NM BY TRRN, NO LMT ABV 12000 FT WI 100 NM. PMSV UNMON WHEN FBK TWR CLSD. SFC VIS RSTRD FM 020-050 DUE TO HNGR 1 & FM 250-350 DUE TO ATCT & BLDGS.
A110-23ALL HOP DAY VMC ONLY.
A110-24TWY A, B, C, D, E, F, G, SECTIONS OF N & S DO NOT HAVE SHOULDERS.
A110-25DE-ICE SVCS NOT AVBL.
A110-3FIRING RANGE S OF FLD FOR ADZY CTC ATCT OR OPS.
A110-31COM: PMSV METRO 142.1/381.375. WX HRS MON - SAT 0900Z - 0900Z++ EXC HOL - D317-353-7111/C907-353-7111S; OTR TIMES BY NOTAM. METWATCH & MEDEVAC EMERG AFT HR - C907-382-6518.
A110-32SVC: PAPI MAINT LAST WED OF MONTH 0900-1200/1800Z-2100Z++; PAPI NA DURG THIS TIME.
A110-34SVC: US CUSTOMS & INTL TRASH NOT AVBL.
A110-35EDGE LGTS TWY H & PTNS OF TWY N & S GTR THAN 10 FT FM TWY SIDE STRIPES.
A110-36GCA 121.3 118.05 276.4; MON-FRI 1700-0100++ EXC HOL.
A110-37RAPID HOT REFUELING POINTS OPS CLSD SAT, SUN, HOL; OTR TIMES BY NOTAM. AVN UNITS CTC THEIR OPS FOR COLD FUEL.
A110-39CTN: UNLGT TWRS IN ALPHA SOD CNTR INOP.
A110-4MED EVAC PAD FOR F/W AT OPS RAMP; R/W EVAC PAD AT HOSPITAL; 15 MIN NOTICE RQRD.
A110-41DURG WX STATION EVAC - 907-382-6518.
A110-5WX BRIEF AVBL 1600-0700Z++ WKDAYS EXC HOLS - D317-353-7111/9999. OTR TIMES 17TH OWS JOINT BASE PEARL HARBOR-HICKAM D315-449-8333/7950/ C808-449-8333/7950.
A110-6CTN: LGTD HWY PARL TO & N OF RWY 07/25 CAN BE CONFUSED WITH RWY.
A110-8INSPN BY DEPT OF ARMY.
LADD AAF (ICAO: PAFB, IATA: FBK) is a private airport located in FAIRBANKS/FT WAINWRIGHT, AK.
