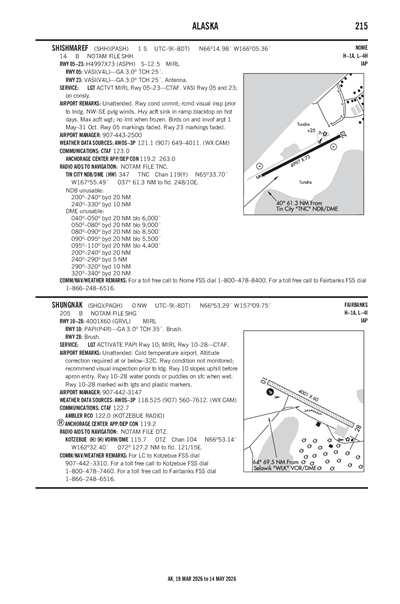

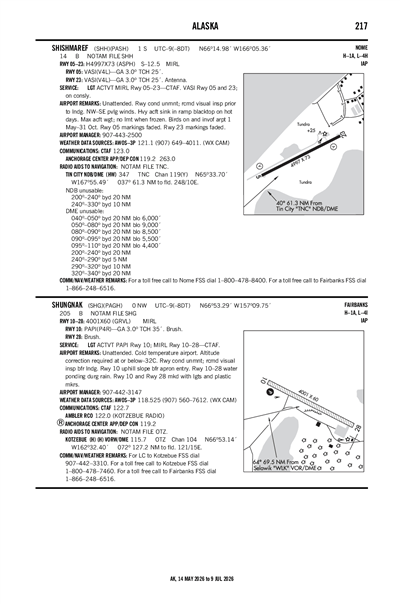

SHUNGNAK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAGH
ICAO PAGHIATA SHGLocal SHG
SHUNGNAK
PublicPUB

0 miles NW of SHUNGNAK, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
66° 53' 17"N 157° 09' 45"W
Elevation
205' MSL
Pattern Alt
1205' MSL
Mag Variation
12°E
Declination
13°E
Fuel
None Listed
FSS
KOTZEBUE (OTZ)
Sectional
FAIRBANKS
ARTCC
ANCHORAGE (ZAN)
Data Effective
2/19/26-3/19/26
PAGH MVFR
1:10 PM AKST
Light Snow and Mist
Overcast 3,000'
Few 2,300'
3sm
3°F
0°F
30.31"Hg
110° 19kts
Gusts 23kts
AO2 P0000 FZRANO $
SPECI PAGH 222210Z AUTO 11019G23KT 3SM -SN BR FEW023 OVC030 M16/M18 A3031 RMK AO2 P0000 FZRANO $
+ Add Your Business

PAGH FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3P 118.525
(907) 560-7612

Common

CTAF 122.7
ACTVT PAPI RWY 10; MIRL RWY 10/28 - CTAF.

Center

ANCHORAGE CENTER 119.2
LOW, APCH/DEP SVC PRVDD BY ANCHORAGE ARTCC (ZAN) ON FREQ 119.2 (KOTZEBUE RCAG).

Flight Service

Flight Service 122.0
(OTZ), COMMUNICATIONS PRVDD BY KOTZEBUE FSS ON FREQ 122.0 (AMBLER RCO).

FAA A/FD Pages

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
PAGH
EffectiveExpiresCategoryNOTAM
Domestic
2/22/26
1750Z
2/23/26
1750Z
!SHG 02/110 SHG APRON ALL FICON COMPACTED SN OBS AT 2602221750. 2602221750-2602231750
2/22/26
1750Z
2/23/26
1750Z
!SHG 02/109 SHG TWY ALL FICON COMPACTED SN OBS AT 2602221750. 2602221750-2602231750
2/22/26
1749Z
2/23/26
1749Z
Runway!SHG 02/108 SHG RWY 28 FICON 40 PCT COMPACTED SN OBS AT 2602221749. 2602221749-2602231749
2/22/26
1749Z
2/23/26
1749Z
Runway!SHG 02/107 SHG RWY 10 FICON 40 PCT COMPACTED SN OBS AT 2602221749. 2602221749-2602231749
2/21/26
1744Z
2/22/26
1744Z
!SHG 02/106 SHG APRON ALL FICON COMPACTED SN OBS AT 2602211744. 2602211744-2602221744
2/21/26
1744Z
2/22/26
1744Z
!SHG 02/105 SHG TWY ALL FICON COMPACTED SN OBS AT 2602211744. 2602211744-2602221744
2/21/26
1744Z
2/22/26
1744Z
Runway!SHG 02/104 SHG RWY 28 FICON 40 PCT COMPACTED SN OBS AT 2602211744. 2602211744-2602221744
2/21/26
1744Z
2/22/26
1744Z
Runway!SHG 02/103 SHG RWY 10 FICON 40 PCT COMPACTED SN OBS AT 2602211744. 2602211744-2602221744
No
UNATNDD
ALASKA DOT&PF NORTHERN REGION
2301 PEGER ROAD
FAIRBANKS, AK 99709
Phone: (907) 451-2200
ALVIN WERNEKE
PO BOX 55
KOTZEBUE, AK 99752
Phone: 907-442-3147
KOTZEBUE FSS (OTZ)
Toll Free: 1-800-478-7460
SHG
--
ACTVT PAPI RWY 10; MIRL RWY 10/28 - CTAF.
N/A
Yes - Lighted
Yes
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 10/28

4001 ft. x 60 ft.
GRAVEL
Fair
NONE
MED

--
--
--
--
  Runway 10 Runway 28
True Heading 117°297°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 66° 53' 26"N 66° 53' 08"N
Longitude 157° 10' 29"W 157° 08' 60"W
Elevation 174' 205'
Threshold Crossing Height 35 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4R --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-2RWY CONDITION NOT MONITORED; RECOMMEND VISUAL INSPECTION PRIOR TO LANDING.
A110-3WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-4COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -32C.
A30-10/28RWY 10 SLOPES UPHILL BEFORE APRON ENTRY
A33-10/28_SURFRWY 10/28 WATER PONDS OR PUDDLES ON SURFACE WHEN WET.
A42-10_MARKRWY 10/28 MARKED WITH LIGHTS AND PLASTIC MARKERS.
A5NORTHWEST ARCTIC BOROUGH
A81-APTACTVT PAPI RWY 10; MIRL RWY 10/28 - CTAF.
SHUNGNAK (ICAO: PAGH, IATA: SHG) is a public airport located in SHUNGNAK, AK, US.
