PAGS
GUSTAVUS
PublicPUB

0 miles NE of GUSTAVUS, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
58° 25' 31"N 135° 42' 27"W
36' MSL
1036' MSL
20E
Jet A
JUNEAU (JNU)
JUNEAU
ANCHORAGE (ZAN)
4/18/24-5/16/24
PAGS VFR
3:56 PM AKDT
Overcast 4,000'
10sm
49°F
36°F
30.15"Hg
190° 8kts
AO2 SLP208 60000 T00940022 10106 20078 58003
PAGS 302356Z AUTO 19008KT 10SM OVC040 09/02 A3015 RMK AO2 SLP208 60000 T00940022 10106 20078 58003
List Your Business

PAGS FBOs, Flight Schools and Ground Support

Promote Listing
Gustavus Dray
Freq: 122.5
Phone: (907) 697-2481
Other: (907) 209-0305
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 4/18
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 9.99 9.99

PAGS Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

PAGS Hotels

No hotels are listed for this airport.

PAGS Restaurants

No restaurants are listed for this airport.

PAGS Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.5

AWOS-3P

AWOS-3P
907-697-2447
 125.9

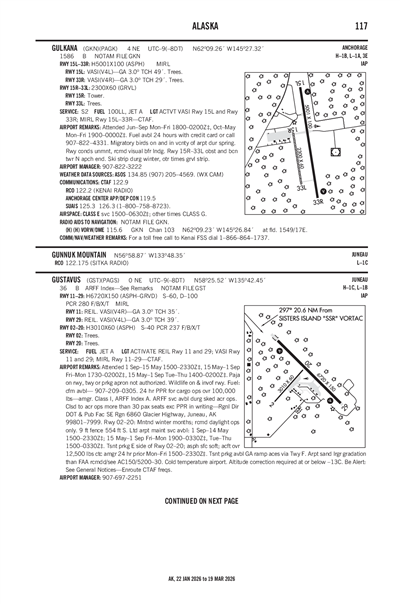

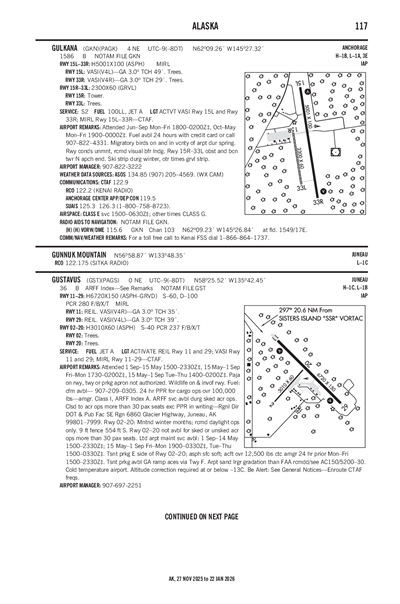

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

PAGS
Tue, 4/30 3:31 PM AKDT
Tue, 4/30 4:00 PM AKDT - Wed, 5/1 4:00 PM AKDT
MVFR
4:00 PM AKDT - 2:00 AM AKDT
Broken 2,500'
6sm
VRB° 2kts
MVFR
2:00 AM AKDT - 9:00 AM AKDT
Overcast 1,500'
6sm
Calm
VFR
9:00 AM AKDT - 4:00 PM AKDT
Broken 10,000'
Scattered 2,000'
6sm
VRB° 2kts
PAGS 302331Z 0100/0124 VRB02KT P6SM BKN025
   FM011000 00000KT P6SM OVC015
   FM011700 VRB02KT P6SM SCT020 BKN100 AMD LTD TO CLD VIS AND WIND
PAGS
Domestic
4/25/240759Z !GST 04/095 GST SVC PCL RWY 11 RWY END ID LGT LOW INTST U/S 2404250759-2406161500EST
FDC
4/28/241027Z !FDC 4/5947 GST IAP GUSTAVUS, GUSTAVUS, AK.
VOR/DME RWY 29, AMDT 2B...
PROCEDURE NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SSR TACAN OUT OF SERVICE. 2404281027-2405281027EST
9/14/231615Z !FDC 3/0197 GST IAP GUSTAVUS, GUSTAVUS, AK.
VOR/DME RWY 29, AMDT 2B...
S-29 MDA/HAT 1280/1249. CIRCLING MDA/HAA 1280/1245.
2309141615-2509141615EST
No
15 MAY-1SEP FRI-MON 0930-1800
15 MAY-1 SEP TUE-THU 0600-1800
1 SEP-15 MAY 0600-1430
ALASKA DOT&PF SOUTHCOAST REGION
6860 GLACIER HWY
JUNEAU, AK 99801-7999
Phone: 907-465-1786
JEFF JARVIS
PO BOX 239
GUSTAVUS, AK 99826
Phone: 907-697-2251
JUNEAU FSS (JNU)
Toll Free: 1-866-297-2236
GST
--
ACTVT REIL RWY 11 & 29; VASI RWY 11 & 29; MIRL RWY 11/29 - CTAF
N/A
Yes
Yes
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
11
1
0
1
0
0
None
None
None
None
None

Runway 02/20

3010 ft. x 60 ft.
ASPH
Good
NONE

18 /F/B/X/T
40,000lbs
--
--
--
  Runway 02 Runway 20
True Heading 41°221°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 58° 25' 12"N 58° 25' 35"N
Longitude 135° 43' 05"W 135° 42' 28"W
Elevation 30' 32'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 11/29

6720 ft. x 150 ft.
ASPH
Good
GRVD
MED
28 /F/B/X/T
60,000lbs
100,000lbs
--
--
  Runway 11 Runway 29
True Heading 135°315°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 58° 25' 58"N 58° 25' 11"N
Longitude 135° 43' 02"W 135° 41' 33"W
Elevation 36' 29'
Threshold Crossing Height 35 ft. AGL 39 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4R V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-11TSNT PRKG E SIDE OF RWY 02/20; ASPH SFC SOFT; ACFT OVR 12500 LBS CTC AMGR 24 HR PRIOR MON-FRI 0600-1430.
A110-15GUSTAVUS & SISTERS ISLAND WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-1624 HR PPR FOR CARGO OPS OVR 100000 LB - AMGR.
A110-17BE ALERT: SEE GENNOT - ENROUTE CTAF FREQS.
A110-19LTD ARPT MAINT SVC AVBL: 1 SEP-14 MAY 0600-1430; 15 MAY-1 SEP FRI-MON 1000-1830, TUE-THU 0600-1830. AFT HR - AMGR.
A110-20ARPT SAND LRGR GRADATION THAN FAA RCMDD/SEE AC150/5200-30.
A110-21COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -18C.
A110-22TSNT PRKG AVBL GA RAMP ACES VIA TWY F.
A110-3PAJA ON RWY, TWY OR PRKG APRON NA.
A110-9WILDLIFE ON & INVOF RWY.
GUSTAVUS (ICAO: PAGS, IATA: GST) is a public airport located in GUSTAVUS, AK.
