iFlightPlanner



...

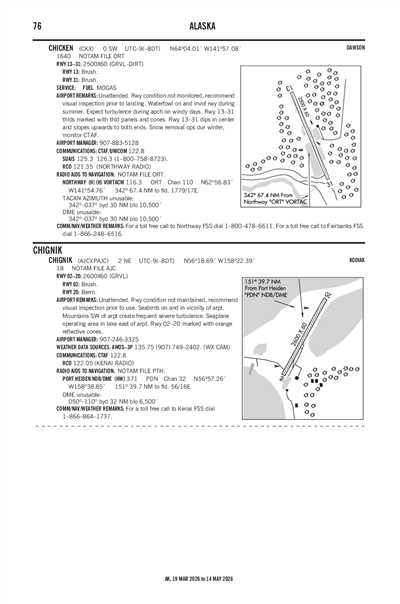

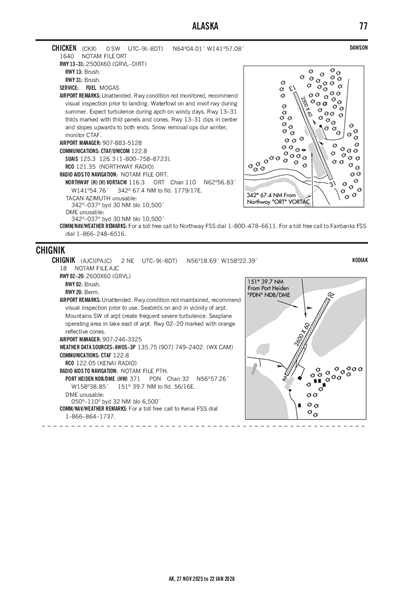

CHIGNIK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAJC
CHIGNIK
PublicPUB

2 miles NE of CHIGNIK, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
56° 18' 41"N 158° 22' 24"W
18' MSL
1018' MSL
16E
None Listed
KENAI (ENA)
KODIAK
ANCHORAGE (ZAN)
4/18/24-5/16/24
PAJC MVFR
12:57 AM AKDT
Light Rain
Overcast 1,700'
Broken 1,200'
10sm
39°F
35°F
29.90"Hg
090° 8kts
Gusts 16kts
AO2 RAB05 SLP125 P0000 60003 T00390017 400560033 58011 $
PAJC 010857Z AUTO 09008G16KT 10SM -RA BKN012 OVC017 04/02 A2990 RMK AO2 RAB05 SLP125 P0000 60003 T00390017 400560033 58011 $
List Your Business

PAJC FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

PAJC Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

PAJC Hotels

No hotels are listed for this airport.

PAJC Restaurants

No restaurants are listed for this airport.

PAJC Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.8

AWOS-3P

AWOS-3P
907-749-2402
 135.75

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

No TAF is available for this location.
PAJC
Domestic
3/28/241143Z !AJC 03/008 AJC SVC AUTOMATED WX BCST SYSTEM ALTIMETER SETTING UNREL 2403281143-2406301500EST
No
UNATNDD
ALASKA DOT&PF SOUTHCOAST REGION
P.O. BOX 196900
ANCHORAGE, AK 99519-6900
Phone: 907-269-0760
PAUL HANSEN
BOX 65
KING SALMON, AK 99613
Phone: 907-246-3325
KENAI FSS (ENA)
Toll Free: 1-866-864-1737
AJC
--
--
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 02/20

2600 ft. x 60 ft.
GRAVEL
Good
NONE


--
--
--
--
  Runway 02 Runway 20
True Heading 34°214°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 56° 18' 31"N 56° 18' 52"N
Longitude 158° 22' 37"W 158° 22' 11"W
Elevation 17' 12'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2SEABIRDS ON AND INVOF ARPT.
A110-3RY CONDITON NOT MAINTAINED; RECOMMEND VISUAL INSPECTION PRIOR TO USE.
A110-4MOUNTAINS SW OF ARPT CREATE FREQUENT SEVERE TURBULENCE.
A110-6SEAPLANE OPERG AREA IN LAKE EAST OF ARPT.
A110-7WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
CHIGNIK (ICAO: PAJC, IATA: AJC) is a public airport located in CHIGNIK, AK.
