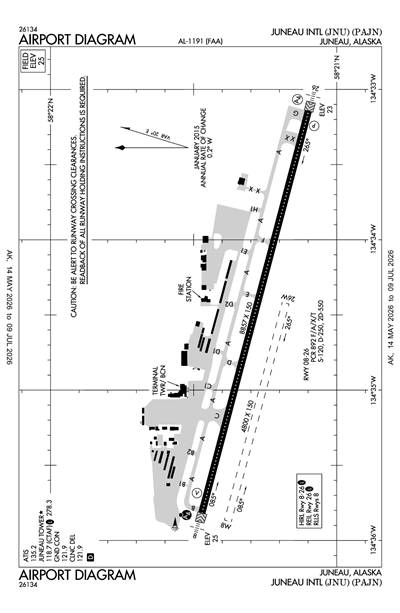

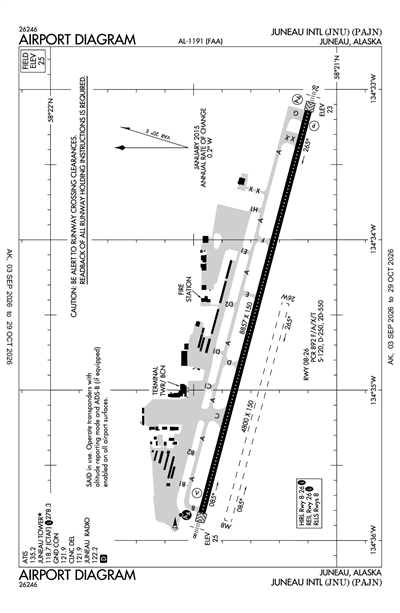

JUNEAU INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAJN
ICAO PAJNIATA JNULocal JNU
JUNEAU INTL
PublicPUB

7 miles NW of JUNEAU, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
58° 21' 17"N 134° 34' 42"W
Elevation
25' MSL
Pattern Alt
1025' MSL
Mag Variation
18°E
Declination
20°E
Fuel
JET A-1+, 100LL
FSS
JUNEAU (JNU)
Sectional
JUNEAU
ARTCC
ANCHORAGE (ZAN)
Data Effective
10/1/26-10/29/26
PAJN VFR
3:53 PM AKDT
Broken 6,000'
Broken 5,000'
10sm
44°F
41°F
30.12"Hg
120° 13kts
AO2 RAB11E46 SLP202 P0000 60000 T00670050 10072 20061 54000 $
METAR PAJN 192353Z 12013KT 10SM BKN050 BKN060 07/05 A3012 RMK AO2 RAB11E46 SLP202 P0000 60000 T00670050 10072 20061 54000 $
+ Add Your Business

PAJN FBOs

Promote Listing
Aero Services
UNICOM: 122.95
Phone: (907) 789-0055
Fax: (907) 789-5103
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 10/13
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 12.26 11.46 11.56
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 135.2
ASOS (907) 789-1243

Common

CTAF 118.7
WHEN ATCT CLSD ACTVT MALSF RWY 08; REIL RWY 26; HIRL RWY 08/26 - CTAF. VASI RWY 08; PAPI RWY 26 OPR CONSLY.; WHEN ATCT CLSD ARPT ADZY SVC - CTAF.
UNICOM 122.95
FUEL SVC - UNICOM OR 907-789-0055/5622.

Clearance

Clearance Delivery 121.9

Ground

JUNEAU GROUND 121.9
1 APR - SEP 30 0600 - 2300, 1 OCT - MAR 31, 0700 - 2000.

Tower

JUNEAU TOWER 118.7
1 APR - SEP 30 0600 - 2300, 1 OCT - MAR 31, 0700 - 2000.
JUNEAU TOWER 120.7
1 APR - SEP 30 0600 - 2300, 1 OCT - MAR 31, 0700 - 2000., Secondary - SEASONAL USE ONLY

Center

ANCHORAGE CENTER 133.9
LOW/HIGH, APCH/DEP SVC PRVDD BY ANCHORAGE ARTCC ON FREQ 133.9 (MOUNT ROBERT BARRON RCAG).

Flight Service

Flight Service 122.15

Military

NG OPS 64.7
NG OPS 124.65

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

PAJN
Mon, 10/19 3:32 PM AKDT
Mon, 10/19 4:00 PM AKDT - Tue, 10/20 4:00 PM AKDT
VFR
4:00 PM AKDT - 10:00 PM AKDT
Light Showers and Rain
Overcast 5,000'
Broken 3,500'
Few 1,500'
6sm
090° 9kts
MVFR
10:00 PM AKDT - 4:00 AM AKDT
Light Rain
Overcast 3,500'
Broken 2,500'
Few 500'
6sm
110° 20kts
Gusts 30kts
MVFR
4:00 AM AKDT - 1:00 PM AKDT
Light Rain
Overcast 3,500'
Broken 2,500'
Few 500'
6sm
130° 17kts
Gusts 28kts
MVFR
1:00 PM AKDT - 4:00 PM AKDT
Light Rain and Mist
Overcast 2,500'
Scattered 1,500'
4sm
110° 25kts
Gusts 35kts
TAF PAJN 192332Z 2000/2024 09009KT P6SM -SHRA FEW015 BKN035 OVC050
   FM200600 11020G30KT 6SM -RA FEW005 BKN025 OVC035
   FM201200 13017G28KT 6SM -RA FEW005 BKN025 OVC035
   FM202100 11025G35KT 4SM -RA BR SCT015 OVC025 WS020/16035KT
PAJN
EffectiveExpiresCategoryNOTAM
Domestic
10/18/26
2039Z
1/16/27
2359Z
!JNU 10/024 JNU OBST TOWER LGT (ASR 1283764) 581940.70N1342816.00W (3.7NM E JNU) 119.1FT (98.1FT AGL) U/S 2610182039-2701162359
10/18/26
2035Z
11/1/26
2359Z
!JNU 10/023 JNU OBST TOWER LGT (ASR 1287767) 582006.10N1343933.10W (2.8NM WSW JNU) 321.9FT (154.9FT AGL) U/S 2610182035-2611012359
10/16/26
0400Z
!JNU 10/020 JNU COM REMOTE COM OUTLET 121.9 U/S DLY 0400-1500 2610160400-2612261500EST
10/14/26
2353Z
10/21/26
1600Z
!JNU 10/025 JNU AD AP BIRD ACT INCREASED MIGRATORY 2610142353-2610211600
9/29/26
1900Z
1/1/27
0859Z
!JNU 09/096 JNU AIRSPACE UAS AVALANCHE CONTROL WI AN AREA DEFINED AS .5NM RADIUS OF 581712N1342157W (JNU103008) SFC-400FT AGL TEL 907-217-6707 2609291900-2701010859
9/23/26
1232Z
!JNU 09/082 JNU NAV LOC TYPE DIRECTIONAL AID RWY 08 U/S 2609231232-2612271500EST
FDC
10/19/26
1318Z
!FDC 6/0260 JNU IAP JUNEAU INTL, JUNEAU, AK.
LDA X RWY 8, AMDT 12E...
CIRCLING CAT D NA.
2610191318-2810191318EST
9/14/26
1443Z
!FDC 6/2807 JNU SPECIAL JUNEAU INTL, JUNEAU, AK.
LDA Z RWY 8, AMDT 11A...
PROCEDURE NA, PER FLIGHT CHECK.
2609141443-2809141443EST
7/7/26
2051Z
!FDC 6/3661 JNU IAP JUNEAU INTL, JUNEAU, AK.
LDA X RWY 8, AMDT 12E...
PROCEDURE NA.
2607072051-2711302050EST
Yes
ALL
CITY OF JUNEAU
155 S SEWARD
JUNEAU, AK 99801
Phone: 907-789-7821
ANDRES DELGADO
1873 SHELL SIMMONS DR, SUITE 200
JUNEAU, AK 99801
Phone: 907-789-7821
JUNEAU FSS (JNU)
Toll Free: 1-866-297-2236
JNU
--
WHEN ATCT CLSD ACTVT MALSF RWY 08; REIL RWY 26; HIRL RWY 08/26 - CTAF. VASI RWY 08; PAPI RWY 26 OPR CONSLY.
N/A
Yes - Lighted
Yes
Yes
Buoy, Hanger, Tie-Down
NOT a Landing Rights Airport
Airport of Entry
Major
Major
None
None
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction

Runway 08/26

8857 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
892/F/A/X/T
120,000lbs
250,000lbs
550,000lbs
--
  Runway 08 Runway 26
True Heading 105°285°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 58° 21' 28"N 58° 21' 06"N
Longitude 134° 35' 49"W 134° 33' 09"W
Elevation 25' 23'
Threshold Crossing Height 38 ft. AGL 46 ft. AGL
Visual Glide Path Angle 3.5° 3.5°
Visual Slope Indicator V2L P4L
Approach Lights MALSF MALS
Centerline Lights Yes Yes
Runway End Identifier Lights No Yes

Runway 08W/26W

4800 ft. x 150 ft.

WATER
NONE


--
--
--
--
  Runway 08W Runway 26W
True Heading 105°285°
Traffic Pattern
Markings
Markings Condition
Latitude 58° 21' 23"N 58° 21' 11"N
Longitude 134° 35' 52"W 134° 34' 25"W
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10JUNEAU FSS - LCL 907-789-7380.
A110-11TSNT PUB DOCK SW CORNER.
A110-13SEE SPL NOTICES & GENOT FOR INFO ON OPS IN JUNEAU AREA.
A110-15LENA POINT, PEDERSON HILL & SISTERS IS WX CAMERAS AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-20COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW 1C.
A110-21APRON TERM RAMP CLSD TO ROTORCRAFT. CUST RAMP APRON CLSD TO WINGSPAN GTR THAN 79 FT. INTL ROTORCRAFT USE E-1 NG RAMP.
A110-22FUEL SVC - UNICOM OR 907-789-0055/5622.
A110-3NG 24 HR PPR - C907-789-3366. WKDAY 0730-1600 CTC NG OPS 10 MIN BFR LNDG - 124.65.
A110-4WILDLIFE & BIRDS ON & INVOF ARPT.
A110-5BATTLESHIP IS RLLS GROUPING; CNTR LGT 582132.88N 1344012.22W. JDL LOC RLLS GROUPING; CNTR LGT 582132.02N 1343810.39W.
A110-6HVY HEL & ACFT ACT APR 15-OCT 1; FULL LEN GASTINEAU CHNL & WI 5 MI.
A110-7PARAGLIDING ACT 3 MI N; INVOF THUNDER MOUNTAIN & OVR GASTINEAU CHNL NEARS DOWNTOWN APR 15-OCT 1; 6000 FT & BLW.
A110-9TPA 1500 AGL FOR LARGE TURBINE ACFT; 1000 FT AGL FOR FIXED WING ACFT; 500 FT AGL FOR HELICOPTERS.
A30-08/26SAND USED FOR FRICTION MAY NOT MEET FAA SPECS.
A43-08VASI UNUSBL BYD 06 DEGS LEFT OF CNTRLN. VASI ALIGNED 13 DEG R OF CNTRLN; NOT VIS ON CNTRLN.
A43-26RWY 26 PAPI UNUSBL BYD 2 NM DUE TO TRRN.
A49-08RLLS LGT: JNUB BATTLESHIP ISLAND, JNUA ENGINEERS CUT, JNU WETLANDS/FLATS.
A49-26NSTD; LEN 800 FT.
A71SINGLE/TWIN PROP ENG; TURBIN & AVIONICS.
A81-APTWHEN ATCT CLSD ACTVT MALSF RWY 08; REIL RWY 26; HIRL RWY 08/26 - CTAF. VASI RWY 08; PAPI RWY 26 OPR CONSLY.
A86WHEN ATCT CLSD ARPT ADZY SVC - CTAF.
JUNEAU INTL (ICAO: PAJN, IATA: JNU) is a public airport located in JUNEAU, AK, US.
