PAJZ
ICAO PAJZIATA KGKLocal JZZ
KOLIGANEK
PublicPUB

1 miles E of KOLIGANEK, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
59° 43' 36"N 157° 15' 37"W
Elevation
272' MSL
Pattern Alt
1272' MSL
Mag Variation
12°E
Declination
13°E
Fuel
None Listed
FSS
DILLINGHAM (DLG)
Sectional
KODIAK
ARTCC
ANCHORAGE (ZAN)
Data Effective
4/16/26-5/14/26
PANW (17nm) MVFR
10:33 AM AKDT
Light Rain and Mist
Overcast 1,800'
Broken 1,200'
Scattered 300'
5sm
36°F
36°F
30.00"Hg
080° 5kts
AO2 P0001 FZRANO
SPECI PANW 251833Z AUTO 08005KT 5SM -RA BR SCT003 BKN012 OVC018 02/02 A3000 RMK AO2 P0001 FZRANO
+ Add Your Business

PAJZ FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3P 118.525
(907) 621-7978

Common

CTAF 122.9
ACTVT ROTG BCN - CTAF.; ACTVT MIRL RWY 09/27; PAPI RWY 09 & 27 - CTAF.

Center

ANCHORAGE CENTER 132.75
LOW, KING SALMON RCAG IS BACKUP WHEN DILLINGHAM RCAG OTS.; APCH/DEP SVC PRVDD BY ANCHORAGE ARTCC ON FREQS 132.75/282.35 (DILLINGHAM RCAG).

Flight Service

Flight Service 122.55
(DLG), COMMUNICATIONS PRVDD BY DILLINGHAM FSS ON FREQ 122.55 0745-2345 (KEMUK MOUNTAIN RCO) OTHER TIMES CTC KENAI FSS.; MONITORED BY ENA FSS WHEN DLG FSS CLSD.

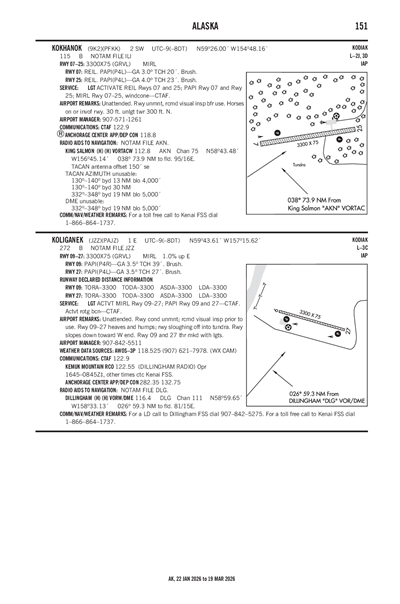

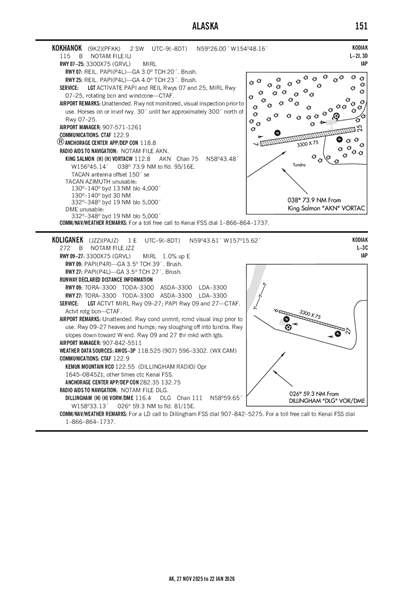

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

PADL (56nm)
Sat, 4/25 9:41 AM AKDT
Sat, 4/25 10:00 AM AKDT - Sun, 4/26 10:00 AM AKDT
MVFR
10:00 AM AKDT - 2:00 PM AKDT
Overcast 3,500'
Broken 1,500'
Few 400'
6sm
060° 9kts
MVFR
Temporary 10:00 AM AKDT - 2:00 PM AKDT
Light Rain and Mist
No Clouds
4sm
Calm
MVFR
2:00 PM AKDT - 11:00 PM AKDT
Light Rain
Overcast 2,500'
Broken 1,500'
6sm
100° 6kts
MVFR
11:00 PM AKDT - 5:00 AM AKDT
Overcast 3,500'
Broken 2,000'
6sm
100° 11kts
MVFR
5:00 AM AKDT - 10:00 AM AKDT
Light Rain and Mist
Overcast 2,000'
Scattered 1,000'
6sm
120° 18kts
Gusts 28kts
TAF PADL 251741Z 2518/2618 06009KT P6SM FEW004 BKN015 OVC035
   TEMPO 2518/2522 4SM -RA BR
   FM252200 10006KT 6SM -RA BKN015 OVC025
   FM260700 10011KT P6SM BKN020 OVC035
   FM261300 12018G28KT 6SM -RA BR SCT010 OVC020
PAJZ
EffectiveExpiresCategoryNOTAM
Domestic
4/24/26
1929Z
!JZZ 04/007 JZZ SVC AUTOMATED WX BCST SYSTEM CEILING UNREL 2604241929-2609111500EST
4/24/26
1927Z
!JZZ 04/006 JZZ SVC AUTOMATED WX BCST SYSTEM NOT AVBL 2604241927-2609111500EST
1/10/26
2341Z
!JZZ 01/003 JZZ SVC AUTOMATED WX BCST SYSTEM VIS UNREL 2601102341-2605301500EST
FDC
3/6/26
1314Z
!FDC 6/4521 JZZ IAP KOLIGANEK, KOLIGANEK, AK.
RNAV (GPS) RWY 27, AMDT 1A...
DELETE TDZE 274. CHART TDZE 272. DELETE APT ELEV 274. CHART APT
ELEV 272. LNAV HAT 508 ALL CATS. CIRCLING CATS A/B HAA 508.
DELETE NOTE: HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NOT
AUTHORIZED. DELETE NOTE: PROCEDURE NA AT NIGHT.
20:1 IS CLEAR. 34:1 IS CLEAR.
CHART: VDP 1.29 NM TO RW27. CHART NOTE: VDP NA WHEN USING DLG/PADL
ALTIMETER SETTING.
CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE
DLG/PADL ALTIMETER SETTING AND INCREASE ALL MDAS 60 FEET.
THIS IS RNAV (GPS) RWY 27, AMDT 1B. 2603061314-PERM
3/6/26
1314Z
!FDC 6/4520 JZZ IAP KOLIGANEK, KOLIGANEK, AK.
RNAV (GPS) RWY 9, AMDT 1A...
DELETE TDZE 272. CHART TDZE 269. DELETE APT ELEV 274. CHART APT
ELEV 272. LNAV HAT 451 ALL CATS. CIRCLING CAT A HAA 448.
CIRCLING CAT B HAA 468.
DELETE NOTE: RWY 9 HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NOT
AUTHORIZED. DELETE NOTE: PROCEDURE NA AT NIGHT. 20:1 IS CLEAR. 34:1
IS CLEAR.
CHART: VDP 1.19 NM TO RW09. CHART NOTE: VDP NA WHEN USING DLG/PADL
ALTIMETER SETTING.
CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE
DLG/PADL ALTIMETER SETTING AND INCREASE ALL MDA 60 FEET.
THIS IS RNAV (GPS) RWY 9, AMDT 1B. 2603061314-PERM
No
UNATNDD
ALASKA DOT & PF CENTRAL REGION
PO BOX 196900
ANCHORAGE, AK 99519
Phone: 907-269-0749
KEVIN HARDIN
BOX 250
DILLINGHAM, AK 99576
Phone: 907-842-5511
DILLINGHAM FSS (DLG)
Toll Free: LC842-5275
JZZ
--
ACTVT MIRL RWY 09/27; PAPI RWY 09 & 27 - CTAF.
ACTVT ROTG BCN - CTAF.
N/A
Yes
Yes
No
Tie-Down
No
None
None
None
None
None

Runway 09/27

3300 ft. x 75 ft.
GRAVEL
Good
NONE
MED

--
--
--
--
  Runway 09 Runway 27
True Heading 106°286°
Traffic Pattern
Markings NSTD NSTD
Markings Condition GOOD GOOD
Latitude 59° 43' 41"N 59° 43' 32"N
Longitude 157° 16' 08"W 157° 15' 06"W
Elevation 237' 272'
Threshold Crossing Height 39 ft. AGL 27 ft. AGL
Visual Glide Path Angle 3.5° 3.5°
Visual Slope Indicator P4R P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RWY COND UNMNT; RCMD VISUAL INSP PRIOR TO USE.
A110-3WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A30-09/27SLOPES DOWN TOWARD W END.
A33-09/27_SURFHEAVES & HUMPS; RWY SLOUGHING OFF INTO TUNDRA.
A42-09_MARKTHR MKD WITH LGTS.
A42-27_MARKTHR MKD WITH LGTS
A81-APTACTVT MIRL RWY 09/27; PAPI RWY 09 & 27 - CTAF.
A81-BCNACTVT ROTG BCN - CTAF.
KOLIGANEK (ICAO: PAJZ, IATA: JZZ) is a public airport located in KOLIGANEK, AK, US.
