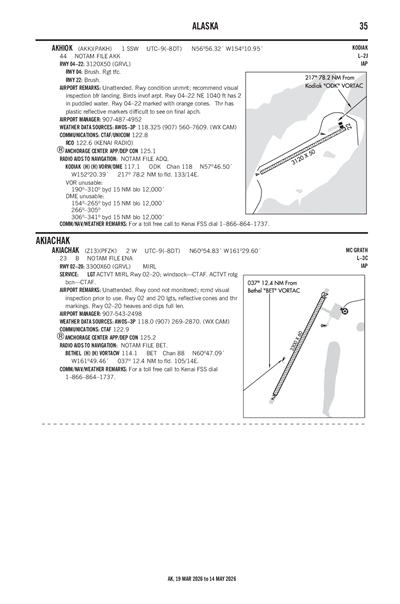

AKHIOK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAKH
ICAO PAKHIATA AKKLocal AKK
AKHIOK
PublicPUB

1 miles SSW of AKHIOK, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
56° 56' 19"N 154° 10' 57"W
Elevation
44' MSL
Pattern Alt
1044' MSL
Mag Variation
13°E
Declination
18°E
Fuel
None Listed
FSS
KENAI (ENA)
Sectional
KODIAK
ARTCC
ANCHORAGE (ZAN)
Data Effective
4/16/26-5/14/26
PAKH MVFR
2:56 PM AKDT
Broken 1,100'
N/A
32°F
32°F
30.01"Hg
140° 3kts
AO2 SLPNO PWINO FZRANO $
METAR PAKH 242256Z AUTO 14003KT BKN011 A3001 RMK AO2 SLPNO PWINO FZRANO $
+ Add Your Business

PAKH FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3P 118.325
(907) 560-7609

Common

CTAF 122.8
UNICOM 122.8

Center

ANCHORAGE CENTER 125.1
LOW, APCH/DEP SVC PRVDD BY ANCHORAGE ARTCC (ZAN) ON 125.1/281.4 (KODIAK RCAG).

Flight Service

Flight Service 122.6
(ENA), COMMUNICATIONS PRVDD BY KENAI FSS ON FREQ 122.6 (AKHIOK RCO).

FAA A/FD Pages

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

PADQ (74nm)
Fri, 4/24 9:27 AM AKDT
Fri, 4/24 10:00 AM AKDT - Sat, 4/25 10:00 AM AKDT
VFR
10:00 AM AKDT - 4:00 PM AKDT
Few 2,000'
6sm
VRB° 5kts
VFR
4:00 PM AKDT - 7:00 PM AKDT
Broken 3,500'
Scattered 1,500'
6sm
130° 6kts
VFR
7:00 PM AKDT - 9:00 PM AKDT
Few 7,000'
6sm
150° 8kts
MVFR
9:00 PM AKDT - 1:00 AM AKDT
Overcast 2,000'
6sm
150° 6kts
MVFR
1:00 AM AKDT - 4:00 AM AKDT
Light Drizzle and Mist
Overcast 2,000'
Few 1,000'
6sm
150° 5kts
VFR
4:00 AM AKDT - 10:00 AM AKDT
Overcast 5,000'
6sm
120° 5kts
TAF PADQ 241727Z 2418/2518 VRB05KT P6SM FEW020
   FM250000 13006KT P6SM SCT015 BKN035
   FM250300 15008KT P6SM FEW070
   FM250500 15006KT P6SM OVC020
   FM250900 15005KT 6SM -DZ BR FEW010 OVC020
   FM251200 12005KT P6SM OVC050
PAKH
No NOTAM Available
No
UNATNDD
ALASKA DOT&PF SOUTHCOAST REGION
PO BOX 112506
JUNEAU, AK 99811
Phone: 907-269-0760
CLARK YATSIK
1500 ANTON LARSON RD.
KODIAK, AK 99615
Phone: 907-487-4952
KENAI FSS (ENA)
Toll Free: 1-866-864-1737
AKK
--
--
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 04/22

3120 ft. x 50 ft.
GRAVEL
Fair
NONE


--
--
--
--
  Runway 04 Runway 22
True Heading 62°242°
Traffic Pattern Right
Markings NSTD NSTD
Markings Condition GOOD GOOD
Latitude 56° 56' 12"N 56° 56' 26"N
Longitude 154° 11' 24"W 154° 10' 34"W
Elevation 44' 39'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2RWY COND UNMNT; RCMD VISUAL INSP BFR LNDG.
A110-4WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-5BIRDS INVOF ARPT.
A13907-269-0760
A33-04/22_CONDNE 1040 FT HAS 2 IN PUDDLED WATER.
A42-04_MARKORANGE CONES. THR HAS PLASTIC REFLECTIVE MKRS DFCLT TO SEE ON FNA.
A42-22_MARKORANGE CONES. THR HAS PLASTIC REFLECTIVE MKRS DFCLT TO SEE ON FNA.
A57-04CTL OBSTN EXCEEDS 45 DEG SLOPE.
AKHIOK (ICAO: PAKH, IATA: AKK) is a public airport located in AKHIOK, AK, US.
