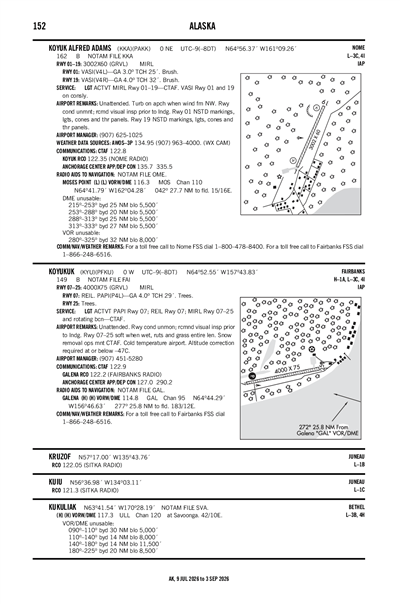

KOYUK ALFRED ADAMS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAKK
ICAO PAKKIATA KKALocal KKA
KOYUK ALFRED ADAMS
PublicPUB

0 miles NE of KOYUK, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
64° 56' 22"N 161° 09' 15"W
Elevation
162' MSL
Pattern Alt
1162' MSL
Mag Variation
10°E
Declination
11°E
Fuel
None Listed
FSS
NOME (OME)
Sectional
NOME
ARTCC
ANCHORAGE (ZAN)
Data Effective
10/1/26-10/29/26
PAKK VFR
3:56 PM AKDT
Clear
10sm
29°F
20°F
29.37"Hg
030° 10kts
Gusts 17kts
AO2 SLP955 T10171067 11017 21050 58016 FZRANO $
METAR PAKK 192356Z AUTO 03010G17KT 10SM CLR M02/M07 A2937 RMK AO2 SLP955 T10171067 11017 21050 58016 FZRANO $
+ Add Your Business

PAKK FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3P 134.95
(907) 963-4000

Common

CTAF 122.8
ACTVT MIRL RWY 01/19 - CTAF. VASI RWY 01 & 19 ON CONSLY.

Center

ANCHORAGE CENTER 135.7
LOW/HIGH, APCH/DEP SVC PRVDD BY ANCHORAGE ARTCC ON FREQS 135.7/335.5 (UNALAKLEET RCAG).

Flight Service

Flight Service 122.35
(OME), COMMUNICATIONS PRVDD BY NOME FSS ON FREQ 122.35 (KOYUK RCO).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

PAUN (64nm)
Mon, 10/19 3:20 PM AKDT
Mon, 10/19 4:00 PM AKDT - Tue, 10/20 4:00 PM AKDT
MVFR
4:00 PM AKDT - 12:00 AM AKDT
Light Showers and Snow
Overcast 3,500'
Few 1,500'
3sm
070° 13kts
VFR
12:00 AM AKDT - 4:00 PM AKDT
Mist and Showers in vicinity
Overcast 3,500'
6sm
020° 8kts
TAF PAUN 192320Z 2000/2024 07013KT 3SM -SHSN FEW015 OVC035
   FM200800 02008KT 6SM BR VCSH OVC035
PAKK
EffectiveExpiresCategoryNOTAM
Domestic
10/19/26
1539Z
10/20/26
1539Z
!KKA 10/020 KKA APRON MAIN RAMP FICON 1/8IN DRY SN OBS AT 2610191536. 2610191539-2610201539
10/19/26
1538Z
10/20/26
1538Z
!KKA 10/019 KKA TWY A FICON 1/8IN DRY SN OBS AT 2610191536. 2610191538-2610201538
10/19/26
1538Z
10/20/26
1538Z
Runway!KKA 10/018 KKA RWY 19 FICON 100 PCT 1/8IN DRY SN OBS AT 2610191536. 2610191538-2610201538
10/19/26
1538Z
10/20/26
1538Z
Runway!KKA 10/017 KKA RWY 01 FICON 100 PCT 1/8IN DRY SN OBS AT 2610191536. 2610191538-2610201538
10/15/26
2044Z
Runway!KKA 10/003 KKA RWY 19 VASI U/S 2610152044-2612261500EST
10/9/26
2228Z
!KKA 10/001 KKA SVC PCL RWY 19 VASI U/S EXC LOW INTST ON CONS 2610092228-2612271500EST
No
UNATNDD
ALASKA DOT&PF NORTHERN REGION
2301 PEGER RD
FAIRBANKS, AK 99709
Phone: 907-451-2200
JOHN WILSON
PO BOX 192
UNALAKLEET, AK 99684
Phone: (907) 625-1025
NOME FSS (OME)
Toll Free: 1-800-478-8400
KKA
--
ACTVT MIRL RWY 01/19 - CTAF. VASI RWY 01 & 19 ON CONSLY.
N/A
Yes - Lighted
Yes
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 01/19

3002 ft. x 60 ft.
GRVL
Good
NONE
MED

--
--
--
--
  Runway 01 Runway 19
True Heading 24°204°
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition FAIR FAIR
Latitude 64° 56' 09"N 64° 56' 36"N
Longitude 161° 09' 30"W 161° 09' 01"W
Elevation 160' 153'
Threshold Crossing Height 25 ft. AGL 32 ft. AGL
Visual Glide Path Angle 3° 4°
Visual Slope Indicator V4L V4R
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RWY COND UNMNT; RCMD VISUAL INSP PRIOR TO LNDG.
A110-2TURB ON APCH WHEN WIND FM NW.
A110-4WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A33-01/19_SURFGRAVEL-DIRT.
A42-01_MARKLGTS, CONES & THR PANELS.
A42-19_MARKLGTS, CONES & THR PANELS.
A81-APTACTVT MIRL RWY 01/19 - CTAF. VASI RWY 01 & 19 ON CONSLY.
KOYUK ALFRED ADAMS (ICAO: PAKK, IATA: KKA) is a public airport located in KOYUK, AK, US.
