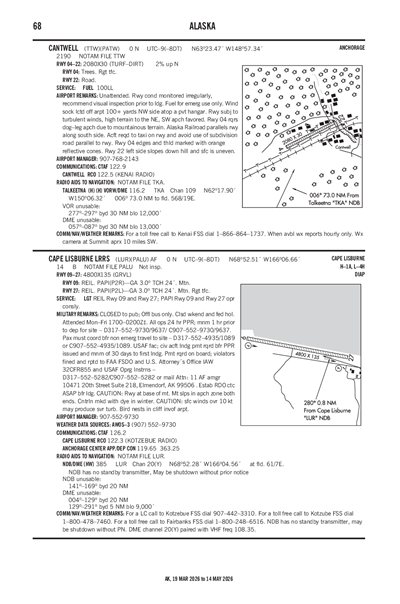

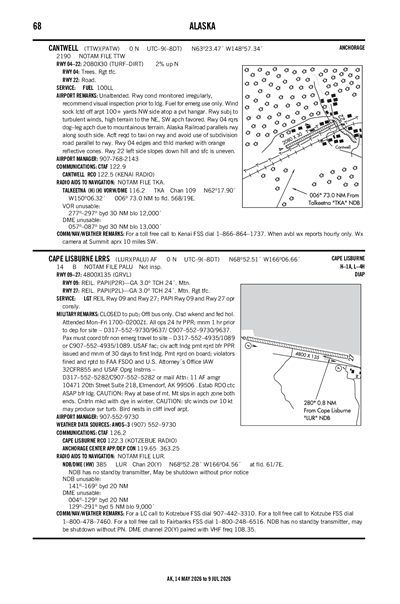

CAPE LISBURNE LRRS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PALU
CAPE LISBURNE LRRS
PrivatePVT

0 miles N of CAPE LISBURNE, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
68° 52' 30"N 166° 06' 40"W
14' MSL
1014' MSL
07E
None Listed
KOTZEBUE (OTZ)
CAPE LISBURNE
ANCHORAGE (ZAN)
4/18/24-5/16/24
PALU MVFR
12:36 PM AKDT
Light Snow
Broken 1,100'
10sm
18°F
14°F
30.41"Hg
070° 17kts
AO2 SLP296
PALU 302036Z AUTO 07017KT 10SM -SN BKN011 M08/M10 A3041 RMK AO2 SLP296
List Your Business

PALU FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

PALU Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

PALU Hotels

No hotels are listed for this airport.

PALU Restaurants

No restaurants are listed for this airport.

PALU Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 126.2

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
PALU
Domestic
1/1/242345Z !PALU 01/004 LUR APRON MAIN RAMP LGT ALL U/S 2401012345-PERM
1/1/242345Z !PALU 01/003 LUR RWY 09/27 REDL U/S 2401012345-PERM
1/1/242345Z !PALU 01/002 LUR RWY 09/27 RTHL U/S 2401012345-PERM
No
MON-FRI 0800-1700 CLSD WKEND & HOLS.
U.S. AIR FORCE
11 AIR FORCE ELMENDORF AFB
ANCHORAGE, AK 99506-2270
U.S. AIR FORCE
11 AIR FORCE ELMENDORF AFB
ELEMENDORF AFB, AK 99506-2270
Phone: 907-552-9730
KOTZEBUE FSS (OTZ)
Toll Free: 1-800-478-7460
PALU
--
ACTVT HIRL RY 09/27, TWY & RAMP EDGE LGTS, DISTANCE REMAINING LGTS - 126.2. PAPI AND REIL OPERATE 24 HRS.
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Cargo Handling

Runway 09/27

4800 ft. x 135 ft.

GRAVEL
NONE
HIGH

--
--
--
--
  Runway 09 Runway 27
True Heading 101°281°
Traffic Pattern Left Right
Markings NONE NONE
Markings Condition FAIR FAIR
Latitude 68° 52' 35"N 68° 52' 26"N
Longitude 166° 07' 44"W 166° 05' 36"W
Elevation 13' 14'
Threshold Crossing Height 24 ft. AGL 24 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2R P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-21CAUTION: RY LOCATED AT BASE OF STEEP MOUNTAIN. MOUNTAIN SLOPES IN APCH ZONE BOTH ENDS OF RY.
A110-22CAUTION: SURFACE WINDS OVER 10 KTS MAY PRODUCE SEVERE TURBULENCE.
A110-23CAUTION: NUMEROUS BIRD NESTS IN CLIFF INVOF ARPT.
A110-24ALL MILITARY, GOVERNMENT, AND CIVILIAN AIRCRAFT MUST OBTAIN A PPR NUMBER 24 HRS PRIOR TO SCHEDULED ARRIVAL BUT NO LATER THAN 1 HR PRIOR TO DEPARTURE FOR THE SITE. CONTACT SITE PERSONNEL AT DSN 317-552-9730/9637 OR C (907) 552-9730/9637.
A110-25ALL CIVIL ACFT OPERATORS MUST HAVE A CURRENT CIVIL AIRCRAFT LANDING PERMIT (CALP) BEFORE A PPR CAN BE ISSUED. IAW AIR FORCE INSTRUCTION 10-1001 (HTTP://STATIC.E-PUBLISHING.AF.MIL/PRODUCTION/1/AF_A3_5/PUBLICATION/AFI10-1001/AFI10-1001.PDF) AT LEAST 30 DAYS PRIOR TO FIRST INTENDED LANDING. FAILURE TO OBTAIN AND HAVE ONBOARD APPROVED CALP WILL RESULT IN FINES LEVIED AGAINST VIOLATORS AND REPORTS FORWARDED TO THE FAA FSDO AND U.S. ATTORNEY'S OFFICE IAW 32 CFR 855 AND USAF OPERATING INSTRUCTIONS.
A110-26CONTACT 611 ASUS/LRAM AT DSN: 317-552-1448/4176 OR COM: 907-552-1448/4176 FOR CALPS. MAIL CALP APPLICATION TO: ATTN: 11 AF AIRFIELD MANAGER 10471 20TH STREET SUITE 231, JBER, AK 99506. CIVIL AIRCRAFT LANDING PERMIT (CALP) CONTACT NUMBERS DSN: 317-552-1448/4176 OR COM: (907) 552-1448/4176, E-MAIL: AKLANDINGPERMITS@US.AF.MIL.
A110-27ESTABLISH RADIO CONTACT AS SOON AS POSSIBLE PRIOR TO LANDING.
A110-28PASSENGERS MUST COORDINATE ALL TRAVEL WITH ARS PROGRAM MANAGEMENT (DSN 317-552-4400/9630 OR C907-552-4400/9630) PRIOR TO ANY NON-EMERGENCY TRAVEL TO THE SITE.
A110-29AFLD CLSD WKENDS AND ALL FEDERAL HOL.
CAPE LISBURNE LRRS (ICAO: PALU, IATA: LUR) is a private airport located in CAPE LISBURNE, AK.
