NEW STUYAHOK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PANW
ICAO PANWIATA KNWLocal KNW
NEW STUYAHOK
PublicPUB

1 miles W of NEW STUYAHOK, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
59° 27' 05"N 157° 22' 23"W
Elevation
371' MSL
Pattern Alt
1371' MSL
Mag Variation
12°E
Declination
16°E
Fuel
None Listed
FSS
DILLINGHAM (DLG)
Sectional
KODIAK
ARTCC
ANCHORAGE (ZAN)
Data Effective
5/14/26-6/11/26
PANW VFR
11:56 PM AKDT
Clear
10sm
38°F
36°F
29.86"Hg
170° 4kts
AO2 SLP119 T00330022 400830017
METAR PANW 150756Z AUTO 17004KT 10SM CLR 03/02 A2986 RMK AO2 SLP119 T00330022 400830017
+ Add Your Business

PANW FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3P 120.275
(907) 621-7980

Common

CTAF 122.9
ACTVT ROTG BCN - CTAF.; ACTVT REIL RWY 14 & 32; PAPI RWY 14 & 32; MIRL RWY 14/32 - CTAF.

Center

ANCHORAGE CENTER 132.75
LOW, KING SALMON RCAG IS BACKUP WHEN DILLINGHAM RCAG OTS.; APCH/DEP SVC PRVDD BY ANCHORAGE ARTCC ON FREQS 132.75/282.35 (DILLINGHAM RCAG).

Flight Service

Flight Service 122.55
(DLG), COMMUNICATIONS PRVDD BY DILLINGHAM FSS ON FREQ 122.55 0745-2345 (KEMUK MOUNTAIN RCO) OTHER TIMES CTC KENAI FSS.; MONITORED BY ENA FSS WHEN DLG FSS CLSD.

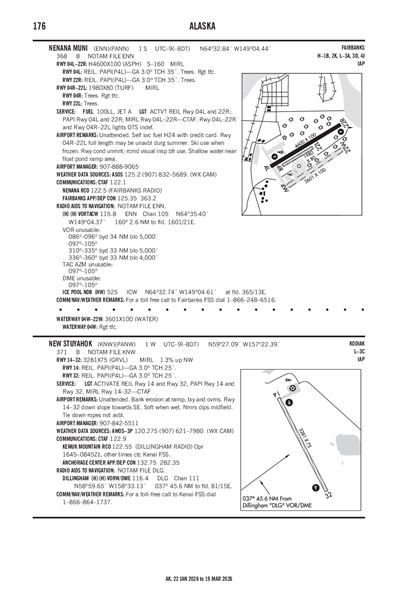

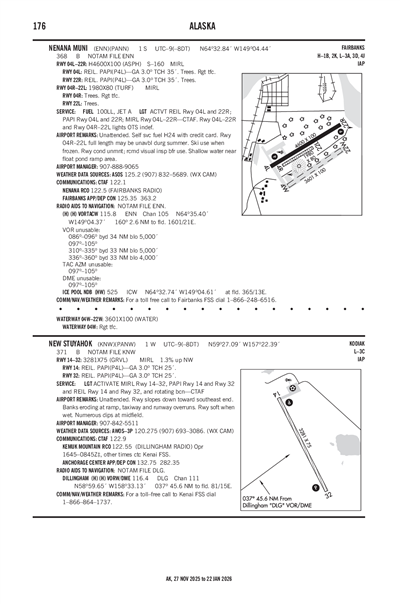

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

PADL (43nm)
Thu, 5/14 9:27 PM AKDT
Thu, 5/14 10:00 PM AKDT - Fri, 5/15 10:00 PM AKDT
VFR
Temporary 10:00 PM AKDT - 2:00 AM AKDT
Broken 3,500'
N/A
Calm
VFR
10:00 PM AKDT - 4:00 AM AKDT
Scattered 3,500'
6sm
170° 9kts
MVFR
4:00 AM AKDT - 10:00 AM AKDT
Overcast 1,500'
6sm
050° 4kts
VFR
10:00 AM AKDT - 2:00 PM AKDT
Scattered 25,000'
6sm
080° 9kts
VFR
2:00 PM AKDT - 4:00 PM AKDT
Few 25,000'
6sm
100° 12kts
Gusts 19kts
VFR
4:00 PM AKDT - 10:00 PM AKDT
Broken 25,000'
6sm
120° 19kts
Gusts 30kts
TAF PADL 150527Z 1506/1606 17009KT P6SM SCT035
   TEMPO 1506/1510 BKN035
   FM151200 05004KT P6SM OVC015
   FM151800 08009KT P6SM SCT250
   FM152200 10012G19KT P6SM FEW250
   FM160000 12019G30KT P6SM BKN250
PANW
EffectiveExpiresCategoryNOTAM
Domestic
4/24/26
1924Z
Runway!KNW 04/026 KNW RWY 32 PAPI U/S 2604241924-2607041500EST
No
UNATNDD
ALASKA DOT&PF CENTRAL REGION
PO BOX 196900
ANCHORAGE, AK 99519
Phone: 907-269-0749
KEVIN HARDIN
BOX 250
DILLINGHAM, AK 99576
Phone: 907-842-5511
DILLINGHAM FSS (DLG)
Toll Free: LC842-5275
KNW
--
ACTVT REIL RWY 14 & 32; PAPI RWY 14 & 32; MIRL RWY 14/32 - CTAF.
ACTVT ROTG BCN - CTAF.
N/A
Yes - Lighted
Yes
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 14/32

3281 ft. x 75 ft.
GRVL
Good
NONE
MED

--
--
--
--
  Runway 14 Runway 32
True Heading 153°333°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 59° 27' 20"N 59° 26' 51"N
Longitude 157° 22' 38"W 157° 22' 09"W
Elevation 371' 327'
Threshold Crossing Height 25 ft. AGL 25 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-10WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-12BANK EROSION AT RAMP, TXY & OVRNS.
A30-14/32DOWN SLOPE TOWARD SE. SOFT WHEN WET. NMRS DIPS MIDFIELD.
A75-TTIE DOWN ROPES NOT AVBL.
A81-APTACTVT REIL RWY 14 & 32; PAPI RWY 14 & 32; MIRL RWY 14/32 - CTAF.
A81-BCNACTVT ROTG BCN - CTAF.
NEW STUYAHOK (ICAO: PANW, IATA: KNW) is a public airport located in NEW STUYAHOK, AK, US.
