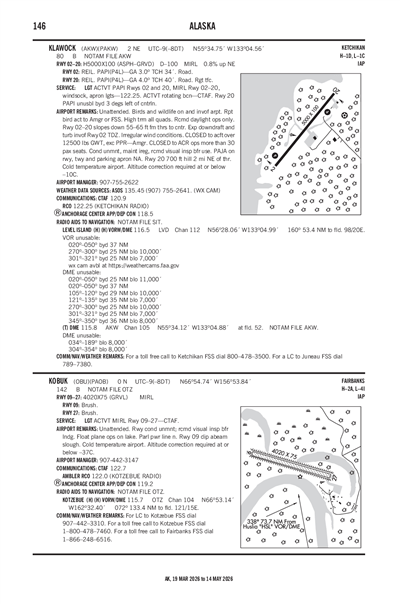

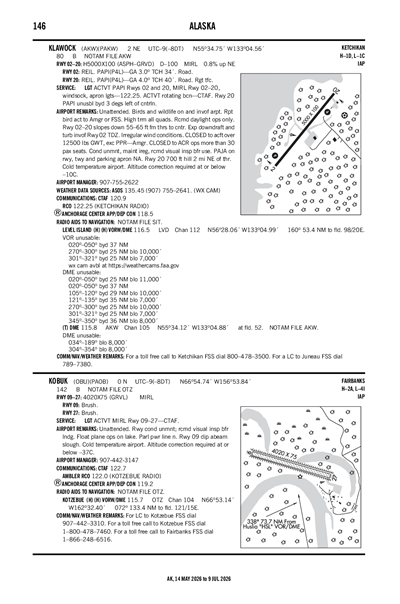

KOBUK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAOB
ICAO PAOBIATA OBULocal OBU
KOBUK
PublicPUB

0 miles N of KOBUK, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
66° 54' 44"N 156° 53' 50"W
Elevation
142' MSL
Pattern Alt
1142' MSL
Mag Variation
12°E
Declination
11°E
Fuel
None Listed
FSS
KOTZEBUE (OTZ)
Sectional
FAIRBANKS
ARTCC
ANCHORAGE (ZAN)
Data Effective
4/16/26-5/14/26
PAGH (6nm) IFR
10:56 AM AKDT
Light Snow and Mist
Overcast 2,900'
Broken 900'
2sm
34°F
31°F
29.97"Hg
100° 12kts
AO2 VIS 1 3/4V2 1/2 SLP154 P0000 T00111006 FZRANO
METAR PAGH 241856Z AUTO 10012KT 2SM -SN BR BKN009 OVC029 01/M01 A2997 RMK AO2 VIS 1 3/4V2 1/2 SLP154 P0000 T00111006 FZRANO
+ Add Your Business

PAOB FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.7
ACTVT MIRL RWY 09/27 - CTAF.

Center

ANCHORAGE CENTER 119.2
LOW, APCH/DEP SVC PRVDD BY ANCHORAGE ARTCC (ZAN) ON FREQ 119.2/263.0 (KOTZEBUE RCAG).

Flight Service

Flight Service 122.0
(OTZ), COMMUNICATIONS PRVDD BY KOTZEBUE FSS ON FREQ 122.0 (AMBLER RCO).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
PAOB
EffectiveExpiresCategoryNOTAM
Domestic
4/24/26
1524Z
4/25/26
1524Z
Runway!OTZ 04/260 OBU RWY 27 FICON 100 PCT 1IN WET SN OBS AT 2604241524. 2604241524-2604251524
4/24/26
1524Z
4/25/26
1524Z
Runway!OTZ 04/259 OBU RWY 09 FICON 100 PCT 1IN WET SN OBS AT 2604241524. 2604241524-2604251524
4/24/26
1522Z
4/25/26
1522Z
!OTZ 04/257 OBU TWY ALL FICON 1IN WET SN OBS AT 2604241522. 2604241522-2604251522
4/24/26
1522Z
4/25/26
1522Z
!OTZ 04/256 OBU APRON ALL FICON 1IN WET SN OBS AT 2604241522. 2604241522-2604251522
No
UNATNDD
ALASKA DOT&PF NORTHERN REGION
2301 PEGER ROAD
FAIRBANKS, AK 99709
Phone: 907-451-2200
ALVIN WERNEKE
BOX 55
KOTZUBUE, AK 99752
Phone: 907-442-3147
KOTZEBUE FSS (OTZ)
Toll Free: 1-800-478-7460
OTZ
--
ACTVT MIRL RWY 09/27 - CTAF.
N/A
Yes - Lighted
Yes
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 09/27

4020 ft. x 75 ft.
GRAVEL
Good
NONE
MED

--
--
--
--
  Runway 09 Runway 27
True Heading 106°286°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 66° 54' 50"N 66° 54' 39"N
Longitude 156° 54' 39"W 156° 53' 02"W
Elevation 140' 138'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RWY COND UNMNT; RCMD VISUAL INSP BFR LNDG.
A110-2FLOAT PLANE OPS ON LAKE.
A110-4WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-5COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -37C.
A30-09/27PARL PWR LINE N.
A30A-09DIP ABEAM SLOUGH.
A81-APTACTVT MIRL RWY 09/27 - CTAF.
E111ESTABD PRIOR TO 1959.
KOBUK (ICAO: PAOB, IATA: OBU) is a public airport located in KOBUK, AK, US.
