iFlightPlanner



...
PORTAGE CREEK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAOC
ICAO PAOCIATA PCALocal A14
PORTAGE CREEK
PublicPUB

0 miles E of PORTAGE CREEK, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
58° 54' 23"N 157° 42' 40"W
Elevation
129' MSL
Pattern Alt
1129' MSL
Mag Variation
12°E
Declination
21°E
Fuel
None Listed
FSS
DILLINGHAM (DLG)
Sectional
KODIAK
ARTCC
ANCHORAGE (ZAN)
Data Effective
5/14/26-6/11/26
PFWS (25nm) VFR
6:56 PM AKDT
Clear
10sm
43°F
37°F
29.84"Hg
270° 9kts
AO2 SLP107 60118 T00610028 51004
METAR PFWS 150256Z AUTO 27009KT 10SM CLR 06/03 A2984 RMK AO2 SLP107 60118 T00610028 51004
+ Add Your Business

PAOC FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

Flight Service

Flight Service 122.55
(DLG), COMMUNICATIONS PRVDD BY DILLINGHAM FSS ON FREQ 122.55 0745-2345 (KEMUK MOUNTAIN RCO) OTHER TIMES CTC KENAI FSS.; MONITORED BY ENA FSS WHEN DLG FSS CLSD.

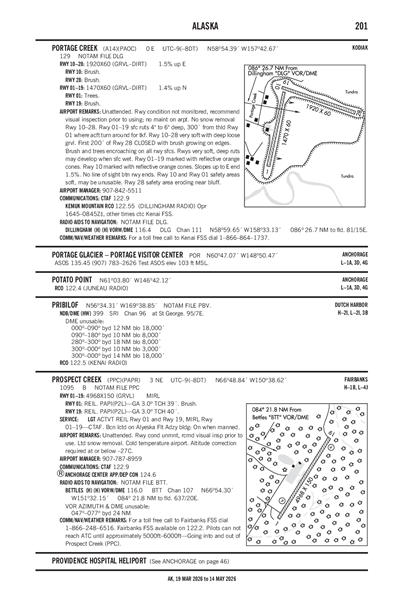

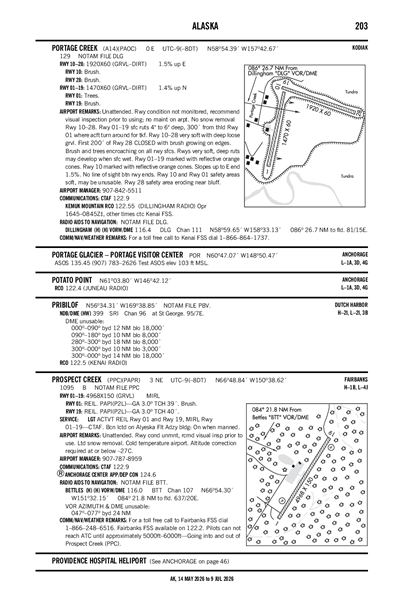

FAA A/FD Pages

Terminal Area Forecast

PADL (26nm)
Thu, 5/14 3:23 PM AKDT
Thu, 5/14 4:00 PM AKDT - Fri, 5/15 4:00 PM AKDT
MVFR
4:00 PM AKDT - 7:00 PM AKDT
Overcast 2,500'
6sm
180° 7kts
VFR
7:00 PM AKDT - 4:00 AM AKDT
Broken 5,000'
6sm
210° 5kts
MVFR
4:00 AM AKDT - 10:00 AM AKDT
Overcast 1,500'
6sm
050° 4kts
VFR
10:00 AM AKDT - 2:00 PM AKDT
Scattered 25,000'
6sm
080° 9kts
VFR
2:00 PM AKDT - 4:00 PM AKDT
Few 25,000'
6sm
100° 12kts
Gusts 19kts
TAF PADL 142323Z 1500/1524 18007KT P6SM OVC025
   FM150300 21005KT P6SM BKN050
   FM151200 05004KT P6SM OVC015
   FM151800 08009KT P6SM SCT250
   FM152200 10012G19KT P6SM FEW250
PAOC
No NOTAM Available
No
UNATNDD
ALASKA DOT&PF CENTRAL REGION
PO BOX 196900
ANCHORAGE, AK 99519
Phone: 907-269-0760
KEVIN HARDIN
BOX 250
DILLINGHAM, AK 99576
Phone: 907-842-5511
DILLINGHAM FSS (DLG)
Toll Free: LC842-5275
DLG
--
--
N/A
Yes
Yes
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 01/19

1470 ft. x 60 ft.
GRVL DIRT
Good
NONE


--
--
--
--
  Runway 01 Runway 19
True Heading 27°207°
Traffic Pattern
Markings
Markings Condition
Latitude 58° 54' 15"N 58° 54' 28"N
Longitude 157° 42' 59"W 157° 42' 46"W
Elevation 80' 101'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 10/28

1920 ft. x 60 ft.
GRVL DIRT
Fair
NONE


--
--
--
--
  Runway 10 Runway 28
True Heading 112°292°
Traffic Pattern
Markings
Markings Condition
Latitude 58° 54' 29"N 58° 54' 22"N
Longitude 157° 42' 47"W 157° 42' 14"W
Elevation 100' 128'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2RWY COND NOT MNT; RCMD VISUAL INSPN PRIOR TO USING, NO MAINT ON ARPT.
A110-3RWY 10 & RWY 01 - SAFETY AREAS SOFT; MAY BE UNUSBL. RWY 28 SAFETY AREA ERODING NEAR BLUFF.
A110-5RWY VERY SOFT; DEEP RUTS MAY DEVELOP WHEN SFC WET.
A110-7WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-8BRUSH AND TREES ENCROACHING ON ALL RWY SFCS.
A110-9NO SNOW REMOVAL RWY 10/28.
A30-10/28SLOPES UP TO E END 1.5 %. NO LINE OF SIGHT BETWEEN RWY ENDS.
A33-01/19_CONDRWY 01/19 SFC RUTS 4 IN TO 6 IN DEEP 300 FT FM THLD RWY 01 WHERE ACFT TURN ARND FOR TKOF.
A33-10/28_CONDVERY SOFT WITH DEEP LOOSE GRVL. FIRST 200 FT OF RWY 28 CLSD WITH BRUSH GROWING ON EDGES.
A42-01_MARKRWY 01/19 MKD WITH REFLECTIVE ORANGE CONES.
A42-10_MARKRWY MKD WITH REFLECTIVE ORANGE CONES.
A84VEGETATION OVERGROWING SEG CIRCLE.
PORTAGE CREEK (ICAO: PAOC, IATA: A14) is a public airport located in PORTAGE CREEK, AK, US.
