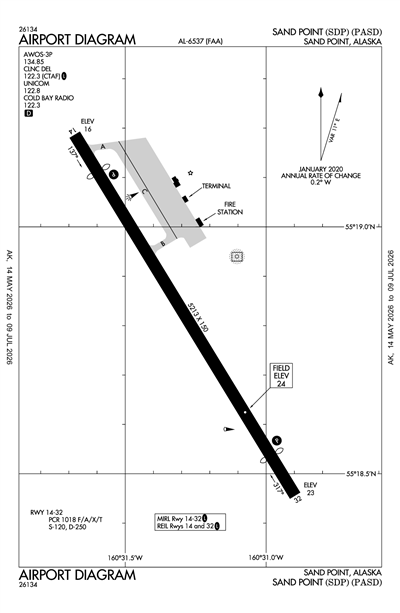

SAND POINT - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PASD
ICAO PASDIATA SDPLocal SDP
SAND POINT
PublicPUB

2 miles SW of SAND POINT, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
55° 18' 49"N 160° 31' 17"W
Elevation
24' MSL
Pattern Alt
1024' MSL
Mag Variation
11°E
Declination
11°E
Fuel
JET A
FSS
COLD BAY (CDB)
Sectional
COLD BAY
ARTCC
ANCHORAGE (ZAN)
Data Effective
10/1/26-10/29/26
PASD VFR
1:56 PM AKDT
Broken 8,500'
Broken 4,000'
Scattered 2,600'
10sm
45°F
39°F
29.49"Hg
310° 5kts
AO2 SLP989 T00720039 PNO $
METAR PASD 192156Z 31005KT 10SM SCT026 BKN040 BKN085 07/04 A2949 RMK AO2 SLP989 T00720039 PNO $
+ Add Your Business

PASD FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3P 134.85
(907) 560-7611

Common

CTAF 122.3
ACTVT REIL RWY 14 & 32; PAPI RWY 14 & 32; MIRL RWY 14/32 - CTAF.
UNICOM 122.8

Center

ANCHORAGE CENTER 125.35
LOW, APCH/DEP SVC PRVDD BY ANCHORAGE ARTCC ON FREQS 125.35/346.3 (SAND POINT RCAG).

Flight Service

Flight Service 122.3
(CDB), COMMUNICATIONS PRVDD BY COLD BAY FSS ON FREQ 122.3 (SAND POINT RCO).

Terminal Area Forecast

PASD
Mon, 10/19 9:29 AM AKDT
Mon, 10/19 10:00 AM AKDT - Tue, 10/20 10:00 AM AKDT
VFR
10:00 AM AKDT - 1:00 PM AKDT
Overcast 7,000'
Scattered 1,500'
6sm
320° 7kts
MVFR
1:00 PM AKDT - 4:00 PM AKDT
Light Showers and Rain
Overcast 2,500'
Few 1,500'
6sm
320° 8kts
VFR
4:00 PM AKDT - 12:00 AM AKDT
Overcast 5,000'
6sm
300° 8kts
MVFR
12:00 AM AKDT - 7:00 AM AKDT
Light Showers and Rain
Overcast 2,500'
6sm
280° 9kts
VFR
7:00 AM AKDT - 10:00 AM AKDT
Overcast 3,500'
6sm
290° 15kts
TAF PASD 191729Z 1918/2018 32007KT P6SM SCT015 OVC070
   FM192100 32008KT P6SM -SHRA FEW015 OVC025
   FM200000 30008KT P6SM OVC050
   FM200800 28009KT P6SM -SHRA OVC025
   FM201500 29015KT P6SM OVC035
PASD
EffectiveExpiresCategoryNOTAM
Domestic
10/19/26
1557Z
10/20/26
1557Z
!SDP 10/053 SDP APRON ALL FICON WET OBS AT 2610191557. 2610191557-2610201557
10/19/26
1557Z
10/20/26
1557Z
Runway!SDP 10/052 SDP RWY 14 FICON 5/5/5 100 PCT WET OBS AT 2610191557. 2610191557-2610201557
10/19/26
1557Z
10/20/26
1557Z
!SDP 10/051 SDP TWY ALL FICON WET OBS AT 2610191557. 2610191557-2610201557
9/17/26
1654Z
11/17/26
0200Z
!SDP 09/044 SDP AD AP BIRD ACT INCREASED 2609171654-2611170200
FDC
9/10/26
1720Z
!FDC 6/2256 SDP CHART SAND POINT, SAND POINT, AK.
RNAV (GPS) Z RWY 14, AMDT 2...
CORRECT MINIMUMS: CHANGE CIRCLING CAT A VISIBILITY TO 1 1/4. ALL OTHER DATA REMAINS AS PUBLISHED.
2609101720-PERM
7/10/26
1616Z
!FDC 6/4686 SDP ODP SAND POINT, SAND POINT, AK.
BORLAND TWO DEPARTURE ...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
HBT NDB OUT OF SERVICE. 2607101616-2702191616EST
No
JAN - DEC MON - SAT 0800-1700
ALASKA DOT&PF SOUTHCOAST REGION
P.O. BOX 112506
JUNEAU, AK 99811
Phone: 907-465-1763
RUSSELL RUTA
BOX 97
COLD BAY, AK 99571
Phone: 907-386-6106
COLD BAY FSS (CDB)
Toll Free: 1-800-478-7250
SDP
--
ACTVT REIL RWY 14 & 32; PAPI RWY 14 & 32; MIRL RWY 14/32 - CTAF.
ON CONSLY.
N/A
Yes - Lighted
Yes
Yes
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 14/32

5213 ft. x 150 ft.
ASPH
Good
GRVD
MED
1018/F/A/X/T
120,000lbs
250,000lbs
--
--
  Runway 14 Runway 32
True Heading 148°328°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 55° 19' 11"N 55° 18' 27"N
Longitude 160° 31' 41"W 160° 30' 54"W
Elevation 16' 23'
Threshold Crossing Height 31 ft. AGL 36 ft. AGL
Visual Glide Path Angle 3.6° 3.6°
Visual Slope Indicator P4L P4R
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1BIRDS INVOF ARPT.
A110-10SAND POINT WX 0800-1800 - 132.05 OR 907-383-2403.
A110-280-320 FT CLIFF E SIDE OF RWY; EXP TURB ON APCH RWY 32.
A110-9SAND LRGR GRADATION THAN RECMD/SEE AC150/5200-30.
A24OVR 6000 LB.
A26CLSD TO ACR MORE THAN 30 PAX SEATS EXC PPR IN WRITING - AMGR.
A70-A0800-2000 - 907-383-2026; AFT HR CALL OUT FEE.
A81-APTACTVT REIL RWY 14 & 32; PAPI RWY 14 & 32; MIRL RWY 14/32 - CTAF.
A81-BCNON CONSLY.
SAND POINT (ICAO: PASD, IATA: SDP) is a public airport located in SAND POINT, AK, US.
