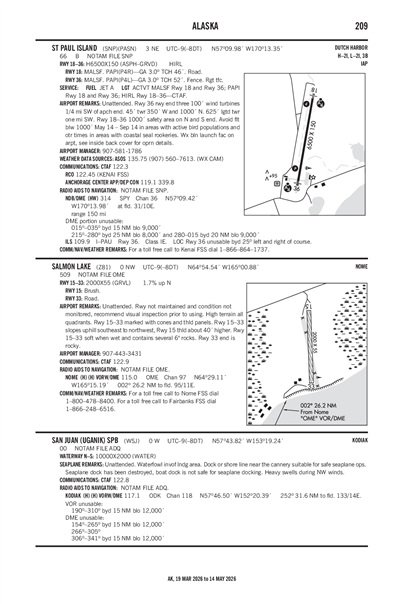

ST PAUL ISLAND - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PASN
ST PAUL ISLAND
PublicPUB

3 miles NE of ST PAUL ISLAND, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
57° 09' 59"N 170° 13' 21"W
66' MSL
1066' MSL
10E
Jet A
KENAI (ENA)
DUTCH HARBOR
ANCHORAGE (ZAN)
4/18/24-5/16/24
PASN MVFR
5:53 PM AKDT
Overcast 1,400'
Few 600'
10sm
35°F
35°F
29.76"Hg
070° 13kts
AO2 SLP078 T00170017 TSNO $
PASN 010153Z AUTO 07013KT 10SM FEW006 OVC014 02/02 A2976 RMK AO2 SLP078 T00170017 TSNO $
List Your Business

PASN FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

PASN Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

PASN Hotels

No hotels are listed for this airport.

PASN Restaurants

No restaurants are listed for this airport.

PASN Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.3

ASOS

ASOS
907-546-2324
 135.75

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

PASN
Tue, 4/30 3:33 PM AKDT
Tue, 4/30 4:00 PM AKDT - Wed, 5/1 4:00 PM AKDT
IFR
4:00 PM AKDT - 7:00 PM AKDT
Mist
Overcast 600'
6sm
080° 12kts
LIFR
7:00 PM AKDT - 4:00 AM AKDT
Mist
Overcast 400'
3sm
060° 16kts
LIFR
4:00 AM AKDT - 10:00 AM AKDT
Light Snow and Mist
Overcast 300'
2sm
060° 18kts
LIFR
10:00 AM AKDT - 2:00 PM AKDT
Light Snow and Rain and Mist
Overcast 300'
2sm
050° 18kts
Gusts 26kts
LIFR
2:00 PM AKDT - 4:00 PM AKDT
Mist
Overcast 700'
Broken 400'
2sm
040° 18kts
Gusts 26kts
PASN 302333Z 0100/0124 08012KT 6SM BR OVC006
   FM010300 06016KT 3SM BR OVC004
   FM011200 06018KT 2SM -SN BR OVC003
   FM011800 05018G26KT 2SM -SNRA BR OVC003
   FM012200 04018G26KT 2SM BR BKN004 OVC007
PASN
Domestic
4/30/241556Z !SNP 04/047 SNP APRON ALL FICON 1/8IN DRY SN OBS AT 2404301556. 2404301556-2405011556
4/30/241556Z !SNP 04/046 SNP TWY ALL FICON 1/8IN DRY SN OBS AT 2404301556. 2404301556-2405011556
4/30/241556Z !SNP 04/045 SNP RWY 18 FICON 5/5/5 100 PCT 1/8IN DRY SN OBS AT 2404301556. 2404301556-2405011556
4/11/241634Z !SNP 04/028 SNP RWY 18 PAPI U/S 2404111634-2405311500EST
3/29/240739Z !SNP 03/059 SNP OBST BLDG (ASN UNKNOWN) (873FT NNW APCH END RWY 36) 92FT (26FT AGL) NOT LGTD 2403290739-2405311500
10/17/231433Z !SNP 10/008 SNP NAV ILS RWY 36 GP NOT MNT 2310171433-2406291500EST
10/17/230009Z !SNP 10/007 SNP NAV ILS RWY 36 GP U/S 2310170009-2407211500EST
FDC
1/5/241425Z !FDC 4/1186 SNP IAP ST PAUL ISLAND, ST PAUL ISLAND, AK.
LOC/DME BC RWY 18, AMDT 4D...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
SPY DME OUT OF SERVICE.
2401051425-2408161425EST
11/17/231616Z !FDC 3/3432 SNP IAP ST PAUL ISLAND, ST PAUL ISLAND, AK.
ILS OR LOC RWY 36, AMDT 4A...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SPY NDB OUT OF SERVICE. 2311171616-2406281616EST
No
UNATNDD
ALASKA DOT&PF SOUTHCOAST REGION
PO BOX 112506
JUNEAU, AK 99811-2506
Phone: (907) 465-1779
DALE RUCKMAN
PO BOX 920525
DUTCH HARBOR, AK 99692
Phone: (907) 581-1786
KENAI FSS (ENA)
Toll Free: 1-866-864-1737
SNP
--
ACTVT MALSF RWY 18 & 36; PAPI RWY 18 & 36; HIRL RWY 18/36- CTAF.
N/A
Yes
Yes
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 18/36

6500 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

--
--
--
--
  Runway 18 Runway 36
True Heading 190°10°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 57° 10' 30"N 57° 09' 27"N
Longitude 170° 13' 11"W 170° 13' 31"W
Elevation 66' 40'
Threshold Crossing Height 46 ft. AGL 52 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALSF MALSF
Centerline Lights
Runway End Identifier Lights
A110-103 WIND TURBINES APPROX 100 FT TALL 1/4 MILE SOUTHWEST OF RWY 36 APPROACH END.
A110-12PILOTS ARE REQUESTED TO AVOID FLIGHTS BLW 1000 FT AGL FROM MAY 14 THROUGH SEP 14 IN THOSE AREAS OF ST. PAUL ISLAND WITH ACTIVE BIRD POPULATIONS, AND FLTS BLW 1000 FT AGL FROM SEP 14 THROUGH DEC 14 IN THOSE AREAS OF ST. PAUL ISLAND WITH COASTAL SEAL ROOKERIES.
A110-13NWS WEATHER BALLOON LAUNCH FACILITY LOCATED ON AIRPORT, SEE INSIDE BACK COVER FOR OPERATION DETAILS.
A110-2625 FT LIGHTED TOWER ONE MILE SW.
A110-345 FT TWR 350 FT WEST & 1000 FT NORTH THLD RWY 36 LGTD.
A110-9WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
ST PAUL ISLAND (ICAO: PASN, IATA: SNP) is a public airport located in ST PAUL ISLAND, AK.
