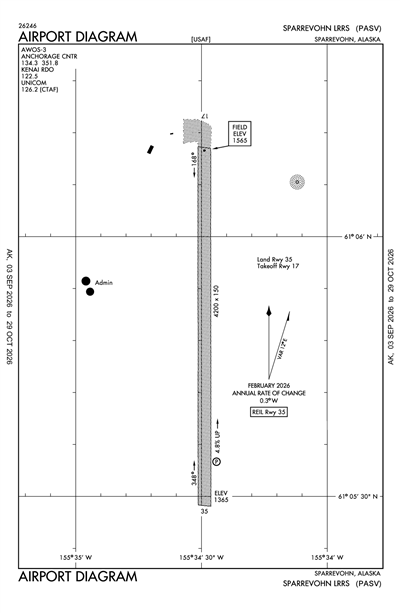

SPARREVOHN LRRS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PASV
ICAO PASVIATA SVWLocal SVW
SPARREVOHN LRRS
PrivatePVT

0 miles S of SPARREVOHN, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
61° 05' 50"N 155° 34' 29"W
Elevation
1565' MSL
Pattern Alt
2565' MSL
Mag Variation
13°E
Declination
12°E
Fuel
None Listed
FSS
KENAI (ENA)
Sectional
MC GRATH
ARTCC
ANCHORAGE (ZAN)
Data Effective
10/1/26-10/29/26
PASV IFR
2:55 PM AKDT
Overcast 800'
10sm
35°F
34°F
29.31"Hg
190° 8kts
AO2 SHRASNB2150E2158 SLP943 T00190010;
METAR PASV 192255Z AUTO 19008KT 160V220 10SM OVC008 02/01 A2931 RMK AO2 SHRASNB2150E2158 SLP943 T00190010;
+ Add Your Business

PASV FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 (907) 731-9001, (PHONE_NO) EXT 229.

Common

CTAF 126.2

Center

ANCHORAGE CENTER 134.3
HIGH, APCH/DEP SVC PRVDD BY ANCHORAGE ARTCC ON FREQS 134.3/351.8 (SPARREVOHN RCAG).

Flight Service

Flight Service 122.5
(ENA)

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Instrument Approach

Terminal Area Forecast

PAIL (83nm)
Mon, 10/19 3:28 PM AKDT
Mon, 10/19 4:00 PM AKDT - Tue, 10/20 4:00 PM AKDT
MVFR
4:00 PM AKDT - 7:00 PM AKDT
Light Rain and Mist
Broken 1,500'
5sm
160° 10kts
MVFR
7:00 PM AKDT - 11:00 PM AKDT
Mist
Overcast 2,500'
Broken 1,500'
5sm
210° 3kts
IFR
11:00 PM AKDT - 7:00 AM AKDT
Light Showers and Rain and Mist
Overcast 1,500'
Scattered 300'
2sm
260° 5kts
MVFR
7:00 AM AKDT - 4:00 PM AKDT
Showers in vicinity
Overcast 2,500'
6sm
290° 9kts
TAF PAIL 192328Z 2000/2024 16010KT 5SM -RA BR BKN015
   FM200300 21003KT 5SM BR BKN015 OVC025
   FM200700 26005KT 2SM -SHRA BR SCT003 OVC015
   FM201500 29009KT P6SM VCSH OVC025
PASV
EffectiveExpiresCategoryNOTAM
Domestic
10/19/26
1724Z
10/19/26
1900Z
Runway!SVW 10/002 SVW RWY 17/35 CLSD 2610191724-2610191900
9/21/26
0319Z
!SVW 09/006 SQA NAV VOR/DME NOT MNT 2609210319-2611011500EST
9/14/26
2122Z
8/1/27
2300Z
Runway!SVW 09/005 SVW RWY 17 RWY END ID LGT U/S 2609142122-2708012300
1/2/26
1803Z
12/31/26
2359Z
!PASV 01/005 SVW NAV CRN NDB U/S 2601021803-2612312359EST
1/2/26
1800Z
12/31/26
2359Z
!PASV 01/004 SVW OBST TOWER LGT (ASR UNKNOWN) 610546N1553410W (SQA080002) (CRN) 127FT (75 AGL) U/S 2601021800-2612312359EST
No
MON-FRI 0800-1700
CLSD HOLS.
US AIR FORCE
611 AIR SUPPORT GROUP 10471 20TH STREET, SUITE 361
ELMENDORF AFB, AK 99506
Phone: 907-552-3442
NICK HILTON
611 AIR SUPPORT SQUADRON 10471 20TH STREET, SUITE 222
ELMENDORF AFB, AK 99506
Phone: 907-552-4400
KENAI FSS (ENA)
Toll Free: 1-866-864-1737
SVW
--
--
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 17/35

4200 ft. x 150 ft.
GRAVEL
Good
NONE


--
--
--
--
  Runway 17 Runway 35
True Heading 180°360°
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition
Latitude 61° 06' 10"N 61° 05' 29"N
Longitude 155° 34' 29"W 155° 34' 29"W
Elevation 1,565' 1,365'
Threshold Crossing Height -- 52 ft. AGL
Visual Glide Path Angle -- 4°
Visual Slope Indicator -- P2R
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No Yes
A110-1MTS ALL QUADS; RWY ON SLP OF 3200 FT MT.
A110-11PPR ALL OPS; MNM 1 HR PRIOR TO DEP FOR SITE & NO EARLIER THAN DAY TRAVEL - D317-552-1244/1157/C907-552-1244/1157.
A110-12PAX MUST COORD BFR NON EMERG TRAVEL TO SITE - D317-552-4935/1089/C907-552-4935/1089.
A110-2GTR THAN 20 KT WIND/25 KT RADOME WIND MAY PRODUCE SVR TURB; RADOME WIND NOT ALWAYS AVBL.
A110-3APCH FM S; LND RWY 35 ONLY; TKOF RWY 17 ONLY; DALGT OPS ONLY. SUCCESSFUL GO AROUND IMPROBABLE.
A110-7AFT INITIAL RDO CTC ON 126.2 OR 121.5 EXP 30 MIN DLA FOR COND RPRT.
A110-8RADIO-121.5.
A110-9USAF FAC; CIV ACFT LNDG PMT RQRD BFR ARR; PMT RQRD ON BOARD; VIOLATORS FINED & RPTD TO FAA FSDOS IAW 32CFR855 & USAF OPRG INSTRNS - D317-552-5282/C907-552-5282 OR MAIL ATTN: 11 AF AMGR 10471 20TH ST SUITE 218 ELMENDORF AFB AK 99506.
A17-D1CLSD HOLS.
A18CLSD TO PUB; OFFL BUS ONLY.
A30-17/3560 FT OVRN S END.
A42-17_MARK4 FT ORANGE MKRS - THR MKD ON RWY END.
A42-35_MARK4 FT ORANGE MKRS - THR MKD ON RWY END.
A58-17HILL 1413.
SPARREVOHN LRRS (ICAO: PASV, IATA: SVW) is a private airport located in SPARREVOHN, AK, US.
