iFlightPlanner



...

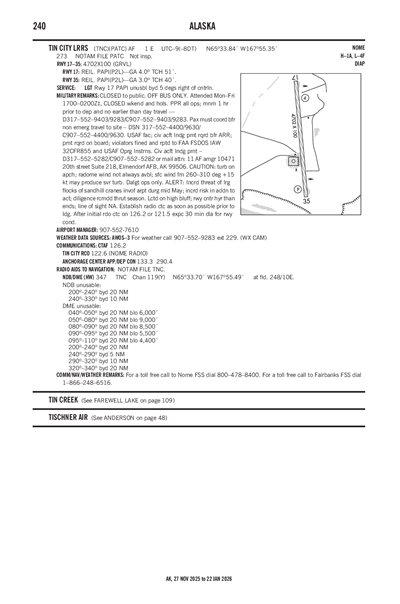

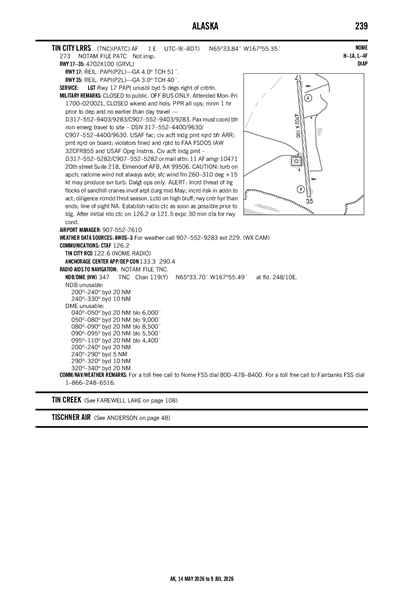

TIN CITY LRRS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PATC
TIN CITY LRRS
PrivatePVT

1 miles E of TIN CITY, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
65° 33' 51"N 167° 55' 21"W
273' MSL
1273' MSL
10E
None Listed
NOME (OME)
NOME
ANCHORAGE (ZAN)
4/18/24-5/16/24
PATC VFR
11:55 PM AKDT
Clear
10sm
17°F
15°F
30.10"Hg
030° 21kts
AO2 PK WND 02029/0709 SLP200 T10851095
PATC 010755Z AUTO 03021KT 10SM CLR M08/M09 A3010 RMK AO2 PK WND 02029/0709 SLP200 T10851095
List Your Business

PATC FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

PATC Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

PATC Hotels

No hotels are listed for this airport.

PATC Restaurants

No restaurants are listed for this airport.

PATC Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 126.2

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
PATC
Military
1/25/242003Z !PATC V0134/24 TNC AERODROME INSTRUMENT APPROACH PROCEDURE LIMITED NDB/DME RWY 34 CAT D CIRCLING NOT AUTHORIZED. 2401252003-2405312359
No
MON-FRI 0800-1700 CLSD WKEND & HOLS.
U.S. AIR FORCE
611TH AIR SUPPORT SQUADRON, 10471 20TH STREET, SUITE 361
ELMENDORF AFB, AK 99506-2270
Phone: 907-552-3442
NICK HILTON
611TH AIR SUPPORT SQUADRON, 10471 20TH STREET, SUITE 222
ELMENDORF AFB, AK 99506-2270
Phone: 907-552-4400
NOME FSS (OME)
Toll Free: 1-800-478-8400
PATC
--
--
N/A
Yes
No
Yes
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Cargo Handling

Runway 16/34

4702 ft. x 100 ft.

GRVL
NONE


--
--
--
--
  Runway 16 Runway 34
True Heading 175°355°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 65° 34' 14"N 65° 33' 27"N
Longitude 167° 55' 26"W 167° 55' 16"W
Elevation 257' 242'
Threshold Crossing Height 51 ft. AGL 40 ft. AGL
Visual Glide Path Angle 4° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1TURBC ON APPROACH. RADOME WINDS NOT ALWAYS AVBL.
A110-10CAUTION; SFC WNDS FM 260 THRU 310 DEGS IN EXCESS OF 15 KTS MAY PRODUCE SEVERE TURBULANCE.
A110-11WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-12CALP CTC DSN: 317-552-1448/4176 OR C907-552-1448/4176 E-MAIL: AKLANDINGPERMITS@ELMENDORF.AF.MIL. AFI 10-1001 IS NOW LCTD AT: HTTP://WWW.E-PUBLISHING.AF.MIL/SHARED/MEDIA/EPUBS/AFI 10-1001.PDF. MAIL CALP APPLICATION TO: ATTN: 11 AF AIRFIELD MANAGER 10471 20TH STREET SUITE 231 ELMENDORF AFB AK 99506.
A110-14CONTACT 11 AF AIRFIELD MANAGER FOR PERMITS 907-552-1448/4176.
A110-2AFTER INITIAL RADIO CONTACT ON FREQ 126.2 OR 121.5 EXPECT A 30 MIN DELAY FOR CURRENT AIRSTRIP CONDITION.
A110-3FLD ON HIGH BLUFF; RWY CENTER HIGHER THAN BOTH ENDS NO LINE OF SIGHT.
A110-4DAYLIGHT OPNS ONLY.
A110-5USAF INSTALLATION, ALL CIVIL ACFT OPERS REQ CIVIL ACFT LNDG PERMITS PRIOR TO LANDING AT FACILITY. FINES WILL BE LEVIED AGAINST VIOLATORS & REPORTS WILL BE FWDD TO FAA FSDOS IAW 32CFR855 & USAF OPERG INSTRGS. OPERS MUST HAVE ON BOARD A COPY OF CURRENT PERMIT.
A110-6BE ALERT; INCRD THREAT TO ACFT BY THE POSSIBLE PRESENCE OF LARGE NRS OF 'SANDHILL CRANES' IN THE AREA OF THE ARPT DURING MID MAY. THESE CRANES ARE QUITE LARGE (3 FT LONG WITH 6 1/2 FT WINGSPAN) AND SLOW FLYING. THEY FLY AND GRAZE IN LARGE FLOCKS.
A110-7THE INCRD RISK IS IN ADDITION TO THE BIRD ACTIVITIES IN THE RISK ANALYSIS OF WILDLIFE HAZARDS TO ACFT AT TIN CITY ARPT. DILIGENCE BY ALL PERSONNEL IS RECOMMENDED THROUGHOUT THE SEASON.
A110-8ALL MIL, GOVT AND CIV ACFT OPERATORS SHALL OBTAIN A PPR CTL NR A MIN OF 1-HR PRIOR TO DEP FOR SITE, REQUEST NO EARLIER THAN DAY OF PLANNED TRAVEL, CTC SITE PERSONNEL AT: DSN 317-552-9403/9283 C907-552-9403/9283.
A110-9PASSENGERS MUST COORDINATE ALL TRAVEL WITH ARS PROGRAM MANAGEMENT (DSN 317-552-4400/9630 OR C907-552-4400/9630) PRIOR TO ANY NON-EMERGENCY TRAVEL TO THE SITE.
TIN CITY LRRS (ICAO: PATC, IATA: TNC) is a private airport located in TIN CITY, AK.
